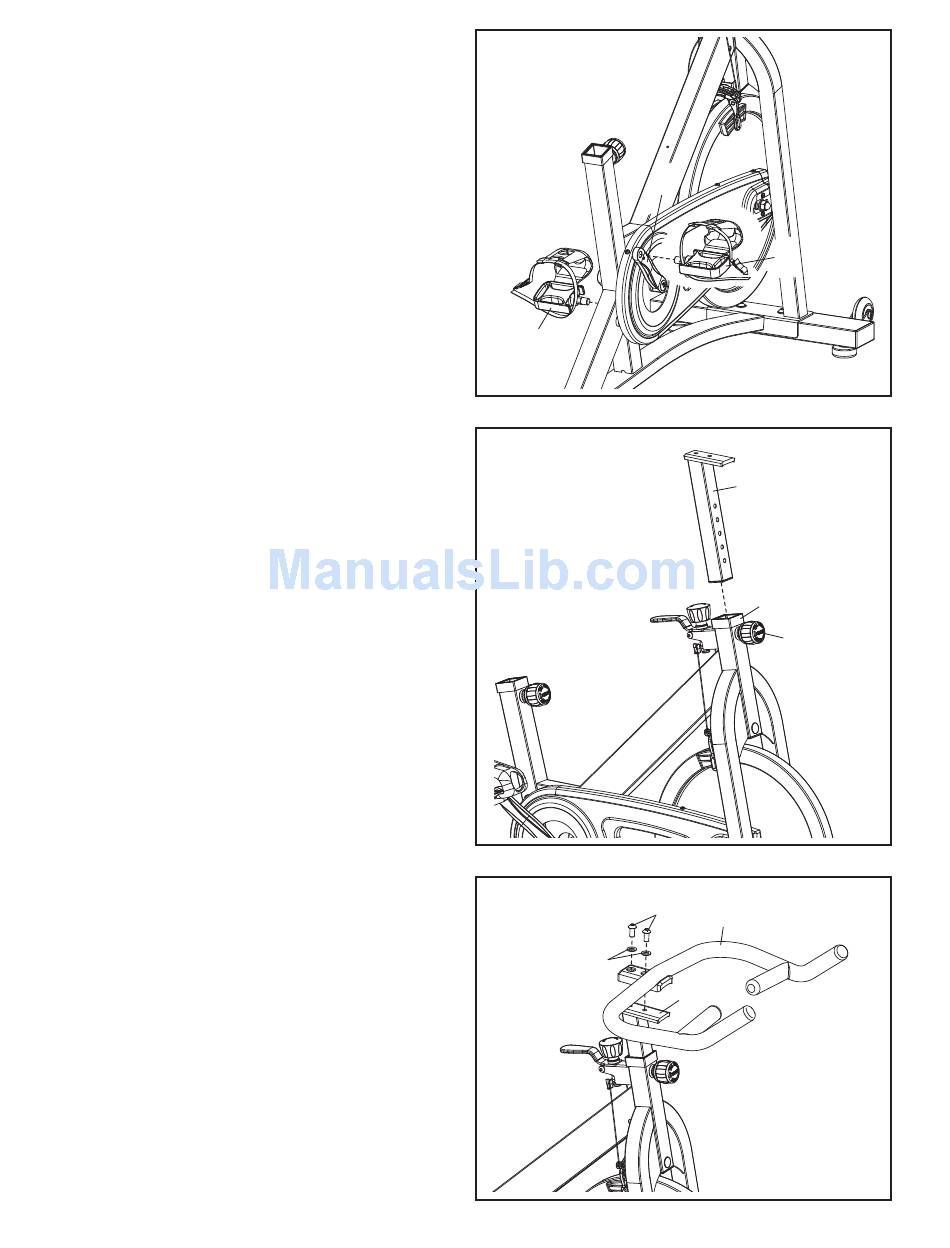

3. Identify the Right Pedal (35), which is marked
with an "R."

Using an adjustable wrench, firmly tighten the

Right Pedal (35) clockwise into the Right
Crank Arm (31).
Tighten the Left Pedal (38) counterclockwise
into the Left Crank Arm (not shown).
4. Orient the Handlebar Post (4) as shown.
Locate the Adjustment Knob (23) on the front of
the Frame (1). Loosen the Adjustment Knob
and pull it outward. Then, insert the Handlebar
Post (4) into the Frame.
Move the Handlebar Post (4) upward or down-
ward to the desired position, release the
Adjustment Knob (23) into an adjustment hole
in the Handlebar Post, and then tighten the
Adjustment Knob. Make sure that the
Adjustment Knob is firmly engaged in an
adjustment hole.
5. Attach the Handlebar (5) to the Handlebar Post
(4) with two M10 x 25mm Screws (34) and two
M10 Washers (33).
