87020-3.book Page i Tuesday, March 7, 2006 11:02 AM

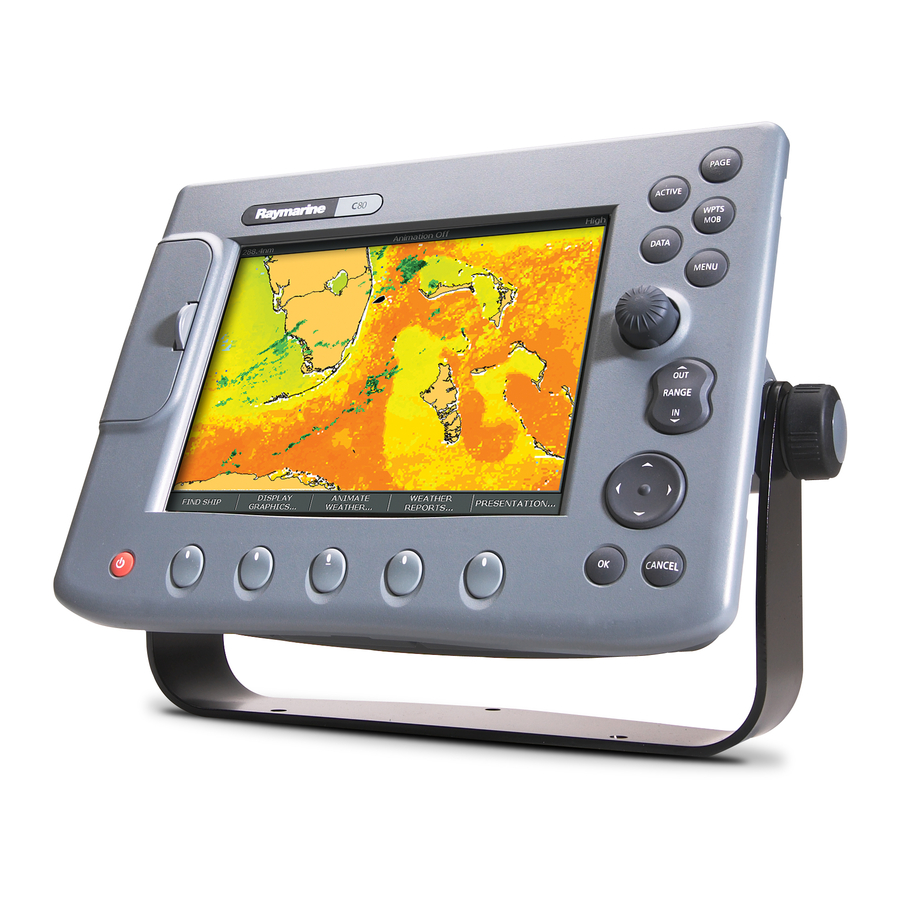

C-Series Display
Installation Manual
Document Number: 87020-3
Date: March 2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Raymarine C-series

Summary of Contents for Raymarine C-series

  • Page 1 87020-3.book Page i Tuesday, March 7, 2006 11:02 AM C-Series Display Installation Manual Document Number: 87020-3 Date: March 2006...

  • Page 2: Trademarks And Registered Trademarks

    Autohelm, HSB, Raymarine, RayTech, RayTech Navigator, Sail Pilot, SeaTalk and Sportpilot are registered trademarks of Raymarine Limited. Apelco is a registered trademark of Raymarine Holdings Limited (Registered in all major marketing territories). AST, Autoadapt, Auto GST, Autoseastate, Autotrim, Bidata, Marine...

  • Page 3: Important Information

    Intended use This handbook provides information and instructions to assist in planning and installing your Raymarine C-Series Display, together with information that will be useful when you are connecting the C-Series Display to other equipment. In order to obtain the best results in operation and performance, please read this handbook thoroughly.
  • Page 4 EMC Conformance All Raymarine equipment and accessories are designed to the best industry standards for use in the recreational marine environment. The design and manufacture of Raymarine equipment and accessories conform to the appropriate Electromagnetic Compatibility (EMC) standards, but correct installation is required to ensure that performance is not compromised.

  • Page 5: Handbook Information

    Handbook information To the best of our knowledge, the information in this handbook was correct when it went to press. However, Raymarine cannot accept liability for an inaccuracies or omissions it may contain. In addition, our policy of continuous product improvement may change specifications without notice.
  • Page 6 87020-3.book Page iv Tuesday, March 7, 2006 11:02 AM C-Series Displays Installation Manual...

  • Page 7: Table Of Contents

    Media storage cards ..................13 Navionics Chart cards ................13 CompactFlash cards ................14 2.4 Functionality .......................14 Data or equipment required for applications/functions .........14 2.5 How is the C-Series display integrated? ..............16 SeaTalk system ....................16 Integrated system1 ..................17 Integrated system 2 ..................18 Integrated system 3 ..................19...
  • Page 8 87020-3.book Page 2 Tuesday, March 7, 2006 11:02 AM C-Series Displays Installation Manual Chapter 3: Installation .....................21 3.1 Introduction ......................21 3.2 Mounting the display ..................21 Trunnion mount ....................21 Flush mount ....................22 Attaching the front bezel ................24 Removing the front bezel ................25 3.3 Cables .........................26...
  • Page 9 Chapter 5: Troubleshooting ..................45 5.1 How can I troubleshoot my Display? ..............45 5.2 Technical Support ....................46 World wide web ....................46 Help us to help you ..................46 Contacting Raymarine in the US ..............47 Accessories and parts ................47 Product repair and service ...............47...
  • Page 10 87020-3.book Page 4 Tuesday, March 7, 2006 11:02 AM C-Series Displays Installation Manual...

  • Page 11: Chapter 1: Preparation For Installation

    87020-3.book Page 5 Tuesday, March 7, 2006 11:02 AM Chapter 1: Preparation for installation Chapter 1: Preparation for installation 1.1 General information Contents of this pack The C-Series (C70, C80 or C120) Display pack contains the following items: Part No. Item Quantity C-70...

  • Page 12: Dimensions

    87020-3.book Page 6 Tuesday, March 7, 2006 11:02 AM C-Series Displays Installation Manual Dimensions The dimensions for your C-Series display are: C70 Display PAGE ACTIVE WPTS DATA MENU RANGE CANCEL 9.5 mm (0.375 in) 253 mm (10 in) 89.4 mm (3.5 in)

  • Page 13: C120 Display

    Raymarine accessories and parts can be obtained from your authorized Raymarine dealer. However, if you are in need of an item not available from the retailer or you are uncertain what item to choose for your Display, please contact Raymarine direct (see page 46...

  • Page 14: Planning The Installation

    This will not damage the equipment, but may cause the loss of some infor- mation and may change the operating mode. • Raymarine specified cables are used. Cutting and rejoining these cables can com- promise EMC performance and must be avoided unless doing so is detailed in the installation manual.

  • Page 15: Suppression Ferrites

    Raymarine. D6626-1 Connections to other equipment If your Raymarine equipment is to be connected to other equipment using a cable not supplied by Raymarine, a suppression ferrite MUST always be attached to the cable near to the Raymarine unit.
  • Page 16 87020-3.book Page 10 Tuesday, March 7, 2006 11:02 AM C-Series Displays Installation Manual...

  • Page 17: Chapter 2: System Integration

    SeaTalk SeaTalk is an enhanced replacement for SeaTalk and is a proprietary extension to NMEA 2000 and the proven CAN bus technology. It enables other Raymarine SeaTalk devices to talk to each other, whilst maintaining near transparent NMEA 2000 compatibility.

  • Page 18: What Is Nmea

    Pathfinder Radar Scanner Handbook, Document No. 81154_8, dated 12th January 2005. To achieve full radar compatibility with your C-Series Display, your Raymarine radar scanner may require upgrading. Please check the list below to see if this upgrade is required.

  • Page 19: Digital Sounder Module

    Media storage cards Navionics Chart cards To use your C-Series Display as a navigation aid, charts with detailed information for ® the area you wish to navigate are required. The charts are available on Navionics Chart cards.

  • Page 20: Compactflash Cards

    Outside of North America, contact your local dealer or call Navionics SpA on tel: (+39) 0584 961696 or fax: (+39) 0584 961309. CompactFlash cards It is possible to archive or transfer information to and from your C-Series display and other compatible instruments using CompactFlash cards. To achieve the best results it ®...
  • Page 21 Chapter 2: System Integration Engine output from a compatible engine manufacturer is also required. See Raymarine.com for latest compatibility information. Whilst an AIS receiver is not required for the radar and chart applications to function, this receiver is necessary if AIS functionality is required within radar and chart.

  • Page 22: How Is The C-Series Display Integrated

    12v or 24v Power D6610-2 In this system: • C-Series powers SeaTalk for an alpha numeric keypad and RS120. • The DSM has a dedicated cable supplied with the unit and does not require a termi- nator at the C-Series end.

  • Page 23: Integrated System1

    D6622-3 In this system: • SeaTalk is powered independently. • SeaTalk bus must remain powered when C-Series is off so that the radio continues to receive GPS data. • Open arrays must be powered using the split cable. • AIS or Navtex receiver connected via NMEA 0183 cable...

  • Page 24: Integrated System 2

    87020-3.book Page 18 Tuesday, March 7, 2006 11:02 AM C-Series Displays Installation Manual Integrated system 2 Open Array: 4 ft, 4kW - 12v/24v Wind Transducer 6 ft, 10kW - 24v VHF/DSC Radio RS232 Interface box RAY240 MENU 16/9 HI/LO Power IN...

  • Page 25: Integrated System 3

    87020-3.book Page 19 Tuesday, March 7, 2006 11:02 AM Chapter 2: System Integration Integrated system 3 Open Array Wind Transducer AIS receiver or Navtex receiver VHF/DSC Radio RAY240 Power IN MENU 16/9 HI/LO (12v or 24v) SCAN WATCH C120 PAGE ACTIVE Wind Depth...
  • Page 26 87020-3.book Page 20 Tuesday, March 7, 2006 11:02 AM C-Series Displays Installation Manual...

  • Page 27: Chapter 3: Installation

    Scanner Handbook, Document No. 81154_8, dated 12th January 2005. 3.1 Introduction This chapter provides instructions for installing your C-Series Display. You may find that your system does not use all the protocols or contain all of the instrumentation that is described.

  • Page 28: Flush Mount

    87020-3.book Page 22 Tuesday, March 7, 2006 11:02 AM C-Series Displays Installation Manual D6739_1 6. Locate the bezel over the front of the display. See “Attaching the front bezel” on page 24. 7. Check that the buttons have passed through the bezel and are free to operate. It is suggested that you use your thumb or forefinger in a circular motion to do this.
  • Page 29 87020-3.book Page 23 Tuesday, March 7, 2006 11:02 AM Chapter 3: Installation 3. Using a suitable hole saw (the size is indicated on the template), make a pilot hole in each corner of the cut-out area. D6738_1 4. Using a suitable saw, cut along the inside edge of the cut-out line. 5.

  • Page 30: Attaching The Front Bezel

    15-19 19-23 Attaching the front bezel After you have installed the C-Series Display in the required position, you should attach the front bezel as follows: D6760-1 1. Carefully lift one edge of the screen protection film, so that it is accessible for...

  • Page 31: Removing The Front Bezel

    87020-3.book Page 25 Tuesday, March 7, 2006 11:02 AM Chapter 3: Installation 2. Place the bezel over the front of the C-Series Display, ensuring that locking lugs located at the bottom edge of the bezel are latched into position. 3. Ensure that the control buttons pass through their respective openings.

  • Page 32: Cables

    - DO NOT USE A SCREWDRIVER FOR THIS AS IT WILL DAMAGE THE CLIPS. 5. Remove the bezel from the display. 3.3 Cables This section details how to instal and connect all the relevant cables to your C-Series Display: Siting and securing cables Please note the following: •...

  • Page 33: Using Cable Splicers

    87020-3.book Page 27 Tuesday, March 7, 2006 11:02 AM Chapter 3: Installation C-Series cable connections SeaTalk Seatalk/Alarm out Digital Sounder (2m) Module (DSM) Power (1.5m) Supplied Not supplied/accessory NMEA (1.5m) Using cable splicers The cable splicers are used to make the connections from the SeaTalk/Alarm out and NMEA 0183 cables easy and secure, without removing insulation from cable tails.

  • Page 34: Power Cable (R08003)

    4. Ensure that the cables are secured in a suitable position to prevent the join being placed under strain. Power cable (R08003) The C-Series Display is intended for use on boats’ DC power systems rated at 12v or 24v. The power connection should be made at either the output of the battery isolating switch, or at a DC power distribution panel.

  • Page 35: Seatalk Cable

    87020-3.book Page 29 Tuesday, March 7, 2006 11:02 AM Chapter 3: Installation Fuse, circuit breaker and switch ratings Radar scanner? Device Rating with fuse 6.3 amp anti-surge fuse with isolator switch 10amp with thermal circuit breaker 5 amp Refer to the fuse notification in the scanner handbook. SeaTalk cable The SeaTalk cable is supplied with stripped tails.

  • Page 36: Fishfinder Cable

    • 3m cable - E65010 (supplied with the DSM 300) • 10m cable - E65011 (accessory) Radar cable (not supplied) Having ensured that the radar scanner you are using is compatible with the C-Series page 13 Display (see page ), the cable should be connected as follows: Connecting a radome If you are using a radome this can be powered through the display.Run your cable and...

  • Page 37: Connecting To An Open Array

    If you are using an open array, this cannot be powered through the display. You will need to purchase a split pedestal cable or open array package and connect the array and display as shown: ...for new installations Open Array Split pedestal cable (15 or 25 metres) C-Series Display PAGE ACTIVE WPTS/ DATA MENU RANGE...

  • Page 38: To Replace A Raymarine Pathfinder Display

    Cable splitter Connect to (ground) boat's DC open array power supply scanner cable D6620-2 The split pedestal cables are available from your local Raymarine dealer as follows: Part No Description E05017 25m Split pedestal cable E05018 15m Split pedestal cable E05019 Pedestal adaptor cable ...
  • Page 39 87020-3.book Page 33 Tuesday, March 7, 2006 11:02 AM Chapter 3: Installation Split pedestal cable To Open Array Scanner To power To display Note: You should ensure that the distance (cable route) from the power supply to the open array is kept to a minimum. D7209-1...
  • Page 40 87020-3.book Page 34 Tuesday, March 7, 2006 11:02 AM C-Series Displays Installation Manual...

  • Page 41: Chapter 4: Commissioning The System

    87020-3.book Page 35 Tuesday, March 7, 2006 11:02 AM Chapter 4: Commissioning the system Chapter 4: Commissioning the system 4.1 Introduction This chapter details the commissioning of your C-Series Display and includes the following: • Required input. • Pre-start checks.

  • Page 42: Initial Power On Procedure

    87020-3.book Page 36 Tuesday, March 7, 2006 11:02 AM C-Series Displays Installation Manual Check that the GPS has a clear view of the sky and is not obstructed e.g. by buildings, bridges or other equipment fitted on-board. Other equipment For details of pre-start checks for other equipment e.g. AIS and Navtex receivers, please refer to the relevant handbook.

  • Page 43: Tests And Checks

    4.4 Tests and checks Test and align the radar Your C-Series display is part of an integrated system. Raymarine strongly advise that you test and align the radar before connecting to other systems. To test and align the radar you must first select a radar application. With the Select Page Set screen displayed (see previous section): 1.

  • Page 44: Radar Alignment Checks

    87020-3.book Page 38 Tuesday, March 7, 2006 11:02 AM C-Series Displays Installation Manual Radar alignment checks You should check the bearing and display timing alignment to ensure that an accurate picture is shown. Bearing alignment Adjusting the bearing alignment ensures that targets appear at the correct bearing relative to your boat’s bow.

  • Page 45: Adjusting The Bearing Alignment

    87020-3.book Page 39 Tuesday, March 7, 2006 11:02 AM Chapter 4: Commissioning the system Adjusting the bearing alignment 1. If moored, move the EBL to calculate bearing. 2. With a radar application in the active, press MENU. The Set Up menu is displayed. 3.

  • Page 46: Checking Heading Data

    The option to select differential or satellite differential fix is dependent upon the capabilities of the attached GPS. If your boat is equipped with a Raymarine GPS, the Differential GPS can be switched on or off using the appropriate soft key.

  • Page 47: Testing The Fishfinder Application

    87020-3.book Page 41 Tuesday, March 7, 2006 11:02 AM Chapter 4: Commissioning the system 3. Zoom out with the RANGE button until the world map is visible. 4. To ensure that the display is responding to position data: i. Press FIND SHIP. ii.

  • Page 48: Testing Instrument Data

    • A GPS. • A Compass - although not essential, this will enhance performance. When the AIS unit is connected to the C-Series display, the status of the unit is indicated by an AIS icon in the transducer data box.

  • Page 49: Advanced Settings

    87020-3.book Page 43 Tuesday, March 7, 2006 11:02 AM Chapter 4: Commissioning the system AIS unit not available i.e. not connected or off. AIS unit switched on and operating. AIS unit on with active alarm. AIS unit switched on and operating but dangerous &...

  • Page 50: Display Timing

    The display timing can be affected by the length of cable used to connect the scanner to your C-Series display. This will in turn affect the short range accuracy of the radar. A symptom of incorrect timing is that bridges or piers shown on the picture appear to be bowed i.e.

  • Page 51: Chapter 5: Troubleshooting

    • Check your boat’s power supply for faulty connections or insufficient cable diameter. How do I upgrade my Display software? Visit www.raymarine.com and click on Support to download the latest software. Follow the instruc- tions included with these downloads. How do I reset my display? Via the system setup menu.

  • Page 52: Technical Support

    For fastest support - 24 hours a day, seven days a week; go to the Frequently Asked Questions section. Most questions are answered here. The website will also give you servicing information, e-mail access to the Raymarine Technical Support Department and details of the locations of Raymarine agents, worldwide.

  • Page 53: Contacting Raymarine In The Us

    87020-3.book Page 47 Tuesday, March 7, 2006 11:02 AM Chapter 5: Troubleshooting Contacting Raymarine in the US You can contact Raymarine in the US either using the Raymarine world wide web as detailed above or by calling one of the telephone numbers below. Accessories and parts You can obtain many Raymarine accessories and parts directly from your authorized Raymarine dealer.
  • Page 54 87020-3.book Page 48 Tuesday, March 7, 2006 11:02 AM C-Series Displays Installation Manual...
