LS41TDF-1

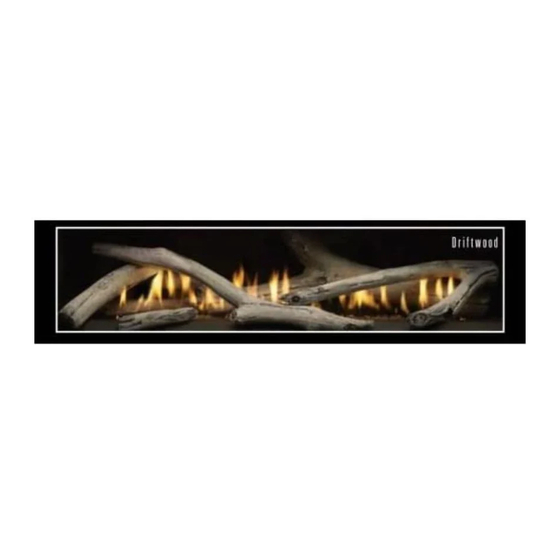

DRIFTWOOD LOGS
WARNINGS
If the information in this manual is not followed ex-
actly, a fire or explosion may result causing property
damage, personal injury or loss of life.
–
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
–
Installation and service must be performed by a
qualified installer, service agency or the gas sup-
plier.
WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any
phone in your building.
•
Immediately call your gas supplier from neighbor's
phone. Follow the gas supplier's instructions.
•
If you cannot reach your gas supplier, call the fire
department.
INSTALLATION INSTRUCTIONS
AND
OWNER'S MANUAL
LOG SET FOR USE WITH
DIRECT VENT FIREPLACE
MODELS:
DVTL41BP90(N,P)-1
GAS-FIRED
INSTALLER:
Leave this manual with the appliance.
CONSUMER: Retain
reference.
WARNING: If not installed, operated and maintained
in accordance with the manufacturer's instructions,
this product could expose you to substances in fuel
or from fuel combustion which can cause death or
serious illness.
EMPIRE
EMPIRE
Comfort Systems
this
manual
for
future
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Boulevard LS41TDF-1
Summary of Contents for Boulevard LS41TDF-1
-
Page 1: Installation Instructions
INSTALLATION INSTRUCTIONS EMPIRE EMPIRE OWNER’S MANUAL Comfort Systems LS41TDF-1 LOG SET FOR USE WITH DRIFTWOOD LOGS DIRECT VENT FIREPLACE MODELS: DVTL41BP90(N,P)-1 GAS-FIRED WARNINGS If the information in this manual is not followed ex- actly, a fire or explosion may result causing property INSTALLER: Leave this manual with the appliance. -
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION PAGE Important Installation Guidelines ................3 General Information ....................3 Log Identification ......................4 Log Placement ....................5 - 10 Master Parts Distributor List ................... 11 How To Order Repair Parts ..................11 Page 2 33591-1-0414... -
Page 3: Important Installation Guidelines
IMPORTANT INSTALLATION GUIDELINES Proper Log Placement Log placement is critical to proper burner performance. Logs must be correctly positioned. The photos in this manual show the proper pinned position for logs on this set. Owners need to be shown proper log placement and instructed not to move the logs. -
Page 4: Log Identification
LOG IDENTIFICATION PART TOP VIEW FRONT VIEW DESCRIPTION NUMBER Back Log (A) 33570 Left Logs (B) 33572 Cross Branch (C) 33573 Right Branch (D) 33571 Front Twig (E) 33574 Page 4 33591-1-0414... -
Page 5: Log Placement
LOG PLACEMENT Before you begin: Do not, handle these logs with your bare hands! Always wear gloves to prevent skin irritation. After handling logs, wash your hands gently with soap and water. All Logs The positioning of the logs is critical to the safe and clean operation of this heater. Sooting and other problems may result if the logs are not properly and firmly positioned in the appliance. - Page 6 LOG PLACEMENT Place the Back Log (A) onto the rear of the burner cover. Center the log so that the ends of the log are approximately 2 inches from the sides of the firebox. Note: The back log may require some rotation so it rests against the rear wall of the firebox. TOP VIEW FRONT VIEW Page 6...
- Page 7 LOG PLACEMENT Place the Left Log (B) onto the left pin on the Back Log (A) and angled down to the left wall of the firebox. TOP VIEW FRONT VIEW 33591-1-0414 Page 7...
- Page 8 LOG PLACEMENT Place Cross Branch (C) onto the pin on the Left Log (B) and the middle pin on the burner cover. TOP VIEW FRONT VIEW Page 8 33591-1-0414...
- Page 9 LOG PLACEMENT Place Right Branch (D) onto the right pin on the Back Log (A) and the right pin on the burner cover. The left twig of the Righ Branch will rest on Cross Branch (C). TOP VIEW FRONT VIEW 33591-1-0414 Page 9...
- Page 10 LOG PLACEMENT Place Front Twig (E) onto the left pin on the burner cover as shown below. TOP VIEW FRONT VIEW Page 10 33591-1-0414...
-
Page 11: Master Parts Distributor List
Please note: Master Parts Distributors are independent businesses that stock the most commonly ordered Original Equip- ment repair parts for Heaters, Grills, and Fireplaces manufactured by Empire Comfort Systems Inc. Dey Distributing Victor Division of F. W. Webb Company 1401 Willow Lake Boulevard 200 Locust Street Vadnais Heights, MN 55101 Hartford, CT 06114... - Page 12 Empire Comfort Systems Inc. EMPIRE EMPIRE 918 Freeburg Ave. Belleville, IL 62220 If you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer. Comfort Systems www.empirecomfort.com Page 12 33591-1-0414...
