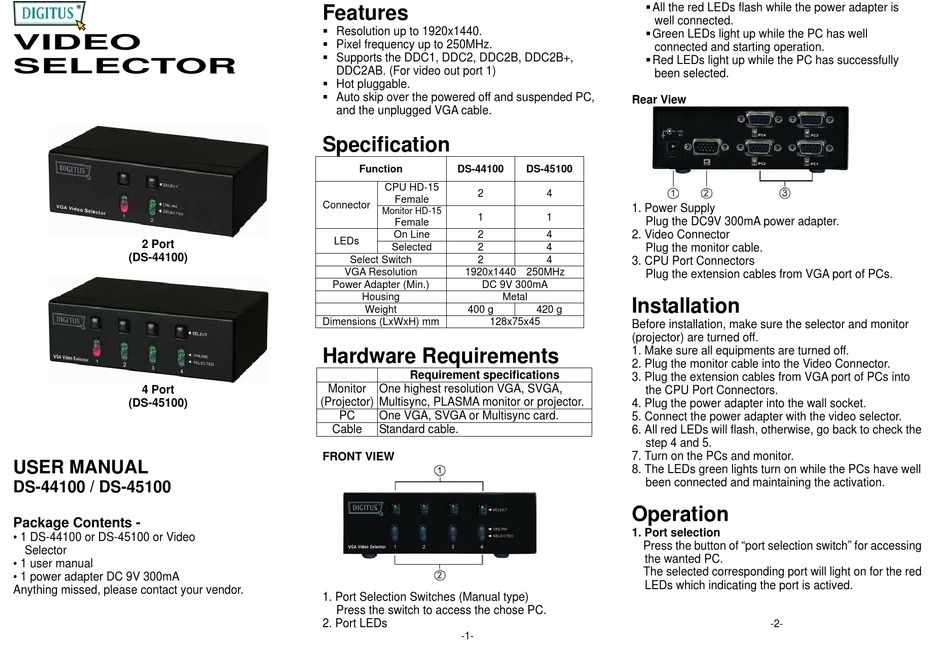

Digitus DS-44100 User Manual

VIDEO
SELECTOR
2 Port
(DS-44100)
4 Port
(DS-45100)

USER MANUAL

DS-44100 / DS-45100

Package Contents -

• 1 DS-44100 or DS-45100 or Video
Selector
• 1 user manual
• 1 power adapter DC 9V 300mA
Anything missed, please contact your vendor.

Features

 Resolution up to 1920x1440.
 Pixel frequency up to 250MHz.
 Supports the DDC1, DDC2, DDC2B, DDC2B+,
DDC2AB. (For video out port 1)
 Hot pluggable.
 Auto skip over the powered off and suspended PC,
and the unplugged VGA cable.

Specification

Function DS-44100
CPU HD-15
2
Female
Connector
Monitor HD-15
1
Female
On Line 2
LEDs
Selected 2
Select Switch 2
VGA Resolution 1920x1440 250MHz
Power Adapter (Min.) DC 9V 300mA
Housing
Weight 400 g
Dimensions (LxWxH) mm 128x75x45

Hardware Requirements

Requirement specifications
Monitor One highest resolution VGA, SVGA,
(Projector) Multisync, PLASMA monitor or projector.
PC One VGA, SVGA or Multisync card.
Cable Standard cable.

FRONT VIEW

1. Port Selection Switches (Manual type)
Press the switch to access the chose PC.
2. Port LEDs
-1-
 All the red LEDs flash while the power adapter is
well connected.
 Green LEDs light up while the PC has well
connected and starting operation.
 Red LEDs light up while the PC has successfully
been selected.

Rear View

DS-45100
4
1. Power Supply
1
Plug the DC9V 300mA power adapter.
4 2. Video Connector
4 Plug the monitor cable.
4
3. CPU Port Connectors
Plug the extension cables from VGA port of PCs.
Metal

Installation

420 g
Before installation, make sure the selector and monitor
(projector) are turned off.
1. Make sure all equipments are turned off.
2. Plug the monitor cable into the Video Connector.
3. Plug the extension cables from VGA port of PCs into
the CPU Port Connectors.
4. Plug the power adapter into the wall socket.
5. Connect the power adapter with the video selector.
6. All red LEDs will flash, otherwise, go back to check the
step 4 and 5.
7. Turn on the PCs and monitor.
8. The LEDs green lights turn on while the PCs have well
been connected and maintaining the activation.

Operation

1. Port selection
Press the button of "port selection switch" for accessing
the wanted PC.
The selected corresponding port will light on for the red
LEDs which indicating the port is actived.
-2-
