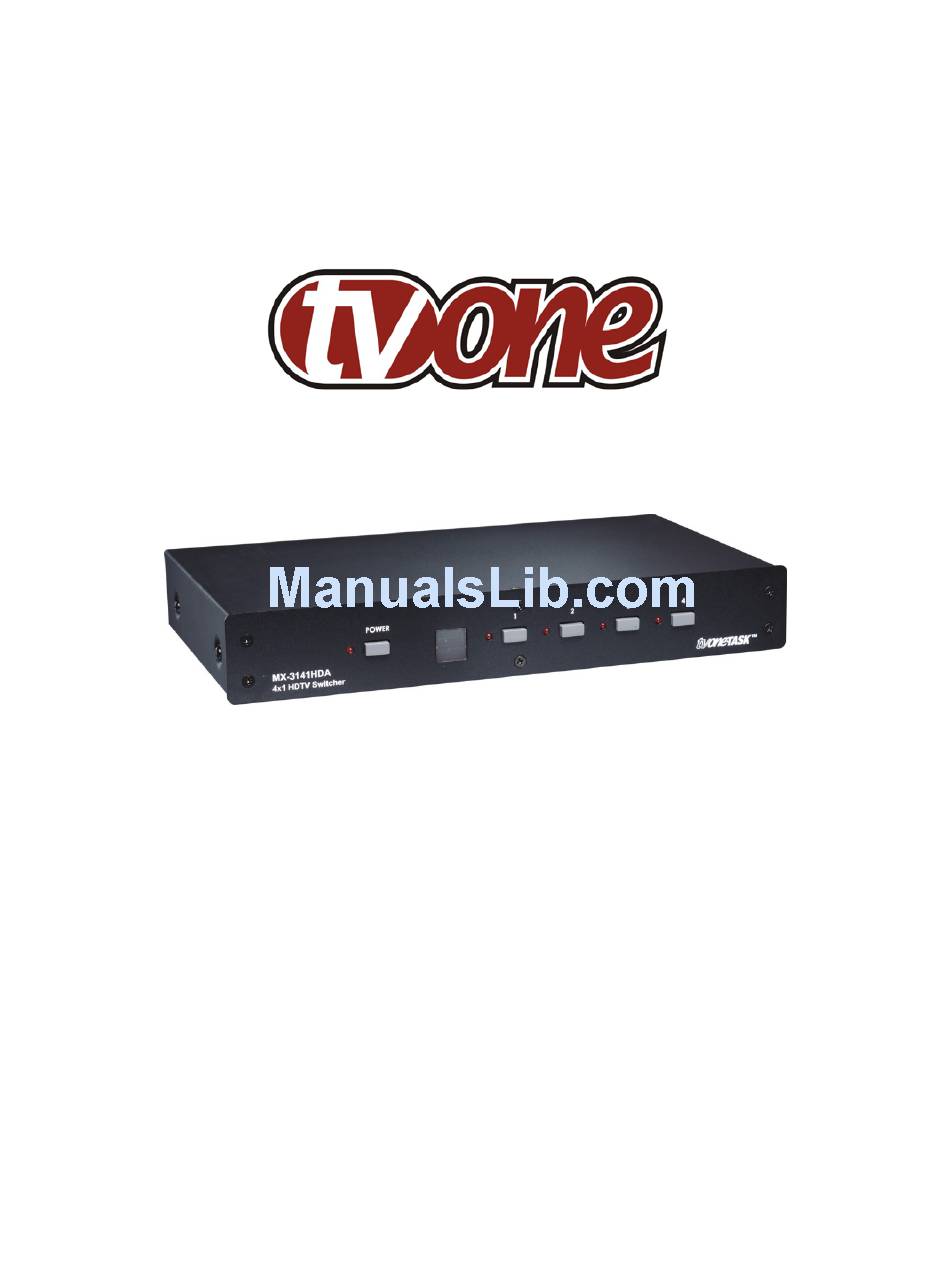

Instruction Manual

MX-3141HDA
HDTV Video and Audio
Routing Switcher

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-3141HDA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TV One MX-3141HDA

  • Page 1: Instruction Manual

    Instruction Manual MX-3141HDA HDTV Video and Audio Routing Switcher...
  • Page 3: Table Of Contents

    Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance RS-232 Protocols 10.0 Contact Information...
  • Page 4: Introduction

    Cat.5 Transmission Systems. Liability Statement Every effort has been made to ensure that this product is free of errors. TV One cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. It is the responsibility of the user of the hardware to check that it is suitable for his/her requirements and that it is installed correctly.
  • Page 5: Specifications

    SPECIFICATIONS Video Inputs MX-3141HDA 4x YPbPr via RCA Audio Inputs MX-3141HDA 4x via RCA + 4x Coaxial via RCA Video Outputs MX-3141HDA 1x YPbPr via RCA Audio Outputs MX-3141HDA 1x via RCA + 1x Coaxial via RCA Performance Video Bandwidth...
  • Page 6: Checking Package Contents

    Note: Please retain the original packing material should the need ever arise to return the unit. If you find any items are missing, contact your reseller or TV One immediately. Have the Model Number, Serial Number and Invoice available for reference when you call.
  • Page 7: Operating The Unit

    In order for the remote to function properly, the small square window on the front of the MX-3141HDA must be unobstructed and not in sunlight or extremely bright artificial light and the distance from the IR remote and the switcher should not be more than found in a standard residential room.
  • Page 8: Limited Warranty

    Should this product, in TV One’s opinion, prove defective within this warranty period, TV One, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of TV One. This warranty does not apply...
  • Page 9: Rs-232 Protocols

    RS-232 PROTOCOLS RS-232 Transmission Protocols: Baud Rate: 9600 bps Data Bit: 8 Bits Parity: None Stop Bit: Interconnect: MX-3141 Switcher Remote Controller Definition Definition Command Code Comment “I” + “1” Port 1 On “I” + “2” Port 2 On “I” + “3” Port 3 On “I”...
  • Page 10: Contact Information

    10.0 CONTACT INFORMATION Should you have questions or require assistance with this product in areas not covered by this manual, please contact TV One at the appropriate location shown below: TV One USA TV One Europe 2791 Circleport Drive Continental Approach...
