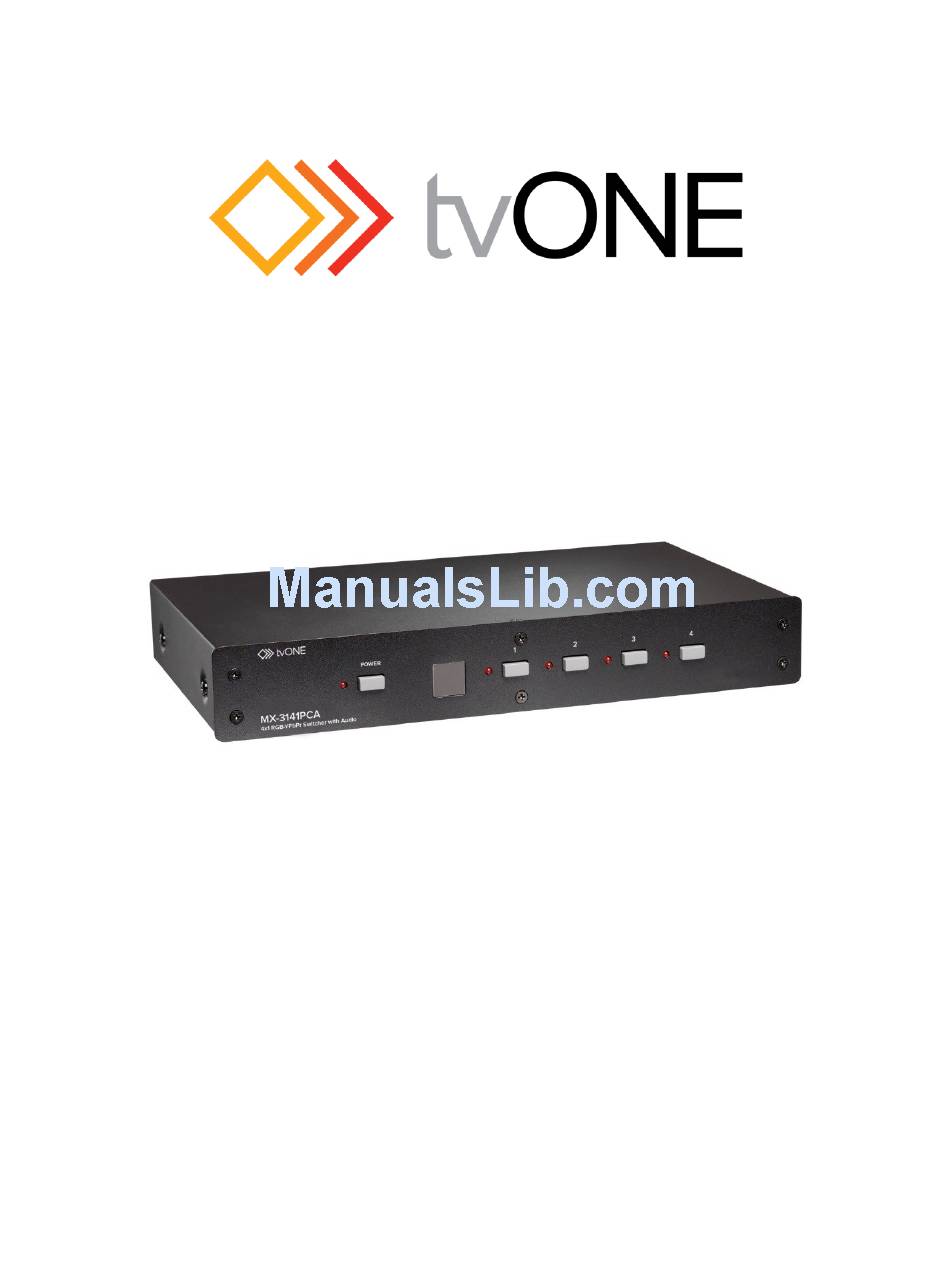

Page 1: Instruction Manual
Instruction Manual MX-3141PCA HDTV/PC Video and Audio Routing Switcher... -
Page 2: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information... -
Page 3: Introduction
Features The MX-3141PCA 4x1 HDTV Video and Audio Switcher has many features that enable it to perform in a superior manner. Among those features you will find: Supports HDTV video: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p ... -
Page 4: Specifications
SPECIFICATIONS: Audio/Video Inputs RGBHV/YPbPr 4x via HD-15 Analog Stereo 4x via 3.5mm Mini-Jack Audio/Video Outputs RGBHV/YpbPr 1x via HD-15 Analog Stereo 1x via 3.5mm Mini-Jack Additional I/O RS-232 Control 1x via DB-9 Connector Supported Signals VGA, SVGA, XGA, SXGA, UXGA, WUXGA (1920x1200) HDTV 480i, 576i, 480p, 576p, 720p, 1080i, 1080p Performance... -
Page 5: Checking Package Contents
PACKAGE CONTENTS Before att empting to use this unit, please check the packaging and make certain the following items are contained in the shipping carton: 1x MX-3141PCA Routing Switcher 1x Rack Mount Kit 1x AC Power Adapter ... -
Page 6: Operating The Unit
PC video and YPbPr Component video as inputs to the MX-3141PCA. It is important however to realize that the monitor or other device connected to the switcher’s output must be capable of displaying both PC video and YPbPr video else there will be faulty displays or no display present. -
Page 7: Troubleshooting
Baud Rate: 9600 bps Data bit: 8 Bits Parity: None Stop Bit: 1 bit Flow Control: None The RS-232 control codes used by the MX-3141PCA are as follows: ASCII Code Meaning “I” + “1” Port 1 On “I” + “2”... -
Page 8: Limited Warranty
LIMITED WARRANTY tvONE warrants the original purchaser that the equipment it manufactures or sells will be free from defects in materials and workmanship for a fixed term from the date of purchase. The warranty term for specific product lines is defined below. 1. -
Page 9: Regulatory Compliance
REGULATORY COMPLIANCE The MX-3141PCA Routing Switcher has been tested for compliance with the appropriate FCC and CE rules and regulations. The power adaptor/supply has been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, regulations and/or guidelines. This product is RoHS compliant.
