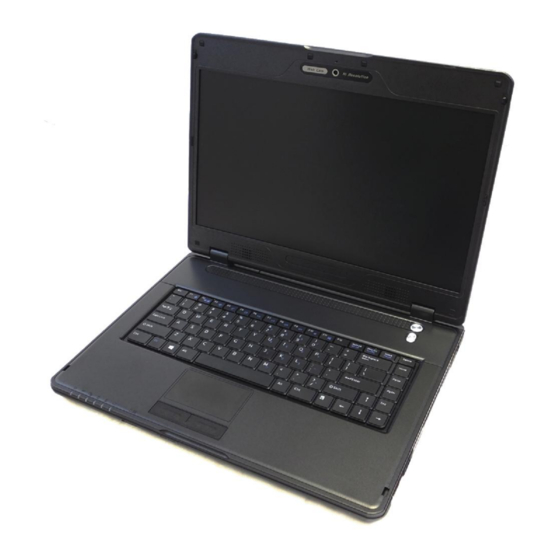

Semi-rugged notebook
Hide thumbs
Table of Contents

Advertisement

Quick Links

DURABOOK®S15H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S15H and is the answer not in the manual?

Questions and answers

Related Manuals for Durabook S15H

Summary of Contents for Durabook S15H

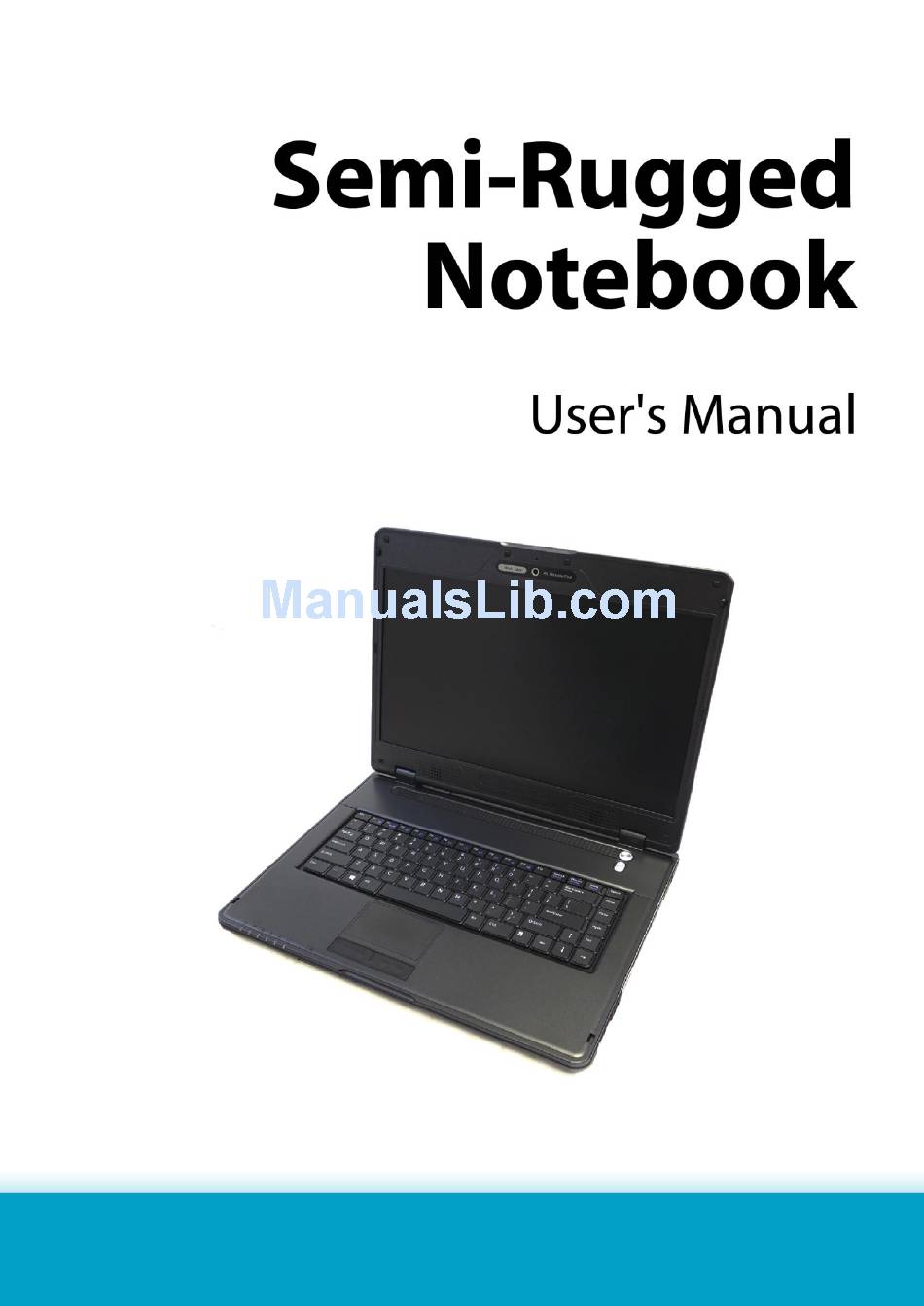

  • Page 1 DURABOOK®S15H...

  • Page 2: Table Of Contents

    Table of Contents ....................4 OPYRIGHT ................. 4 EGULATORY TATEMENT Federal Communications Commission Statement ......................4 Declaration of Conformity ............................... 4 RF exposure warning ................................ 5 Battery Disposal ................................5 CLASS 1 LASER PRODUCT ............................5 BEFORE YOU START ..............7 ..................
  • Page 3 ..............25 SING THE PTICAL RIVE Placing a Disc ................................. 25 CONNECTING TO WIRELESS CONNECTIONS ......26 ..........26 ONNECTING TO A IRELESS OCAL ETWORK .............. 27 ONNECTING TO A LUETOOTH EVICE (WWAN) ......... 29 ONNECTING TO A IRELESS ETWORK USING THE BIOS SETUP UTILITY ..........

  • Page 4: Copyright

    Preface Copyright © Copyright 2014. All rights reserved. No part of this user manual may be transmitted, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without the prior written permission of the manufacturer. Information is subject to change without prior notice.

  • Page 5: Rf Exposure Warning

    Preface RF exposure warning This equipment must be installed and operated in accordance with provided instructions and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
  • Page 6 The symbol must be printed visibly, legibly and indelibly. CAUTION FOR ADAPTER THE S15H SEMI-RUGGED NOTEBOOK IS FOR USE WITH DEDICATED AC ADAPTER (DC +19V, 90W). Note pour l'adaptateur Ce Tablet PC est à utiliser avec l'adaptateur secteur spécifique.

  • Page 7: Before You Start

    Before You Start Before You Start Congratulations on your purchase of this notebook. This rugged notebook is portable and provides users with maximum mobile computing experience in a wide range of working environments. Before you begin using your notebook, read this chapter to familiarize yourself with the main components installed in the system.

  • Page 8: Components

    Before You Start Components Front View Item Description Microphone Record the surrounding sound. Web camera Use for video conference. Display screen Allow users to use the Resistive Single Touch. Speakers Emit sound. Power button Press to turn your notebook on or off. RF button Press to disconnect all wireless network (WLAN and WWAN) and Bluetooth communications.
  • Page 9 Before You Start Item Description Touch pad Use to point, select, drag, or scroll objects on the screen. Touch pad button Press to select objects or display a shortcut menu. Device Indicators Indicate the corresponding function status. (Power, Wireless, HDD, Caps Lock, Num lock, Battery) Card reader Use to insert memory cards to transfer pictures,...

  • Page 10: Back View

    Before You Start Back View Item Description Battery compartment Install the battery. Battery latch Slide to the right and hold it in place to remove the battery.

  • Page 11: Left View

    Before You Start Left View Item Description DC-in jack Connect the power adapter. HDMI output port Connect an HDMI device such as an external HDMI LCD TV. USB 3.0 ports (x2) Connect USB 3.0 peripheral devices. Earphone jack Connect headphones or external speakers. Microphone jack Connect an external microphone.

  • Page 12: Right View

    Before You Start Right View Item Description RS-232 port Connect a serial peripheral devices. USB 2.0 port Connect USB 2.0 peripheral devices. ODD cover latch Lock the optical disk drive cover in place. Eject button Push to open the tray. Pin Hole Eject If the Eject button fails to work properly, insert a paper clip into this hole to open the tray.

  • Page 13: Status Indicators

    Before You Start Status Indicators The status indicators in the bottom left corner of the notebook light up when a particular function of the notebook is active. Each indicator is marked with a symbol. Icon Item Description The LED always lights on (blue) when the system is Power running.

  • Page 14: Getting Started

    Getting Started Getting Started This chapter will guide you on how to use your notebook. Powering Up Your Notebook Your notebook can be powered up using the AC adapter or the Lithium-ion battery. Connecting the AC Adapter The AC adapter powers up your notebook and charges the battery. 1.

  • Page 15: Installing The Battery

    Getting Started Installing the Battery To install the battery, follow the steps below: 1. Insert the battery into the battery compartment. 2. Push completely until the battery locks into place. Charging the Battery The Lithium-ion battery is not fully-charged upon purchase. To charge the battery, follow the steps below: 1.

  • Page 16: Charging Time

    Getting Started Charging Time Battery pack type Charging time Standard 3 hours (system off); 5~6 hours (system on) (6-cell Li-ion battery) Optional 4 hours (system off); 7~8 hours (system on) (9- cell Li-ion battery) NOTE  The charging time may be longer if you are using your notebook while charging the battery.

  • Page 17: When To Replace The Battery Pack

    Getting Started When to replace the Battery Pack The battery performance gradually decreases over time and usage. We recommend you to replace your battery pack after 18 to 24 months of usage. Removing the Battery To remove the battery, follow the steps below: 1.

  • Page 18: Starting Your Notebook

    Getting Started Starting Your Notebook Turning On Your Notebook 1. To open the display panel, lift the cover lid up to upright position. 2. Press the button until the Power LED lights up. Shutting Down Your Notebook It is important to properly shut down your notebook to avoid the loss of unsaved data.

  • Page 19: Using The Keyboard

    Getting Started Using the Keyboard No. Keys Description These function keys are used to perform designated tasks. Function keys The tasks for each key may vary from one application to another. Press the [Fn] key in combination with other keys to [Fn] execute a command.

  • Page 20: Using The Touch Pad

    Getting Started Press to display the Start menu. This action is the same Windows key as clicking the Start icon. Press the Num Lk key to activate the numeric keypad. Numeric Press the keys on the numeric keypad to enter numbers or keypad operands as you would on a calculator.

  • Page 21: Using The Memory Cards

    Getting Started Scroll To scroll a page, press and hold the left button then slide your finger on the touch pad to scroll a page. Using the Memory Cards Your notebook supports different types of memory cards to provide faster data transfer.

  • Page 22: Using The Sim Card

    Getting Started Using the SIM Card You can use a SIM card for wireless internet access. NOTE  Check the availability of service and plan rates of data connection with your network service provider. Inserting a SIM Card 1. Remove the screw that securing the SIM card cover. 2.

  • Page 23: Using The Smart Card

    Getting Started Using the Smart Card Your notebook is equipped with a built-in smart card reader that allows you to make secure purchases, store security information, and provide identification and information using a smart card. Inserting a Smart Card Insert a smart card into the smart card slot.

  • Page 24: Using The Pc Cards

    Getting Started Using the PC Cards Your notebook supports Type II PC Card, which can perform a variety of functions. NOTE  Refer to the PC Card manual for specific instructions on the card installation. Inserting a PC Card Insert a PC card firmly into the PC card slot until it clicks into the connector. NOTE ...

  • Page 25: Using The Optical Disk Drive

    Getting Started Using the Optical Disk Drive You can use the optical disk drive (ODD) to play or record DVD or CD disc. Placing a Disc 1. Slide latch to the right to open the ODD cover. 2. Press the Eject button to eject the tray. 3.

  • Page 26: Connecting To Wireless Connections

    Connecting to Wireless Connections Connecting to Wireless Connections You can connect your notebook to a wireless local area network, WWAN, or Bluetooth. Before using a wireless built-in device, you need to turn the respective built-in wireless functions on. Connecting to a Wireless Local Area Network Your notebook comes with a WLAN module.

  • Page 27: Connecting To A Bluetooth Device

    Connecting to Wireless Connections Connecting to a Bluetooth Device Your notebook can connect and communicate with other Bluetooth-enabled devices. To add a device, follow the steps below: 1. Press both Fn and F1 keys to turn on the Bluetooth function. 2.
  • Page 28 Connecting to Wireless Connections 5. Tap Close to complete the pairing connection. NOTE  Most Bluetooth-enabled devices need to be paired with your notebook. The PIN you enter on the notebook must be the same PIN to be entered on the other Bluetooth device.

  • Page 29: Connecting To A Wireless Wide Area Network (Wwan)

    Connecting to Wireless Connections Connecting to a Wireless Wide Area Network (WWAN) With WWAN function, it allows your notebook to connect to the Internet using mobile or cellular data networks. To enable the function, follow the steps below: 1. Insert a valid SIM card into the SIM card slot. 2.

  • Page 30: Using The Bios Setup Utility

    Using the BIOS Setup Utility Using the BIOS Setup Utility Your notebook has a BIOS setup utility which allows you to configure important system settings, including settings for various optional functions of the notebook. This chapter explains how to use the BIOS setup utility. BIOS Setup Menu The BIOS Setup Utility allows you to configure your notebook basic settings.

  • Page 31: Navigating And Entering Information In Bios

    Using the BIOS Setup Utility Navigating and Entering Information in BIOS Use the following keys to move between fields and to enter information: Keyboard Description Selects screen.   Moves up/down to select items. Enter Confirms the selection and enters the selected menu screen. + / - Changes an option for the selected items.

  • Page 32: Main Menu

    Using the BIOS Setup Utility Main Menu The Main menu displays the system overview information about BIOS version, system information, total memory size, and access level. You can also set the system date and time. Advanced Menu The Advanced menu allows you to select SATA mode, enable/disable integrated LAN to wake the system, calibrate fan and battery, and configure Trusted Computing and Serial Port 0 settings.

  • Page 33: Boot Menu

    Using the BIOS Setup Utility Boot Menu The Boot menu allows you to configure the boot settings and boot sequence, and launch CSM. Security Menu The Security menu allows you to set or change the Administrator and User passwords.

  • Page 34: Save & Exit Menu

    Using the BIOS Setup Utility Save & Exit Menu The Save & Exit menu allows you to save/discard the changes and restore the default values for all setup options before leaving the BIOS Setup Menu.
