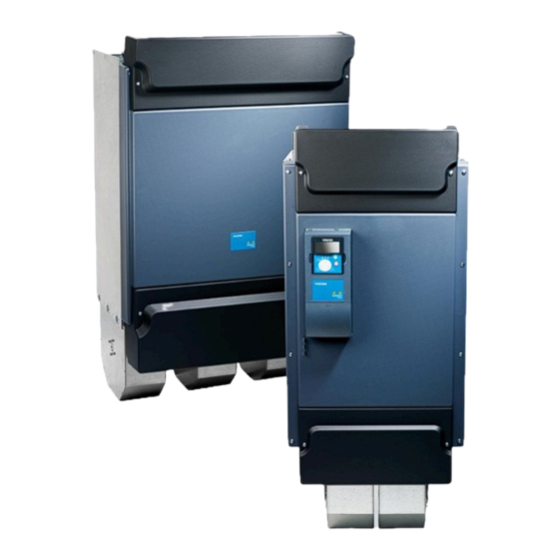

Vacon NXP Series Installation Quick Manual
Ip00 modules
frames fr9 to fr14
Hide thumbs
Also See for NXP Series:
- User manual (102 pages) ,
- System hardware manual (83 pages) ,
- Applications manual (392 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Vacon NXP Series
Summary of Contents for Vacon NXP Series
- Page 1 ® ac drives ip00 modules frames fr9 to fr14 installation quick guide...
-
Page 3: Table Of Contents
• 3 ABLE OF ONTENTS Document: DPD00889B Release date : 28.02.2019 Delivered modules / installing AC chokes and power module ......4 Products included in the delivery ..................4 Lifting the power module....................4 Installing the power module ....................5 Ventilation......................6 Steering the internal air flow.....................6 Arranging ventilation of the enclosure ................7... -
Page 4: Delivered Modules / Installing Ac Chokes And Power Module
• 4 Delivered modules / installing AC chokes and power module ELIVERED MODULES INSTALLING CHOKES AND POWER MODULE Products included in the delivery Power module AC choke Control unit 12017A_uk NOTE! FR12 = 2 x FR10; FI14 = 2 x FI13 power modules. -
Page 5: Installing The Power Module
Delivered modules / installing AC chokes and power module vacon • 5 Installing the power module AC choke 12019A_uk Device width Supporting bar range Recommended cabinet width Frame A/mm B/mm C/mm A - 50 mm FR10 A - 50 mm... -
Page 6: Ventilation
• 6 Ventilation ENTILATION Steering the internal air flow Air barrier Duct 12022A_uk NOTE! Outgoing air must be directed out of the cabinet so that it does not mix with incoming cooling air. Local contacts: https://www.danfoss.com/en/contact-us/contacts-list/... -
Page 7: Arranging Ventilation Of The Enclosure
Ventilation vacon • 7 Arranging ventilation of the enclosure 12023A_00 CAUTION! It is of utmost importance for the operation and lifetime of the frequency converter that the closure is well ventilated to keep the temperature below the maximum operating temperature. -
Page 8: Grounding And Cabling The Unit
• 8 Grounding and cabling the unit ROUNDING AND CABLING THE UNIT Connecting the internal power cable DC BUS CHOKE CHOKE 12024A_uk See IP00 Module Installation Manual for details. NOTE! No external choke in FR9. Local contacts: https://www.danfoss.com/en/contact-us/contacts-list/... -
Page 9: Installing The Optical Fibers
Grounding and cabling the unit vacon • 9 Installing the optical fibers Min bending radius 12025A_uk Installing the motor cable EMC grounding 360° Cable fixing clamps 12026A_uk Local contacts: https://www.danfoss.com/en/contact-us/contacts-list/... - Page 10 Document ID: Vacon Ltd DPD00889B Member of the Danfoss Group Rev. B Runsorintie 7 65380 Vaasa Finland...
