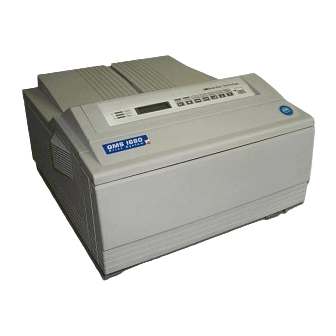

QMS 1660E
®
Print System

Getting Started

1800382-001B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1660E and is the answer not in the manual?

Questions and answers

Related Manuals for QMS 1660E

Summary of Contents for QMS 1660E

  • Page 1: Getting Started

    QMS 1660E ® Print System Getting Started 1800382-001B...

  • Page 2: Proprietary Statement

    Copyrighted © 1994 by QMS, Inc. All Rights Reserved. This software may not be reproduced, modified, displayed, transferred, or copied in any form or in any manner or on any media, in whole or in part, without the express written permission of QMS, Inc. Copyright Notice This manual is Copyrighted ©...

  • Page 3: Dear Customer

    Easy on, easy off. We think you’ll find the blue color especially useful since you’ll have more than one manual in the binder. We hope you enjoy your new QMS printer (and traveling through its manuals, too!) Your QMS Technical Writer...

  • Page 5: Table Of Contents

    Related Documentation 1-5 About This Manual ............... 1-5 Typographic Conventions 1-6 Printer Features ................1-7 Media Flexibility 1-7 Multiple Resolutions 1-8 Toner Savings 1-8 Three Standard Interfaces 1-9 Four Resident Emulations 1-9 Resident Fonts and Symbol Sets 1-10 QMS Crown Technology 1-11...
  • Page 6 Installing Options ..............2-17 What's Next? ................2-17 Connecting to a PC Introduction .................. 3-2 Before Making the Connection ........... 3-2 What You Need 3-2 Making the Connection ............... 3-4 PC Printing Software ..............3-6 QMS 1660 Print System Getting Started...
  • Page 7 Installing PS Executive Series Printer Utilities 3-6 Installing a PostScript Printer Driver 3-6 Printing from the PC ..............3-9 What's Next? ................3-9 Connecting to an Ethernet Network Introduction .................. 4-2 Connecting to the Network ............4-3 Thin-Wire Ethernet 4-3 Twisted-Pair Ethernet 4-4 Installing the Software ..............
  • Page 8 QMS Customer Support Sources of Support ..............A-2 Your QMS Vendor A-2 Your Application Vendor A-2 Q-FAX A-2 The QMS Corporate Bulletin Board System A-3 CompuServe A-3 Internet A-3 QMS Customer Response Center (CRC) A-4 QMS National Service A-4 QMS World-wide Offices .............A-5...

  • Page 9: Introduction

    Introduction In This Chapter . . . About the printer About the documentation About this manual Printer features and user benefits...

  • Page 10: About The Printer

    This section will give you an idea of how we’ve organized information and which documents you’ll probably refer to the most. QMS 1660E Print System Getting Started...

  • Page 11: Standard Product Documentation

    About the Documentation Standard Product Documentation The following documentation is shipped with your printer: & QMS 1660E Print You're looking at this manual right now. System Getting It contains detailed, illustrated Started instructions to guide you as you unpack and set up your printer and connect it to an IBM or compatible PC and/or an Ethernet network.
  • Page 12 QMS Crown Network Refer to this manual for tips on using Notes your QMS 1660E Print System if you’re connecting to a network through the serial or parallel port. » Note: This manual is provided It discusses 3Com 3+Open, Banyan...

  • Page 13: Optional Documentation

    About This Manual This manual provides detailed information on how to set up your QMS 1660E Print System and how to use the control panel. It is divided into the following sections: Provides an overview of the...

  • Page 14: Typographic Conventions

    Variable text you type; replace the italicized word(s) with Mixed-Case information specific to your printer or computer Italic Courier Information displayed in the printer message window UPPERCASE COURIER lowercase bold PostScript operators and DOS commands QMS 1660E Print System Getting Started...

  • Page 15: Printer Features

    Printer Features lowercase italic Variable information in text UPPERCASE File and utility names ↵ Press the Enter key (PC) or Return key (Macintosh) Press and hold down the Ctrl key (PC) » Note: Notes contain tips, extra information, or important information that deserves emphasis or reiteration.

  • Page 16: Multiple Resolutions

    User Benefit—A choice of printing modes allows you to lower print- ing costs by reducing the amount of toner on the printed page when you’re printing draft copies of documents. QMS 1660E Print System Getting Started...

  • Page 17: Three Standard Interfaces

    The printer simultaneously emulates a Hewlett-Packard LaserJet IIISi and an HP PaintJet XL300 Color Printer (the output is gray-scaled on your QMS 1660E) at both 300x300 dpi (bitmap and scalable fonts) and 600x600 dpi (scalable fonts only). Only 300x300 dpi resolution is available for HP-GL/2.

  • Page 18: Resident Fonts And Symbol Sets

    PostScript Level 2 Emulation and Level 1 Compatibility The QMS 1660E Print System’s Level 2 emulation allows you to take full advantage of your printer's high print resolution (up to 1200x1200 dpi). The Level 2 emulation is compatible with Adobe's PostScript Level 2 language while providing additional capabilities.

  • Page 19: Qms Crown Technology

    Although many other printers have multiple interface ports and auto- matically designate a “hot port,” only one port actively receives data at a time. Your QMS 1660E Print System is unique because SIO allows all of its interface ports— Centronics/IEEE 1284 parallel, serial, Ethernet, and an optional LocalTalk, Ethernet, or Token-Ring interface—to be active at the same time.

  • Page 20: Context Switching

    This is possible because compressed data formats allow more pages to be stored in memory. The printer remembers the last page printed, pulls the nec- essary information from memory, and automatically reprints any lost pages. 1-12 QMS 1660E Print System Getting Started...

  • Page 21: Energy Star Compliance

    QMS. Remote Console The Ethernet (CrownNet) network interface and its accompanying software allow your QMS 1660E to establish a remote console con- nection via EtherTalk, LAN Manager/LAN Server, Novell NetWare, and TCP/IP. Printer status that requires user intervention is displayed on the remote console.

  • Page 22: Pcmcia Card Slots

    User Benefit—Both slots support font and security cards (see the fol- lowing section, “Printer Options,” for details). Printer Options The following options are available for your QMS 1660E Print Sys- tem. Contact your QMS vendor for purchase information. Upgradable RAM (Random Access Memory)
  • Page 23 SIMM, its manufacturers and part numbers, and the QMS products on which it’s used. See appendix A, “QMS Customer Support,” of this manual to find out how to access Q- FAX documents. User Benefit—Your printer’s memory can be upgraded as your needs grow.

  • Page 24: Security Card

    Morisawa and Company, Ltd.) as well as the fonts Mincho Medium, Mincho Heavy, Gothic Bold, and Gothic Heavy (licensed to QMS by TypeBank). These fonts can be printed at a variety of point sizes and in different styles and resolutions.

  • Page 25: Localtalk Interface

    Note: Q-FAX document 6502, “QMS-tested SIMMs and Hard Disks,” contains a description of each approved hard disk, its manufacturers and part numbers, and the QMS products on which it’s used. See appendix A, “QMS Customer Support,” of this manual to find out how to access Q-FAX documents.

  • Page 26: What's Next

    What's Next? Chapter 2, “Setting Up Your Printer,” explains how to find a good loca- tion for the printer, unpack the printer, install a toner cartridge, and load and install a 250-sheet paper cassette. 1-18 QMS 1660E Print System Getting Started...

  • Page 27: Setting Up Your Printer

    Setting Up Your Printer In This Chapter . . . Finding a good location for the printer Unpacking the printer Installing a toner cartridge Loading and installing a 250-sheet paper cassette Connecting the power cord Printing a start-up page...

  • Page 28: Introduction

    Introduction Introduction This chapter explains how to set up your QMS 1660E Print System for the first time. It includes information on finding a good location for the printer, unpacking it and checking the shipment contents, installing a toner cartridge and paper cassette, and printing a start-up page.

  • Page 29: Power Requirements

    Finding a Good Location the paper cassette. In other words, with the 11" x 17"/A3 paper cassette installed, you need an area at least 25.4"/664 mm x 49.2"/1250 mm. 3.4" (85 mm) " 3.5" (90 mm) 3.9" (100 mm) 49.2" (1250 mm) Power Requirements Your printer requires a properly grounded AC outlet with a power range of ±10% of the rated voltage (100, 110/120, or 220/240 V).

  • Page 30: Checking Shipment Contents

    » Note: Interface cables aren’t included in the shipment. If you need cables, contact your QMS vendor or a local computer store. Chapters 3, “Connecting to a PC,” and 4, “Connecting to an Ethernet Network,” of this manual specify the type of cable you need.

  • Page 31: Registering The Printer

    Register it now, and we’ll send you a special gift. To register by mail, fill out and send in your warranty card. To register by telephone, in the US call QMS toll-free at (800) 637-8049. In other countries, refer to appendix A, “QMS Customer Support,” for the appropriate telephone number.
  • Page 32 Remove the protective plastic covering and tape from the printer body. Using both hands, open the multipurpose tray. Open the printer's front cover. Release Button QMS 1660E Print System Getting Started...
  • Page 33 Unpacking the Printer Remove the two orange shipping spacers from inside the printer. Remove the piece of cardboard that holds the paper lift plate in place. Setting Up Your Printer...

  • Page 34: Installing Consumables

    Keep the toner cartridge away from your computer. The magnets in the cartridge can damage data, particularly on your floppy disks. Lift the toner cartridge out of its shipping carton, open the aluminum protective bag, and remove the cartridge. QMS 1660E Print System Getting Started...
  • Page 35 Installing Consumables Remove the black protective sheet, and discard it. Place the cartridge on a stable, flat surface to get a good grip on the protective sheet tab. Distribute the toner in the cartridge. Hold the cartridge with both hands, and gently rock it from side- to-side five or six times to distribute the toner.
  • Page 36 Pull the orange tab (26.4"/670 mm) straight out, and then discard both the orange tab and the tape seal. Tape Seal 2-10 QMS 1660E Print System Getting Started...

  • Page 37: Loading The 250-Sheet Paper Cassette

    This may deteriorate the drum and reduce print quality. Loading the 250-Sheet Paper Cassette The QMS 1660E Print System comes standard with two 250-sheet paper cassettes (letter/A4 and ledger/A3). Load paper in either 250- sheet cassette as follows.
  • Page 38 The cassette holds about 250 sheets of 20 pound (75 g/m paper. Insert the paper into the appropriate cassette. Make sure the paper lies flat, does not exceed the top limit mark, and rests under the retaining clips. Top Limit Bottom Limit 2-12 QMS 1660E Print System Getting Started...
  • Page 39 Installing Consumables Slide the cassette into the cassette slot until it’s firmly seated. Adjust the media stop to fit the paper size. The printer delivers your output, print-side down, to the output tray at the top of the printer. The media stop keeps the sheets positioned in the output tray.
  • Page 40 Installing Consumables If you’re using either a ledger /A3 or an optional legal/B4 media cassette, place the cassette rear cover on the end of the cassette at the rear of the printer. 2-14 QMS 1660E Print System Getting Started...

  • Page 41: Connecting The Power Cord

    Connecting the Power Cord Connecting the Power Cord The power cord connector is located at the rear of the printer. The power switch is located at the lower right of the printer. Caution: Make sure that the printer power switch is turned off (the O is pressed down).

  • Page 42: Printing A Start-Up Page

    Start-up Page Printing a Start-up Page When you turn on the printer, a start-up page prints. This page gives you an overview of your QMS 1660E Print System. The following information prints on the start-up page: Printer product name Cumulative number of printed sheets...

  • Page 43: Enabling/Disabling The Start-Up Page

    However, you may need the information included on the start- up page after you have disabled the page (for example, to provide to QMS Customer Technical Assurance). You can disable (and enable) the start-up page in two different ways: Use the PS Executive Series Utilities.
  • Page 44 If you want to connect your printer to a Token-Ring network via an optional CrownNet network interface, use the installation instructions in chapter 6, “Printer Options, of the Reference manual and the con- nection instructions that came with the interface. 2-18 QMS 1660E Print System Getting Started...

  • Page 45: Connecting To A Pc

    Connecting to a In This Chapter . . . Connecting via the parallel port Connecting via the serial port Using PS Executive Series Utilities Using the QMS-developed Windows driver...

  • Page 46: Introduction

    Interface cables are not included with your printer. If you’re replacing a printer, you may already have the necessary cables. If not, contact your QMS vendor or a local computer store. To connect your printer to a single PC, you need one of the following: A parallel cable with a 36-pin male and a 25-pin male connector.
  • Page 47 Before Making the Connection Choosing a Cable Parallel cable—If a parallel port is available on your PC, we recom- mend using a parallel cable. Your printer supports both Centronics parallel and IEEE 1284 bidirectional parallel communication. The type of parallel cable you use depends on the type of parallel communica- tion your PC supports (check your PC’s documentation if you’re unsure).

  • Page 48: Making The Connection

    To Printer Connect the 36-pin end of the cable to the printer’s parallel port (it’s labeled “PARALLEL”). Close the clips. Connect the 25-pin end of the cable to the PC’s parallel port. Tighten the screws. QMS 1660E Print System Getting Started...
  • Page 49 Making the Connection Serial Cable Printer 9-pin Female Port 9-pin Male Port OR 25-pin Male Port To PC To Printer Connect the serial cable, null modem assembly, and, if necessary, an adapter. Connect one end of the serial cable-null modem assembly to the printer’s serial port (labeled “SERIAL”) and the other end to the PC’s serial port.

  • Page 50: Pc Printing Software

    Installing a PostScript Printer Driver If you're using Windows, we recommend that you install the QMS-developed Windows driver. See “Installing the QMS Windows Driver,” below. If you're using a non-Windows application, read the printing sec- tion of the application documentation for information on choosing a PostScript driver.
  • Page 51 In the Add Unlisted or Updated Printer dialog box, select the appropriate printer: If you’re using the QMS Level 2 Windows printer driver, select your printer (for example, QMS 1660E Level 2) from the list of printers, and choose OK. Connecting to a PC...

  • Page 52: Printer Description Files

    11 Choose Set As Default Printer to make the QMS printer the default printer. 12 Repeat steps 3-10 to install the QMS driver for other ports, or choose Close to exit from the Printers dialog box. Now you can set printer options from your application by choosing Print Setup from the application’s File menu and then choosing the...

  • Page 53: Printing From The Pc

    QMS driver with this application, refer to chapter 6, “Trouble- shooting,” in the Operation guide for more information. If you use QuarkXPress 3.3, after you install the QMS driver install the QMS 1660 PDF according to the instructions in your QuarkXPress documentation.
  • Page 55 Connecting to an Ethernet Network In This Chapter . . . Connecting to the network Installing the software Configuring the interface Configuring the network...

  • Page 56: Introduction

    Introduction The Ethernet port, also referred to as the QMS CrownNet network interface, is a combination of hardware and host software that allows your QMS 1660E printer to be connected to an Ethernet network that supports the following: Operating System...

  • Page 57: Connecting To The Network

    Connecting to the Network Connecting to the Network The Ethernet port supports two types of connections: Thin-wire Ethernet (10Base2, BNC connector) Twisted-pair Ethernet (10BaseT, RJ45 connector) Thin-Wire Ethernet Thin-wire Ethernet connections use BNC connectors. Thin-Wire Ethernet Port OPT I/O SERIAL PARALLEL ETHERNET Note: Unless the BNC “T”...

  • Page 58: Twisted-Pair Ethernet

    CrownAdmin software is provided for DOS/Windows and Macintosh System, CrownNet Manager software is provided for OS/2, and UNIX host software is provided for UNIX. Use the appropriate procedure to install the software on your host. QMS 1660E Print System Getting Started...

  • Page 59: Macintosh System

    Installing the Software Caution: We recommend that you make backup copies of the appropriate disks. Store them in a safe place; use the copies to install the software. With the PC on, insert the CrownAdmin software for DOS disk in the disk drive. At the DOS C>...

  • Page 60: Os/2

    Note: For information on installing the utilities directly on the » workstation, so you can bypass the print server and print directly to the printer, see the QMS CrownNet Interface System Administrator’s Manual Print Server At the LAN Manager/LAN Server print server, log into the net- work as the system administrator.
  • Page 61 Installing the Software To start the CrownNet Manager for OS/2 automatically each time the print server is turned on, add the following commands, in this order, at the end of the STARTUP.CMD file (but before any @EXIT command): set crownman=c:\crown start c:\crown\crownman.exe -m »...

  • Page 62: Unix

    PCFS-capable device (such as a DOS system) to the UNIX system via binary FTP. In the directory in which the image file is located, expand the tar image file by typing tar xvf hs_tar↵ QMS 1660E Print System Getting Started...
  • Page 63 11 Update the printer’s Internet name and address in the /etc/hosts file. 12 Run the QMS addprt utility by typing addprt↵ 13 Follow the instructions on the screen. 14 When the installation is complete, remove the disk from the disk drive and store it in a safe place.

  • Page 64: Windows

    For a complete discussion of all of the configuration options available through the Administration/Communications/Net- work x /CrownNet menu, see chapter 2, “Interface Configuration,” of the QMS CrownNet Interface System Administrator’s Guide . You can make these configuration changes through any of the follow- ing means: Printer Control Panel—For information on using the printer con-...

  • Page 65: Ethertalk

    For information on using Remote Console, refer to the QMS Crown Remote Console User’s Guide . EtherTalk If your network has more than one zone, use the Administra-...

  • Page 66: Netware

    If you want something other than the default settings, use the follow- ing procedure to name the file and print servers. These names must be unique. Note: In CrownAdmin, the printer shows up as QMS- xxxx -Print- » System- hardwareaddress, where xxxx is the printer model number and hardwareaddress is the printer’s hardware address...

  • Page 67: Tcp/Ip

    Configuring the Interface the printer control panel only, a space must be used following the last character of the print server name to end the name. In the Administration/Communications/Network 2/CrownNet/ NetWare/RN Printer/Printer Slot # menu, enter the printer slot number. Note: This number must match the slot number chosen in the »...

  • Page 68: Configuring The Network

    Install entry on the action bar. The printer appears in the list displayed on the screen (for example, QMS_080086000001). Use the appropriate section below to create a print queue and assign it to the printer. 4-14 QMS 1660E Print System Getting Started...
  • Page 69 Configuring the Network OS/2 Version 1.x If you’re using OS/2 version 2. x , skip to the next section. Note: This is the standard method of adding a printer in OS/2 » version 1.x. The procedure is repeated here for your convenience. Add a Printer With the Print Manager open, from the Setup menu choose Printers...
  • Page 70 Note: This is the standard method of installing a printer in OS/2 version 2.x. With OS/2 running, double-click the Templates folder. Hold down the right mouse button and drag the Printer icon out to the Workplace Shell (or into a folder). 4-16 QMS 1660E Print System Getting Started...

  • Page 71: Print Queue Sharing

    “Interface Configuration” section, earlier in this chapter. If a QMS pipe is not available, make sure you have installed the CrownNet Manager for OS/2. Choose Create to confirm the new printer definition.

  • Page 72: Netware

    Enter. Press the Ins key to display the Queue Server Candidates menu. Select the appropriate print server name and press Enter. Press Esc four times to display the Exit PCONSOLE menu. 4-18 QMS 1660E Print System Getting Started...

  • Page 73: Tcp/Ip

    Configuring the Network Select Yes and press Enter to save your changes and exit from PCONSOLE. TCP/IP Log on the UNIX system as root. Edit the system host table by adding the following line to the /etc/hosts file: internetaddress hostname where internetaddress is the Internet address of the printer (Administration/Communications/Network 2/CrownNet/ TCPIP/Internet Address menu) and hostname is the name of...

  • Page 74: For More Information

    Ethernet (CrownNet) interface: QMS CrownNet Interface System Administrator’s Guide —Pro- vides detailed configuration and utility information. QMS Crown Remote Console User’s Guide —Explains how to use Remote Console to control printing from a workstation any- where on the network.

  • Page 75: Control Panel Indicators

    Control Panel In This Chapter . . Control panel indicators Control panel message window Control panel keys...

  • Page 76: Control Panel Indicators

    Lights when the printer requires operator intervention. This indicator is usually accompanied by a status message in the message window. Lights when the printer is receiving data from one or more of the simultaneous interfaces. QMS 1660E Print System Getting Started...
  • Page 77 Control Panel Indicators Lights when the printer is on line and ready to accept and process new print jobs. Press it once to take the printer off line (the indicator is not lighted) and make the printer ready for configuration. Lights when you access the configuration menu and remains on until you press the Online/Offline key to put the printer back on line.

  • Page 78: Message Window

    You can either let the printer restart automatically after you save the change and exit from the configuration menu, or you can wait for the change to take effect the next time you manually turn on the printer. QMS 1660E Print System Getting Started...

  • Page 79: Online/Offline, Cancel, And Status Page Keys

    Control Panel Keys Control Panel Keys Online/Offline, Cancel, and Status Page Keys The Online/Offline, Cancel, and Status Page keys access frequently used printer options. Press the Online/Offline key once to take the printer off line (the indicator goes out). You must take the printer off line before using all other keys except the Cancel and Status Page keys.

  • Page 80: Menu, Next, Previous, And Select Keys

    Press the Previous key to return to the previous selection or option for the current menu. When changing character information, use this key to return to the previous choice for the current input character. QMS 1660E Print System Getting Started...
  • Page 81 What's Next? Press the Select key to access a menu or to choose a displayed menu option. What's Next? Now, you’re ready to print. For more information on the day-to-day operation of your printer, refer to the Operation manual. For more technical information, refer to the Reference manual.
  • Page 83 QMS Customer Support In This Chapter . . . Sources of customer support QMS world-wide offices...

  • Page 84: Sources Of Support

    In this case, the application manufacturer is the best source of help. Q-FAX Q-FAX, a QMS information retrieval service, provides application notes, technical support notes on common printing problems, and information about printer specifications, options, accessories, con- sumables, and prices.

  • Page 85: The Qms Corporate Bulletin Board System

    QMS. You can access the QMS server via any one of the many web viewers available to Internet users. If you don’t have access to a web viewer, we recommend the NCSA Mosaic web viewer (Mosaic is at ftp.ncsa.uiuc.edu).

  • Page 86: Qms National Service

    The emulation you are using Your printer firmware version (listed on the status/start-up pages) QMS National Service The following numbers are valid in the US. To contact QMS in other countries, see the list of world-wide offices in the following section. (800) 762-8894...

  • Page 87: Qms World-Wide Offices

    QMS World- wide Offices QMS World-wide Offices United States/ QMS, Inc. Latin America One Magnum Pass Mobile, AL 36618 (334) 633-4300 Product Information: (800) 523-2696 OEM Information: (800) 631-2692 Consumables: (800) 777-7782 Fax: (334) 633-4866 E-mail: info@qms.com Latin America Fax: (334) 639-3347...
  • Page 89 Configuration Menu In This Chapter . . . Configuration menu diagram...
  • Page 90 Installation Operator Control Administration Operator Passwrd Copies Communications Emulations Special Pages Startup Options Memory Engine Miscellaneous Use Operator Pwd Collation Timeouts ESP Default Print Status Do Start Page K Mem For Spool Image Alignment Restore Defaults Postscript Calibration Page Do Sys Start K Mem For PSHeap Reboot System Admin Password...
  • Page 91 Index %%EndOfDocument (R)4-36 <ESC>%12345X (R)4-36 About this manual (GS)1-5, (O)1-2, 10Base2 (R)1-2 See Ethernet Accessories 10BaseT See Optional Accessories See Ethernet Active jobs 1200x1200 (O)6-27 Status message (O)6-9 1200x600 dpi resolution unavailable Adjust Inputbin bin (O)6-27 Status message (O)6-9 1284, IEEE, cable pinouts (R)B-7 3-hole-punched paper (O)6-29 500-sheet paper cassette (R)6-12 Legend...
  • Page 92 (R)3-10 Frame, allocating memory (R)4-49 Antique Olive (R)6-33 Sizes (O)3-9 AppleTalk (GS)2-17, (GS)4-2, (R)G-1 Spooling (R)5-20 Connection (R)6-43 Bulletin board, QMS (GS)3-7, (GS)A-3, See also LocalTalk (O)A-3, (R)A-3 Testing communication (R)6-50 Buzzer menu (R)4-57 Application (R)G-2 Byte (R)G-3 Configuration, printer (R)4-2...
  • Page 93 Parallel port (GS)3-4 Serial port (GS)3-5 HP-GL (R)5-34 Communication Modes (R)5-3 Legend Parallel port, testing (O)6-13 Serial port, testing (O)6-15 Getting Started manual Settings (status page) (O)3-9 Operation manual Testing, Macintosh (R)6-50 Reference manual — QMS 1660 Print System Master Index...
  • Page 94 Courier (R)3-8, (R)6-33 Serial (R)4-36 Def Resolution menu (R)4-57 Legend Default (R)G-4 Default Font Index menu (PCL5) Getting Started manual (R)4-19 Operation manual Default Font menu (PCL5) (R)4-18 Reference manual Default Paper menu (R)4-44 — QMS 1660E Print System Master Index...
  • Page 95 Defaults, configuration, restoring QMS (GS)1-2 (R)4-11 QMS Crown Network Notes (GS)1-4 Device numbers, hard disks (R)6-65 QMS Crown Remote Console User’s Dingbats Guide (GS)1-4, (GS)1-5 ITC Zapf Dingbats (R)3-3 QMS CrownNet Interface System Disk Administrator’s Guide (GS)1-3 See Hard disk...
  • Page 96 Network job separator (R)5-29 Other print queuing systems (R)5-26 Legend PC print server (R)5-26 Stand-alone PC (R)5-26 Getting Started manual EOD problems (O)6-29 Operation manual EPP mode, parallel (R)5-31 Reference manual Error Handler (O)6-30, (R)4-60 — QMS 1660E Print System Master Index...
  • Page 97 BNC connector (GS)4-3 Configuration, network (GS)4-14 Configuration, port (GS)4-10 Connection (GS)4-3 Legend CrownAdmin software, DOS (GS)4-5 CrownAdmin software, Macintosh Getting Started manual (GS)4-5 Operation manual CrownNet software, OS/2 (GS)4-6 Reference manual Parameters, setting (R)4-31 — QMS 1660 Print System Master Index...
  • Page 98 Format failed message (R)4-29 Formatting (R)4-29, (R)6-67 Legend IDE board (R)B-13 Internal (R)6-61, (R)B-13 Internal, identifying (R)6-61 Getting Started manual Internal, installing (R)6-62 Operation manual Internal, removing (R)6-64 Reference manual Internal, specs (R)B-13 — QMS 1660E Print System Master Index...
  • Page 99 Pen 1 - Pen 8 (R)4-16 Plotter menu (R)4-17 Legend Reverse Image menu (R)4-17 Scaling Percent menu (R)4-18 Getting Started manual Setting parameters (R)4-14 Operation manual HP-GL symbol sets (R)3-10 Reference manual 9825 Character Set symbol set — QMS 1660 Print System Master Index...
  • Page 100 See Hard disk International Reference Version See ISO IRV Legend Internet (GS)A-3, (O)A-3, (R)A-3 Invalid password (R)4-54 Getting Started manual IPX/SPX (GS)4-2 Operation manual ISO French symbol set (HP-GL) Reference manual (R)3-10 — I-10 QMS 1660E Print System Master Index...
  • Page 101 K Mem Display menu (R)4-47 K Mem Emul Tmp (R)5-19 Getting Started manual K Mem Emul Tmp menu (R)4-47 Operation manual K Mem Emulation menu (R)4-47 Reference manual K Mem for PS Fonts menu (R)4-50 — QMS 1660 Print System Master Index I-11...
  • Page 102 Def Job Prio menu (R)6-53 Manual notice (R)D-2 Margins menu (Lineprinter) (R)4-26 Legend Margins, page (R)2-4 Marigold (R)6-33 Getting Started manual MB Printer Mem (R)5-22 Operation manual MB Printer Mem menu (R)4-51 Reference manual Media (R)2-2 — I-12 QMS 1660E Print System Master Index...
  • Page 103 K Mem Emulation (R)4-47 K Mem for PS Fonts menu (R)4-50 Getting Started manual K Mem for PS Head menu (R)4-51 Operation manual K Mem for Spool menu (R)4-51 Reference manual Management (R)5-10 — QMS 1660 Print System Master Index I-13...
  • Page 104 Network 1 (R)4-31 Network 2 (R)4-31 Orientation menu (R)4-43 Legend Passwords (R)4-53 Optional accessories Cards (R)6-16, (R)6-18 Getting Started manual Cassette supporter (O)3-4, (R)6-9 Operation manual Cassette, 500-sheet (GS)1-15 Reference manual Configuring (R)4-52 — I-14 QMS 1660E Print System Master Index...
  • Page 105 Installing (R)6-4 Orientation Removing (R)6-8 Landscape (R)3-6 Portrait (R)3-6 Orientation menu (R)4-43 Legend Lineprinter (R)4-26 Origin menu (HP-GL) (R)4-15, (R)4-18 Getting Started manual OS/2 Operation manual CrownNet Manager installation Reference manual (GS)4-6 — QMS 1660 Print System Master Index I-15...
  • Page 106 Downld Location menu (R)4-19 Error codes (O)6-13 Font (R)C-5 Legend Font index number (R)C-6 Fonts (R)3-9 Getting Started manual Fonts, scalable (R)4-22 Operation manual Fonts, temporary, retaining (R)4-21 Reference manual Intellifont font list (R)6-33 — I-16 QMS 1660E Print System Master Index...
  • Page 107 Print media Point Size x 100 menu (PCL5) (R)4-21 Point Sz 100ths menu (Lineprinter) (R)4-26 Legend Portrait orientation (R)3-6 Postcards Getting Started manual Storage (R)2-6 Operation manual Type (R)2-5 Reference manual Weight (R)2-5 — QMS 1660 Print System Master Index I-17...
  • Page 108 PS Wail Timeout menu (R)4-66 Printing Put size paper in input bin Blank pages (O)6-28 Status message (O)6-10 Legend QBinary (R)5-33 Getting Started manual Q-FAX (GS)3-7, (GS)A-2, (O)A-2, (R)A-2 Operation manual Reference manual Bulletin board (GS)3-7 — I-18 QMS 1660E Print System Master Index...
  • Page 109 Setting (R)4-57 (R)A-4 Resource (R)C-7 Q-FAX (GS)3-7 Retain Temporary menu (PCL5) Registration, printer (GS)2-5 (R)4-21 QMS Crown Remote Console User’s Reverse Image menu (HP-GL) (R)4-17 Guide (GS)1-4, (GS)1-5 RJ45 QMS CrownNet Interface System See Ethernet Administrator’s Guide (GS)1-3 ROM (R)5-11...
  • Page 110 Software flow control (R)4-40 Serif typefaces (R)3-3 Receive (R)4-39 Transmit (R)4-40 Software Loadable System (SLS) Legend (GS)1-13 Sofware Getting Started manual Macintosh (R)6-50 Operation manual Spanish/Latin symbol set (HP-GL) Reference manual (R)3-10 — I-20 QMS 1660E Print System Master Index...
  • Page 111 Min K Spool menu (R)4-33, (R)6-53 Timeout (R)4-40 Legend Stain (O)6-34 Standard status page (R)4-61 Getting Started manual Start-up options (R)4-59 Operation manual Startup Options menu Reference manual Do Error Handler menu (R)4-60 — QMS 1660 Print System Master Index I-21...
  • Page 112 Manual feed (R)4-65 Symbol sets PostScript (R)4-66 Spooling (R)4-40 Legend Timeouts menu Emul Timeout (R)4-64 Getting Started manual ESP Timeouts menu (R)4-65 Operation manual Job Timeout menu (R)4-66 Reference manual PS Wait Timeout (R)4-66 — I-22 QMS 1660E Print System Master Index...
  • Page 113 Defined (R)3-2 Tray assembly (R)6-20, (R)6-23 Troubleshooting 1200x600 dpi resolution unavailable Legend (O)6-27 600x600 dpi resolution unavailable Getting Started manual (O)6-27 Operation manual Binary data printing problem (O)6-28 Reference manual Blank pages (O)6-28 — QMS 1660 Print System Master Index I-23...
  • Page 114 Using the EOD commands (R)5-25 Xmit Sw Flow Ctl menu (serial) Serial (R)4-40 Legend Zapf Chancery Getting Started manual ITC Zapf Chancery (R)3-3 Zapf Dingbats Operation manual ITC Zapf Dingbats (R)3-3 Reference manual — I-24 QMS 1660E Print System Master Index...
