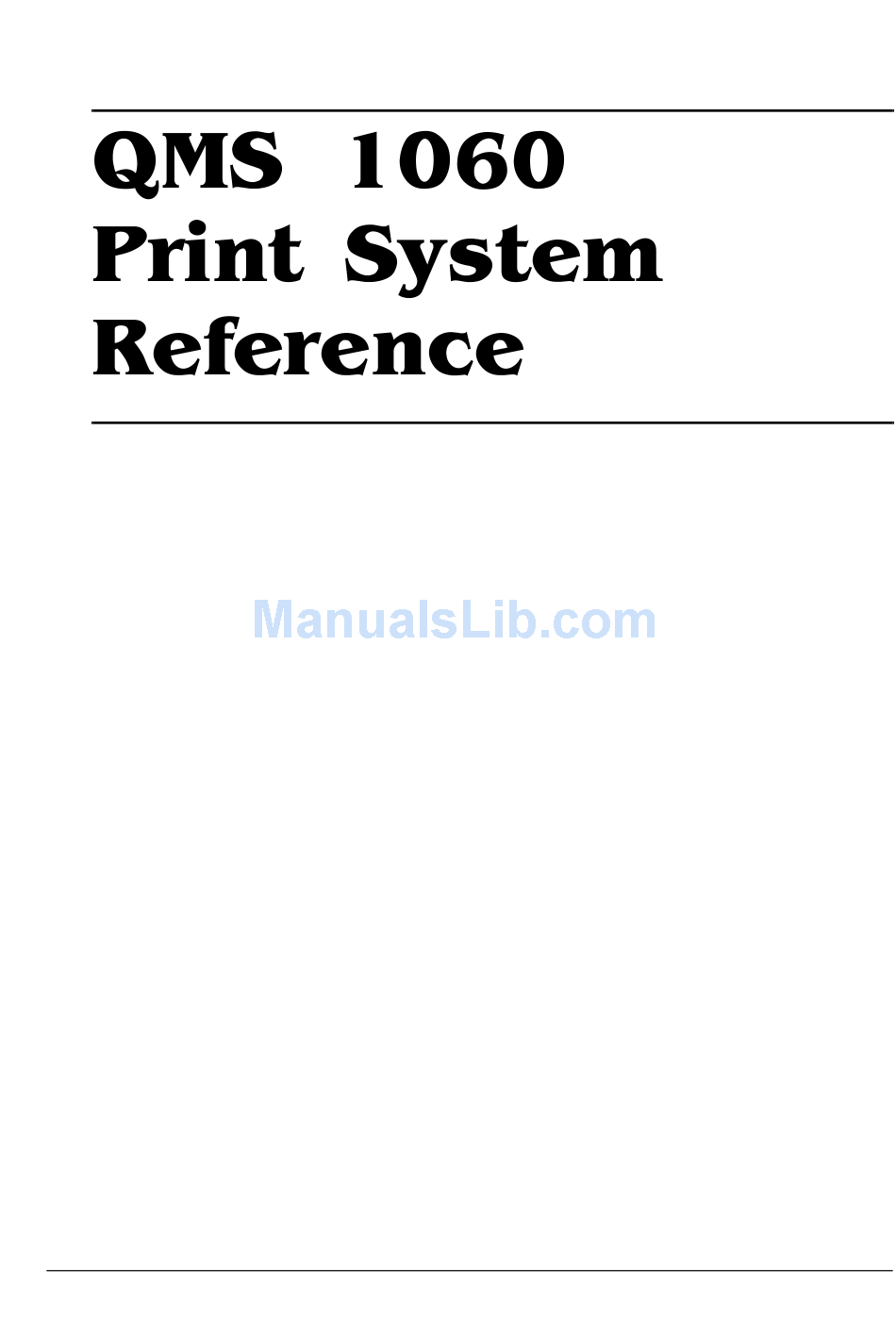

QMS 1060 User Manual

Print system reference
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®

Advertisement

Table of Contents
loading

Related Manuals for QMS 1060

Summary of Contents for QMS 1060

  • Page 1 ®...
  • Page 2 ENERGY STAR emblem does not represent EPA endorsement of any product or service. The digitally encoded software included with your QMS 1060 Print System is Copyrighted © 1995 by QMS, Inc. All Rights Reserved. This software may not be reproduced, modified, displayed, transferred, or copied in any form or in any manner or on any media, in whole or in part, without the express written permission of QMS, Inc.
  • Page 3 Introduction ... 1-2 About This Manual ... 1-2 Typographic Conventions 1-4 Introduction ... 2-2 Media Sizes and Imageable Areas ... 2-2...

  • Page 4: Table Of Contents

    Resident HP-GL Symbol Sets 3-10 Downloadable Fonts ... 3-10 Optional Fonts ... 3-10 Introduction ... 4-2 Methods of Configuration ... 4-2 Using an Application 4-2 Using PS Executive Series Utilities 4-3 Using Printer Commands 4-3 Using the Control Panel 4-4 Using Remote Console 4-4...
  • Page 5 Choosing the Appropriate System Software Files for Downloading 4-20 Installing the System Software 4-21 Downloading System Software to a Functional Printer—SYSTEMDL.PS 4-23 Downloading System Software to a Functional Printer—SYSTEM.DL 4- Downloading System Software to a Non-Functional Printer 4-30 Emulations ...4-35 Setting ESP Default Parameters 4-35...
  • Page 6 Optional Features ... 4-80 Passwords ... 4-81 Selecting Passwords 4-81 Enabling Passwords 4-82 Using Passwords 4-82 Printer Engine Features ... 4-83 Adjusting the Image Alignment 4-83 Setting Print Density 4-84 Specifying Page Recovery Action 4-84 Setting Default Resolution 4-85 Setting Toner Options 4-85...
  • Page 7 Printer Start-Up Options ...4-87 Enabling/Disabling the Start-up Page 4-87 Enabling/Disabling the SYS\START File 4-88 Loading the PostScript Error Handler 4-88 Special Pages ...4-88 Using the Calibration Page 4-89 Working with Status Pages 4-89 Working with Header Pages 4-91 Working with Trailer Pages 4-92 Timeouts ...4-93...
  • Page 8 Parallel Interface Modes ... 5-29 Byte Mode 5-30 Compatibility Mode 5-30 ECP (Enhanced Compatibility Port) Mode 5-30 EPP (Enhanced Parallel Port) 5-31 Nibble Mode 5-31 PS Protocol Option ... 5-31 Options 5-33 Advantages 5-34 Implementation 5-34 HP-GL Color Encoding ... 5-35 Introduction ...
  • Page 9 Font List 6-22 Accessing the Fonts 6-24 Kanji Option Kit ...6-24 Installing IDE-SCSI Board and IDE Hard Disk 6-25 Configuring the Printer for Kanji 6-25 Accessing the Kanji Fonts 6-25 Security Cards ...6-26 Using Security Cards 6-26 Downloading an Emulation ...6-30 Single In-Line Memory Modules ...6-32...
  • Page 10 Controller Specifications ...B-4 Electrical Requirements ...B-5 Environmental Requirements ...B-5 Print Media ...B-6 Print Media Sizes B-7 Print Media Selection B-8 Printer Options ...B-9 Consumable Supplies ...B-10 Cable Pinouts ...B-11 Centronics/IEEE1284 Parallel B-11 Notes to the Table B-12 Serial B-12 LocalTalk B-14...
  • Page 11 Header/Trailer Page Commands C-2 HP-GL Emulation Commands C-3 HP PCL 5 Emulation Commands C-3 Lineprinter Emulation Commands C-4 PostScript Emulation Commands C-4 Printer Commands C-4 PCL 5 Emulation Terminology ... C-5 Resource C-5 Object C-5 Fonts C-7 Font Index Numbers C-7 Updated PCL 5 DOCs ...
  • Page 12 Introduction ... E-2 Menu Chart Conventions E-2 Configuration Menu ... E-3 Administration/Emulations Menu E-4 Administration/Communications Menu E-5...
  • Page 13 About this manual Typographic conventions...

  • Page 14: Introduction

    This manual provides information you may need only once in a while. Use it in conjunction with your other QMS 1060 Print System docu- mentation. Here’s a brief overview of what’s included in this manual. The information in this manual is divided into the following sections:...

  • Page 15: Printer Options

    QMS through the QMS Bulletin Board, CompuServe, the Internet, and Q-FAX. Provides technical specifications for the printer, shows cable pinouts, and lists available supplies and replacement parts. Lists printer-supported Document Option Commands (DOCs) and updated PCL 5 terminology and DOCs.
  • Page 16 Text you type, and messages and information displayed on the screen Variable text you type; replace the italicized word(s) with information specific to your printer or computer Information displayed in the printer message window PostScript operators and DOS commands Variable information in text...
  • Page 17 Media sizes, imageable areas, and margins Media storage...

  • Page 18: Media Sizes And Imageable Areas

    This chapter lists the media sizes and imageable areas supported by the QMS 1060 Print System, and then provides information on select- ing and storing media. Your printer supports paper, envelopes, transparencies, and labels in a number of sizes. Each size has a certain imageable area, the maxi-...
  • Page 19 105x149 *Input Source Key: M = Multipurpose Tray; S = Standard Feeder; O = Optional Feeder The imageable areas for print media on your QMS 1060 Print System are not centered vertically on their respective pages and may vary " (1.6 mm). You can align the image in several different ways:...
  • Page 20 » Note: We do not recommend printing on perforated or 3-hole punched paper. The printer supports plain paper, 16-24 lb (64-90 g/m and thick paper, 24-42 lb (90-157 g/m The printer supports the following envelopes: Commercial 9, Com- mercial 10, Monarch, International DL, International C5, and custom envelopes in the multipurpose tray or in an optional envelope cas- sette.
  • Page 21 3M PP2500. Note: Use only transparencies recommended for laser printers. » The printer supports transparencies up to a weight of 36 lbs (135 g/m Use only labels recommended for laser printers, such as Avery 5260. Adhesive label stock has pressure-sensitive (peel and stick) adhesive backing.
  • Page 22 How you store paper and other media can make a big difference in print quality and printer operation. Improperly stored media increases the chance of jams during printing and can drastically affect the appearance of your work. Keep media in good condition by storing it...

  • Page 23: About Typefaces And Fonts

    About typefaces and fonts Typography terms Typeface classification Resident typefaces, fonts, and symbol sets...
  • Page 24 This chapter displays the printer’s resident typefaces, offers sugges- tions for using them, and includes page design tips. A bibliography for graphic design and desktop publishing can be found at the end of this chapter. Many of the terms and phrases used in desktop publishing are derived from the language of professional printers and typesetters.
  • Page 25 One way of classifying the different typefaces is to group them into the following categories: A serif is a decorative line or tail on the ends of the strokes of a letter. Serifs, usually on the lower half of a letter, have also been imes Roman and Times are serif typefaces.
  • Page 26 Pi or symbol typefaces are collections of assorted special- purpose characters (for example, decorative, graphic, math, or monetary characters). They are especially useful for highlighting items in lists, providing graphics, and displaying symbols that might otherwise have to be drawn in by hand. Many typefaces today include a complement of the more commonly used pi characters.
  • Page 27 A bitmapped font is a one in which each character is represented by a set of dot patterns. Each font size requires a different set of dot patterns. A scalable font is one in which each character’s dot pattern (bitmap) is generated from a mathematical representation (or outline) of the character.
  • Page 28 Italic was originally developed in the early sixteenth century as a typeface based on cursive handwriting. Today’s italics are still individually crafted typefaces designed to blend with a specific roman (upright) typeface. ITC Avant Garde Roman ITC Avant Garde Oblique individually but are mechanically slanted versions of the roman form from which they derive.
  • Page 29 The following 39 PostScript fonts are resident in your printer. See your QMS vendor if you are interested in expanding your printer's typeface families.
  • Page 30 ITC Bookman Light ITC Bookman Light Italic ITC Bookman Demibold ITC Bookman Demibold Italic New Century Schoolbook Roman New Century Schoolbook Italic New Century Schoolbook Bold New Century Schoolbook Bold Italic Courier Courier Oblique Courier Bold Courier Bold Oblique ITC Avant Garde Gothic Book ITC Avant Garde Gothic Book Oblique ITC Avant Garde Gothic Demibold...
  • Page 31 Your printer has the following resident HP PCL fonts. All fonts can be automatically rotated to landscape orientation. Some are fixed in pitch and point size while others are scalable. Unless otherwise noted, samples are show in 10 point size.
  • Page 32 PostScript format TrueType fonts. True- Type fonts in HP PCL format are not supported. The printer supports Kanji fonts on a hard disk and Intellifont fonts on PROMs. The six optional Kanji fonts are available through the Kanji Option Kit...
  • Page 33 The optional Intellifont PROMs increases the number of PCL 5 fonts from 20 to 37 for LaserJet 4Si compatibility. (See chapter 6, “Printer Options,” later in this manual for more information on these fonts.)
  • Page 35 Methods of printer configuration Using the printer control panel Using the printer configuration menu...
  • Page 36 (the value set at the factory). You have four major ways to configure your printer to meet your print- ing needs. In order of priority, they are...
  • Page 37 Applications use printer drivers to send the appropriate commands automatically to the printer for the requested tasks. If your application doesn't have a QMS 1060 Print System driver, you can select a com- parable PostScript driver, such as another QMS driver or a Laser- Writer driver.
  • Page 38 Your printer is configured at the factory for the most typical printing environments, so most users don't have to use the control panel often. However, if you do need to change a printer setting for all print jobs (not just on a per-job basis), you can do so through the control panel.
  • Page 39 To access the configuration menu, make sure the printer is idle (IDLE displays in the message window), then press the Online/Offline key to take the printer off line (the Ready indicator is not lighted), and finally press the Menu key.
  • Page 40 Menu configuration menu. The printer must be off line and idle before you can access the config- uration menu to change printer configuration. Once you access the configuration menu, you use the control panel keys to move through the menu to access the appropriate option. Use...
  • Page 41 Note: You may need to press the Next key more than one time to advance through the list of selections or options. Press to... this key... Online/ Turn off the Ready Offline indicator and enable printer configuration. Access the Menu configuration menu. Next Advance to the Operator Control/ Administration menu.
  • Page 42 Sometimes, rather than selecting an option, you need to enter char- acter information. A character is any letter, digit, or symbol. A field is a group of characters that have meaning. Use the printer control panel to enter character information in the message window during printer configuration.
  • Page 43 If the current character information is longer than the value that you need to enter, replace each extra character with a space. The printer interprets a space at the end of character information as a blank. To change the HP-GL emulation scaling percent, press the control panel keys in the order shown in the following table.
  • Page 44 Note: You may need to press the Next key more than one time to advance through the list of selections or options. Press to... this key... Online/ Turn off the Offline Ready indicator and enable printer configuration. Access the Menu configuration menu. Next Advance to the Administration menu. Access the...
  • Page 45 Select default scaling percent. After 3 seconds you are returned to the HP-GL/ Scaling Percent menu. Before the printer can accept print jobs with configuration changes, the changes must be saved. PLOTTER SCALING PERCENT 50 IS SELECTED HP-GL SCALING PERCENT...
  • Page 46 To save your configuration changes, press the control panel keys in the order shown in the following table. The printer responds by dis- playing a status message in the message window. Press to... this key... Online/ Exit from the Offline...
  • Page 47 To cancel your configuration changes before they have actually taken effect, press the control panel keys in the order shown in the following table. The printer responds by displaying a status message in the message window. Press to...
  • Page 48 This printer must be restarted for changes to the Keypad Language menu to take effect. If you need to cancel all of the configuration changes you have made to the printer’s configuration menu, you can reset all of the configura- tion values to their factory defaults. Menu...
  • Page 49 Note: If you save a change and for some reason wish to return to the previous state, use the Advanced Status Page as a reference. The rest of this chapter describes the options in the printer configura- tion menu. Information is organized in the following order:...
  • Page 50 Special pages Timeouts One of the features of your printer is collation: the printing of sets of multiple copies of a document in numeric order. Your printer is capa- ble of delivering multiple copies of your files in collated order to the output tray.
  • Page 51 3(a), copy 4(a), copy 1(b), copy 2(b), copy 3(b), and copy 4(b) To greatly improve collation performance which allows you to print longer and more complex print jobs on the QMS 1060 Print system, you can do one of the following:...
  • Page 52 When collation is turned off, the printer prints the requested number of copies for each page. However, when collation is turned on, the printer looks at the number of copies for the first page and prints that many copies of each page.
  • Page 53 001. The system software in your QMS 1060 Print System is stored on 4 MB of flash memory that can be erased and rewritten to “in a flash.”...
  • Page 54 Caution: Some fonts downloaded on your printer’s hard disk are copy-protected. Therefore, when you upgrade the system upgrade (release 2.0 or later firmware) on your QMS 1060 Print System, these fonts must be re-downloaded in order for the printer to recognize them.
  • Page 55 (using the table in the previous section), you must install the soft- ware on your computer’s hard disk before you can download it to the printer. Ensure that your computer has enough free hard disk space for the system software.
  • Page 56 Download the system software to the printer. The procedure for downloading system software depends on whether the print system software is functional (the printer starts up normally, and IDLE displays in the message window) or non- functional (the printer can’t start up; the message window remains blank), and which system software file you decom- pressed in the previous step.
  • Page 57 Ensure that the system software is installed, as described in the previous section. Turn on the printer, wait for IDLE to appear in the message win- dow, and then print an advanced status page. This procedure may change the current configuration settings.
  • Page 58 The downloading process takes about 5 minutes, depending on the size of the file and the speed of your computer. The printer’s Ready indicator blinks as the new system image is copied to flash memory. After the updated system software has been written to flash memory, the printer reboots with the new system image, prints a start-up page, and returns to IDLE.
  • Page 59 Macintosh end. It must also must be wired as a null modem or it must have a null modem adapter. The type of connector for the printer’s serial port end of the cable depends on the type of null modem assembly. Your Macintosh vendor can provide you with this equipment, or you can use the “Cable Pinouts”...
  • Page 60 Access the Administration/Miscellaneous/New Flash Image menu. Select Yes in the New Flash Image menu. The printer waits for the new system software (image) to be sent from your Macintosh. (YES remains in the message window until the new image is sent.) Send the new system software image to the printer.
  • Page 61 Note: If you’re using a serial port, skip to the following section, “PC— Serial Port.” Turn on the printer, wait for IDLE to appear in the message window, and then print an advanced status page. This procedure should not change the current configuration set- tings.
  • Page 62 ROM. After the updated system software has been written to flash ROM, the printer reboots with the new system image, prints a start-up page, and returns to IDLE. Note: The new flash image does not erase the old image until the »...
  • Page 63 # is 1-4. See the MODEX.DOC file for more information on this program. Turn on the printer, wait for IDLE to appear in the message window, and then print an advanced status page. This procedure should not change the current configuration set- tings.
  • Page 64 Select Yes in the New Flash Image menu. The printer waits for the new system software (image) to be sent via your PC’s serial port. (YES remains in the message window until the new image is sent.) 10 Send the new image to the printer.
  • Page 65 Macintosh end. It must also must be wired as a null modem or it must have a null modem adapter. The type of connector for the printer’s serial port end of the cable depends on the type of null modem assembly. Your Macintosh vendor can provide you with this equipment, or you can use the “Cable Pinouts”...
  • Page 66 — If the current print system software is not functioning, you must con- nect your PC to either the printer’s parallel or serial port to reinstall the system software. The downloading procedure will not work over the CrownNet interface in this case.
  • Page 67 — If the current print system software is not functioning, you must con- nect your PC to either the printer’s parallel or serial port to reinstall the system software. The downloading procedure will not work over the CrownNet interface in this case.
  • Page 68 PC. The Ready indicator blinks as the new system image is copied to flash ROM. After the updated system software has been written to flash ROM, the printer reboots with the new system image, prints a start-up page, and returns to IDLE. »...

  • Page 69: Administration/Emulations Menu

    Use the Administration/Emulations menu to set the parameters for the available printer emulations. Optional printing emulations appear only if installed. Note: To choose an emulation or ESP for a particular interface, use » the appropriate interface menu in the Administration/Communications menu.

  • Page 70: Paper Type

    The available range of plotter units for a particular media size is only partially determined by setting the Expand Mode to On. When the printer/plotter senses the media size it automatically sets the hard clip limit to 15mm on three sides and 39 mm on the fourth. If Expand Mode is On, then the hard clip limits are set to 5mm on three sides and 29 mm on the fourth side.
  • Page 71 Menu Administration/Emulations/HPGL/Origin/Y Direction 00000-11000 (0"-11.0") Choices Default 00000 Identifies the original image’s paper size. Menu Administration/Emulations/HPGL/Paper Type Choices A, A3, A4, B, Scale to Paper Default Scale to Paper Sets the width and color for the eight plotter pens. Each pen has a width and a color option available.
  • Page 72 Choices Black, Blue, Brown, Cyan, Gray-25%, Gray-50%, Gray- 75%, Green, Magenta, Orange, Red, Violet, Yellow Default Pen 1—Black (100% black) Pen 2—Black (100% black) Pen 3—Red (70% black) Pen 4—Green (41% black) Pen 5—Blue (89% black) Pen 6—Violet (59% black) Pen 7—Orange (25.8% black) Pen 8—Brown (50% black) Identifies the HP-GL plotter type.
  • Page 73 The PCL 5 menu maintains PCL 5 emulation attributes such as default font, symbol set, and point size. There are ten configuration settings. See appendix E, “Manual Updates,” for updated information on the PCL 5 emulation DOC commands. Sets the printer’s default font. Menu Administration/Emulations/PCL 5/Default Font Choices...
  • Page 74 If this option is set to Disk and no hard disk is installed, memory is used as the default storage location. If the printer has both a hard disk and a large amount of memory, setting this option to Memory enhances printer performance.
  • Page 75 PCL font selection mechanism is used to locate a font that matches the selected symbol set. With the standard set of fonts distributed for your printer, this matches the Times* font, but other user-installed fonts could change this result.
  • Page 76 Indicates the default line termination mode. This setting specifies the treatment of line feeds and carriage returns. (See Appendix E, “Man- ual Updates” for more information on line termination). Menu Administration/Emulations/PCL 5/Line Termination Choices CR=CR LF=LF CR=CR+LF LF=LF CR=CR LF=CR+LF CR or LF=CR+LF Default CR=CR LF=LF...
  • Page 77 Explicitly clears the PCL state by sending an <ESC>E or Printer Job Language. Turns off the printer. (Note that if Retain Temporary is set to On or On Compatibility and power is turned off and back on again, all temporary objects on the disk’s stan- dard resource will become permanent.
  • Page 78 Specifies whether to enable or disable the printing of PCL 5 scalable fonts by an application. This feature may be useful when printing PCL 4 documents which may inadvertently select unwanted scalable fonts. Menu Administration/Emulations/HP PCL 5/Scalable Fonts Choices Enable, Disable Enable—Allows selection of scalable fonts.
  • Page 79 Allows your printer to emulate a monochrome or color plotter. Administration/Emulations/HP PCL 5/Monochrome GL/2 Menu Choices On, Off On—Sets the printer to monochrome (2 pen). Off—Sets the printer to color (8 pen). Since a monochrome print system has two pen colors only (black and white), grayscale patterns are substituted for other colors.
  • Page 80 Stipulates whether each carriage return (CR) in the print job is trans- lated to a carriage return/line feed (CRLF) combination. Menu Administration/Emulations/Line Printer/CR IS CRLF Choices On—Translate all carriage returns to line feeds. Off—Use carriage returns only as carriage returns.

  • Page 81: Resident Postscript Fonts

    Default Sets the printer fonts for the current print job. Any PostScript fonts available on the printer can be used. To see a list of available Post- Script fonts, print an advanced status page through the printer config- uration menu or through the PS Executive Series Utilities.
  • Page 82 Interline spacing is set to the selected point size. Logical pages consisting of more lines than specified are split into multiple pages. Menu Administration/Emulations/Line Printer/Lines per Page Choices 1-128 Default Defines the left, right, top, and bottom margins in 1/100" increments.
  • Page 83 Default Portrait Sets the five-digit value used to specify the point size of the font for the current print job. Menu Administration/Emulations/Line Printer/Point Sz 100ths 00400-25600 (4-256 points) Choices Default 00880 (8.8 points) Specifies the number of spaces between tab stops.
  • Page 84 Sets the default PostScript emulation level. This is useful if you have files prepared in an application which is not fully compatible with Adobe’s PostScript Level 2 page description language. Menu Administration/Emulations/PostScript/Emulation Level Choices Level 2—For PostScript Level 2 files and most Level 1 files.
  • Page 85 Yes—Enables gamma correction. Default Notes Gamma correction is automatically adjusted when you change your printer’s resolution, if this option is set to Yes. Gamma correction applies only to PostScript images. If turning on gamma correction doesn’t yield a suitable gray-scale image for your needs, set a specific gamma correction value through your drawing application or through the PostScript settransfer operator.
  • Page 86 2000, QMS 2025, QMS-PS 3200, QMS 3225, QMS 4525, QMS ColorScript 210/230, QMS Laser 1000, or QMS magicolor Laser Printer), this QMS 1060 Print System software release will automatically reorganize the files on the hard disk when the printer is turned back on again.
  • Page 87 Menu key to remove the message and restart the operation from the beginning. Use this selection to remove a previously installed option and all of its files. See chapter 6, “Printer Options,” for more information on how to remove an option. »...
  • Page 88 Default Enabled Notes The printer must be restarted for changes to the Mode menu to take effect. Changing the Mode setting will cause the REBOOT NOW? prompt to appear. Your can either choose to restart the printer now and this change takes effect immediately or you can manually restart the printer and have this change take effect later.
  • Page 89 Both—Allows both single and multiple LocalTalk connections. Default Conventional Sets the binary communications protocol (BCP) for communicating over a LocalTalk interface to a PostScript printer. See chapter 5, “Additional Technical Information,” for a full discussion of PS Protocol. Menu Administration/Communications/LocalTalk/PS Protocol...
  • Page 90 Choices 001-100 (highest-lowest priority) Default 001 (highest priority) Use the Administration/Communications/Parallel menu to set the par- allel interface values used for printer-host communications. The Centronics IEEE 1284 parallel interface supports five modes of operation: byte, compatibility, ECP (enhanced compatibility port),...
  • Page 91 Default Noninteractive Notes The printer must be restarted for changes to the Mode menu to take effect. Changing the Mode setting will cause the REBOOT NOW? prompt to appear. Your can either choose to restart the printer now and this change takes effect immediately or you can manually restart the printer and have this change take effect later.
  • Page 92 Default Notes If the spool timeout value expires before the printer has received all data for a job it is spooling, the printer terminates the spooled print job. Sets the number of data bits transmitted per character in the data stream from the host.
  • Page 93 See chapter 5, “Additional Techni- cal Information,” for details on how to implement this feature on your QMS 1060 Print System. Menu Administration/Communications/Parallel/End Job Mode Choices None—The printer recognizes only the language specific...
  • Page 94 001-100 (highest-lowest priority) Default 001 (highest priority) Sets the binary communications protocol (BCP) for communicating over a parallel interface to a PostScript printer. See chapter 5, “Addi- tional Technical Information,” for a full discussion of PS Protocol. Menu Administration/Communications/Parallel/PS Protocol Choices Normal—Enable standard, ASCII hex protocol.
  • Page 95 If you are not using the serial interface, you may select Disabled to prevent any jobs from being received through that interface. The printer must be restarted for changes to the Mode menu to take effect. Changing the Mode setting will cause the REBOOT NOW? prompt to appear. Your can...
  • Page 96 If you change this setting, you must ensure that the new setting does not conflict with the PS Wait Timeout and Emul Timeout values. If this value expires before the printer has received all data for a job it is spooling, the printer terminates the spooled print job.
  • Page 97 Enables (and identifies an end-of-job sequence) or disables data stream sensing for the end-of-document (EOD) command. See chap- ter 5, “Additional Technical Information,” for details on how to imple- ment this feature on your QMS 1060 Print System. Menu Administration/Communications/Serial/End Job Mode Choices None—The printer recognizes only the PostScript ^D...
  • Page 98 5, but there is no margin for delays between characters. Sets the check bit used to identify data transmission errors. Menu Administration/Communications/Serial/Parity Choices Even, Ignore Parity, None, Odd Default None Notes The printer’s parity setting must match that of the host or application. Emulation Timeout (seconds)
  • Page 99 Choices On, Off Default If your host uses software flow control, this option allows you to choose the type of flow control used by the printer for its communica- tion with the host. Menu Administration/Communications/Serial/Rcv Sw Flow Ctl ETX/ACK, None, Robust XON/XOFF, XON/XOFF...
  • Page 100 1 Bit, 2 Bits Default 1 Bit Notes Set this option to match the number of stop bits transmitted by your host. Controls the flow of data between the printer and the host. Menu Administration/Communications/Serial/Hdwe Flow Ctl Choices DSR POL DTR POL...
  • Page 101 On, and your cable pinouts must be connected as shown in appendix B, “Technical Specifications.” Sets the binary communications protocol (BCP) for communicating over a serial interface to a PostScript printer. See chapter 5, “Addi- tional Technical Information,” for a full discussion of PS Protocol. Menu...

  • Page 102: Using The Control Panel

    The documentation that comes with the interface contains complete configuration information. Your QMS 1060 Print System comes standard with two media cas- settes. Using the control panel, you can select a default media input source, chaining these input sources, and name them.
  • Page 103 Options in the Administration/Engine menu allow you to give each input- bin a more descriptive name. These names are displayed in the printer message window, where appropriate. (See the Getting Started guide for details on how to enter character information.) You can also use the descriptive names with DOC commands.
  • Page 104 Inputbin 2 is the media cassette. Administration/Engine/Inputbin 2 Name Menu Choices Up to 16 characters Default lower Inputbin 3 is the optional media cassette. Menu Administration/Engine/Inputbin 3 Name Up to 16 characters Choices Default optional While you can usually specify the orientation of a print job in your application, if you consistently use a certain media orientation, you can set this in the Operator Control/Orientation menu.
  • Page 105 Even though there is only one outputbin, you may want to name it. You can use this name with DOC commands. (See the QMS Crown Document Option Commands manual for complete information on DOC commands.) Menu Administration/Engine/Outputbin 1 Name Choices Up to 16 characters upper Default...
  • Page 106 Use the Operator Control/Multipurpose Sz menu to identify the size media in the multipurpose tray (inputbin 1). Operator Control/Multipurpose Sz Menu Choices B5 ISO Executive Legal Letter Com9 Com 10 Monarch Envelope Postcard Default Letter Note: The sizes (inches and millimeters) shown above only »...

  • Page 107: Configuration Menu

    This section briefly describes each of the memory clients. See chap- ter 5, “Additional Technical Information,” for more detailed information on the printer’s memory and what benefits, if any, may result from adding memory to each client. To find out how memory is currently allocated, print a status page using the Status Page key on the control panel or check each client individually in the configuration menu.
  • Page 108 You may need to install additional printer memory. See chapter 6, “Printer Options,” for information on installing additional printer memory. If you change the K Mem Disk Cache value, the printer automatically restarts after you save your changes and exit from the configuration menu.
  • Page 109 For example, the recommended disk cache client size for a single 120 MB hard disk is 180 KB, and for two 120 MB hard disks it is 240 KB. These are recommended values. The printer still operates with a smaller cache, but decreased performance may result.
  • Page 110 The default size of the swap file depends on the amount of RAM installed. The more RAM installed, the larger the default swap file size will be. The printer uses this file as an extension of its memory. As the physical RAM fills, the printer can swap the con- tents to the hard disk file to allow more space.
  • Page 111 If you Enable Disk Swap and restart the printer, then the disk cache size automatically increases to 256 KB. See the “Disk Cache” section, earlier in this chapter for more information.
  • Page 112 » Note: The printer does not allow you to choose features that do not work with the amount of memory currently installed. Using this option does not change the media size. It just ensures that you have enough memory allocated to the appropriate clients to print on the requested media size.
  • Page 113 MB Printer Mem, listed as “Total Memory” on the status page, is the number of megabytes of RAM available to be split among the various memory clients.
  • Page 114 This value must be greater than the sum of the Min K Spool for all installed and enabled interfaces. If you change the K Mem for Spool value, the printer automatically restarts after you save your changes and exit from the configuration menu.
  • Page 115 Use the Installation menu to password-protect the Operator Control and Administration menus. The Installation menu appears when an optional security card is installed in your printer. See chapter 6, “Printer Options,” for more information on using a security card. Menus...
  • Page 116 Menus Installation/Use Admin Pwd Choices On—Require a password to enter the Administration menu. Off—Don’t require a password to enter the Administration menu. Default Notes Select the password in the Installation/Admin Password menu. Menus Installation/Use Operator Pwd Choices On—Require a password to enter the Operator Control menu.
  • Page 117 To check image alignment, print a standard status page (use the Sta- tus Page key on the printer control panel). When the printer is placing images properly, the alignment angle bar in the lower-left corner of the status page is 0.5”/12.7 mm from the left and bottom edges of the page.
  • Page 118 Menu Administration/Engine/Print Density Choices 0—Lowest density 6—Highest density Default When a media jam or other similar error occurs, the printer has the capability of reprinting the print job from the page on which the jam occurred. Menu Administration/Engine/Page Recovery Choices On—Reprints a print job from the page on which the jam or...
  • Page 119 Two toner cartridge configuration options are available: Conserve Toner and Toner Out Act[ion]. To help you conserve toner, your printer provides a feature called Conserve Toner, which simulates draft-quality printing. The amount of toner used during printing is reduced by screening the black dots in a 2:5 ratio.
  • Page 120 You can configure the printer to stop when a TONER OUT error mes- sage is displayed in the message window or to continue printing. Menu Administration/Engine/Toner Out Act. Choices Continue—Continue printing when a TONER OUT message displays. Stop—Stop printing when a TONER OUT message displays.
  • Page 121 The Administration/Startup Options menu allows you to configure your printer to run certain options automatically when you turn it on. By default the printer prints a start-up page when you turn it on. The start-up page lists basic information about the printer, such as its name, the PostScript emulation level and version, and various printer settings.
  • Page 122 If you have a hard disk and Do Sys Start is enabled, when the printer is turned on, the controller checks the hard disk for a PostScript file named SYS\START and executes this file. This file does not print. Information on creating a SYS\START file is available via Q-FAX.
  • Page 123 Use the calibration page to test and maintain optimal print quality, or to compare your printer’s quality to that of other printers. The calibra- tion image contains a gray-scale chart that lets you check print den- sity and gamma correction to get the best possible gray scaling from your printer.
  • Page 124 After you have identified the type of status page to print, you can send it to the printer. To print they status page, press the Print Status key on the control pane, then press Select. If you are printing a status page with the Status Page Type set to Advanced and a standard status page prints, then the printer needs more memory.
  • Page 125 Memory/Enable Disk Swap is set to On, then any extra memory is distributed to all memory clients. » Note: If an Intellifont ROM is installed on a QMS 1060 Print System with a hard disk installed and with Administration/ Memory/Enable Disk Swap set to On, then the following appears...
  • Page 126 Default Multipurpose Notes If you used the Administration/Engine/Inputbin x Name options to change the names of the inputbins, these names replace Multipurpose, Lower, and Optional in the message window. A trailer page is a separator page that prints after a print job to help users sort out their jobs.
  • Page 127 Multipurpose, Lower, and Optional in the message window. You can configure a number of printer timeout settings to set a limit to the amount of time the printer waits to perform a certain task. The emulation timeout is the maximum number of seconds emula- tions other than PostScript (such as HP-GL, HP PCL5, and Line- printer) wait for incoming data.
  • Page 128 The ESP timeout is the maximum number of seconds the printer uses to match an emulation before printing the job in the default emulation. Menu Administration/Communications/Timeouts/ESP Timeout 00000-99999 Choices Default 00003 (3 sec.) Notes A value of 000 is the same as infinity, no timeout.
  • Page 129 The manual feed timeout is the maximum number of seconds the printer waits for the next sheet of media to be placed in the manual feed tray. If the timeout occurs, the manual feed job is canceled. The multipurpose tray, when accessed by a PostScript emulation operator as bin 0, is the manual feed tray.

  • Page 131: Communication Modes

    Communication modes Gamma correction Memory End job mode Centronics and IEEE 1284 parallel interface PS Protocol option HP-GL color encoding...
  • Page 132 PS Protocol option, and HP-GL color-to-grayscale conversion. You can either allow your printer to operate in its default ESP mode or configure its ports to accept jobs in only a particular emulation (for example, PostScript emulation only, HP PCL emulation only, or HP- GL emulation only).

  • Page 133: Terms

    A halftone is a printed copy of a scanned image as a set of tiny, evenly spaced spots of variable diameter that, when printed, visually blur together to appear as shades of gray. Your QMS 1060 Print Sys- tem creates halftone cells by mapping each gray level onto a collec- tion of dots.
  • Page 134 Your printer provides two different types of halftones—basic and advanced. These two options allow you to customize the smoothness of the printed image according to the number of grayscales it uses. Basic— Regular dot placement at 53 lpi for 300x300 resolution or 71 dpi for 600x600 resolution.
  • Page 135 As the screen frequency increases, the number of gray levels decreases. The number of gray levels that your printer can produce depends on the screen frequency and the print resolution. The default value for screen frequency using 600 dpi is 71 lpi.
  • Page 136 A screen angle is the angle at which a halftone screen prints. The default screen angle for your QMS 1060 Print System is 45°. This is the normal angle for black and white printers. You can change the screen angle through the PostScript setscreen operator.
  • Page 137 Make sure you have installed the QMS 1060 and 1060E PDFs in the PDF folder in the QuarkXPress folder. While QuarkXPress 3.3 allows you to access either a PDF or a PPD, to have access to all of your printer’s features, you should use the PDF. To select the PDF, go to the Page Setup dialog box in QuarkXPress, and hold down the Shift key while clicking the Printer Type list box.

  • Page 138: Memory

    The memory is divided among blocks or “memory clients,” each of which is dedicated to a specific printing and application purpose. Your QMS 1060 Print System allows you to distribute its memory among the various memory clients where it can best serve your specific print- ing needs.

  • Page 139: Memory Terms

    Before you can configure your printer's memory efficiently, you must first understand the different types of memory and how they work together. Your QMS 1060 Print System documentation uses the fol- lowing memory terms:...

  • Page 140: Memory Clients

    This type of memory contains data and/or machine-executable instructions that can be read but not modified. On your QMS 1060 Print System, the operating system code, resident fonts, and resident emulations are stored in ROM. This information is not lost when the printer’s power is turned off.
  • Page 141 RAM you have and how that RAM is distributed. Your printer comes with 8 MB of RAM, upgradable to 64 MB by adding Single In-line Memory Modules (SIMMs). Also called a virtual disk, the RAM disk is an area of RAM that is used to simulate an additional hard disk.
  • Page 142 Flash memory is quick loading, reprogrammable memory that holds information even when the printer’s power is turned off. The QMS 1060 Print System has Flash ROM available to hold system code and future system upgrades. The chief advantage of Flash memory is that...
  • Page 143 To get a better idea of your printing requirements and your printer’s capabilities, answer the following questions: How much RAM does your printer have (standard and additional memory)? Do you have the option of installing additional memory if it’s...
  • Page 144 Memory clients are blocks of printer memory that are dedicated to a specific purpose. Each of the memory clients is located in the Admin- istration/Memory menu.
  • Page 145 Memory is then automatically allocated to the clients that require it. Any excess memory is allocated among all memory clients. Note: The printer does not allow you to choose features that do not » work with the amount of memory currently installed.
  • Page 146 The amount of memory required for each R1 block is printer specific. The QMS 1060 Print System takes approximately 64 KB of memory from the display list for each compressed block. However, if a page includes raster image data (for example, TIFF or bitmap data), each compressed block will require much more memory.
  • Page 147 As the font cache memory fills, the printer makes room for new bit- mapped characters by erasing those that have been in the cache longest without being used.
  • Page 148 Also known as K Mem PS Heap, PostScript VM, and Virtual Memory, this client holds downloaded fonts, PostScript operators, and forms. Inefficiently coded PostScript jobs can consume an unlimited amount of virtual memory or leave objects in the PostScript heap after the print jobs are completed, leading to virtual memory errors.
  • Page 149 By ded- icating a portion of memory to this client, your printer can perform “context switching,” the ability to retain downloaded fonts and forms even after the printer changes from one emulation to another.
  • Page 150 The disk cache is a high speed temporary buffer for data going to and from the hard disk. It can speed the printer in two ways: Information such as frequently referenced fonts and logos may still be in the cache and may not have to be pulled off a hard disk each time they’re needed.
  • Page 151 You can add one internal IDE drive and up to three external SCSI hard disks to your QMS 1060 Print System. These hard disks serve as secondary storage places for such items as downloaded fonts, emulations, and spooled data.
  • Page 152 EOD com- mand. This becomes even more problematic when you are printing to a QMS 1060 Print System a series of print jobs in a variety of the emulations it supports. ESP technology examines the first part of each print job to determine its emulation.

  • Page 153: End Job Mode

    Multiple print jobs of the same printer language have been sent to the printer and they print on the same page. (For example, you send the AUTOEXEC.BAT file with no EOD command followed...
  • Page 154 Since the serial and parallel protocols may not be able to detect an EOD automatically, due to a lack of an EOD command in some printer languages, you can insert an EOD command at the end of your file to tell the printer where your print job ends.
  • Page 155 Note: If you print both serial and parallel protocol jobs, then you must set the end job mode for each protocol. Wait for the printer to go idle, and then press the control panel keys in the order shown in the following instructions to access the End Job Mode option.
  • Page 156 Note: You may need to press the Next key one or more times to advance through the list of selections or options. Press to... this key... Online/ Turn off the Ready Offline indicator and enable printer configuration. Menu Access the configuration menu. Next Advance to the Administration menu.

  • Page 157: Adding An Eod Command To Your File

    Next Advance to the Yes option Select Save changes and idle the printer Online/ Put the printer Offline back on online Note: Shaded table cells indicate that the message scrolls. » When adding an EOD command to your file, use the syntax for the selected EOD command exactly as written (the command's syntax is case sensitive).
  • Page 158 When the QMS EOD or the HP EOD is set, the printer does not rec- ognize the Ctrl-D EOD command. Add your organization's standard EOD command to the end of your print file, or add it to a separate file...
  • Page 159 Print acct.doc Print end.txt If your printer is connected to a network through a PC and the PC is acting as a print server managing the printing of shared network files, then your system administrator must create a job separator and asso- ciate it with a print job queue.
  • Page 160 The communication is a half-duplex channel with either device, the host or the printer, making a request for data transfer when there is available data. In the case of simultaneous requests for transfer, the...
  • Page 161 A transfer of two nibbles is required for each byte of information. Your QMS 1060 Print System supports a new protocol for communi- cation between the printer and a host computer over a LocalTalk, serial, parallel, or optional interface connection.
  • Page 162 0x01 0x54 (^a T) instead. (ASCII “T” is the result of XORing ^T with 0x40). This method of quoting guarantees that whenever the printer receives any of the eight control characters, the control function is intended regardless of whether the preceding character is a ^A. Any data byte not equal to one of the eight special control characters is transmitted by sending the data byte.
  • Page 163 The following options are available in the PS Protocol menu. The default setting for all interfaces is Normal. Menu Administration/Communications/ Interface /PS Protocol Choices Name and Description Normal—Enables standard, ASCII hex protocol. Data is sent and received in ASCII format. This mode is recommended if you do not print binary data.
  • Page 164 For example, some device drivers can for- mat bit map images as binary data instead of as ASCII hex data.
  • Page 165 A pen and a pen color are selected to draw images. This emulation supports 8 pens and pen colors. Since your QMS 1060 Print System is a monochrome (black and white) printer, the pen colors are converted to shades of gray. The...
  • Page 166 (NTSC) standard equation for encoding color. This equation converts a given set of CMYK values to grayscale. For the 8 pen colors assigned to pens 1 - 8, the printer uses the designated grayscale; for any other pen color, the printer uses the following equation: [(C*0.3) + (M*0.59) + (Y*0.11) + K]...
  • Page 167 Additional paper cassettes Font and security cards Downloadable emulations Single in-line memory modules (SIMMs) Network interfaces Internal and external hard disks...
  • Page 168 QMS offers many options that expand the QMS 1060 Print System’s capabilities. Contact your QMS vendor for a complete list of all the available options. See appendix A, “QMS Customer Support,” for the list of telephone numbers. Additional cassettes provide two main benefits: Increased media-feed capacity.
  • Page 169 The QMS 1060 Print System has two user-installable media-input configurations. The optional feeder is the base into which a cassette slides as illustrat- ed below. The optional feeder has a connector underneath that aligns with the pins on the top of the standard feeder. This is how the printer recognizes the third media source.

  • Page 170: Installing The Optional Feeder

    If the printer is lifted alone, the bottom feeders could fall off, causing bodily injury or damage to the printer. If you need to lift just the printer, use the grips on it and make sure it detaches completely from the feeder below before...
  • Page 171 ACHTUNG! Enternen Sie den Netzstecker und lassen Sie die Heizung abkühlen, bevor Sie den Drucker reinigen. Lift the printer off of the standard feeder by the carrying grips located on the printer’s sides and place it on a flat surface.
  • Page 172 Ensure that the two feeders are securely stacked. Set the printer on the optional feeder. Lift the printer by the carrying grips located on its sides, align the printer over the pins on the optional feeder, and set the printer down on the optional feeder so that the three positioning posts on the optional feeder fit into the holes on the printer’s bottom.
  • Page 173 » are not stuck together, and that the leading edge (edge that feeds in the printer) is thin and well creased. You might try running a pen along the leading short-edge to flatten the stack before you insert it in the cassette.
  • Page 174 Place up to 50 envelopes in the cassette short edge first with print-side (stamp-side) up so that the flap side aligns with the cassette’s left envelope guide. Adjust the envelope guides. Push in on the envelope guides to adjust the stack. The guides move in, adjusting the stack in the center of the cassette.
  • Page 175 The controller board must be reinstalled after installing a SIMM upgrade, the optional Intellifont PROMs, an optional hard disk, the Kanji Option Kit, or an optional network or LocalTalk interface. WARNING! The following options which require access to the controller board—SIMM upgrades, PROMs, optional network interfaces, and optional hard disks—should be performed only by a qualified QMS service technician.

  • Page 176: Removing The Controller Board

    Caution : It's very important to protect the printer controller board from electrostatic damage while performing this task. If an anti-static wrist strap is provided in your printer option kit, attach one end of it to your wrist and the other end to any convenient electrical ground (for example, the bare metal chassis of equipment, as on the back of a computer, that is plugged in but turned off).
  • Page 177 Remove and set aside the two screws, one on each end of the metal mounting bracket cover on the rear of the printer. Remove the controller board. Using both hands, slide the controller board out of the printer and set it aside.
  • Page 178 Caution : It's very important to protect the printer controller board from electrostatic damage while performing this task. If an anti-static wrist strap is provided in your printer option kit, attach one end of it to your wrist and the other end to any convenient electrical ground (for example, the bare metal chassis of equipment, as on the back of a computer, that is plugged in but turned off).
  • Page 179 Replace the controller board in the printer. Lift the controller board and position it on the guide rails inside the printer so that the optional network interface ports are on the left- most edge of the rear of the printer.
  • Page 180 The following types of optional fonts are available for the QMS 1060 Print System: A PCMCIA (Personal Computer Memory Card International Asso- ciation) card containing typefaces (fonts) such as the ProCollec- tion for the HP emulations on your printer or other special fonts.
  • Page 181 PCMCIA (Personal Computer Memory Card Interna- tional Association) card slot to provide additional functionality. This procedure contains the font card instructions for your QMS 1060 printer. If your printer has a hard disk, you can install the font information from the card onto your hard disk.
  • Page 182 You should feel the card snap into place. Depending on the type of card you are installing, either turn on the printer again or press the Online/Offline key to put the printer back on line. The fonts are now ready to be used.
  • Page 183 The Intellifont option increases the number of fonts available to the HP PCL 5 emulation on your printer from 20 to the 37 PCL 5 fonts available on a Hewlett-Packard LaserJet 4Si. Your Intellifont kit contains the following items: One anti-static wristband Four PROMs If anything is missing, call your QMS vendor.
  • Page 184 Caution : It's very important to protect the printer controller board from electrostatic damage while performing this task. If an anti-static wrist strap is provided in your printer option kit, attach one end of it to your wrist and the other end to any convenient electrical ground (for example, the bare metal chassis of equipment, as on the back of a computer, that is plugged in but turned off).
  • Page 185 Position the controller board so the interface panel is on your right. Locate the appropriate PROM sockets. The sockets in which the Intellifont PROMs will be installed are MR40, MR41, MR42, and MR43. Gently work each PROM into its socket. Because of the difficulty in removing a PROM once it is installed, it is important that you read the following information carefully before you begin inserting the PROMs.
  • Page 186 Use the instructions in the “Reinstalling Controller Board” section of this chapter. To use the Intellifont fonts with your printer’s standard 8 MB of RAM you must do one of the following: Set the Administration/Memory/Disk Cache client to 48 KB.
  • Page 187 If your printer has more memory than 8 MB of RAM , the size of the disk cache is adequate. Once you have installed the Intellifont PROMs, print a start-up page and an advanced status page to verify the installation.
  • Page 188 Turn the printer off and back on again. In the Options section of the start-up page, the following appears: %cartridge1% %cartridge% » Note: Two cartridges appear even though only one is installed. If necessary, use the Administration/Special Pages/Status Page Type menu to change the default Standard setting to Advanced.
  • Page 189 Garamond (Stempel) Bold Garamond (Stempel) Italic Bold ITC Zapf Dingbats (1 symbol set) Letter Gothic Medium Letter Gothic Italic Medium Letter Gothic Bold Line Printer (16.66 pitch, 8.5 points, 25 symbol sets) Coronet Italic Medium Omega Medium Omega Italic Medium Omega Bold...
  • Page 190 Use your PCL application to set the font for a single document. See your application documentation for information. Use the printer configuration menu to set the default font for all PCL documents. » Note: Before beginning this procedure, you must have a PCL 5 font list from the advanced status page.
  • Page 191 For this installation, the controller board is removed and the Kanji internal IDE hard disk is mounted on an IDE-SCSI board. Then they are both installed in the printer. The “IDE-SCSI Board” section, later in this chapter, contains the detailed steps for installing the board. This procedure refers you to other procedures, when necessary, for install- ing the IDE hard disk.
  • Page 192 Press the Online/ Offline key once to take the printer off line. If you forget to take the printer off line before you insert or remove a security card, turn the printer off and back on again to regain access to the data stored in the printer's memory.
  • Page 193 Installation menu option. Select the password. Use the Installation menu to password-protect the Operator Con- trol and Administration menus. The Installation menu appears only when an optional security card is installed in your printer. Menu Installation/Operator Passwrd Installation/Admin Password Choices...
  • Page 194 Select key until you get to the left-most character of the password field. Enter the password character string the same as you would enter an alphanumeric string, see chapter 4, “Printer Configuration,” for complete information on how to enter alphanumeric characters.
  • Page 195 Select key to enter the menu. Enter the pass- word or press the Menu key to return to the menu. Chapter 4, “Printer Configuration,” has complete information on using the configuration menu and on selecting alphanumeric characters.
  • Page 196 Select key until you get to the left-most character of the password field. Enter the password character string the same as you would enter an alphanumeric string, see chapter 4, “Printer Configuration,” for complete information on how to enter alphanumeric characters.
  • Page 197 PS Executive Series Utilities. If necessary connect the PC to the printer’s parallel or serial port. Turn on the printer, and wait for IDLE to appear in the mes- sage window. Insert the emulation disk in your PC’s 3.5" disk drive, and change to that drive (for example, if you’re using the A drive,...
  • Page 198 SIMM installation. Handle the SIMM carefully and preferably by the edges only. If an anti-static wrist strap is provided in your printer option kit, attach one end of it to your wrist and the other end to any convenient electrical ground (for example, the bare metal chassis of equipment, as on the back of a computer, that is plugged in but turned off).
  • Page 199 If you don't have an anti-static wrist strap, discharge your body's static electric charge by touching a grounded surface before you handle any printer boards or components and before removing the controller board cover. Also avoid walking around after grounding yourself.
  • Page 200 Insert the SIMM into the SIMM connector. Hold the SIMM at a 45° angle to the controller board, with the notch on the left side. Slide the SIMM into either SIMM connector, and then push gently on it to make sure it is securely seated in the connector.
  • Page 201 SIMM is seated completely in the connector. Repeat steps 3-5 for each additional SIMM being installing. Insert the controller board in the printer. Use the instructions in the “Inserting Controller Board” section of this chapter.
  • Page 202 Caution : It's very important to protect the printer controller board from electrostatic damage while performing this task. If an anti-static wrist strap is provided in your printer option kit, attach one end of it to your wrist and the other end to any convenient electrical ground (for example, the bare metal chassis of equipment, as on the back of a computer, that is plugged in but turned off).

  • Page 203: Reinstalling The Controller Board

    If you want to install a SIMM, refer to “Installing a SIMM,” ear- lier in this section, otherwise continue at step 6. Reinsert the controller board in the printer. Use the instructions in the “Reinstalling the Controller Board” sec- tion, earlier in this chapter.
  • Page 204 In addition to the three standard interfaces—parallel, serial, and LocalTalk—the QMS 1060 Print System has the option of using up to two Ethernet or Token-Ring network interfaces. These additional interfaces allow greater flexibility when working in a complex network environment.
  • Page 205 Caution : It's very important to protect the printer controller board from electrostatic damage while performing this task. If an anti-static wrist strap is provided in your printer option kit, attach one end of it to your wrist and the other end to any convenient electrical ground (for example, the bare metal chassis of equipment, as on the back of a computer, that is plugged in but turned off).
  • Page 206 Turn off the printer, and then disconnect the power cord and all interface cables (parallel, serial, and LocalTalk) from the printer. Access the printer controller board. Use the instructions in the “Removing the Controller Board” sec- tion of this chapter.
  • Page 207 Computer System Interface) board supports an internal IDE hard disk and up to three external SCSI hard disks. » Note: Ensure that your QMS 1060 Printer System is installed, configured, and tested for proper operation before you attempt to install the internal IDE hard disk on the IDE-SCSI board.
  • Page 208 The printer can only accommodate one IDE-SCSI daughterboard that may be installed in either of the two optional I/O openings on the back of the printer. These openings are to the left of the interface ports and are each covered with a rectangular metal plate .

  • Page 209: Procedure

    Caution : It's very important to protect the printer controller board from electrostatic damage while performing this task. If an anti-static wrist strap is provided in your printer option kit, attach one end of it to your wrist and the other end to any convenient electrical ground (for example, the bare metal chassis of equipment, as on the back of a computer, that is plugged in but turned off).
  • Page 210 Turn off the printer, and then disconnect the power cord and all interface cables (parallel, serial, and Ethernet) from the printer. Remove the two screws from the optional I/O interface. » Note: Save the two screws. (You’ll use them when you install the board.) You can either...
  • Page 211 Attach the IDE-SCSI board. Position the board so the port slides into the optional I/O opening you just created in step “Remove the two screws from the optional I/O interface.” on page 44 above. Snap the board onto the 80-pin connector on the controller board.
  • Page 212 Note: For the printer to recognize external hard disks, each » hard disk must be turned on before you turn on the printer. If the printer recognizes the disk(s)and the start-up page is enabled, check to ensure that DISK ONLINE prints on that page.
  • Page 213 If it is reformatted or if data is modified such that it cannot be recognized by the printer, the Kanji hard disk must be returned to QMS for servicing. This is not covered by your warranty.
  • Page 214 Caution: It's very important to protect the printer controller board from electrostatic damage while performing this task. If an anti-static wrist strap is provided in your printer option kit, attach one end of it to your wrist and the other end to any convenient electrical ground (for example, the bare metal chassis of equipment, as on the back of a computer, that is plugged in but turned off).
  • Page 215 Turn off the printer, and then disconnect the power cord and all interface cables (parallel, serial, Ethernet, and SCSI) from the printer. Remove the two screws from the optional I/O inter- face on the controller board. » Note: Save these screws.
  • Page 216 4 screws Plastic ribbon connector cables Only one internal IDE hard disk is supported. However, you can add up to three external SCSI hard disks to the printer. » Note: Before installing an internal IDE hard disk, you must have an optional IDE-SCSI board.
  • Page 217 Connect one end of the plastic ribbon cable to the hard disk. Align the colored stripe on the cable with pin 1 on the hard disk connector, and then slowly push the cable connector onto the hard disk connector. Connect the other end of the cable to the IDE-SCSI board.
  • Page 218 Attach the hard disk to the IDE-SCSI board. Align the hard disk with the 2.5'' hard disk outline on the IDE-SCSI board. The screw holes in the bottom of the hard disk should match up with the holes in the board. Fasten the hard disk to the board with the four screws provided in the kit...
  • Page 219 » Note: You need a Phillips screwdriver for this procedure. Remove the four screws that fasten the hard disk to the IDE-SCSI board. » Note: Save the four screws. You will use them if you install another internal IDE hard disk. Remove one end of the connector cable from the IDE-SCSI board and the other end of the cable from the hard disk connec- tor.
  • Page 220 The hard disks are identified by their device numbers. If an optional internal hard disk is attached it has a device number of DSK7. If optional external hard disks are attached to the printer, their device numbers can range from DSK0 to DSK6. Device numbers of external...
  • Page 221 2000, QMS 2025, QMS-PS 3200, QMS 3225, QMS 3825, QMS 4525, QMS ColorScript 210/230, QMS Laser 1000, or QMS magicolor Laser Printer), this QMS 1060 Print System software release will automatically reorganize the files on the hard disk when the printer is turned back on again.
  • Page 222 For the printer to recognize one or more external hard disks, each hard disk must be turned on before you turn on the printer. If the printer recognizes the disk(s)and the start-up page is enabled, check to ensure that DISK ONLINE prints on that page. If the start-up page is not enabled, print a status page and check to see if DISK ONLINE prints on that page.

  • Page 223: Optional Fonts

    DISK ONLINE prints on the status page if the printer recognizes the disk(s). (See chapter 4, “Printer Configuration,” for information on how to print a status page.) If your printer has additional memory, then you only need to increase the Disk Cache size to 256 KB. See chapter 4, “Disk Cache,” for more information on increasing the disk cache client’s size.

  • Page 224: Font Card

    After you have accessed the Administration/Disk Operations menu, press the control panel keys in the order shown in the following table. The printer responds by displaying a status message in the message window (DSK refers to the hard disk, # is the hard disk number, and CAR0 refers to the font card number).
  • Page 225 Optional fonts can be installed in two ways: You may use optional fonts by inserting the font card in the card slot on the back right-hand side of the printer below the optional interface ports. However, when you remove the font card from the card slot, you can no longer use those fonts.
  • Page 226 After you have accessed the Administration/Disk Operations menu, press the control panel keys in the order shown in the following table. The printer responds by displaying a status message in the message window ((DSK refers to the hard disk, # is the hard disk number, and CAR0 refers to the font card number).
  • Page 227 After you have accessed the Administration/Disk Operations menu, press the control panel keys in the order shown in the following table. The printer responds by displaying a status message in the message window (DSK refers to the hard disk, # is the hard disk number, and CAR0 refers to the font card number).
  • Page 228 Select Prompt you to insert the font in the card slot on the rear of the printer to the right of the optional interface ports. Read data from the card and remove the appropriate files from the hard disk. This usually takes several minutes.
  • Page 229 Sources of customer support QMS world-wide offices...

  • Page 230: Q-Fax

    Several sources of help and information are available, depending on the type of help you need: Your local vendor (the one from whom you bought the printer) may be best equipped to help you. Your vendor has specially trained service technicians available to answer questions, and the equipment to ana- lyze your printer problems.

  • Page 231: The Qms Corporate Bulletin Board System

    When you use CompuServe type go qmsprint go directly to the forum where QMS is located. The QMS library section contains application notes, printer drivers, utilities, technical information, and announcement files. The QMS server provides access to technical reports, new product announcements, a trade show schedule, and other general informa- tion about QMS.
  • Page 232 The type and version of operating system you are using The interface you are using, and, if serial, the protocol The application and version you are using The emulation you are using Your printer firmware version (listed on the status and start-up pages)

  • Page 233: Qms National Service

    (where # is the error number): CALL FOR SERVICE ENGINE ERROR # (800) 762-8894 Service information and maintenance pricing for QMS and other manufacturers printer’s (800) 858-1597 On-site service and depot repair information 7 a.m. to 7 p.m. Central Time...
  • Page 234 United States/ Latin America Asia-Pacific Canada Europe, Middle East, Africa QMS, Inc. One Magnum Pass Mobile, AL 36618 (334) 633-4300 Product Information: (800) 523-2696 OEM Information: (800) 631-2692 Consumables: (800) 777-7782 Fax: (334) 633-4866 E-mail: info@qms.com Latin America Fax: (334) 639-3347 QMS Asia-Pacific Melbourne 61 (3) 899 5777 Sydney 61 (2) 901 3235...

  • Page 235: Print Engine Specifications

    Print engine specifications Physical characteristics Controller specifications Electrical and environmental requirements Print media specifications Cable pinouts Printer options and consumables Warranty considerations...
  • Page 236 Multiple print (short edge first): » Note: First print is the elapsed time from when the Ready indicator shows and the printer has received a print request to when one sheet of paper is printed and delivered to the output tray.
  • Page 237 Machine Life 300,000 prints or 5 years Warm-Up Time 60 seconds or less under standard operating environment and rated voltage at 73.4° F (23° C) Dimensions Standard configuration The height increases by 4.0"/101.6 mm with the optional feeder. Weight Standard unit—37.5 lbs (17 kg) without imaging cartridge The weight increases by 6.6 lbs (3.0 kg) with the optional feeder.

  • Page 238: Resident Hp-Gl Symbol Sets

    .25 points upwards to 999.75 points 40 resident HP-GL symbol sets Support for Type 1 and Type 3 host-resident downloadable PostScript fonts. Support for Type 1 printer-card-resident PostScript fonts Support for Type 42 (PostScript format) host-resident downloadable TrueType fonts Support for 37 HP PCL fonts...
  • Page 239 Noise Level Idle—maximum 35 dB (A) Printing—maximum 47 dB (A) Ozone Density The printer emits less than 0.1 parts per million (ppm) of ozone maximum with a 100% duty cycle for 8 hours of continuous operation Relative Printing: 15-85% RH (non-condensing)
  • Page 240 Delivery Print media is delivered face down as follows: about 250 sheets of 20 lb (75 g/m about 100 transparency sheets about 120 label sheets about 50 envelopes Input One multipurpose tray (standard) One cassette feeder (standard) One additional cassette feeder (optional) Feed Multipurpose tray About 150 sheets of 20 lb (75 g/m...
  • Page 241 Recycled paper Transparencies Envelopes Labels Letterhead/Bond Paper Thick Paper Cardstock » Note: The printer does not support three-hole- punched paper. Selection (See the “Print Media Selection” table that follows this section) Weight Paper (cassette): 16-24 lb (60-90 g/m Paper (multipurpose tray): 16-24 lb (60-90 g/m...
  • Page 242 6.38x9.01 Envelope 3.6 to 6.65 5.86 to 9.43 Postcard 4.13x5.83 *Input Source Key: M = Multipurpose Tray; S = Standard Feeder; O = Optional Feeder Paper Plain Recycled Input Paper Paper 1* = Multipurpose Tray 2* = Paper Cassette 3* = Envelope Cassette R = Recommended N = Not Recommended or Guaranteed 162x229...
  • Page 243 Paper Feeder Optional cassette feeder that allows installation of dual paper cassettes. Internal IDE Mounting space and connectors and support for one internal IDE hard disk. External SCSI Up to 3 external hard disks may be added. Specifications are included in Q-FAX document 6502, Approved “QMS-tested SIMMs and Hard Disks.”...
  • Page 244 Cassettes Size Legal Letter Envelope Media —Sizes See “Print Media Sizes,” earlier in this chapter. Media— Paper Recommended Brands Labels Transparencies Canon brand type D Toner HG (600 dpi) MINOLTA EP toner cartridge Capacity 500 sheets 500 sheets 500 sheets 50 envelopes Plain—Xerox 4024 Laser—Hammermill Laser Print White...
  • Page 245 This table gives pinouts for the printer end of the Centronics/IEEE 1284 parallel cable used to connect your printer to a computer: Signal Pin No. 19-30 Signal Description Strobe- Data 1 Data 2 Data 3 Data 4 Data 5 Data 6...
  • Page 246 Direction refers to the direction of signal flow as viewed from the printer. To prevent noise effectively, these cables should be shielded and connected to the chassis of the system unit and printer, respec- tively. All interface conditions are based on Transistor-Transistor Logic (TTL) level.
  • Page 247 Not Used » Note: To download printer system software via the serial port, your hardware must have RTS and CTS support. Make sure that pins 4 and 5 on the 25-pin serial cable and pins 7 and 8 on the 9-pin serial cable are criss-crossed as shown in this diagram.
  • Page 248 Receive Data - (RXD) Transmit Data + (TXD) Receive Data + (RXD) These are the pinouts for a cable connecting the Macintosh printer or modem port to the printer’s serial port: Note: To download printer system software from a Macintosh, you »...
  • Page 249 These are the pinouts for the 10BaseT Ethernet connector: Pin Name Transmit Data + Transmit Data - Receive Data + No Contact No Contact Receive Data - No Contact No Contact These are the pinouts for the 10Base2 BNC Ethernet connector: (View from the front of the connector) Pin Name Ground...
  • Page 250 However, if QMS printer failure or damage is found to be directly attributable to the use of non-QMS consumables and/or accessories, QMS will not repair the printer free of charge. In this case, standard time and material charges will be applied to service your printer for that particular failure or damage.
  • Page 251 If you don't have an anti-static wrist strap, discharge your body's static electric charge by touching a grounded surface before you han- dle any printer boards or components and before removing the con- troller board cover. If you must walk around before completing your task, discharge your body's static electric charge again before touch- ing the printer controller board.
  • Page 253 Supported Document Option Commands Updated Document Option Commands...

  • Page 254: Supported Docs

    A list of the supported Document Option Commands (DOC) for your QMS 1060 Print System. The most current information on PCL DOC commands. This section contains the list of supported DOCs for the QMS 1060 Print System. The commands are grouped by feature type. Each command is pre- ceded by either a DOC statement (%%) or an IncludeFeature state- ment (%%IncludeFeature).
