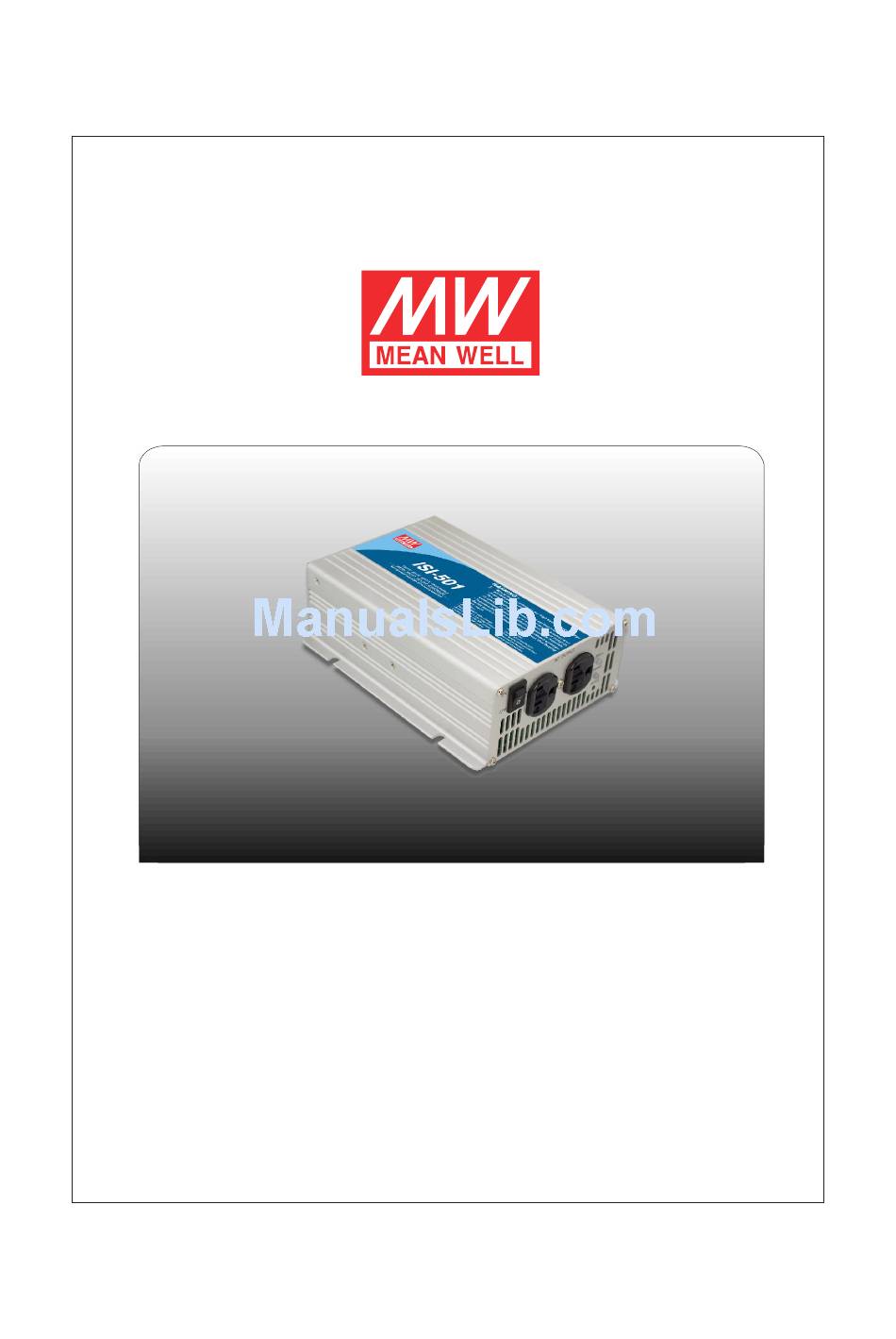

- Page 1 ISI-501 Series Off-Grid Solar Inverter User Manual...
-
Page 2: Table Of Contents
Off-Grid Solar Inverter User Manual Table of Contents 1.Safety Guidelines ................... 2.Introduction .................... 2.1 Features ................... 2.2 Main Specification ................3.User Interface Panel ................3.1 Front Panel ..................3.2 LED indicator on Front Panel ............3.3 Rear Panel ..................4.Output Voltage and Frequency Settings .......... -
Page 3: Safety Guidelines
1.Safety Guidelines (Please read through this manual before assembling the Inverter) ‧Risk of elect rical sho ck and e nerg y hazard. All failures sho uld be examined by a qualified tec hnician. Ple ase do n ot remove the case of the inv erte r by you rself! ‧Plea se d o no t install the inverter in places with hig h moisture o r nea r wa ter. -
Page 4: Main Specification
‧AC o utput voltage regulation : 3% ± ‧H igh effic iency up to 88% ‧Built in M PPT solar ch arger, M PPT efficiency: 98% (Typ.) ‧Adjustable ou tput voltage and freq uency ‧LED indication fo r ope ration and battery capacity ‧Battery low a larm (with ele ctrically iso lated dry contact) ‧R em ote O N/O FF function ‧C om pliance to FCC / CE regulations... -
Page 5: Led Indicator On Front Panel
LED Indicator (Status): Displays the operation status of the ISI-501. LED Indicator (Battery): Displays remaining capacity of battery. Function Setting: Output voltage and frequency can be set through this button. P ow er O N/O FF S witch : Th e inve rt er will tu rn OFF if the s witc h is in the OFF position. -
Page 6: Output Voltage And Frequency Settings
Battery Low Alarm: This is an electrically isolated dry contact which can provide the user with an external control signal. Users will be alarmed of a low battery when the two pins are open and the ISI-501 makes a "beep" sound. Battery Status C onnector Sta tus Alarm... - Page 7 AC OUTPUT Status Ba tter y Use an i nsu la ted pl ast ic Se tting st ick to press on t he "Set ti ng" bu tton Figure 4.1 Adjustin g output voltage and frequen cy Table 4-1 Voltage & Frequency Chart O/P Voltage 100 Vac 110Vac...
-
Page 8: Operating
5.Operation System On Battery Low Shutdown Auto Recovery (SW-ON) Protection AC Output 14.4/28.8/57.6V Battery Voltage 13/26/52V 10.5/21/42V Charger Status Figure 5 .1 O peration Sequence t1 : Wh en us er turns on the I SI-501 , ba ttery vo ltag e wi ll be sens ed. If battery voltage is greater than 13/26/52V, it means the battery is adequately charged and the charger circuit will remain de-activated to prevent overcharging. -
Page 9: Protection
ISI-501 internal fuse will blow to protect other circuitry. Please contact your nearest distributer or send the inverter back to Mean Well for repair. (C)Battery Low Shutdown Protection: When the battery voltage is lower than 10.5/21/42V, the ISI-501 will shut down to guarantee the lifetime of the battery. - Page 10 o ve r he a ted a nd c au s e d an g er. P le a s e r e fe r to ta bl e 7. 1 or c on s u lt w ith o ur distributors or us if you have any questions.
- Page 11 (D)Suggested Mounting The four holes on the sides of the case allow the users to mount and fix the ISI-501 on a flat surface. (It is highly recommended the ISI-501 is placed horizontally. Also, please pay attention to the ventilation .) (E)Example of System Setup Leads should be as short as possible Greater...
-
Page 12: Troubleshooting
Three years of warranty is provided under normal operating conditions. Please do not change components or modify the unit by yourself or attempt to repair the unit by yourself because Mean Well reserves the right to void the w arranty.
