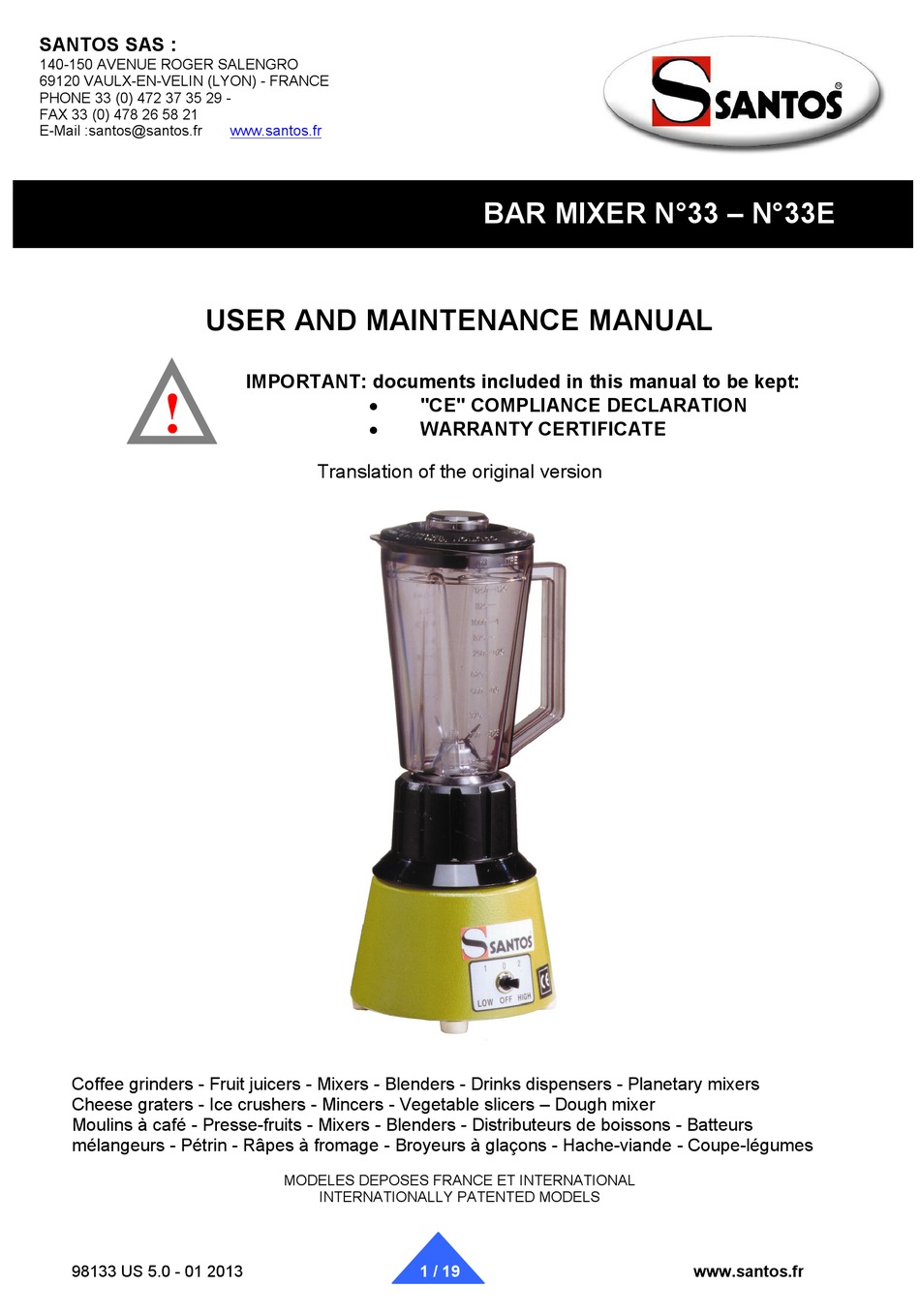

SANTOS SAS :
140-150 AVENUE ROGER SALENGRO
SANTOS : Instruction and maintenance manual
69120 VAULX-EN-VELIN (LYON) - FRANCE
PHONE 33 (0) 472 37 35 29 -
FAX 33 (0) 478 26 58 21
E-Mail :santos@santos.fr
USER AND MAINTENANCE MANUAL
!
Coffee grinders - Fruit juicers - Mixers - Blenders - Drinks dispensers - Planetary mixers
Cheese graters - Ice crushers - Mincers - Vegetable slicers – Dough mixer
Moulins à café - Presse-fruits - Mixers - Blenders - Distributeurs de boissons - Batteurs
mélangeurs - Pétrin - Râpes à fromage - Broyeurs à glaçons - Hache-viande - Coupe-légumes
98133 US 5.0 - 01 2013
www.santos.fr
IMPORTANT: documents included in this manual to be kept:
•
•
Translation of the original version
MODELES DEPOSES FRANCE ET INTERNATIONAL
INTERNATIONALLY PATENTED MODELS
BAR MIXER N°33 – N°33E
"CE" COMPLIANCE DECLARATION
WARRANTY CERTIFICATE
1 / 19
www.santos.fr
Advertisement
Table of Contents
Related Manuals for Santos 33
Summary of Contents for Santos 33
- Page 1 SANTOS SAS : 140-150 AVENUE ROGER SALENGRO SANTOS : Instruction and maintenance manual 69120 VAULX-EN-VELIN (LYON) - FRANCE PHONE 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21 E-Mail :santos@santos.fr www.santos.fr BAR MIXER N°33 – N°33E...
-
Page 2: Table Of Contents
The motor runs but the knives do not rotate: ..............14 TECHNICAL SPECIFICATIONS ..................15 Wiring diagram 110-120V 50/60Hz N°33E ..............16 Wiring diagram 110-120V 50/60Hz N°33 ..............16 Wiring diagram 220-240V 50/60Hz N°33 ..............17 Wiring diagram 220-240V 50/60Hz N°33E ..............17 WARRANTY CERTIFICATE .................... -
Page 3: Ce" Compliance Declaration
SANTOS : Instruction and maintenance manual “CE” COMPLIANCE DECLARATION THE MANUFACTURER: SANTOS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON) FRANCE declares that the appliance intended for the professional market described below: Description: BAR BLENDER Type number: 33, 33C, 33E, 33CE complies with: •... -
Page 4: Important Safeguards
The machine motor centre line must always be vertical with respect to the surface on which it is placed. 12. The use of spare parts other than certified original SANTOS parts is prohibited 13. Never connect several appliances to the same power socket. -
Page 5: Installation And Handling
• If the power cable is damaged, it should be replaced with a special unit available from SANTOS or a SANTOS-approved dealer. TAKE CARE: Check that the On / Off switch (6) is in the 0 position before connecting the power cable plug to your mains electric power socket. -
Page 6: Using For The 1 St Time
SANTOS : Instruction and maintenance manual USING FOR THE 1 TIME Thoroughly clean all parts in contact with the food (Fig. A). Fig A • Remove the bowl (1) from the motor unit (2). • Take off the lid (3) and the cap (4) and wash them with a standard dish washing product. -
Page 7: Recycling The Product At The End Of Its Service Life
– Professional Equipment section – so that it can be either recycled or disassembled in order to reduce any impact on the environment. For further information, please contact your dealer or SANTOS.. For the disposal or recycling of the appliance components, please refer to a specialist company or contact SANTOS. -
Page 8: Your Bar Mixer N°33
This is made up of a transparent plastic graduated bowl, a plastic lid, a measuring cap, a set of stainless steel knives and a coupling system. • The mixer N° 33 is designed to mix different foodstuffs in the form of liquids, doughs or solids. -
Page 9: Cleaning
SANTOS : Instruction and maintenance manual plugging in the power cable (10) to the mains power socket. 7. Add a minimum of liquid or purée (until the knives are completely covered) before adding the solid ingredients to be mixed. For best results, dice up the solid ingredients and insert them through the hole in the lid when the knives are rotating. -
Page 10: Maintenance
SANTOS : Instruction and maintenance manual If any intervention is necessary to replace parts subject to wear, such as the knives, the electrical or other components, please refer to the parts lists (see the exploded view at the end of this manual). -
Page 11: Assembling The Drive Part (Motor) (Fig. F)
SANTOS : Instruction and maintenance manual Dismantling the drive part (motor) : (Fig. E) 1. Lay the motor unit down on its side. 2. Stop the rotation of the rubber drive part. You can use the knife hub (7) fitted with the rigid coupling (12). -
Page 12: Dismantling The Receiver Part (Knives)
SANTOS : Instruction and maintenance manual Fig F Depending on the model of the motor shaft, you may sometimes have to screw a low nut onto the motor shaft before screwing on the flexible coupling. (Fig. G) • If "D" is greater than 3 mm, do not screw on a low nut. -
Page 13: Troubleshooting
SANTOS : Instruction and maintenance manual Assembling the receiver part (knives) (Fig. H) 1. With a thick cloth, hold the knives (BE CAREFUL there is a risk of cutting yourself). 2. Fit the low nut (19) (left-hand thread) into the hexagonal housing of the hard plastic coupling (12). -
Page 14: The Appliance Stops Following An Overload
• Wait for the motor to cool down (20 to 45 minutes), then turn the On / Off switch (9) on (position 1). If the problem persists, switch off the power supply to the machine (unplug the power supply cord (10)) and call in the maintenance service or contact a SANTOS-approved dealer. The appliance stops following an overload: If the motor jams (foreign body, matter or food too hard jamming the knives), it may heat up very quickly and cut out due to overheating. -
Page 15: Technical Specifications
SANTOS : Instruction and maintenance manual TECHNICAL SPECIFICATIONS ELECTRICAL SPECIFICATIONS (1) Model 33 Single phase Supply voltage .(V) 220-240 110-120 Frequency (Hz) 50/60 50/60 Motor: Power rating Power input Speed: Position 2 (rpm) 16000 18000 Position 1 (rpm) 12000 14000... -
Page 16: Wiring Diagram 110-120V 50/60Hz N°33E
SANTOS : Instruction and maintenance manual Wiring diagram 110-120V Wiring diagram 110-120V 50/60Hz N°33 50/60Hz N°33E Black Black Diode Diode On/Off On/Off 3 positions 3 positions Blue White White Cup presence switch Black Black White White Black Black Green/Yellow Green/Yellow 98133 US 5.0 - 01 2013... -
Page 17: Wiring Diagram 220-240V 50/60Hz N°33
SANTOS : Instruction and maintenance manual Wiring diagram 220-240V Wiring diagram 220-240V 50/60Hz N°33 50/60Hz N°33E Black Black Black Black Diode Diode On/Off 3 positions On/Off 3 positions Blue White Cup presence switch Interference filter White Blue Interference Blue filter... - Page 18 SANTOS : Instruction and maintenance manual ITEM Description Bowl assembly Motor unit Bowl Bowl nut Knife hub Bowl seal On / Off switch Power supply cord Flexible coupling Hard coupling Groove of motor shaft Motor shaft Knife shaft Thin, stainless steel washer...
-
Page 19: Warranty Certificate
In case of revelation of an imperfection during the warranty period, the Distributor has to, unless a different written agreement of SANTOS, indicate to his customer to stop any use of the defective product. Such a use would release SANTOS of any responsibility.
