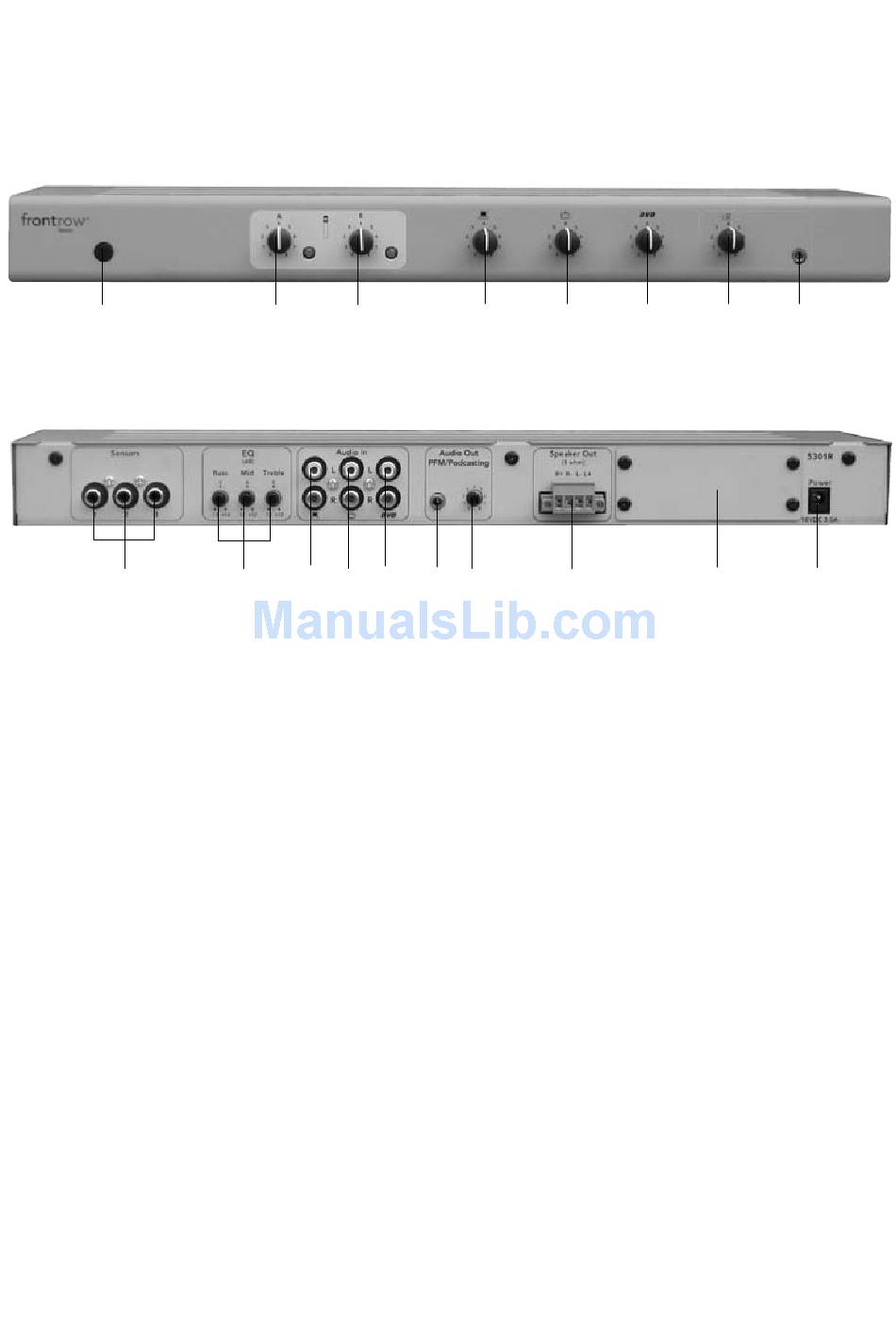

5301R Lasso Receiver

Features

1
9
1. Power button
2. Microphone A volume control
3. Microphone B volume control
4. Audio In volume control (Computer)
5. Audio In volume control (TV/VCR)
6. Audio In volume control (CD/DVD)
7. Audio In volume control (MP3)
8. Audio Input jack (3.5mm – MP3)
9. Infrared ceiling or wall sensor inputs
10. EQ adjustment
11. Audio In jack (stereo RCA – CD/DVD)
12. Audio In jack (stereo RCA – TV/VCR)
13. Audio In jack (stereo RCA – Computer)
2 3
11 12 13
10
front
4 5
back
14 16
15
14. Audio Out jack (3.5mm) for podcasting
& other
15. Audio Out volume control
16. Speaker terminals
17. Expansion bay for page override module
(optional)
18. Power jack
