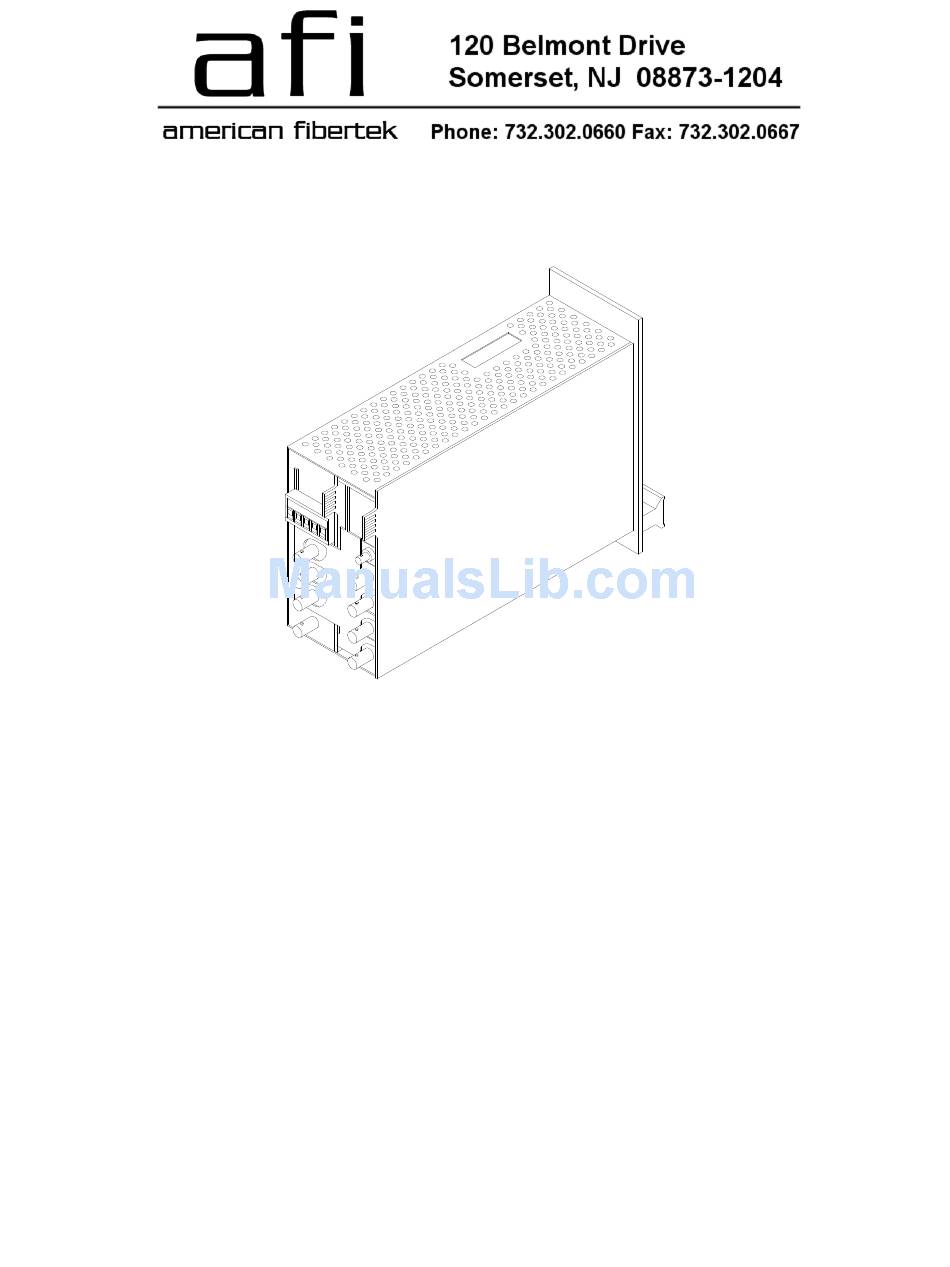

- Page 1 Instruction Manual RR-984C-SL Eight Channel Digital Receiver With RS485, RS-422, RS232 or Manchester Data 10/30/2012 JPK...
- Page 2 Power Connection ..................3 Fiber Connection ..................3 Video Input Connections ................4 Data Input / Output Connections ..............4 Typical System Data Connections............... 5 Data Configuration..................5 RR-984C-SL Status LED Indicators ............5 Warranty and Service Information ............... 6...
- Page 3 FUNCTIONAL DESCRIPTION The RR-984C-SL receiver operates as half of a transmitter / receiver pair for the transmission of eight channels of high performance 10 bit digital NTSC, PAL, RS170, or RS343 video signals. The RR-984C- SL also supports one bi-directional RS485, RS422, RS232 or Manchester data channel.
- Page 4 VIDEO OUTPUT CONNECTIONS The video output connections are made via BNC connectors on the back of the unit. The 75 video outputs can be looped through typical baseband video inputs of switchers, recorders and other equipment as required. For proper operation, the outputs must be terminated with 75. For optimum performance the video cables should be the shortest length of coax practical.
- Page 5 Correspondingly, the receiver of an electronic signal is labeled RX or Data In. Following this standard, the TX or Data Out of the copper device is connected to the RX or Data In of the RR-984C-SL. The plus terminal of the copper device is connected to the plus terminal of the RR-984C-SL and the minus is connected to the minus.
- Page 6 VIDEO 1 THROUGH VIDEO 8 A bi-color LED indicator is provided for each of the eight video outputs from the RR-984C-SL. DC power and video status associated with each of these LED’s are summarized below. Video Presence LED DC Power Status...
