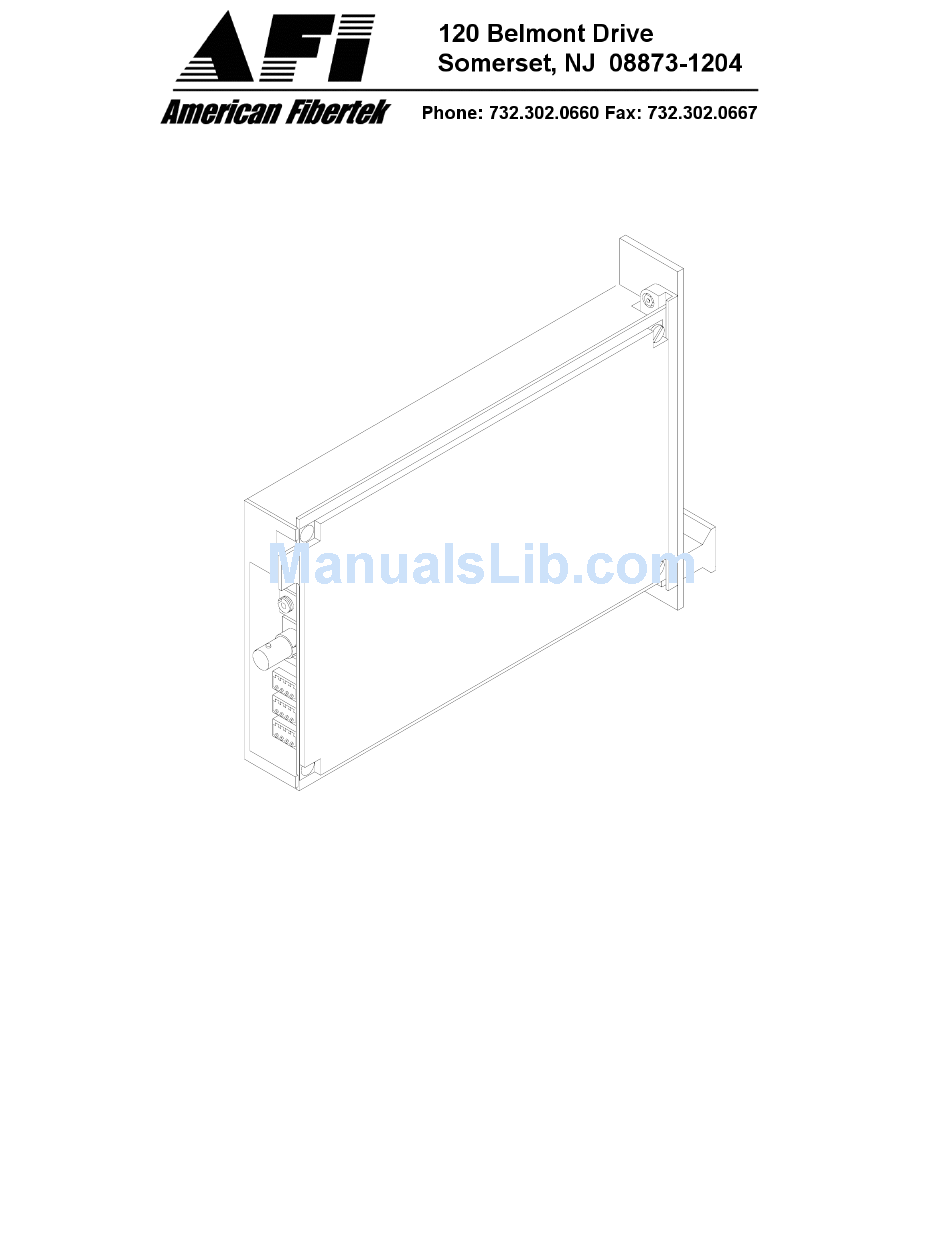

- Page 1 Instruction Manual RR-913D-SL Video Receiver With Bi-directional Multi-Protocol Data And Remote Diagnostic Interface © Copyright 2005, American Fibertek, Inc. 0801JD...
-
Page 2: Table Of Contents
Video Input Connection ................4 Data Input / Output Connections ..............5 Typical System Data Connections............... 5 Data Configuration..................5 RS485 Data Signals ..................6 Offset Bias - RS485 ..................6 RR-913D-SL Status LED Indicators ............7 Warranty ...................... 8 Service Information..................8... -
Page 3: Functional Description
The RR-913D-SL is designed to operate with the MT-913D-SL or RT-913D-SL video transmitter with bi- directional data over one singlemode fiber optic cable. The RR-913D-SL multiplexes up to three data signals into a high speed serial data stream. This serial data stream modulates a laser at 1550 nm wavelength. The RR-913D-SL also detects and demultiplexes a return optical serial data stream signal containing a single video input signal along with up to three data channels at 1310 nm wavelength. -
Page 4: Installation
Power to the unit is supplied by the subrack. Please refer to the SR-20D and PSR-2 instructions for further details. POWER CONNECTION Power is supplied to the unit via a four finger backplane connector. The RR-913D-SL can be inserted into the subrack or removed from the subrack with power applied to the backplane. FIBER CONNECTION The fiber optic connection is made via a FC/PC connector located on the back of the unit. -
Page 5: Data Input / Output Connections
Correspondingly, the receiver of an electronic signal is labeled RX or Data In. Following this standard, the Data Out of the copper device is connected to the Data In of the RR-913D-SL. The plus terminal of the copper device is connected to the plus terminal of the RR-913D-SL and the minus is connected to the minus. -
Page 6: Offset Bias - Rs485
In order to reconfigure the RS485/422 channel, the rack card cover needs to be removed. To open the RR-913D-SL, remove the two screws at the left rear of unit near data and fiber connections. Also remove the two screws at the right front of unit (top of cover). The configuration switch banks are located at the lower right corner of PCB next to the data terminals (See drawing below). - Page 7 A green LED indicator is provided to monitor the data coming in from the electrical interface, through the RR-913D-SL, and out onto the fiber. The intensity of this indicator will vary with input data patterns, however in typical applications it will cycle on and off as data is transmitted. Data transmitted status associated with this LED is summarized below.
-
Page 8: Warranty
SYNC A bi-color LED indicator is provided to monitor the proper serialization of the optical data stream into the RR-913D-SL electronic interface. DC power and sync status associated with this LED is summarized below. Sync LED DC Power Status Sync Status...
