67FV1

2-2 SYSTEM MEMORY CONFIGURATION

• This VIA 693 Apollo Pro Plus motherboard supports 168pin DIMM of 4MB,
8MB, 16MB, 32MB, 64MB and 128MB to form a memory size between
8MB up to 768MB (SDRAM). VIA 693 Apollo Pro Plus chipset provides
"Table-Free" function. It means that users can install DRAM with any
configuration and in any bank, and that is why the DRAM table is not needed
but do remember that the DRAM must be 3.3V type.
CPU environment, the SDRAM specification must comply with PC-
100 / PC-133 spec.

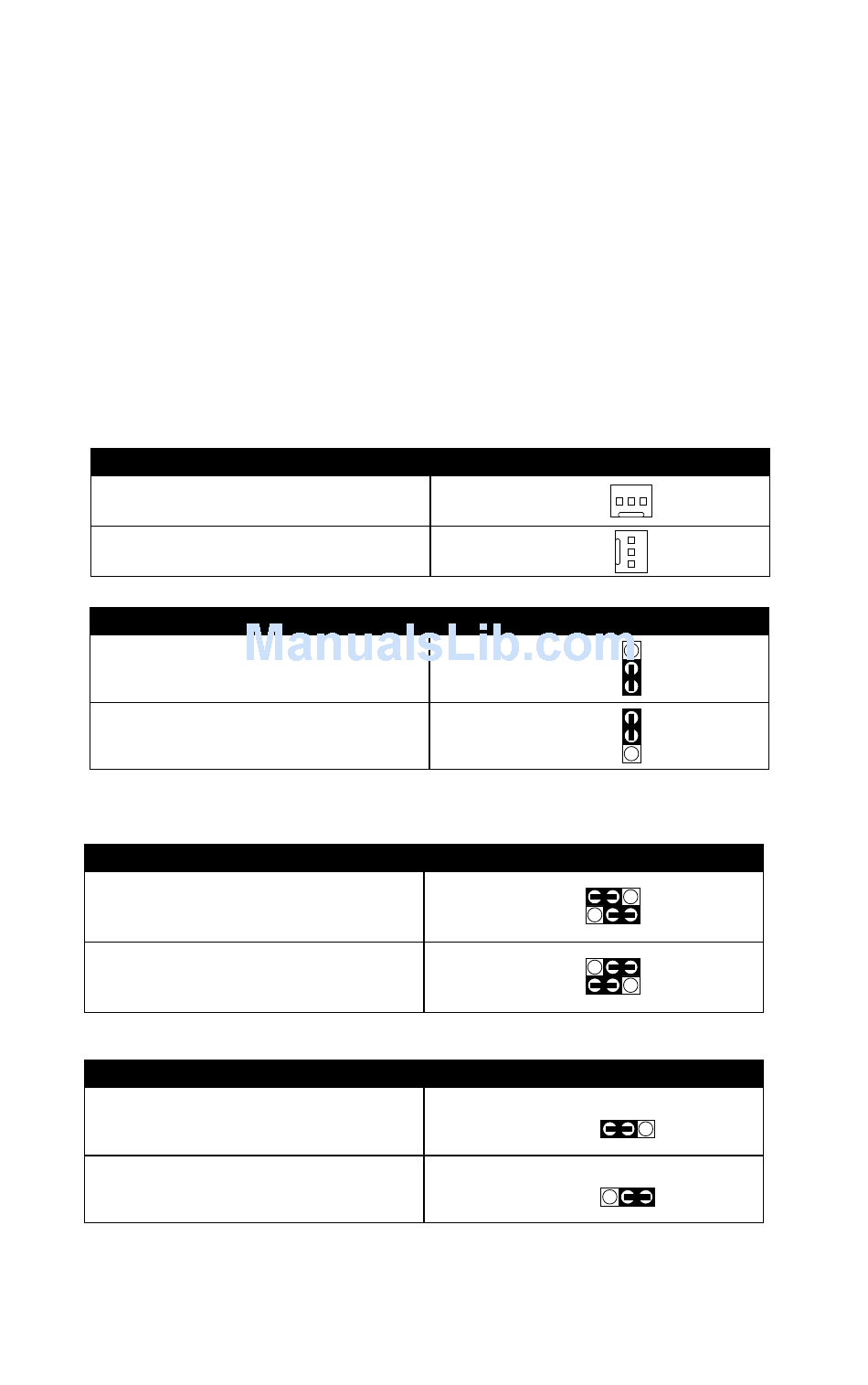

2-3 JUMPER SETTINGS

JFAN1 / JFAN2: ONBOARD FAN (12V)
CPU FAN
SYSTEM FAN
JP1: BUS CLOCK SELECT
Auto Detect 66MHz/100MHz/
133MHz (default)
133MHz
JP2/JP3: ONBOARD AC'97 CODEC SELECT
Disabled
Enabled (default)
JP4: POWER LOST RESUME
Normal (default)
Enabled
This jumper allows you to use the switch of ATX power supply to control ON/
OFF switch directly instead of using the power switch on the motherboard.
8
For 100 / 133MHz
JFAN1
JFAN2
1
JP1
3
1
JP1
3
1 3
JP2
JP3
1 3
1 3
JP2
JP3
1 3
1 3
JP4
1 3
JP4
