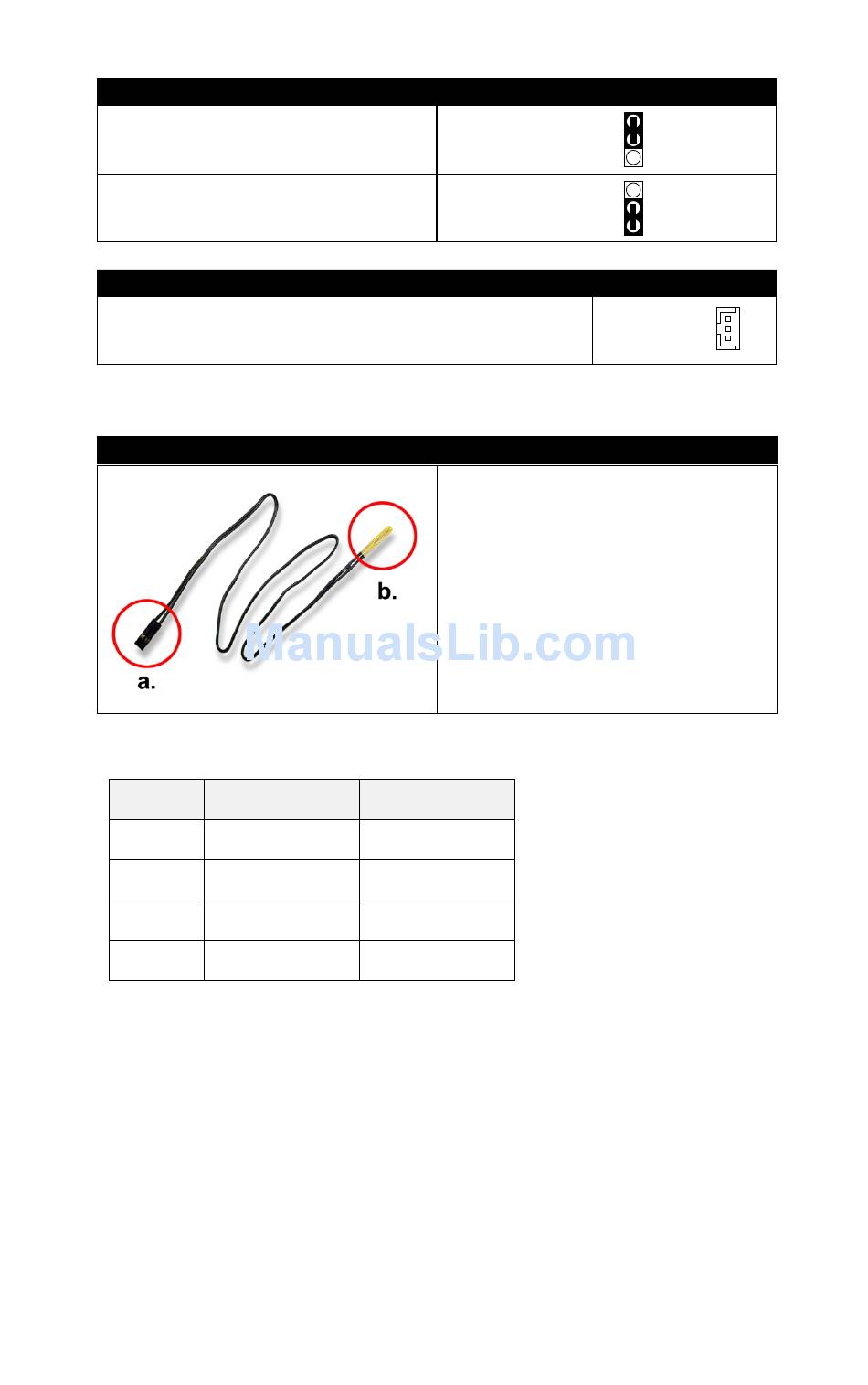

SOLTEK SL-67FV1 User Manual page 9

JBAT1: CLEAR CMOS DATA
Clear CMOS Data
Retain Data (default)
JWOL1 : WAKE ON LAN (WOL) FUNCTION
Connect the Wake On LAN signal from LAN card
to JWOL1
This feature requires that Wake-On-LAN features are enabled and that your sys-
tem has an ATX power supply with at least 720mA / +5V standby power.
RT2: THERMAL SENSOR CONNECTOR
CI1/CI2: CD-ROM Audio Connector
PIN #
PIN 1
PIN 2 Left Channel
PIN 3
PIN 4
Right Channel
GAME/MIDI PORT
MIC: MICROPHONE JACK
LINE IN: AUDIO INJACK
LINE OUT/SPEAKER OUT: AUDIO OUT JACK
CI1 CI2
GND
Left Channel
GND
GND
GND
Right Channel
JBAT1
JBAT1
JWOL1
a: Connect to RT2.
b: Connect this thermal sensor to
particular device which
generates lots of heat such as
Hard Driver, VGA chip, etc,.
When connected, user could
observe the temperature
change from the BIOS
program.
67FV1
3
1
3
1
9
