Luraco iROBOTICS 6 User Manual page 9

Locked

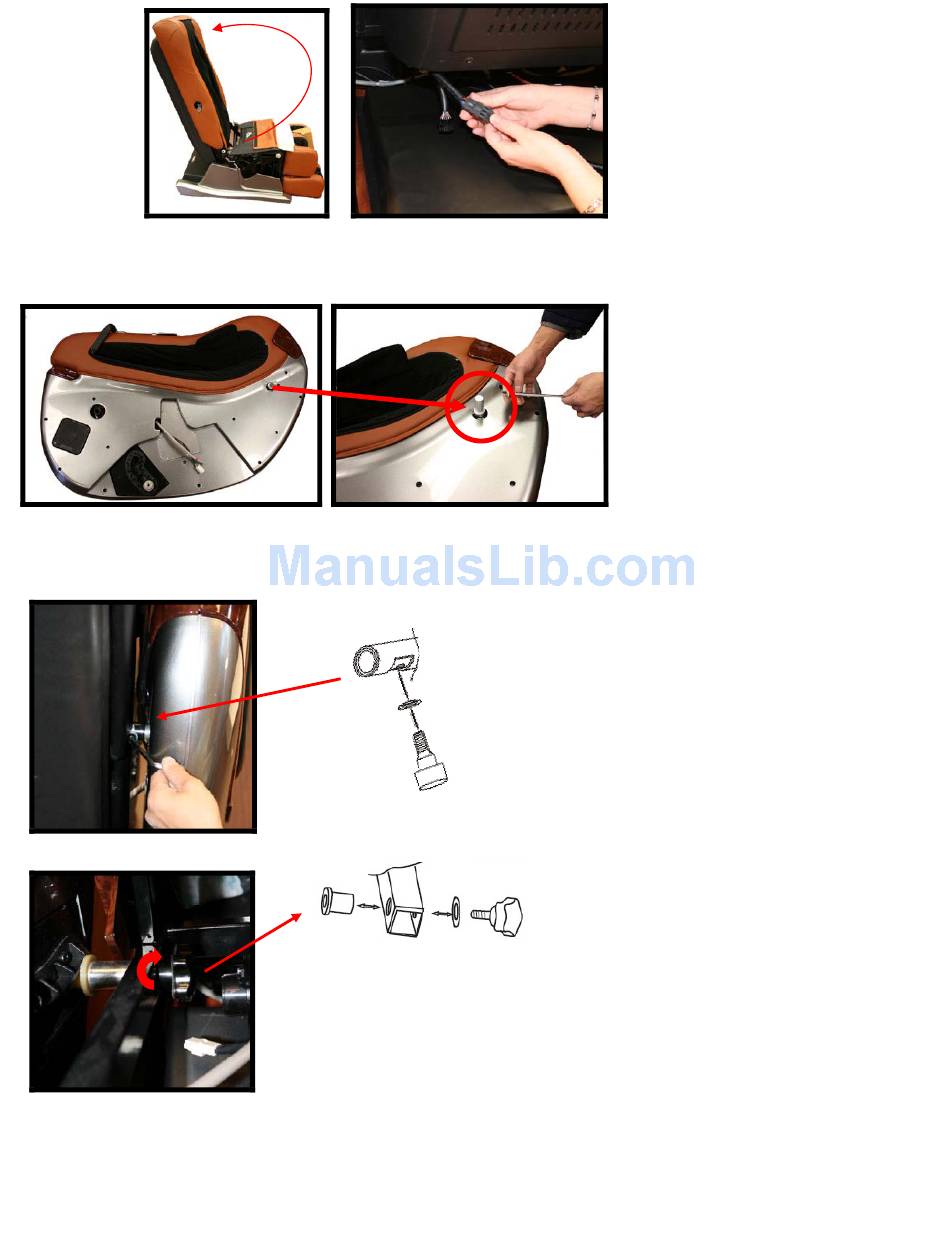

Step 5: Assemble the Armrests
1. Using tools provided, remove nut indicated in red circle (Fig. 4 and Fig. 5)
Fig. 4
2. Align armrest to the perfect position with chair frame, and then match the couple axle between armrest
and backrest. Finally, once aligned tighten with provided tool as shown in (Fig. 6 and Fig. 7).
2 connectors
Fig. 5
Tighten by hand the
knob screw handle as
shown in next photo.
8
Tighten with tool
provided as shown
in photo
