1/ Make sure wires are connected as instructed from page 8
2/ Plug the power cord to the machine (Fig. 21)
3/ Connect the remote to the DB9 port on the back of chair as indicated by back label (Fig. 21)
4/ Turn on the power switch on the back (Switch to I position)
5/ Use the remote to choose the massage functions and enjoy the comfortable massage
6/ For MP3 music player function, please insert an SD card with MP3 music files to the back of the remote (Fig. 22).
SD card is included.
7/ For headphones, please insert the headphones to the audio socket as indicated on the back panel of chair.
PLACEMENT
There must be enough space around the chair. There is a clearance of 80cm or 31.5 inches from the front
of the chair to the wall, and 60cm or 26.5 inches for the chair backrest
ATTENTION!
Be sure no object is behind chair for reclining.

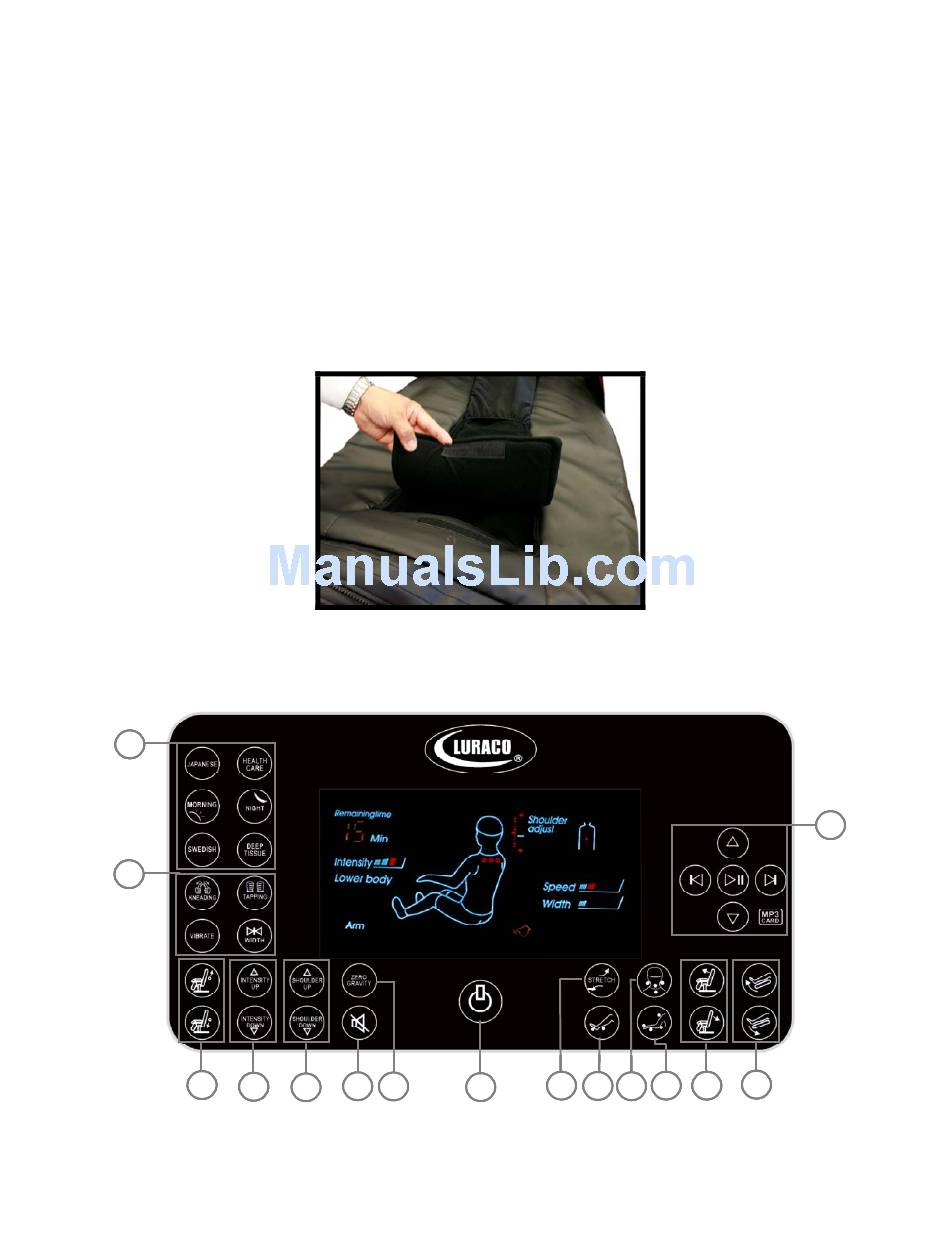

For a more gentle massage, a gentle massage pad is included. Place the pad as shown
in photo to the massage chair back cushion (Fig. 23)
1 1 1 1 1 1
2 2 2 2 2 2
3 3 3 3 3 3
Gentle Massage Pad

System Control

6 6 6 6 7 7 7 7
4 4 4 4 4 4 5 5 5 5
Fig. 23
8 8 8 8 9 9 9 9 10 10 10 10
0 0 0 0
Fig. 24
12
14 14 14 14
13 13 13 13 13 13
11 12 11 12 11 12 11 12 12 12
