Luraco iROBOTICS 6 User Manual page 10

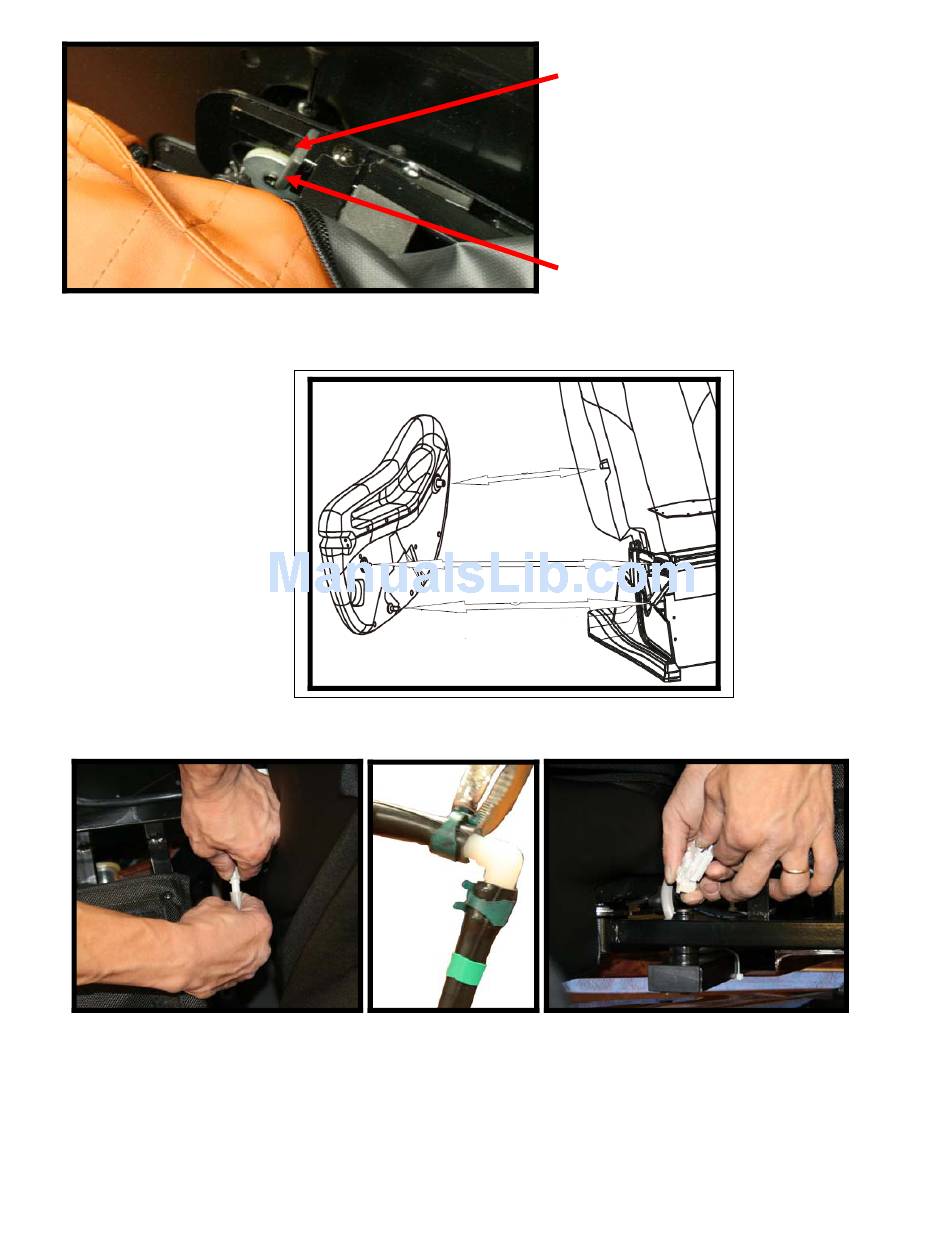

3. Connect the air pipes with green clamps (Fig. 8) and power wire (Fig. 9) to chair body carefully and completely.
4. Repeat procedures 1. 2. and 3. for the armrest assembly on other side. Note total number of air pipes
(2-right arm, 2-left arm, 3 seat, and 2 head). Note total number of connections (1 right arm, 1 left arm,
2 back of chair).
Fig. 6
Fig. 8
Armrest axis
Install axis in the chute, use
the screw and tighten with
hand held screw driver
Fig. 9
9
Fig. 7
