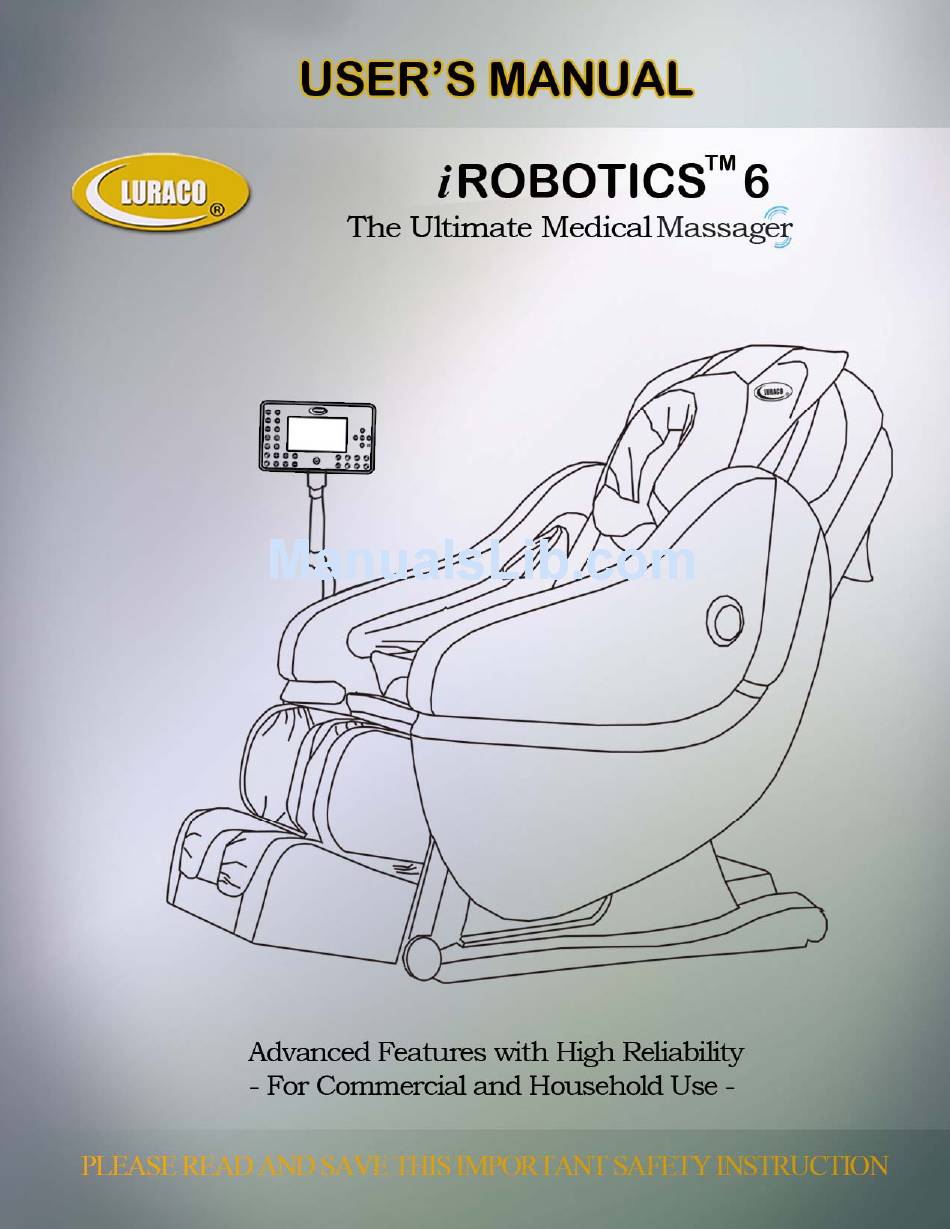

Luraco iRobotics 6 User Manual

Ultimate medicalmassager
Hide thumbs Also See for iRobotics 6:
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iRobotics 6 and is the answer not in the manual?

Questions and answers

Related Manuals for Luraco iRobotics 6

Summary of Contents for Luraco iRobotics 6

  • Page 2: Important Safety Instructions

    19. Do not attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void the warranty. After reading this owner’s guide, if you have any questions or comments, please call +1-817-633-1080 or contact our technical support department at support@luraco.com or visit our website at www.luraco.com for more information GROUNDING INSTRUCTIONS This product must be grounded.

  • Page 3: Medical Warnings

    Fig. 1: Grounding MEDICAL WARNINGS Not recommended for the following people • Patients with serious hyperostosis • Swollen lump and patient thrombosis • Patients with serious heart conditions • Pregnant Women • People that consume large amounts of alcohol • People with diabetes •...

  • Page 4: Caution For User

    NOTE: Do not use this apparatus as a bed or fall asleep in the course of massage. Do not use more than 20 minutes with recommended 15 minutes. Prolonged massaging may cause aches, muscle or nerve issues. (The preferred total duration of massaging within the day should be 30 minutes total or less).
  • Page 5 6 Installation Parts Pillow Back Cushion Controller Controller Holder Decorative Part Seat Cushion Armrest Casing of Seat Frame Foot Massager Decorative Parts Back Rest Cover Movable Pulley...
  • Page 6 Massage Chair Dimensions...

  • Page 7: Space Requirement

    Space Requirement INSTALLATION INSTRUCTION Step 1: Unpack the two large packages Take out the main body, seat frame casing, back cushion, seat cushion, pillow, controller supporter, leg massager, controller and wireless controller of massage chair from the box carefully. In order to avoid damaging the system we suggest at least two people to assist with assembly.
  • Page 8 Package 1: Main body, seat frame casing, Package 2: Left and right armrest, and left back cushion, pillow, controller, supporter, and right seat casing. foot massager. Tool Box: This box is inside package 1. Box with tools, user manual, DVD, power cords, washers, and assembly handles/screws and nuts.
  • Page 9 Fig. 3: Once loosened, add casing and then tighten screws to casing and frame. Step 4: Assemble the backrest Fix the back to the locked upright position Lock Step 5: Assemble the Armrests 1. Using tools provided, remove two nuts indicated in red circle (Fig. 4 and Fig. 5) Fig.
  • Page 10 2. Align armrest to the perfect position with chair frame, and then match the couple axle between armrest and backrest. Finally, once aligned tighten with provided tool as shown in (Fig. 6 and Fig. 7). Tighten by hand the knob screw handle as shown in next photo.
  • Page 11 3. Connect the air pipes (Fig. 8) and power wire (Fig. 9) to chair body carefully and completely. Fig. 8 Fig. 9 4. Repeat procedures 1. 2. and 3. for the armrest assembly on other side. Step 6: Assemble cushion and pillow 1.
  • Page 12 3. Fix the backrest cushion on the chair via the zipper and bottom Velcro on the seat (Fig. 14) Fig. 14 Fig. 15 4. Put the pillow on the right position of backrest and secure (Fig. 15 and Fig. 16). Fig.
  • Page 13 OPERATION AFTER ASSEMBLY Fig. 20 Fig. 21 Fig. 22 1. Connect two wires from Mother board to the Backrest (Fig. 20) 2. Plug the power cord to the machine (Fig. 21) 3. Connect the remote to the DB9 port on the back of chair as indicated by back label (Fig. 21) 4.

  • Page 14: System Control

    System Control Understanding the Remote Control 13 4 13 4 4 Fig. 24 Remote Control Instructions and Button Description 0. Power/Stop: This button starts/stops the massage system. The default mode is Japanese massage. The timer for each massage session is 20 minutes.
  • Page 15 • Deep Tissue Massage mode: This massage mode is designed to relieve severe tension in the muscle and connecting tissues. mechanism performs hard tapping, kneading, vibration, and stretching throughout the cycle 2. Manual Massage Modes: • Kneading: Turns On/Off kneading function •...
  • Page 16 Unplug the power cord before attempting any troubleshooting or service. LURACO iRobotics 6 massage chairs come with advanced state of the art electronics and software technology which support self diagnostic features to detect the individual failure of critical components in the massage system. The Master-box has different LED indications which help the user to narrow down the failure trouble shooting, if any.

  • Page 17: Troubleshooting Guide

    Troubleshooting Guide Problem/Issue Possible Cause Trouble Shooting Method 1. Power switch is not turned on 1. Turn power switch (On the back) on 2. Bad connection between plug and 2. Connect power cord again Does not work after powered up socket 3.
  • Page 18 The warranty does not cover normal wear, coating, dropped or abused unit. 3. Unless otherwise proscribed by law, LURACO Technologies, Inc. shall not be liable for any personal injury, property or any incidental or consequential damages of any kind resulting from malfunctions, defects, misuse, improper installation or alteration of this product.
  • Page 19 LURACO Technologies product can reasonably be expected to result in personal injury, death or severe property or environmental damage. LURACO Technologies accepts no liability for inclusion and/or use of LURACO Technologies products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk.
  • Page 20 THANK YOU FOR BUYING LURACO TECHNOLOGIES’ PRODUCTS LURACO TECHNOLOGIES, INC. 1132 107 STREET ARLINGTON, TX 76011, USA. TEL: +1-817-633-1080 FAX: +1-817-633-1085 WWW.LURACO.COM...
