Turbosound flexarray Quick Start Manual page 9

Quick Start Guide
FLEX ARRAY

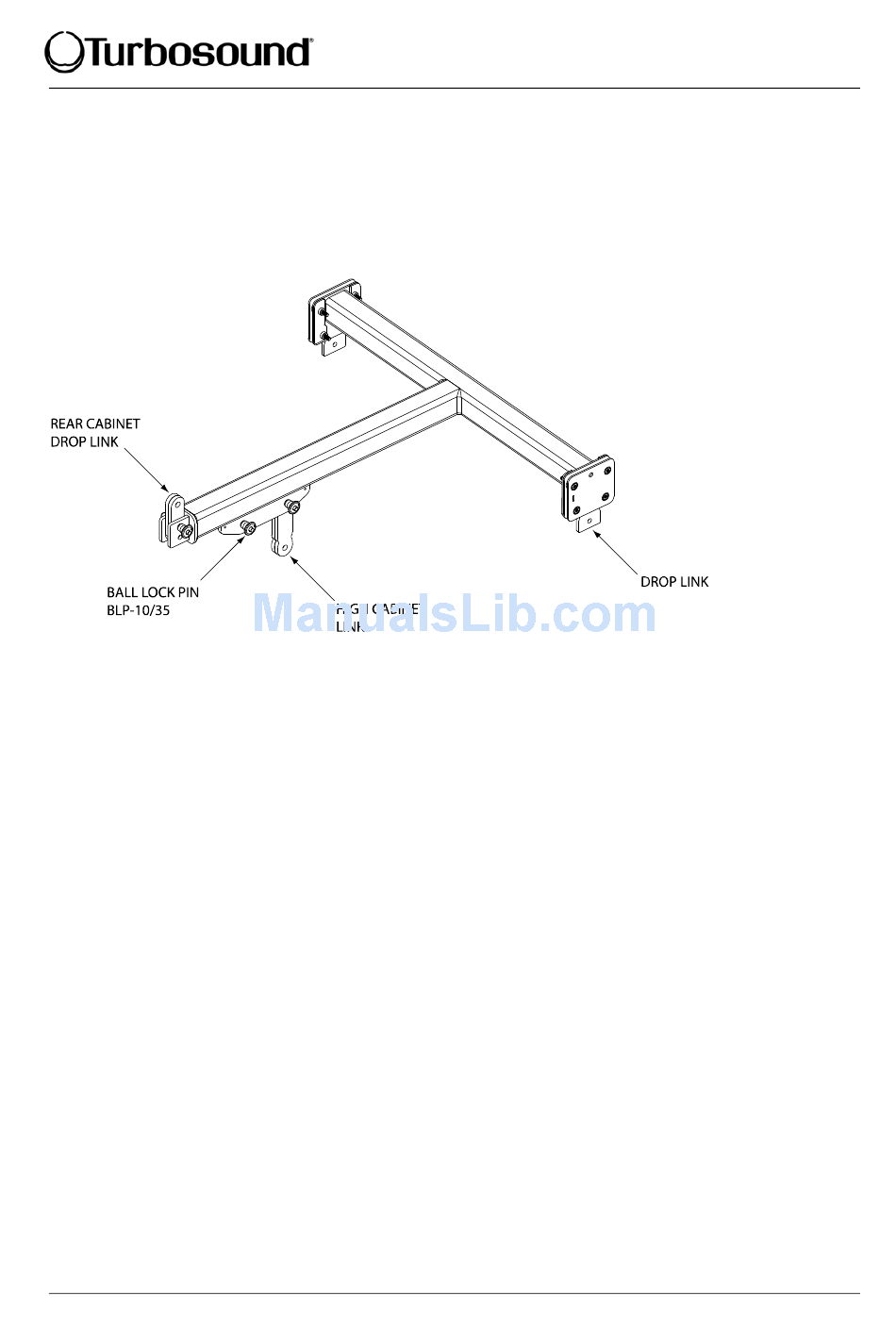

CF-600 Conversion Frame
The conversion frame is used to interface between bass cabinets and mid/high cabinets in a flown column of Flex
Array loudspeakers. The conversion frame has a SWL of 520kg which enables a column of up to a maximum of 12
TFA-600H cabinets to be suspended below it.
The CF-600 conversion frame also functions as a ground stacking frame, interfacing between ground stacked TFA-
600L bass cabinets and the mid-high cabinets positioned on top.
The net weight of the conversion frame is 11kg (24.2lbs)
FLEX ARRAY Quick Start Guide - Page - 9
