CF-600 Conversion Frame in a Flown Column

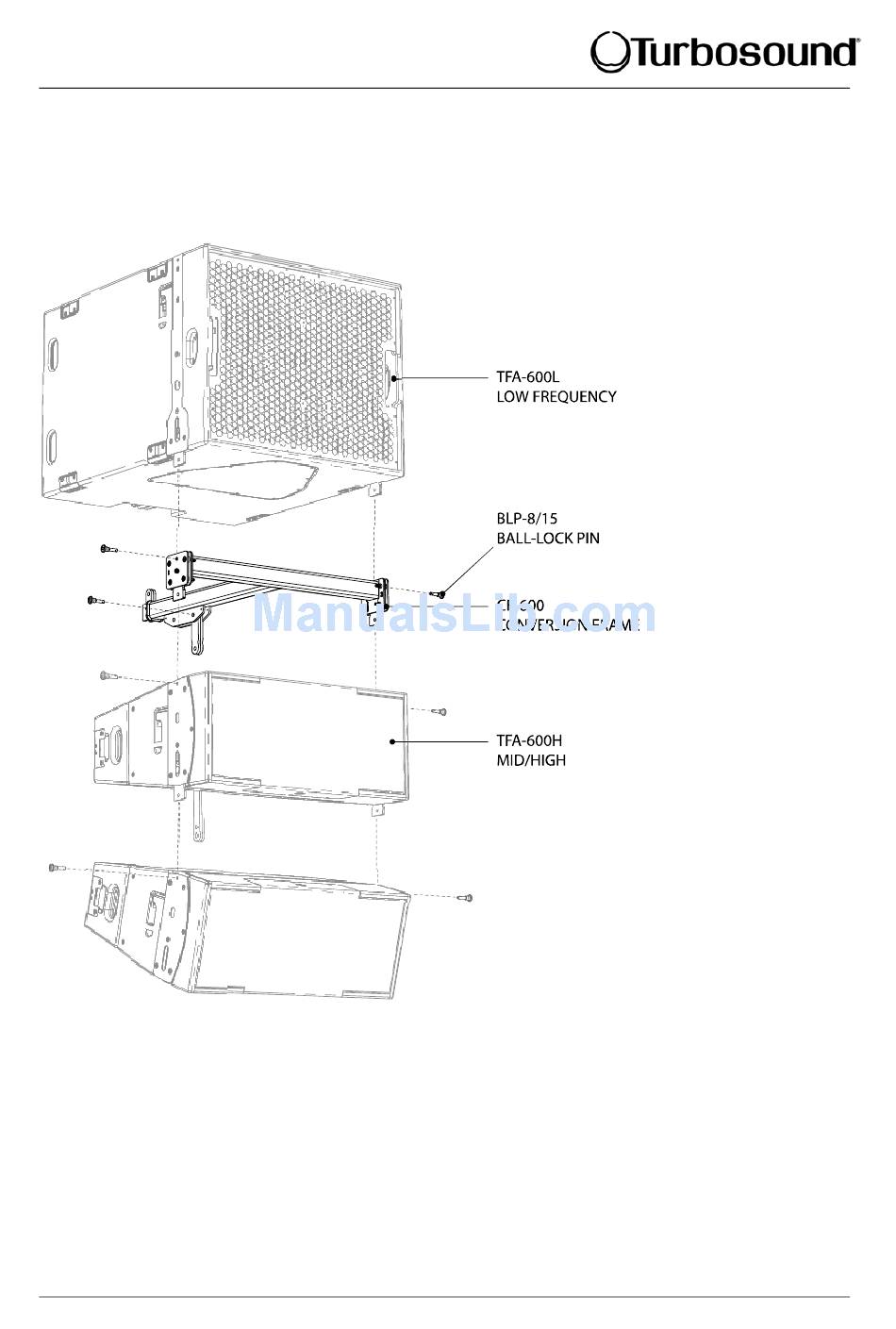

The conversion frame is fitted underneath the lowest TFA-600L low frequency cabinet in a flown column as shown
in the diagram below. TFA-600H cabinets are suspended from the conversion frame using the captive ball-lock
pins
Connection to the first TFA-600H cabinet is made via two 10mm ball-lock pins which are engaged into the rear
spine of the mid/high cabinet (one pin is located on the loudspeaker and one pin is located on the conversion
frame).
The drop link from the TFA-600L low frequency cabinet is released by removing one of the pins and pivoting the
link into the conversion frame.
The drop link from the conversion frame locates into the clevis connection plate of the top mid/high cabinet in one
of several predetermined locations, which allows for a range of inter-cabinet angles.
