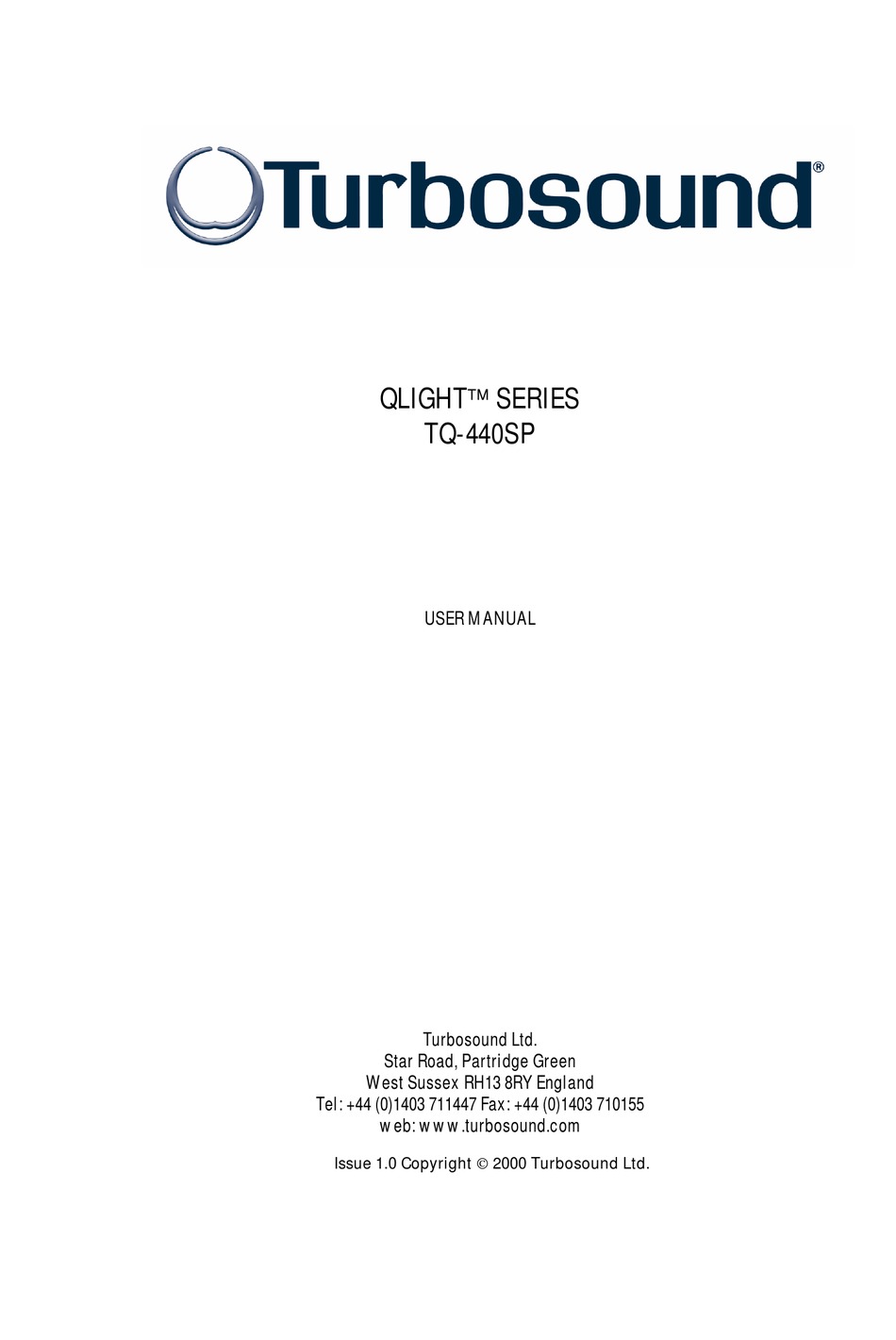

- Page 1 QLIGHT SERIES TQ-440SP USER MANUAL Turbosound Ltd. Star Road, Partridge Green West Sussex RH13 8RY England Tel: +44 (0)1403 711447 Fax: +44 (0)1403 710155 web: www.turbosound.com Issue 1.0 Copyright 2000 Turbosound Ltd.
-
Page 2: Table Of Contents
Dispersion ... 10 Cooling... 10 Mounting and fixing... 11 Arraying ... 15 Choosing the best location ... 16 Maintenance ... 17 Appendix A: Technical Specifications ... 19 Appendix B: Spares and Accessories... 20 Appendix C: Warranty... 21 TQ-440SP manual page 2... - Page 3 DO NOT EXPOSE TO RAIN OR MOISTURE NE PAS EXPOSER A LA PLUIE NI A L’HUMITE edition (1997) CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS ENLEVER user manual QLight series TQ-440SP manual page 3...
-
Page 4: Safety Information
All TURBOSOUND products are carefully engineered for world class performance and reliability. If you would like further information about this or any other TURBOSOUND product, please contact us. Detailed product information is available on our web site at www.turbosound.com. -
Page 5: Unpacking
QLight series Unpacking the TQ-440SP loudspeaker After unpacking the unit please check carefully for damage. If damage is found, please notify the carrier concerned at once. You, the consignee, must instigate any claim. Please retain all packaging in case of future re-shipment. -
Page 6: Introduction
Controlled dispersion: the TQ-440SP enclosure exhibits a tight, controlled dispersion pattern which minimises room reflections and focuses the sound pressure directed at audience areas. Ease of use: the TQ-440SP is easy to set up and use with the minimum of technical knowledge Ease of use... -
Page 7: Product Summary
A rear panel switch selects optimised profiles for speech or music applications, enabling real flexibility of use. The TQ-440SP is a full range loudspeaker, and used by itself will provide high quality audio for all speech and many music reproduction applications. In order to extend the effective bass frequency range of the loudspeaker by a further octave the use of the complementary TQ-425SP subwoofer is recommended. -
Page 8: Connector Panel Functions
10. AC mains connection AC mains connection AC mains connection AC mains connection - accepts Speakon Powercon 3-pin cable-end connector. 11. Mains switch Mains switch Mains switch – turns AC power on to the unit. Mains switch TQ-440SP manual page 8... -
Page 9: System Requirements
AC power requirements The TQ-440SP is equipped with a Neutrik Powercon AC mains connector, which mates with the power cord supplied with your unit. The TQ-440SP operates with mains voltages either in the range from 100 to 120 volts a.c. or from 220 to 240 volts a.c. The mains voltage on your unit will have been preset at the factory prior to shipment. -
Page 10: Audio Input
Audio Input The signal input to the TQ-440SP is fully balanced, with an input impedance of 10k . The input XLR connector is wired pin 2 hot (+ve), pin 3 cold (-ve), and pin 1 screen (shield). The link XLR connector is wired pin 2 hot (+ve), pin 3 cold (-ve), and pin 1 not connected. -
Page 11: Equalisation
Dispersion One of the design features of the TQ-440SP is its tightly controlled 60º horizontal by 40º vertical nominal dispersion pattern at mid and high frequencies. This gives many user advantages and eases placement decisions, being essentially a point and shoot system. -
Page 12: Mounting And Fixing
QLight series Mounting and Fixing A versatile range of mounting hardware is available for the TQ-440SP that allows it to be used in a variety of ways, in either mobile applications or permanent installations. Internal metric threaded rigging points... - Page 13 440 aluminium scaffold clamp adaptor clevis coupler. It is designed to rotate horizontally through 360 in order to enable accurate QLight series 6 Unilock which provides a single attachment 6 Unilock 6 Unilock user manual TQ-440SP manual page 13...
- Page 14 440 is a complete flying frame and harness The FH The FH which enables the TQ-440SP to be installed with the maximum of security. It provides unlimited variation of horizontal and vertical inclination, and is very easy to re-position and angle once rigged.
- Page 15 This rigging information is specifically related to the requirements of the TQ-440SP only. For more detailed information on the whole topic of rigging various handbooks are available. If you are in any doubt contact your Turbosound dealer who will be able to refer you to an experienced rigging company.
-
Page 16: Arraying
QLight series Arraying The TQ-440SP has a side-wall angle of 16º. Use this position for smooth horizontal dispersion that is ideal for many applications. With the high dynamic range capability and low power compression of the TQ-440SP you should find this wide angle arrangement adequate for all but the most demanding long throw requirements. -
Page 17: Choosing The Best Location
QLight series Choosing the best location It was stated earlier that the TQ-440SP’s tightly controlled directivity gives it essentially point and shoot qualities. Every room has its own unique set of characteristics that affect any sound introduced into the room. -
Page 18: Maintenance
Should a fault develop with the amplifier module, we recommend that you remove the module as described below and return it to a qualified Turbosound service centre for repair. The module contains no user-serviceable parts, and the warranty will be invalidated if unauthorised repairs are carried out. - Page 19 Unscrew these and lift out the horn and driver assembly. Disconnect the cables, making a note of the polarity, and carefully lift the driver clear. For any other servicing requirements please contact your Turbosound dealer or authorised service centre.
-
Page 20: Appendix A: Technical Specifications
Mains connection Options Amplifier Due to continuing product improvement the above specifications are subject to change. TQ-440SP manual page 20 558mm x 409mm x 363mm (23.1” x 16.1” x 14.3”) 37.5kgs (82.5lbs) 12”/1” LF/HF co-axial driver, 6.5” MF driver on a TurboMid device 55Hz –... -
Page 21: Appendix B: Spares And Accessories
Modular fly bar assembly FS-61 Flying steel long (610mm) FS-40 Flying steel short (400mm) TS-440 Tilt strap BS-440 Biscuit for TQ-440 BS-440SP Biscuit for TQ-440SP FH-440 Flying frame and harness user manual QLight series TQ-440SP manual page 21... -
Page 22: Appendix C: Warranty
Turbosound Ltd. (Att: Customer Service), Star Road, Partridge Green, West Sussex RH13 8RY, England, or your local authorised Turbosound representative. - Page 23 Incidental and consequential damages Turbosound's liability is limited to the repair or replacement, at our option, of any defective product, and shall not be liable for any incidental and consequential damages including, without limitation, injury to persons or property or loss of use.
- Page 25 Turbosound Ltd. Star Road, Partridge Green West Sussex RH13 8RY England Tel: +44 (0)1403 711447 Fax: +44 (0)1403 710155 web: www.turbosound.com...
