Rigging a Single Column of Flex Array TFA-600 Cabinets
1. Choose flying points as necessary and attach a chain motor to the flybar's pickup point. Note that the
pickup point is adjustable from front to rear and can be moved even when under load.
2. Wheel in a block of three pre-rigged cabinets in their transport case, position them under the flybar and
secure the enclosure tabs into the top cabinet with ball-lock pins.
3. Raise the array to allow a further block of three cabinets to be positioned underneath, extend the drop
links on the third cabinet and secure them to the fourth cabinet's flygear with ball-lock pins.
4. Repeat with additional cabinets as necessary.
Setting The Angle Between Cabinets

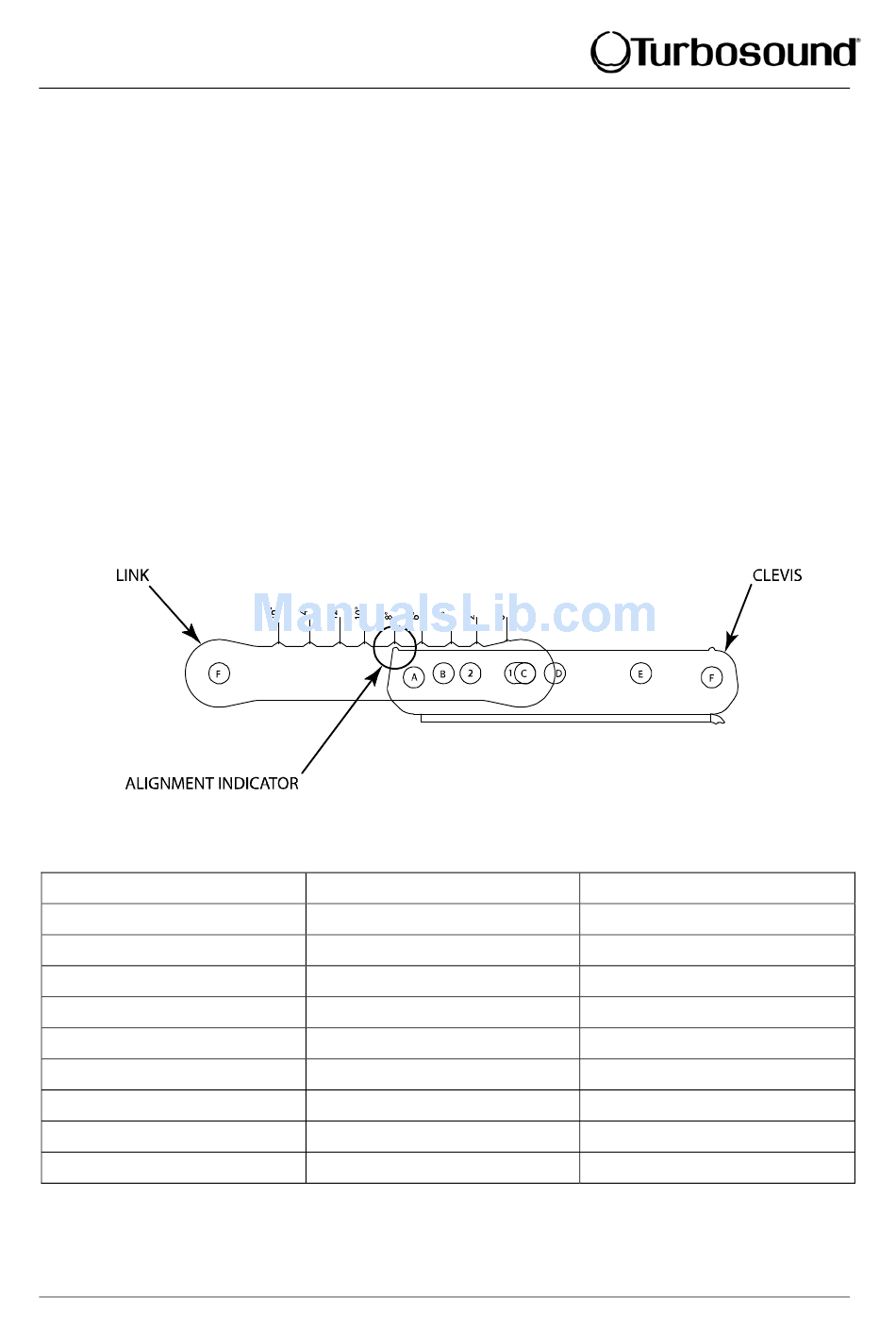

Precise adjustment of inter-cabinet angle is achieved by selecting one of nine possible engagement positions of
the rear link and the clevis, giving a maximum angle of 16° in 2° increments.
The following table shows the position of the rear link relative to the cabinet clevis to achieve the required inter-
cabinet angle.
Hole No. on Link
1
1
2
2
1
1
2
2
1
Turbosound Ltd, Star Road, Partridge Green, West Sussex RH13 8RY
t: +44 (0)1403 711447 f: +44 (0)1403 710155 w: www.turbosound.com
FLEX ARRAY Quick Start Guide - Page - 12
Hole Letter on Clevis
A
B
A
B
C
D
C
D
E
Angle Setting
0°
2°
4°
6°
8°
10°
12°
14°
16°
