- Page 1 Manual (5.0E)
- Page 2 WARNING! Dangerous voltage! General Information M2 Manual Version 5.0E, 10/2003, D2092.E.05 © by d&b audiotechnik AG 2003; all rights reserved. The information contained in this manual has been carefully checked for accuracy, at the time of going to press, however no guarantee is given with respect to the correctness.
-
Page 3: Safety Precautions

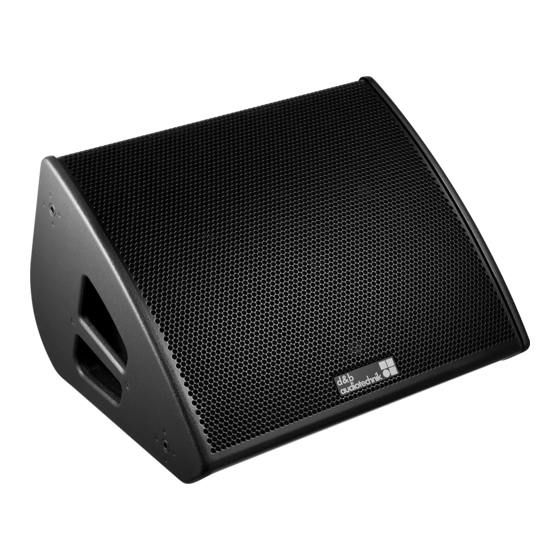

(1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. M2 Manual (5.0E) Page 3 of 8 M2 Manual (5.0E) - Page 4 The M2 is a 2-way active monitor employing two 12" LF drivers in an airflow optimized bass-reflex cabinet. It contains a 1.4" HF driver using a compact but extremely strong neodymium magnet assembly, mounted on a low distortion horn optimized for monitor applications.
- Page 5 For acoustic adjustment the settings CUT and CPL can be selected. Set to CUT, a high pass filter with a 110 Hz cut off frequency is inserted in the controller signal path. The M2 is now configured for use with d&b active subwoofers.
- Page 6 Operation with A1 Two M2 cabinets can be driven by a single A1 mainframe fitted with an M2 controller module. OV HI CUT switch OV LO The CUT setting is available. The characteristics of the CUT setting GR HI is explained under the previous section "Operation with D12 - Controller settings".
-
Page 7: Frequency Response
Frequency response The diagram below shows the frequency response of the M2 cabinet in floor monitor position, measured at a height of 1.7m (5.6 ft) (listening position in monitor operation) on axis: M2 frequency response, monitor operation Technical specifications M2 system data Frequency response (–5 dB, free field) .......... - Page 8 EU conformity of loudspeakers This declaration applies to loudspeakers manufactured by d&b audiotechnik AG and includes the types listed in the table below: − M2 Z0061 All production versions of these types are included, provided they correspond to the original technical version and have not been subject to any later design or electromechanical modifications.
