V
V7P/V10P
Manual 1.3 en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V7P and is the answer not in the manual?

Questions and answers

Related Manuals for d&b audiotechnik V7P

Summary of Contents for d&b audiotechnik V7P

  • Page 1 V7P/V10P Manual 1.3 en...
  • Page 2 General information V7P/V10P Manual Version: 1.3 en, 10/2016, D2722.EN .01 Copyright © 2016 by d&b audiotechnik GmbH; all rights reserved. Keep this manual with the product or in a safe place so that it is available for future reference. When reselling this product, hand over this manual to the new owner.

  • Page 3: Table Of Contents

    2.1. Product description..............5 2.2. Connections................6 2.3. Operation................6 2.3.1. Controller settings..............6 2.4. Dispersion characteristics............8 2.5. Technical specifications............11 Manufacturer's declarations........13 3.1. EU conformity of loudspeakers (CE symbol)....... 13 3.1.1. WEEE Declaration (Disposal)........... 13 d&b V7P/V10P Manual 1.3 en...

  • Page 4: Safety Precautions

    Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. d&b V7P/V10P Manual 1.3 en...

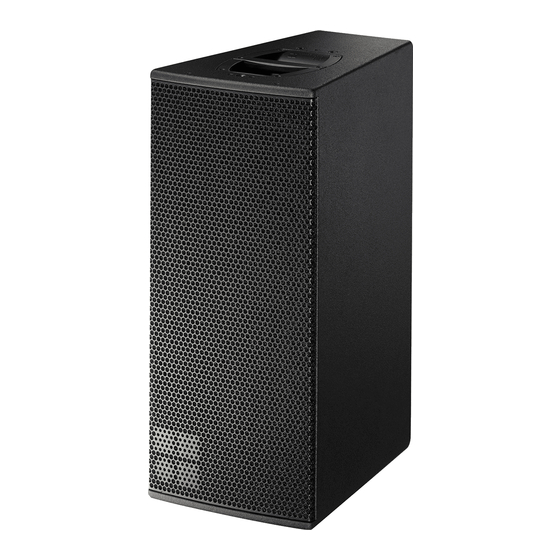

  • Page 5: V7P/V10P Loudspeaker

    8" MF driver and a 1.4" HF compression driver with a rotatable CD horn producing a nominal dispersion (h x v) of 75° x 40° (V7P) and 110° x 40° (V10P), respectively. All components are arranged symmetrically around the center axis of the cabinet to produce a perfect symmetrical dispersion pattern.

  • Page 6: Connections

    For acoustic adjustment the functions CUT, HFA and CPL can be selected. CUT mode Set to CUT, the low frequency level is reduced. The cabinets are now configured for use with actively driven d&b subwoofers. d&b V7P/V10P Manual 1.3 en...
  • Page 7 Positive CPL values create an adjustable low frequency boost (0 to +5 dB) at around 65 Hz and can be set when the system is used in full range mode without subwoofers. Frequency response correction of the CPL function d&b V7P/V10P Manual 1.3 en...

  • Page 8: Dispersion Characteristics

    The following graphs show dispersion angle over frequency of a single cabinet plotted using lines of equal sound pressure (isobars) at –6 dB and –12 dB. vertical setup Isobar diagram horizontal Isobar diagram vertical horizontal setup, horn rotated Isobar diagram horizontal Isobar diagram vertical d&b V7P/V10P Manual 1.3 en...
  • Page 9 V10P vertical setup Isobar diagram horizontal Isobar diagram vertical V10P horizontal setup, horn rotated Isobar diagram horizontal Isobar diagram vertical d&b V7P/V10P Manual 1.3 en...
  • Page 10 Make sure the gasket of the horn is in place. – Refit the horn. – Insert all screws and carefully tighten them clockwise until they fit precisely into the countersunk holes. 4. Refit the front grill. Altering the HF dispersion d&b V7P/V10P Manual 1.3 en...

  • Page 11: Technical Specifications

    V10P with D12/D20/30D 136 dB V10P with D80 139 dB (SPLmax peak, pink noise test signal with crest factor of 4) V7P frequency response, standard and CUT modes V7P/V10P loudspeaker Nominal impedance 8 ohms Power handling capacity (RMS/peak 10 ms)
  • Page 12 V7P/V10P cabinet dimensions in mm [inch] d&b V7P/V10P Manual 1.3 en...

  • Page 13: Manufacturer's Declarations

    Please dispose of this product according to the respective national regulations or contractual agreements. If there are any further questions concerning the disposal of this product, please contact d&b audiotechnik. d&b V7P/V10P Manual 1.3 en...
  • Page 14 www.dbaudio.com...
