Summary of Contents for KOBE IN2730SF
- Page 1 KOBE Brand Range Hood Model No.: IN2730SF IN-027 SERIES INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
-
Page 2: Table Of Contents
- READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ... 1 COMPONENTS OF PACKAGE ... 3 INSTALLATION... 4 NSERT INSTALLATION Preparation Before Installation... 5 Custom Hood Preparation... 5 Liner Installation... 5 Wiring to Power Supply ... 6 Duct Work Installation... 6 Hood Preparation Before Installation... -
Page 3: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 4 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 5: Components Of Package
Range Hood Box {A} KOBE Range Hood {B} Warranty Registration Card {C} Instruction Manual {D} Aluminum Filter – 2 FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE OR CONTACT KOBE RANGE HOODS AT (626) 350-1355. Liner (Sold Separately) {E} Liner WWW.KOBERANGEHOODS.COM... -
Page 6: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Height of Counter Top to Wood Frame Bottom (Recommended 27”... -
Page 7: For Insert Installation
Preparation Before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to • the outside. Refer to Figure 1. A straight, short vent run will allow the hood to perform •... -
Page 8: Wiring To Power Supply
Wiring to Power Supply SAFETY WARNING RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY QUALIFIED ELECTRICIAN IN ACCORDANCE WITH ALL APPLICABLE NATIONAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT POWER FROM... -
Page 9: Hood Installation
Hood Installation 19. Release the screws located on each side of the insert. Adjust the level of the hood casing support according to the thickness of the base (1/2 thickness plywood recommended). Tighten the screws to secure as shown on Figure 6. 20. -
Page 10: Operating Instructions

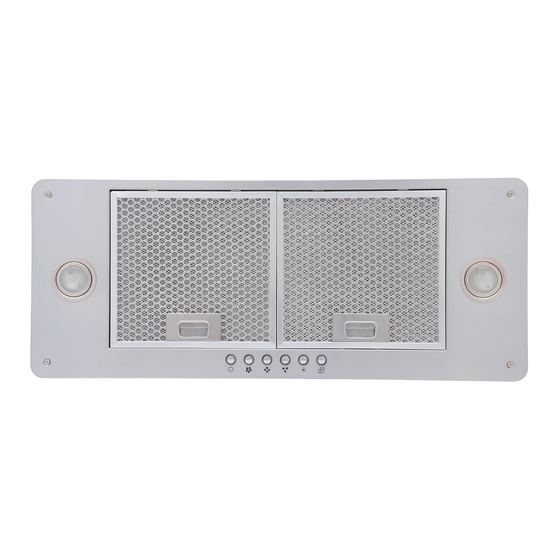

OPERATING INSTRUCTIONS This KOBE hood is equipped with five electronic push buttons with LED indicator, double powerful centrifugal squirrel cage with aluminum filter, two bright 12-volt 20-watt halogen lights. The five control buttons are Power Control (On/Off), Speed Control (High, Medium, & Low), and Light Control. -
Page 11: Maintenance
Aluminum Filter Change Indicator The indication under symbol Remove to clean the aluminum filter. (To purchase replacement filters, please contact your local KOBE dealer or call 626-350-1355) MAINTENANCE SAFETY WARNING NEVER PUT YOUR HAND INTO AREA HOUSING THE FAN WHILE THE FAN IS OPERATING. - Page 12 To Replace Halogen Light Bulbs CAUTION: HALOGEN LIGHT UNIT MAY BE HOT! WAIT UNTIL UNIT IS COOL. NOTE: DO NOT TOUCH HALOGEN LIGHT WITH BARE HANDS, WHICH MIGHT CAUSE OVER HEAT AND SHORTEN THE LIFT OF LIGHT BULBS. 1. Make sure all controls are off, and range hood is unplugged. 2.
-
Page 13: Specifications
(W X D X H) HOOD WEIGHT (lbs) Blower Air Capacity (cfm)* Sone** *In House Test Static Pressure “0”. **Specifications subject to change without notice. IN2730SF 16-Gauge Commercial Stainless Steel 240W / 2A 120V 60Hz Double Horizontal Squirrel Cage Top 6” Round w/ Damper... -
Page 14: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS All ( ) are in millimeter. All inch measurements are converted from millimeters. Inch measurements are estimated. MODEL NO: IN2730SF Side View Front View Bottom View... - Page 15 Stainless Steel Liner (Sold Separately) Model No. INL36211A...
-
Page 16: Parts List
Right Squirrel Cage Motor Indicator Sensor Control Unit Processor Board Transformer Electronic Support Panel Processor Board Box Capacitor Exhaust Connector Wiring Box Optional Liner Model No. Liner IN2730SF DESCRIPTION MODEL/SIZE INL36211A PART NO. SY-027-3-001 SY-027-5-002 SY-027-3-002 SY-027-5-003 SY-027-3-004 SY-027-5-051 SY-027-5-052 SY-027-5-053 SY-027-3-003... - Page 17 Optional Liner (Sold Separately)
-
Page 18: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: IN2730SF... -
Page 19: Disclaimer
DISCLAIMER 1. CAREFULLY INSPECT ALL ITEMS FOR DAMAGES BEFORE ACCEPTING DELIVERY. NOTE ANY DAMAGES ON THE FREIGHT BILL OR EXPRESS RECEIPT. REQUEST NAME AND SIGNATURE OF THE CARRIER’S AGENT AND KEEP COPY TO SUPPORT YOUR CLAIM. Upon acceptance of items, owner assumes responsibility for its safe arrival. Report damages to the carrier and file a claim immediately. -
Page 20: Warranty
WARRANTY KOBE Range Hoods, Inc. warrants all products manufactured or supplied by it to be free from defects in workmanship and materials. Its obligations pursuant to this warranty are limited to a period of two years from the date of purchase and to the repair or replacement at its option and subject to the terms and conditions stated below, of any component part, which its examination shall disclose to be so defective. -
Page 21: Consequential Damage
Some states do not allow limitations on the duration of implied warranties. This warranty gives you specific legal rights, and may also have rights, which vary from state to state. For service contact: KOBE Range Hoods 10505 Valley Blvd, Suite 302 EI Monte, CA 91731 U.S.A... -
Page 22: Product Registration
KOBE Range Hoods Agent or KOBE Range Hoods as applicable. Keep proof of purchase (original invoice) handy for inspection. - Page 23 KOBE Range Hoods 10505 Valley Blvd Suite # 302 El Monte, CA 91731 USA http://www.KOBERangeHoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country.
