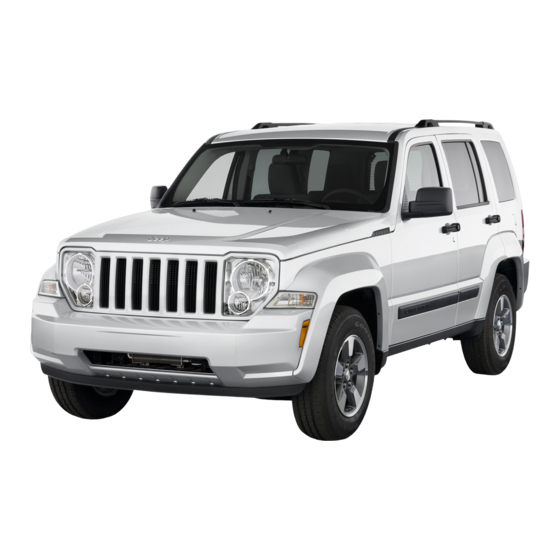

Page 1 Liberty 2 0 1 1 O W N E R ’ S M A N U A L...
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION PAGE ............3 INTRODUCTION .
Page 4 INTRODUCTION CONTENTS Introduction ......4 Warnings And Cautions ....7 Rollover Warning .
Page 5: Introduction
4 INTRODUCTION INTRODUCTION When it comes to service, remember that your authorized Congratulations on selecting your new Chrysler Group dealer knows your vehicle best, has factory-trained tech- LLC vehicle. Be assured that it represents precision nicians and genuine MOPAR parts, and cares about workmanship, distinctive styling, and high quality - all your satisfaction.
Page 6: How To Use This Manual
INTRODUCTION 5 control. Failure to operate this vehicle safely may result existing seat belts could cut the highway death toll by in a collision, rollover of the vehicle, and severe or fatal 10,000 or more each year and could reduce disabling injury.
Page 7 6 INTRODUCTION...
Page 8: Warnings And Cautions
INTRODUCTION 7 WARNINGS AND CAUTIONS This Owner’s Manual contains WARNINGS against op- erating procedures that could result in a collision or bodily injury. It also contains CAUTIONS against proce- dures that could result in damage to your vehicle. If you do not read this entire manual, you may miss important information.
Page 9: Vehicle Modifications/Alterations
8 INTRODUCTION VEHICLE MODIFICATIONS/ALTERATIONS WARNING! Any modifications or alterations to this vehicle could seriously affect its roadworthiness and safety and may lead to a collision resulting in serious injury or death.
Page 10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CONTENTS ▫ To Arm The System ....18 A Word About Your Keys ....12 ▫...
Page 11 10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ▫ Using The Panic Alarm ....24 ▫ Wind Buffeting ..... . . 37 ▫...
Page 12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11 ▫ Energy Management Feature ... . . 55 Engine Break-In Recommendations ..83 ▫...
Page 13: A Word About Your Keys
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A WORD ABOUT YOUR KEYS The authorized dealer that sold you your new vehicle has You can insert the double-sided keys into the locks with the key code numbers for your vehicle locks. These either side up.
Page 14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13 NOTE: • For vehicles not equipped with the Electronic Vehicle Information Center (EVIC), features such as the power window switches, radio, power sunroof or Sky Slider (if equipped), and power outlets will remain active for 45 seconds after the ignition switch is turned to the LOCK position.
Page 15: Key-In-Ignition Reminder
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Key-In-Ignition Reminder WARNING! If you open the driver’s door and the key is in the • Never leave children alone in a vehicle. Leaving ignition, a chime will sound to remind you to remove the key.
Page 16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15 the vehicle. The system will shut the engine off in two If the Vehicle Security Light turns on during normal seconds if someone uses an invalid key to try to start the vehicle operation (vehicle running for longer than 10 sec- engine.
Page 17: Replacement Keys
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Replacement Keys procedure. This procedure consists of programming a blank key to the vehicle electronics. A blank key is one NOTE: Only keys that are programmed to the vehicle that has never been programmed. electronics can be used to start and operate the vehicle.
Page 18: General Information
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17 3. Insert the second valid key into the ignition switch. Repeat this procedure to program up to eight keys. If you Turn the ignition switch to the ON/RUN position within do not have a programmed Sentry Key , contact your 15 seconds.
Page 19: Vehicle Security Alarm - If Equipped
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE VEHICLE SECURITY ALARM — IF EQUIPPED will turn off the horn after three minutes, turn off all of The Vehicle Security Alarm monitors the vehicle doors, the visual signals after 15 minutes, and then the Vehicle liftgate, and liftgate flipper glass for unauthorized entry Security Alarm will rearm itself.
Page 20: To Disarm The System
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19 cancel the arming process. If the Vehicle Security Alarm The Vehicle Security Alarm is designed to protect your arms successfully, the Vehicle Security Light will flash at vehicle; however, you can create conditions where the a slower rate to indicate the alarm is set.
Page 21: Remote Keyless Entry (Rke)
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE This feature also turns on the approach lighting (if the line of transmission must not be blocked with metal equipped). For details, refer to “Electronic Vehicle Infor- objects when using the RKE transmitter. mation Center (EVIC)/Personal Settings (Customer- NOTE: Inserting the key into the ignition switch dis- Programmable Features)”...
Page 22: To Unlock The Doors And Liftgate
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21 To Unlock the Doors and Liftgate For vehicles not equipped with the EVIC, perform the Press and release the UNLOCK button on the RKE following steps: transmitter once to unlock the driver’s door or twice to 1.
Page 23: To Lock The Doors And Liftgate
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Illuminated Approach — If Equipped Sound Horn with Lock This feature activates the headlights for up to 90 seconds This feature will cause the horn to chirp when the doors when the doors are unlocked with the RKE transmitter. are locked with the RKE transmitter.
Page 24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23 3. Test the feature from outside the vehicle by pressing Information Center (EVIC)/Personal Settings (Cus- the LOCK button on the RKE transmitter. tomer-Programmable Features)” in “Understanding Your Instrument Panel” for further information. 4.
Page 25: To Unlatch The Liftgate Flip-Up Window
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Security Alarm. Opening a door with the Security Alarm Using the PANIC Alarm activated will cause the alarm to sound. Press the UN- NOTE: The PANIC and Security Alarms are quite LOCK button to deactivate the Security Alarm. different.
Page 26: Programming Additional Transmitters
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25 • Do not touch the battery terminals that are on the back During the PANIC Mode, the door locks and Remote Keyless Entry (RKE) system will function normally. housing or the printed circuit board. PANIC mode will not disarm the Security System on 1.
Page 27: General Information
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 3. Remove and replace the battery. Avoid touching the NOTE: Changes or modifications not expressly ap- new battery with your fingers. Skin oils may cause proved by the party responsible for compliance could battery deterioration.
Page 28: How To Use Remote Start
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27 How To Use Remote Start WARNING! All of the following conditions must be met before the • Do not start or run an engine in a closed garage or engine will remote start: confined area.
Page 29: Door Locks
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: To Exit Remote Start Mode and Drive the Vehicle • For security, power window operation and sunroof or Before the end of the 15-minute cycle, press and release Sky Slider operation (if equipped) is disabled when the UNLOCK button on the RKE transmitter to unlock the vehicle is in the Remote Start mode.
Page 30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29 WARNING! • For personal security and safety in the event of an accident, lock the vehicle doors as you drive as well as when you park and leave the vehicle. • When leaving the vehicle, always remove the key from the ignition lock, and lock your vehicle.
Page 31: Power Door Locks
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Power Door Locks If you press the power door LOCK switch while the key A power door lock switch is located on each of the front is in the ignition, and any front door is open, the power door trim panels.
Page 32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31 6. The doors were not previously locked using the power 3. Press the power door LOCK switch to lock the doors. door lock switch or Remote Keyless Entry (RKE) transmitter. 4. A single chime will indicate the completion of the Automatic Door Locks Programming programming.
Page 33: Child-Protection Door Lock System - Rear Doors
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 4. The driver door is opened. 3. Press the power door UNLOCK switch to unlock the doors. 5. The doors were not previously unlocked. 4. A single chime will indicate the completion of the 6.
Page 34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33 • After disengaging the Child-Protection Door Lock system on a door is engaged, that door can only be opened by using the outside door handle even if the system, always test the door from the inside to make inside door lock is in the unlocked position.
Page 35: Windows
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WINDOWS There are single window controls on each passenger door trim panel, which operate the passenger door windows. Power Windows The window controls will operate when the ignition The window controls on the driver’s door trim panel switch is in the ON/RUN or ACC position.
Page 36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35 To open the window part way, press the window switch Auto Up Feature with Anti-Pinch Protection — to the first detent and release it when you want the If Equipped window to stop. On some models, the driver’s and front passenger’s (if equipped for passenger side) power window switches To stop the window from going all the way down during...
Page 37 36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE For vehicles equipped with the EVIC, the power window WARNING! switches will remain active for up to 10 minutes after the ignition switch is turned to the LOCK position. Opening There is no anti-pinch protection when the window either front door will cancel this feature.
Page 38: Wind Buffeting
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37 other doors. To disable the window control on the other Wind Buffeting doors, press and release the window LOCKOUT button Wind buffeting can be described as the perception of (setting it in the down position). To enable the window pressure on the ears or a helicopter-type sound in the controls, press and release the window LOCKOUT but- ears.
Page 39: Liftgate
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE LIFTGATE NOTE: Use the power door LOCK switch on either front To open the liftgate, pull up (squeeze) on the handle and door trim panel or the Remote Keyless Entry (RKE) lift. transmitter to lock and unlock the liftgate.
Page 40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39 WARNING! To avoid injury, stand back when opening. Glass may automatically rise. NOTE: If a malfunction to the liftgate latch should occur, an emergency liftgate latch release can be used to open the liftgate. The emergency liftgate latch release can be accessed through a snap-in cover located on the liftgate trim panel.
Page 41: Occupant Restraints
40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • Front seat belts incorporate pretensioners to enhance OCCUPANT RESTRAINTS Some of the most important safety features in your occupant protection by managing occupant energy vehicle are the restraint systems: during an impact event •...
Page 42: Lap/Shoulder Belts
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41 NOTE: The Advanced Front Airbags have a multistage Buckle up even though you are an excellent driver, even inflator design. This allows the airbag to have different on short trips. Someone on the road may be a poor driver rates of inflation based on the severity and type of and cause an accident that includes you.
Page 43 42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! WARNING! (Continued) • Wearing your belt in the wrong place could make • It is dangerous to ride in a cargo area, inside or your injuries in an accident much worse. You outside of a vehicle.
Page 44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43 2. The seat belt latch plate is located on the B-Pillar along 3. When the belt is long enough to fit, insert the latch the outboard side and rear of the seat cushion. The rear plate into the buckle until you hear a “click.”...
Page 45 44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! WARNING! (Continued) • A shoulder belt placed behind you will not protect • A belt that is buckled into the wrong buckle will you from injury during an accident. You are more not protect you properly.
Page 46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45 WARNING! • A lap belt worn too high can increase the risk of injury in an accident. The belt forces won’t be at the strong hip and pelvic bones, but across your abdomen.
Page 47 46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: The adjustable upper shoulder belt anchorage is WARNING! equipped with an Easy Up feature. This feature allows the shoulder belt anchorage to be adjusted in the upward A frayed or torn belt could rip apart in an accident position without pressing the release button.
Page 48: Lap/Shoulder Belt Untwisting Procedure
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47 As a guide, if you are shorter than average, you will Seat Belt Pretensioner prefer a lower position, and if you are taller than average, The belt for driver seating position is equipped with a you will prefer a higher position.
Page 49: Seat Belt Lock Out
48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Seat Belt Lock Out 2. Grasp the shoulder portion and pull downward until The center rear seat belt system has a lock out feature that the entire belt is extracted. will not allow you to extract the center webbing unless 3.
Page 50: Supplemental Active Head Restraints (Ahr)
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49 Supplemental Active Head Restraints (AHR) Driver Center Passenger These head restraints are passive, deployable compo- First Row nents, and vehicles with this equipment cannot be readily Second Row Cinching identified by any markings, only through visual inspec- Latch Plate tion of the head restraint.
Page 51 50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE This system is designed to help prevent or reduce the extent of injuries to the driver and front passenger in certain types of rear impacts. NOTE: The Active Head Restraints (AHR) may or may not deploy in the event of a front or side impact.
Page 52: Understanding The Features Of Your Vehicle
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51 1. Grasp the deployed AHR from the rear seat. CAUTION! All occupants, including the driver, should not oper- ate a vehicle or sit in a vehicle’s seat until the head restraints are placed in their proper positions in order to minimize the risk of neck injury in the event of an accident.
Page 53 52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 3. Pull down then rearward towards the rear of the vehicle then down to engage the locking mechanism. 3 — Final Downward Movement To Engage Locking Mecha- nism 4. The AHR front soft foam and trim half should lock 1 —...
Page 54: Enhanced Seat Belt Use Reminder System (Beltalert ) - If Equipped
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53 Enhanced Seat Belt Use Reminder System (BeltAlert ) — If Equipped BeltAlert is a feature intended to remind the driver and front passenger (if equipped with front passenger BeltAlert ) to fasten their seatbelts. This feature is active whenever the ignition is on.
Page 55 54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The front passenger seat BeltAlert is not active when the 2. Turn the ignition key to the ON/RUN position (do not front passenger seat is unoccupied. BeltAlert may be start the engine), and wait for the Seat Belt Reminder triggered when an animal or heavy object is on the front Light to turn off.
Page 56: Energy Management Feature
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55 Energy Management Feature Seat Belts and Pregnant Women This vehicle has a safety belt system with an energy We recommend that pregnant women use the seat belts management feature in the front seating positions to help throughout their pregnancy.
Page 57: Supplemental Restraint System (Srs) - Airbags
56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! Using a seat belt extender when not needed can increase the risk of injury in an accident. Only use when the lap belt is not long enough when it is worn low and snug, and in the recommended seating positions.
Page 58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57 This vehicle may be equipped with driver and/or front passenger seat track position sensors that may adjust the inflation rate of the Advanced Front Airbags based upon seat position. This vehicle may be equipped with a driver and/or front passenger seat belt buckle switch that detects whether the driver or front passenger seat belt is fastened.
Page 59 58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • Supplemental Active Head Restraint for Driver and Airbag System Components Your vehicle may be equipped with the following airbag Front Passenger system components: • Occupant Classification System (OCS) • Occupant Restraint Controller (ORC) •...
Page 60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59 The first stage inflator is triggered immediately during an WARNING! impact that requires airbag deployment. This low output • No objects should be placed over or near the is used in less severe collisions. A higher energy output is used for more severe collisions.
Page 61 60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE head of each outboard occupant that reduce the potential WARNING! (Continued) for side-impact head injuries. The SABIC airbags deploy • Do not drill, cut or tamper with the knee bolster in downward, covering both windows on the impact side. any way.
Page 62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61 stack luggage or other cargo up high enough to block Along with seat belts and pretensioners, Advanced Front the location of the SABIC. The area where the SABIC is Airbags work with the knee bolsters to provide improved located should remain free from any obstructions.
Page 63 62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE children who do not use child restraints or belt- 4. Do not lean against the door or window. If your positioning booster seats should ride properly buckled vehicle has side airbags, and deployment occurs, the side up in the rear seat.
Page 64: Airbag Deployment Sensors And Controls
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 63 Based on the impact sensors signals, a central electronic WARNING! (Continued) ORC deploys the Advanced Front Airbags, Supplemental • Being too close to the steering wheel or instrument Side Airbag Inflatable Curtain (SABIC), and front seat panel during front airbag deployment could cause belt pretensioners, as required, depending on each type serious injury, including death.
Page 65 64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The SABIC will not deploy in all side collisions. SABIC The ORC contains a backup power supply system that deployment will depend on the severity and type of may deploy the airbags even if the battery loses power or collision.
Page 66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 65 • Occupant Classification Module (OCM) WARNING! The OCM is located beneath the front passenger seat. The OCM classifies the occupant into categories based on the Ignoring the “Airbag Warning Light” in your instru- measurements made by the seat weight sensors.
Page 67 66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE “PASS AIR BAG OFF” to show that the passenger The PAD indicator light should not be illuminated when Advanced Front Airbag will not inflate during a collision an adult passenger is properly seated in the front passen- requiring airbag deployment.
Page 68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67 the seat or between the seat and the center console can Passenger Airbag Disable (PAD) System prevent the occupant’s weight from being measured Front Passenger Indicator Light Airbag Status properly and may result in the occupant being improp- Adult erly classified.
Page 69 68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Warning Light is turned on whenever there is a fault that Airbags, it signals the inflator units. A large quantity of can affect the operation of the airbag system. If there is a non-toxic gas is generated to inflate the Advanced Front fault present in the PAD Indicator Light, the Airbag Airbags.
Page 70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69 Supplemental Side Airbag Inflatable Curtains inflates. This especially applies to children. The side (SABIC) curtain airbag is only about 3 ⁄ inches (9 cm) thick when The Supplemental Side Airbag Inflatable Curtains it is inflated.
Page 71 70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • Do not add a secondary seat cover other than those The front passenger seat assembly contains critical com- ponents that affect the front passenger airbag deploy- approved by Chrysler Group LLC/Mopar . ment.
Page 72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71 Enhanced Accident Response System NOTE: Front and/or side airbags will not deploy in all In the event of an impact causing airbag deployment, if collisions. This does not mean something is wrong with the communication network remains intact, and the the airbag system.
Page 73 72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE airbag inflation. These airborne particles may irritate Maintaining Your Airbag System the skin, eyes, nose, or throat. If you have skin or eye WARNING! irritation, rinse the area with cool water. For nose or throat irritation, move to fresh air.
Page 74: Event Data Recorder (Edr)
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73 • The Airbag Warning Light does not come on during WARNING! (Continued) the four to eight seconds when the ignition switch is • Do not attempt to modify any part of your ad- first turned to the ON/RUN position.
Page 75: Child Restraints
74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • Whether or not the driver and passenger safety belts To read data recorded by an EDR, special equipment is were buckled/fastened; required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties •...
Page 76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 75 Infants and Child Restraints WARNING! • Safety experts recommend that children ride rearward- In an collision, an unrestrained child, even a tiny facing in the vehicle until they are at least one year old baby, can become a projectile inside the vehicle.
Page 77 76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The belt-positioning booster seat is for children weighing WARNING! more than 40 lbs (18 kg), but who are still too small to fit the vehicle’s seat belts properly. If the child cannot sit Rearward-facing child seats must never be used in with knees bent over the vehicle’s seat cushion while the the front seat of a vehicle with the front passenger...
Page 78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 77 • Check belt fit periodically. A child’s squirming or WARNING! slouching can move the belt out of position. • Improper installation can lead to failure of an • If the shoulder belt contacts the face or neck, move the infant or child restraint.
Page 79 78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Standards. Chrysler Group LLC also recommends that Lower Anchors and Tether for CHildren (LATCH) you try a child restraint in the vehicle seats where you Your vehicle’s rear seat is equipped with the child will use it before you buy it.
Page 80 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 79 strap kits or retrofit kits. You are urged to take advantage center position. If your child restraints are not LATCH- of all the available attachments provided with your child compatible, you can only install the child restraints using restraint in any vehicle.
Page 81 80 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE install the child restraint. You will easily feel them if you run your finger along the intersection of the seatback and seat cushion surfaces. Tether Strap Mounting Many, but not all restraint systems will be equipped with separate straps on each side, with each having a hook or connector for attachment to the lower anchorage and a Latch Anchorages...
Page 82 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 81 hook for attachment to the tether strap anchorage and a WARNING! means of adjusting the tension of the strap. Improper installation of a child restraint to the You will first loosen the adjusters on the lower straps and LATCH anchorages can lead to failure of an infant or on the tether strap so that you can more easily attach the child restraint.
Page 83 82 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If the seat belt has an automatic locking retractor, pull the If the belt still can’t be tightened, or if pulling and belt from the retractor until there is enough slack to allow pushing on the restraint loosens the belt, you may need you to pass the belt through the child restraint and slide to do something more.
Page 84: Engine Break-In Recommendations
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 83 Transporting Pets Airbags deploying in the front seat could harm your pet. An unrestrained pet will be thrown about and possibly injured, or injure a passenger during panic braking or in an accident. Pets should be restrained in the rear seat in pet harnesses or pet carriers that are secured by seat belts.
Page 85: Safety Tips
84 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The engine oil installed in the engine at the factory is a WARNING! high-quality energy conserving type lubricant. Oil • Do not leave children or animals inside parked changes should be consistent with anticipated climate conditions under which vehicle operations will occur.
Page 86: Exhaust Gas
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 85 Exhaust Gas If you are required to drive with the trunk/liftgate open, make sure that all windows are closed and the climate WARNING! control BLOWER switch is set at high speed. DO NOT use the recirculation mode.
Page 87: Safety Checks You Should Make Inside The Vehicle
86 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Safety Checks You Should Make Inside the Defroster Vehicle Check operation by selecting the defrost mode and place the blower control on high speed. You should be able to Seat Belts feel the air directed against the windshield. See your Inspect the belt system periodically, checking for cuts, authorized dealer for service if your defroster is frays, and loose parts.
Page 88 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 87 WARNING! WARNING! (Continued) • Check mounting of mats on a regular basis. Al- Pedals that cannot move freely can cause loss of ways properly reinstall and secure floor mats that vehicle control and increase the risk of serious per- have been removed for cleaning.
Page 89: Periodic Safety Checks You Should Make Outside The Vehicle
88 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Periodic Safety Checks You Should Make Outside Door Latches the Vehicle Check for positive closing, latching, and locking. Tires Fluid Leaks Examine tires for excessive tread wear and uneven wear Check area under vehicle after overnight parking for fuel, patterns.
Page 90: Understanding The Features Of Your Vehicle
UNDERSTANDING THE FEATURES OF YOUR VEHICLE CONTENTS Mirrors ......95 Uconnect™ Phone — If Equipped ... 99 ▫...
Page 91 90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ▫ 60/40 Split Folding Rear Seat With Fold-Flat Voice Command — If Equipped ... 130 Feature ......146 ▫...
Page 92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91 ▫ Headlights With Wipers (Available With Windshield Wipers And Washers ..161 Automatic Headlights Only) ... . 157 ▫...
Page 93 92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ▫ To Resume Speed ....170 Garage Door Opener — If Equipped ..180 ▫...
Page 94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93 ▫ Closing Sunroof — Manual Mode ..188 ▫ Closing The Sky Slider™ ....193 ▫...
Page 95 94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ▫ Rear Window Defroster ....205 Rear Window Features ....204 ▫...
Page 96: Mirrors
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95 MIRRORS Inside Day/Night Mirror A two-point pivot system allows for horizontal and vertical mirror adjustment. Adjust the mirror to center on the view through the rear window. Headlight glare can be reduced by moving the small control under the mirror to the night position (toward the rear of vehicle).
Page 97: Automatic Dimming Mirror - If Equipped
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Automatic Dimming Mirror — If Equipped CAUTION! This mirror automatically adjusts for headlight glare from vehicles behind you. You can turn the feature on or To avoid damage to the mirror during cleaning, never off by pressing the button at the base of the mirror.
Page 98: Power Mirrors
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97 WARNING! Vehicles and other objects seen in the passenger side convex mirror will look smaller and farther away than they really are. Relying too much on your passenger side convex mirror could cause you to collide with another vehicle or other object.
Page 99: Heated Mirrors - If Equipped
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Models with Express Window Feature Models without Express Window Feature Press and release the mirror select button marked L (left) Press the mirror select button marked L (left) or R (right) or R (right) and then press one of the four arrow buttons and then press one of the four arrow buttons to move the to move the mirror in the direction the arrow is pointing.
Page 100: Sun Visor "Slide-On-Rod" Feature - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99 2. Unclip the visor from the center clip. 3. Pull the sun visor toward the inside rearview mirror to extend it. Uconnect™ Phone — IF EQUIPPED Uconnect™ Phone is a voice-activated, hands-free, in- vehicle communications system.
Page 101 • www.dodge.com/uconnect seven mobile phones to be linked to the system. Only one linked (or paired) mobile phone can be used with the • www.jeep.com/uconnect system at a time. The system is available in English, • or call 1–877–855–8400 Spanish, or French languages.
Page 102: Operation
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101 Uconnect™ Phone Button The Uconnect™ Phone is fully integrated with the vehi- The radio or steering wheel controls (if cle’s audio system. The volume of the Uconnect™ Phone equipped) will contain the two control buttons can be adjusted either from the radio volume control (Uconnect™...
Page 103 102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • For certain operations, compound commands can be Help Command used. For example, instead of saying “Setup” and then If you need assistance at any prompt, or if you want to “Phone Pairing”, the following compound command know your options at any prompt, say “Help”...
Page 104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103 • For identification purposes, you will be prompted to To complete the pairing process, you will need to reference your mobile phone Owner’s Manual. The Uconnect™ give the Uconnect™ Phone a name for your mobile website may also provide detailed instructions for pairing.
Page 105 104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • The system will prompt you to say the name of the Dial by Saying a Number person you want to call. • Press the button to begin. • After the “Ready” prompt and the following beep, say •...
Page 106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105 • After the “Ready” prompt and the following beep, say The Uconnect™ Phone will allow you to enter up to 32 “Phonebook New Entry”. names in the phonebook with each name having up to four associated phone numbers and designations.
Page 107 106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • Automatic download and update, if supported, begins • This downloaded phonebook cannot be edited or as soon as the Bluetooth wireless phone connection is deleted on the Uconnect™ Phone. These can only be made to the Uconnect™...
Page 108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107 NOTE: Edit Uconnect™ Phonebook Entries • The phone handset must support Bluetooth OBEX NOTE: transfers of phonebook entries to use this feature. • Editing names in the phonebook is recommended • Some phones cannot send phonebook entries if they when the vehicle is not in motion.
Page 109 108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • After you enter the Phonebook Delete menu, you will After you are finished editing an entry in the phonebook, you will be given the opportunity to edit another entry in then be asked for the name of the entry that you wish the phonebook, call the number you just edited, or return to delete.
Page 110: Phone Call Features
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109 • After the “Ready” prompt and the following beep, say Delete/Erase “All” Uconnect™ Phonebook Entries “Phonebook List Names”. • Press the button to begin. • The Uconnect™ Phone will play the names of all the •...
Page 111 110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE mobile service plan. For example, if your mobile service call waiting that you normally hear when using your plan provides three-way calling, this feature can be mobile phone. Press the button to place the current accessed through the Uconnect™...
Page 112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111 Place/Retrieve a Call From Hold Three-Way Calling To put a call on hold, press the button until you hear To initiate three-way calling, press the button a single beep. This indicates that the call is on hold. To while a call is in progress, and make a second phone call, bring the call back from hold, press and hold the as described under “Making a Second Call While Current...
Page 113: Uconnect™ Phone Features
112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • After the “Ready” prompt and the following beep, say • After the ignition key is switched to OFF, a call can “Redial”. continue on the Uconnect™ Phone for a certain dura- tion, after which the call is automatically transferred •...
Page 114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113 • After the Ready prompt and the following beep, say After selecting one of the languages, all prompts and voice commands will be in that language. “Emergency” and the Uconnect™ Phone will instruct the paired mobile phone to call the emergency num- NOTE: After every Uconnect™...
Page 115 114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Mexico City in Mexico). Please refer to the 24-Hour WARNING! Towing Assistance coverage details on the DVD in the Warranty Information Booklet and the 24-Hour To use your Uconnect™ Phone System in an emer- Towing Assistance references.
Page 116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115 Working with Automated Systems is also to be used for navigating through an automated This method is used in instances where one generally has customer service center menu structure, and to leave a to press numbers on the mobile phone keypad while number on a pager.
Page 117 116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Barge In - Overriding Prompts Phone and Network Status Indicators The “Voice Command” button can be used when you If available on the radio and/or on a premium display wish to skip part of a prompt and issue your voice such as the instrument panel cluster, and supported by command immediately.
Page 118: Advanced Phone Connectivity
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117 NOTE: Certain brands of mobile phones do not send the Advanced Phone Connectivity dial ring to the Uconnect™ Phone to play it on the vehicle Transfer Call to and from Mobile Phone audio system, so you will not hear it. Under this situa- The Uconnect™...
Page 119 118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • After the “Ready” prompt and the following beep, say List Paired Mobile Phone Names “Setup Select Phone” and follow the prompts. • Press the button to begin. • You can also press the button at any time while •...
Page 120: Things You Should Know About Your Uconnect™ Phone
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119 • You can also press the • Press the button at any time while button and say the “Voice Training, the list is being played, and then choose the phone you System Training, or Start Voice Training” command. wish to delete.
Page 121 120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • low-to-medium vehicle speed, This will delete all phone pairing, phone book entries, and other settings in all language modes. The System will • low road noise, prompt you before resetting to factory settings. •...
Page 122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121 • Phonebook (Downloaded and Uconnect™ Phone Lo- • low road noise, cal) name recognition rate is optimized when the • smooth road surface, entries are not similar. • fully closed windows, • Numbers must be spoken in single digits. “800” must •...
Page 123 122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Recent Calls After reading a message, you can “Reply” or “Forward” If your phone supports “Automatic Phonebook Down- the message using Uconnect™ Phone. load”, Uconnect™ Phone can list your Outgoing, Incom- Send Messages: ing and Missed Calls.
Page 124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123 List of Preset Messages: 11. See You in 15 minutes 1. Yes 12. I am on my way 2. No 13. I’ll be late 3. Where are you? 14. Are you there yet? 4.
Page 125 124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Turn SMS Incoming Announcement ON/OFF Bluetooth Communication Link Turning the SMS Incoming Announcement OFF will stop Mobile phones have been found to lose connection to the the system from announcing the new incoming mes- Uconnect™...
Page 126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125...
Page 127 126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE...
Page 128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127...
Page 129 128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Voice Commands Voice Commands Primary Alternate(s) Primary Alternate(s) zero call cancel confirmation prompts three continue four delete five dial download seven edit eight emergency nine English star (*) erase all plus (+) Espanol pound (#) Francais add location...
Page 130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129 Voice Commands Voice Commands Primary Alternate(s) Primary Alternate(s) language return to main menu return or main menu list names select phone select list phones send mobile set up phone settings or phone set up mute towing assistance mute off...
Page 131: General Information
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE General Information NOTE: Take care to speak into the Voice Interface This device complies with Part 15 of the FCC rules and System as calmly and normally as possible. The ability of RSS 210 of Industry Canada. Operation is subject to the the Voice Interface System to recognize user voice com- following conditions: mands may be negatively affected by rapid speaking or a...
Page 132: Commands
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131 NOTE: If you do not say a command within a few When using this system, you should speak clearly and at seconds, the system will present you with a list of a normal speaking volume. options.
Page 133 132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • “Memo” (to switch to the memo recorder) Changing the Volume • “System Setup” (to switch to system setup) 1. Start a dialogue by pressing the Voice Command button. Radio AM (or Radio Long Wave or Radio Medium Wave —...
Page 134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133 • “Previous Channel” (to select the previous channel) Radio FM To switch to the FM band, say “FM” or “Radio FM”. In • “List Channel” (to hear a list of available channels) this mode, you may say the following commands: •...
Page 135 134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Memo − “Previous” (to play the previous memo) To switch to the voice recorder mode, say “Memo”. In − “Delete” (to delete a memo) this mode, you may say the following commands: • “Delete All” (to delete all memos) •...
Page 136: Voice Training
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135 Voice Training SEATS For users experiencing difficulty with the system recog- Seats are a part of the Occupant Restraint System of the nizing their voice commands or numbers the Uconnect™ vehicle. Voice “Voice Training” feature may be used. WARNING! 1.
Page 137: Driver's Power Seat - If Equipped
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Driver’s Power Seat — If Equipped Adjusting the seat forward or rearward The power seat switch is located on the outboard side of The seat can be adjusted both forward and rearward. the seat near the floor. Use this switch to move the seat up Push the seat switch forward or rearward, the seat will or down, forward or rearward or to tilt the seat.
Page 138: Heated Seats - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137 Passenger Power Seat — If Equipped CAUTION! Vehicle’s equipped with passenger power seats can only be adjusted forward and backward. Do not place any article under a power seat or impede its ability to move as it may cause damage to WARNING! the seat controls.
Page 139 138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE You can choose from HIGH, LOW or OFF heat settings. NOTE: When a heat setting is selected, heat will be felt Amber indicator lights in each switch indicate the level of within two to five minutes. heat in use.
Page 140: Manual Front Seat Adjustments
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139 CAUTION! Repeated overheating of the seat could damage the heating element and/or degrade the material of the seat. Manual Front Seat Adjustments For models equipped with manual seats, the driver and passenger seats can be adjusted forward or rearward by using a bar by the front of the seat cushion, near the floor.
Page 141: Front Seat - Manual Recline
140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! • Adjusting a seat while driving may be dangerous. Moving a seat while driving could result in loss of control which could cause a collision and serious injury or death. • Seats should be adjusted before fastening the seatbelts and while the vehicle is parked.
Page 142: Manual Lumbar Support - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141 Manual Lumbar Support — If Equipped Fold-Flat Front Passenger Seat — If Equipped For models equipped with manual lumbar the support This feature allows the front passenger seatback to fold lever is located on the inboard side of the seat. Turn the flat for extended cargo space.
Page 143: Head Restraints
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Head Restraints Active Head Restraints — Front Seats Head restraints are designed to reduce the risk of injury Active Head Restraints are passive, deployable compo- by restricting head movement in the event of a rear nents, and vehicles with this equipment cannot be readily impact.
Page 144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143 To raise the head restraint, pull upward on the head For comfort the Active Head Restraints can be tilted restraint. To lower the head restraint, press the adjust- forward and backward. To tilt the head restraint closer to ment button, located at the base of the head restraint, and the back of your head, pull forward on the bottom of the push downward on the head restraint.
Page 145 144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Head Restraints (AHR)” in “Things to Know Before Starting Your Vehicle” for further information. WARNING! • Do not place items over the top of the Active Head Restraint, such as coats, seat covers or portable DVD players.
Page 146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145 Rear Head Restraints NOTE: • The head restraints should only be removed by quali- The two outboard seat are equipped with adjustable head restraints. To raise the head restraint, pull upward on the fied technicians, for service purposes only.
Page 147: 60/40 Split Folding Rear Seat With Fold-Flat Feature
146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 60/40 Split Folding Rear Seat with Fold-Flat WARNING! (Continued) Feature • Do not allow people to ride in any area of your To provide additional storage area, each rear seat can be vehicle that is not equipped with seats and seat folded flat.
Page 148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147 To Raise the Rear Seat NOTE: If interference from the cargo area prevents the seatback from fully locking, you will have difficulty returning the seat to its proper position. 1. If locked in the folded position, pull the release strap (toward the front of the vehicle).
Page 149: Driver Memory Seat - If Equipped
148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Recliner Adjustment WARNING! The rear seatback also reclines for additional passenger comfort. Pull the release strap while sitting in the rear Do not ride with the seatback reclined so that the seat to recline the seatback. shoulder belt is no longer resting against your chest.
Page 150: Programming The Memory Feature
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149 recall either of the two pre-programmed memory profiles 1. Turn the ignition ON. by pressing the appropriate side of the switch. 2. Adjust all memory profile settings to desired prefer- ences (i.e., seat, side mirror and radio station presets). 3.
Page 151: Linking And Unlinking The Remote Keyless Entry Transmitter To Memory
150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 3. Press and release the SET button on the memory Linking and Unlinking the Remote Keyless Entry switch, then press the side of the rocker switch labeled (2) Transmitter to Memory within five seconds. The EVIC, if equipped, will display Your Remote Keyless Entry (RKE) transmitters can be which memory position is being set.
Page 152: Memory Position Recall
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151 NOTE: Your RKE transmitters can be unlinked to the To recall the memory settings for driver one, press memory setting by pressing the SET button followed by MEMORY button number 1 or the UNLOCK button on the UNLOCK button on the RKE transmitter in Step 4 the RKE transmitter linked to memory position 1.
Page 153 152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • The Easy Entry/Easy Exit feature is disabled when the The distance the driver seat moves depends on where you have the driver seat positioned when you remove the driver’s seat position is less than 0.9 in (23 mm) key from the ignition switch.
Page 154: To Open And Close The Hood
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153 TO OPEN AND CLOSE THE HOOD 2. Outside of the vehicle, locate the safety latch lever Two latches must be released to open the hood. between the grille and hood opening (left of center when facing hood).
Page 155 154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Use the hood prop rod to secure the hood in the open CAUTION! (Continued) position. Place the upper end of the prop rod in the hole • Never drive your vehicle unless the hood is fully on the underside of the hood.
Page 156: Lights
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155 LIGHTS Headlights and Parking Lights Turn the end of the multifunction lever to the first detent Multifunction Lever for parking light operation. Turn the end of the lever to The multifunction lever on the left side of the steering the second detent for headlight operation.
Page 157: Automatic Headlights - If Equipped
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Automatic Headlights — If Equipped This system automatically turns the headlights on or off according to ambient light levels. To turn the system on, turn the end of the multifunction lever to the AUTO position (third detent).
Page 158: Headlights With Wipers (Available With Automatic Headlights Only)
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157 Headlights with Wipers To activate the delay, turn the ignition switch to the (Available with Automatic Headlights Only) LOCK position while the headlights are still on. Then, When this feature is active, the headlights will turn on turn off the headlights within 45 seconds.
Page 159: Lights-On Reminder
158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE whenever the ignition is ON, the engine is running, the headlight switch is off, the parking brake is released and the shift lever is in any position except PARK. NOTE: The Daytime Running Lights will turn off automatically when a turn signal is in operation and turn on again when the turn signal is not operating.
Page 160: Turn Signals
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159 Turn Signals NOTE: If either light remains on and does not flash, or Move the multifunction lever up or down and the arrows there is a very fast flash rate, check for a defective outside on each side of the instrument cluster flash to show light bulb.
Page 161: Instrument Panel Dimmer
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: If the multifunction lever is held in the flash-to- pass position for more than 15 seconds, the high beams will shut off. If this occurs, wait 30 seconds before activating the flash-to-pass function again. Instrument Panel Dimmer Rotate the center portion of the lever to the extreme bottom position to fully dim the instrument panel lights...
Page 162: Cargo Light
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161 UNLOCK button on the Remote Keyless Entry (RKE) WINDSHIELD WIPERS AND WASHERS transmitter is pressed, or when the dimmer control is The windshield wiper/washer control lever is located on turned completely upward to the second detent. the right side of the steering column.
Page 163: Windshield Wiper Operation
162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Windshield Wiper Operation NOTE: The wipers will automatically return to the Rotate the end of the lever upward to the second detent past “park” position if you turn OFF the ignition switch while the intermittent settings for low-speed wiper operation.
Page 164: Intermittent Wiper System
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163 CAUTION! (Continued) • Always remove any buildup of snow that prevents the windshield wiper blades from returning to the off position. If the windshield wiper control is turned off and the blades cannot return to the off position, damage to the wiper motor may occur.
Page 165: Windshield Washers
164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE second to a maximum of approximately 18 seconds WARNING! between cycles at vehicle speeds greater than 10 mph (16 km/h). Sudden loss of visibility through the windshield could lead to a collision. You might not see other NOTE: The wiper delay times depend on vehicle speed.
Page 166: Rain Sensing Wipers - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165 the end of the windshield wiper/washer control lever to one of the five intermittent wiper settings to activate this feature. The sensitivity of the system is adjustable from the windshield wiper/washer control lever. Wiper delay position 1 is the least sensitive and wiper delay position 5 is the most sensitive.
Page 167 166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • Use of Rain-X or products containing wax or silicone 0 mph (0 km/h), or the outside temperature rises may reduce rain sensor performance. above freezing the rain-sensing feature will then op- erate. •...
Page 168: Headlights With Wipers (Available With Automatic Headlights Only)
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 167 Headlights with Wipers below the steering wheel at the end of the steering (Available with Automatic Headlights Only) column. When this feature is active, the headlights will turn on approximately 10 seconds after the wipers are turned on if the multifunction lever (on the left side of the steering column) is placed in the AUTO position.
Page 169: Electronic Speed Control - If Equipped
168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE wheel upward or downward as desired. To lock the The Electronic Speed Control buttons are located on the steering column in position, pull the control handle right side of the steering wheel. upward until it is fully engaged. WARNING! Do not adjust the steering column while driving.
Page 170: To Activate
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169 the same time. If this occurs, the Electronic Speed Control To Set a Desired Speed System can be reactivated by pushing the Electronic Turn the Electronic Speed Control ON. When the vehicle Speed Control ON/OFF button and resetting the desired has reached the desired speed, press the SET (-) button vehicle set speed.
Page 171: Understanding The Features Of Your Vehicle To Resume Speed
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To Resume Speed To decrease speed while the Electronic Speed Control is To resume a previously set speed, push the RES (+) set, push the SET (-) button. If the button is continually button and release.
Page 172: Parksense Rear Park Assist - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171 NOTE: The Electronic Speed Control system maintains PARKSENSE REAR PARK ASSIST — speed up and down hills. A slight speed change on IF EQUIPPED moderate hills is normal. The ParkSense Rear Park Assist system provides visual On steep hills, a greater speed loss or gain may occur so and audible indications of the distance between the rear it may be preferable to drive without Electronic Speed...
Page 173: Parksense Sensors
172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ParkSense can be active only when the shift lever is in ParkSense Warning Display REVERSE. If ParkSense is enabled at this shift lever The ParkSense Warning screen will only be displayed if position, the system will remain active until the vehicle Sound and Display is selected from the Customer- Pro- speed is increased to approximately 11 mph (18 km/h) or grammable Features section of the Electronic Vehicle...
Page 174: Parksense Display
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 173 ParkSense Display When the vehicle is in REVERSE, the warning display will turn ON indicating the system status. Rear Park Assist Display Rear Park Assist ON...
Page 175 174 UNDERSTANDING THE FEATURES OF YOUR VEHICLE The system will indicate a detected obstacle by showing three solid arcs and will produce a one-half second tone. As the vehicle moves closer to the object the EVIC display will show fewer arcs and the sound tone will change from slow, to fast, to continuous.
Page 176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175 Fast Tone Continuous Tone The vehicle is close to the obstacle when the EVIC display shows one flashing arc and sounds a continuous tone. The following chart shows the warning alert operation when the system is detecting an obstacle:...
Page 177: Enabling And Disabling Park Sense
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING ALERTS Rear Distance Greater than 79-39 in 39-25 in 25-12 in Less than (in/cm) 79 in (200 cm) (200-100 cm) (100-65 cm) (65-30 cm) 12 in (30 cm) Audible Alert None Single 1/2 Slow Fast Continuous...
Page 178: Service The Parksense Rear Park Assist System
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177 approximately five seconds. Refer to “Electronic Vehicle chime, once per ignition cycle, and it will display the Information Center (EVIC)” in “Understanding Your “CLEAN PARK ASSIST SENSORS” or the “SERVICE Instrument Panel” for further information. When the PARK ASSIST SYSTEM”...
Page 179: Cleaning The Parksense System
178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • When you move the shift lever to the REVERSE Cleaning the ParkSense System Clean the ParkSense sensors with water, car wash soap position and ParkSense is turned off, the instrument and a soft cloth. Do not use rough or hard cloths. Do not cluster will display “PARK ASSIST OFF”...
Page 180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 179 object as a sensor problem, causing the “SERVICE WARNING! PARK ASSIST SYSTEM” message to be displayed in • Drivers must be careful when backing up even the instrument cluster. when using the ParkSense Rear Park Assist Sys- CAUTION! tem.
Page 181: Garage Door Opener - If Equipped
180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE systems. The HomeLink unit operates off your vehicle’s WARNING! (Continued) battery. • Before using the ParkSense Rear Park Assist The HomeLink buttons that are located in the headliner or System, it is strongly recommended that the ball sun visor designate the three different HomeLink channels.
Page 182: Programming Homelink
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181 Programming HomeLink WARNING! Before You Begin • Your motorized door or gate will open and close If you have not trained any of the HomeLink buttons, while you are training the Universal Transceiver. erase all channels before you begin training.
Page 183 182 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • After training a HomeLink channel, if the garage Place the handheld transmitter 1–3 in (3-8 cm) away from the HomeLink button you wish to program door does not operate with HomeLink and the ga- while keeping the indicator light in view.
Page 184 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 183 This can usually be found where the hanging antenna 1. Firmly press and release the LEARN or TRAINING wire is attached to the garage door opener motor (it is button. The name and color of the button may vary by NOT the button normally used to open and close the manufacturer.
Page 185: Gate Operator/Canadian Programming
184 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Gate Operator/Canadian Programming If you unplugged the device for training, plug it back in Canadian radio-frequency laws require transmitter sig- at this time. nals to “time-out” (or quit) after several seconds of Then proceed with Step 4 under “Programming transmission –...
Page 186: Security
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 185 • Press the LEARN button on the Garage Door Opener 3. Without releasing the button, proceed with Program- ming HomeLink Step 2 and follow all remaining steps. to complete the training for a Rolling Code. •...
Page 187: Power Sunroof - If Equipped
186 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: The transmitter has been tested and it complies with FCC and IC rules. Changes or modifications not expressly approved by the party responsible for compli- ance could void the user’s authority to operate the device.
Page 188: Opening Sunroof - Express
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 187 Opening Sunroof — Express WARNING! Press the switch rearward and release it within one-half • Never leave unattended children in a vehicle with second and the sunroof will open automatically from any position. The sunroof will open fully and stop automati- the key in the ignition switch.
Page 189: Closing Sunroof - Manual Mode
188 UNDERSTANDING THE FEATURES OF YOUR VEHICLE position. The sunroof will close fully and stop automati- Pinch Protect Override cally. This is called “Express Close”. During Express If a known obstruction (ice, debris, etc.) prevents closing Close operation, any movement of the switch will stop and moves the sunroof in the opposite direction, press the sunroof.
Page 190: Wind Buffeting
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 189 NOTE: The sunshade cannot be closed if the sunroof is Ignition Off Operation open. For vehicles not equipped with the Electronic Vehicle Information Center (EVIC), the power sunroof switch Wind Buffeting will remain active for 45 seconds after the ignition switch Wind buffeting can be described as the perception of is turned to the LOCK position.
Page 191: Sky Slider™ Usage Precautions
190 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Sky Slider™ Usage Precautions CAUTION! (Continued) NOTE: • Opening the Sky Slider™ when damp, wet, or • The system will not operate when ambient tempera- dirty can cause stains, mildew, and damage to the ture is at –4°F (–20°C) or lower.
Page 192 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 191 WARNING! WARNING! (Continued) • If potential danger exists while opening or closing Failure to follow these warnings can result in injuries the Sky Slider™ in Automatic Mode, press and that are serious or fatal to you, your passengers, and release the switch immediately to interrupt the others around you: operation.
Page 193: Sky Slider™ Control
192 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Sky Slider™ Control Opening the Sky Slider™ The Sky Slider™ switch is located between the sun visors Using Automatic Mode on the overhead console. Press the switch rearward and release it within one-half second and the Sky Slider™...
Page 194: Closing The Sky Slider
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 193 Using Operator Mode Using Operator Mode Press the switch rearward and hold it, the Sky Slider™ If the Sky Slider™ is open from the front, press the switch will open from the front and move toward the rear of the forward and hold it, the Sky Slider™...
Page 195: Anti-Pinch Protect Feature
194 UNDERSTANDING THE FEATURES OF YOUR VEHICLE completely. The left motor facing forward will close the ears. Your vehicle may exhibit wind buffeting with the top when it is open from the rear of the vehicle. The right windows down, or the Sky Slider™ in certain open or motor will close the top when it is open from the front of partially open positions.
Page 196 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 195 • Do not exceed the maximum power of 160 Watts (13 Amps) at 12 Volts. If the 160 Watt (13 Amp) power rating is exceeded the fuse protecting the system will need to be replaced. WARNING! To avoid serious injury or death: •...
Page 197: Cupholders
196 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CUPHOLDERS CAUTION! There are two cupholders for the front seat passengers, • Many accessories that can be plugged in draw located in the center console. power from the vehicle’s battery, even when not in use (i.e., cellular phones, etc.).
Page 198: Storage
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 197 The rear passengers have cupholders at the rear of the STORAGE center console. Glove Box Storage Compartment The glove box storage compartment is located on the right side of the instrument panel. Pull outward on the latch to open the storage compartment.
Page 199: Front Storage Compartment
198 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Front Storage Compartment Console Storage Compartment The front storage compartment (located on the left side of To open, press the latch and lift the cover. the instrument panel) can hold cell phones, PDAs, and other small items.
Page 200: Cargo Area Features
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 199 The center console has a removable storage tray which CARGO AREA FEATURES can hold cell phones, PDAs, and other small items. Cargo Load Floor The cargo load floor system has a load capacity of 400 lbs (181 kg).
Page 201 200 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 1. Flip the spring-loaded latch pull-loops up. 4. Turn over the cover and reinstall it. NOTE: You can install the cover with either side facing upward. 5. With the cover seated in the floor, pull upward on loops and twist them one-quarter turn so that they are no longer parallel to the slots in the cover.
Page 202 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 201 Cargo Tie-Down Hooks and Loops The tie-downs located on cargo area floor should be used to secure loads safely when the vehicle is moving. Cargo Tie-Down Loops Cargo tie-down loops are located on the trim panels. Cargo Tie-Down Hooks...
Page 203 202 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! WARNING! • Cargo tie-downs are not safe anchors for a child The weight and position of cargo and passengers can seat tether strap. In a sudden stop or accident, a change the vehicle center of gravity and vehicle han- tie-down could pull loose and allow the child seat dling.
Page 204 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 203 Retractable Cargo Area Cover — If Equipped NOTE: The purpose of this cover is for privacy, not to secure loads. It will not prevent cargo from shifting or protect passengers from loose cargo. The removable retractable cargo area cover mounts in the cargo area behind the top of the rear seats.
Page 205: Rear Window Features
204 UNDERSTANDING THE FEATURES OF YOUR VEHICLE notches in the trim panels. Then, lower the cover to WARNING! position the posts into the bottom of the notches and release the handle. In a collision, a cargo cover loose in the vehicle could cause injury.
Page 206: Rear Window Defroster
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 205 Rotate the switch upward past the first detent to activate the rear washer. The washer pump will continue to operate as long as the switch is held (for a maximum of 10 seconds). Upon release, the wiper will cycle two times before returning to the set position.
Page 207: Roof Luggage Rack - If Equipped
206 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: To prevent excessive battery drain, use the rear ROOF LUGGAGE RACK — IF EQUIPPED window defroster only when the engine is operating. NOTE: Roof rack and crossbars cannot be used on vehicles equipped with Skyslider . CAUTION! The load carried on the roof, when equipped with a Failure to follow these cautions can cause damage to...
Page 208 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 207 CAUTION! CAUTION! (Continued) • Travel at reduced speeds and turn corners care- • To avoid damage to the roof rack and vehicle, do fully when carrying large or heavy loads on the not exceed the maximum roof rack load capacity. roof rack.
Page 210: Understanding Your Instrument Panel
UNDERSTANDING YOUR INSTRUMENT PANEL CONTENTS ▫ Compass Display / ECO Instrument Panel Features ....212 (Fuel Saver Mode) — If Equipped ..234 Instrument Cluster .
Page 211 210 UNDERSTANDING YOUR INSTRUMENT PANEL ▫ List Button ▫ Operation Instructions — CD Mode For CD (Disc Mode For MP3/WMA Play) ..254 And MP3 Audio Play ....265 ▫...
Page 212 UNDERSTANDING YOUR INSTRUMENT PANEL 211 Steering Wheel Audio Controls ... . 286 Climate Controls ..... . 288 ▫...
Page 213: Instrument Panel Features
212 UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT PANEL FEATURES 1 — Air Outlet 4 — Radio 7 — Power Outlet 2 — Instrument Cluster 5 — Glove Compartment 8 — Lower Switch Bank 3 — Storage Tray 6 — Climate Control 9 —...
Page 214: Instrument Cluster
UNDERSTANDING YOUR INSTRUMENT PANEL 213 INSTRUMENT CLUSTER...
Page 215: Instrument Cluster Descriptions
214 UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT CLUSTER DESCRIPTIONS tires of a different size than the size indicated on the vehicle placard or tire inflation pressure label, you should 1. Fuel Gauge determine the proper tire inflation pressure for those tires.) The fuel gauge shows level of fuel in tank when ignition As an added safety feature, your vehicle has been switch is in the ON/RUN position.
Page 216 UNDERSTANDING YOUR INSTRUMENT PANEL 215 Your vehicle has also been equipped with a TPMS CAUTION! malfunction indicator to indicate when the system is not operating properly. The TPMS malfunction indicator is The TPMS has been optimized for the original combined with the low tire pressure telltale. When the equipment tires and wheels.
Page 217 216 UNDERSTANDING YOUR INSTRUMENT PANEL shift lever is placed in the PARK position. The light does not come on when turning the key from OFF to should turn off. If the light remains lit with the engine ON/RUN, have the condition checked promptly. running, your vehicle will usually be drivable;...
Page 218 UNDERSTANDING YOUR INSTRUMENT PANEL 217 9. Speedometer WARNING! Shows the vehicle speed in Miles Per Hour (MPH) or kilometers per hour (km/h). A malfunctioning catalytic converter, as referenced above, can reach higher temperatures than in normal 10. Turn Signal Indicators operating conditions.
Page 219 218 UNDERSTANDING YOUR INSTRUMENT PANEL engine running. If the “ESC Activation/Malfunction In- 12. Charging System Light dicator Light” comes on continuously with the engine This light shows the status of the electrical charg- running, a malfunction has been detected in the ESC ing system.
Page 220 UNDERSTANDING YOUR INSTRUMENT PANEL 219 vehicle and shut off the engine as soon as possible. A If the ABS light is on, the brake system should be serviced chime will sound for four minutes when this light turns as soon as possible to restore the benefits of Anti-Lock brakes.
Page 221 220 UNDERSTANDING YOUR INSTRUMENT PANEL 17. Hill Descent Control Indicator — If Equipped front driveshaft and rear driveshaft are mechanically The symbol indicates the status of the Hill locked together forcing the front and rear wheels to rotate Descent Control (HDC) feature. The lamp will at the same speed.
Page 222 UNDERSTANDING YOUR INSTRUMENT PANEL 221 22. Engine Temperature Warning Light 23. Temperature Gauge This light warns of an overheated engine condi- The temperature gauge shows engine coolant tempera- tion. As temperatures rise and the gauge ap- ture. Any reading within the normal range indicates that proaches H, this indicator will illuminate and a the engine cooling system is operating satisfactorily.
Page 223 222 UNDERSTANDING YOUR INSTRUMENT PANEL WARNING! CAUTION! A hot engine cooling system is dangerous. You or Continuous driving with the Transmission Tempera- others could be badly burned by steam or boiling ture Warning Light illuminated will eventually cause coolant. You may want to call an authorized dealer- severe transmission damage or transmission failure.
Page 224 UNDERSTANDING YOUR INSTRUMENT PANEL 223 display. Trip A or Trip B will appear when in the trip torque split of 42% front axle and 58% rear axle. It can odometer mode. On vehicles equipped with a Base redirect up to 100% of torque to the front or rear axle, if Cluster, press and release it once again to display the necessary.
Page 225 224 UNDERSTANDING YOUR INSTRUMENT PANEL the repair/service, so that you can be sure that it is On vehicles equipped with a Premium Instrument Clus- properly reset, or that the door jamb sticker is accurate if ter, this display shows the Electronic Vehicle Information the odometer must be reset at zero.
Page 226 UNDERSTANDING YOUR INSTRUMENT PANEL 225 gASCAP Message CHAngE OIL Message (Base And Mid Line Clusters Only) If the vehicle diagnostic system determines that the fuel Your vehicle is equipped with an engine oil change filler cap is loose, improperly installed, or damaged, the indicator system.
Page 227 226 UNDERSTANDING YOUR INSTRUMENT PANEL 2. Fully depress the accelerator pedal slowly three the seat belt remains unbuckled. Refer to “Occupant times within 10 seconds. Restraints” in “Things To Know Before Starting Your Vehicle” for further information. 3. Turn the ignition switch to the LOCK position. 31.
Page 228 UNDERSTANDING YOUR INSTRUMENT PANEL 227 the brake booster, the ABS pump will run when applying WARNING! the brake and a brake pedal pulsation may be felt during each stop. Driving a vehicle with the red brake light on is dangerous. Part of the brake system may have failed. The dual brake system provides a reserve braking capac- It will take longer to stop the vehicle.
Page 229 228 UNDERSTANDING YOUR INSTRUMENT PANEL The light also will turn on when the parking brake is driving, then have the system inspected at an authorized applied with the ignition switch in the ON/RUN posi- dealer as soon as possible. Refer to “Occupant Restraints” tion.
Page 230: Electronic Vehicle Information Center (Evic) - If Equipped
UNDERSTANDING YOUR INSTRUMENT PANEL 229 ELECTRONIC VEHICLE INFORMATION CENTER This system conveniently allows the driver to select a (EVIC) — IF EQUIPPED variety of useful information by pressing the switches The Electronic Vehicle Information Center (EVIC) fea- mounted on the steering wheel. The EVIC consists of the tures a driver-interactive display that is located in the following: instrument cluster.
Page 231 230 UNDERSTANDING YOUR INSTRUMENT PANEL The system allows the driver to select information by UP Button pressing the following buttons mounted on the steering Press and release the UP button to scroll up- wheel: ward through the main menus (Fuel Economy, Vehicle Info, Tire PSI, Cruise, Messages, Units, System Setup) and sub menus.
Page 232: Electronic Vehicle Information Center (Evic) Displays
UNDERSTANDING YOUR INSTRUMENT PANEL 231 • Memory System Disabled – Vehicle in Motion (with a Electronic Vehicle Information Center (EVIC) Displays single chime) — manual transmission When the appropriate conditions exist, the EVIC displays • Memory System Disabled – Seat Belt Buckled (with a the following messages.
Page 233: Oil Change Required
232 UNDERSTANDING YOUR INSTRUMENT PANEL • Left Front Low Pressure (with a single chime). Refer to • Service Park Assist System (with a single chime) “Tire Pressure Monitoring System” in “Starting And • Oil Change Required (with a single chime) Operating”.
Page 234: Trip Functions
UNDERSTANDING YOUR INSTRUMENT PANEL 233 • Elapsed Time indicator system (after performing the scheduled main- tenance) perform the following procedure: • Display Units of Measure in 1. Turn the ignition switch to the ON position. Do not Press the UP or DOWN buttons to cycle through all the start the engine.
Page 235: Compass Display / Eco (Fuel Saver Mode) - If Equipped
234 UNDERSTANDING YOUR INSTRUMENT PANEL • Display Units of Measure in: and average fuel economy, according to the current fuel tank level. DTE cannot be reset through the FUNCTION To make your selection, press and release the FUNC- SELECT button. TION SELECT button until “ENGLISH”...
Page 236 UNDERSTANDING YOUR INSTRUMENT PANEL 235 NOTE: The system will display the last known outside also calibrate the compass by completing one or more temperature when starting the vehicle and may need to 360–degree turns (in an area free from large metal or be driven several minutes before the updated tempera- metallic objects) until the “CAL”...
Page 237 236 UNDERSTANDING YOUR INSTRUMENT PANEL 2. Press the UP or DOWN button until the Personal set, the compass will automatically compensate for the Settings (Customer-Programmable Features) menu dis- differences and provide the most accurate compass head- plays in the EVIC. ing.
Page 238: Personal Settings (Customer-Programmable Features)
UNDERSTANDING YOUR INSTRUMENT PANEL 237 1. Turn the ignition switch ON. Press and release the MENU button until Personal Set- tings displays in the EVIC. 2. Press the UP or DOWN button until the Personal Settings (Customer-Programmable Features) menu dis- Use the SCROLL button to display one of the following plays in the EVIC.
Page 239 238 UNDERSTANDING YOUR INSTRUMENT PANEL Unlock Doors Automatically on Exit Recall Memory with Remote Key Unlock — When ON is selected, all doors will unlock when the If Equipped vehicle is stopped and the transmission is in the PARK or When on is selected, you can use your RKE transmitter to NEUTRAL position and the driver’s door is opened.
Page 240 UNDERSTANDING YOUR INSTRUMENT PANEL 239 Remote Key Lock feature. To make your selection, press without the sound horn on lock feature selected. To make and release the FUNCTION SELECT button until “On” your selection, press and release the FUNCTION SE- or “Off”...
Page 241 240 UNDERSTANDING YOUR INSTRUMENT PANEL Delay Turning Headlights Off Opening a vehicle door will cancel this feature. To make When this feature is selected, the driver can choose to your selection, press and release the FUNCTION SE- have the headlights remain on for 0, 30, 60, or 90 seconds LECT button until “Off,”...
Page 242: Media Center 230 (Req) - Am/Fm Stereo Radio And 6-Disc Cd/Dvd Changer (Mp3/Wma Aux Jack)
UNDERSTANDING YOUR INSTRUMENT PANEL 241 button. Refer to “Rear Park Assist System” in “Under- MEDIA CENTER 230 (REQ) — AM/FM STEREO standing The Features Of Your Vehicle” for system func- RADIO AND 6–DISC CD/DVD CHANGER tion and operating information. (MP3/WMA AUX JACK) Hill Start Assist (HSA) —...
Page 243: Operating Instructions - Radio Mode
242 UNDERSTANDING YOUR INSTRUMENT PANEL Operating Instructions - Radio Mode to seek up and the left switch to seek down. The radio will remain tuned to the new station until you make NOTE: The ignition switch must be in the ON or ACC another selection.
Page 244 UNDERSTANDING YOUR INSTRUMENT PANEL 243 If your vehicle is not equipped with or this feature is not Clock Setting Procedure available on your vehicle, a “Not Equipped With 1. Press and hold the TIME button until the hours blink. Uconnect Phone” message will display on the radio screen.
Page 245 244 UNDERSTANDING YOUR INSTRUMENT PANEL INFO Button Push the rotary TUNE/SCROLL control knob a second Press the INFO button for an RDS station (one with call time and MID will display. Turn the TUNE/SCROLL letters displayed). The radio will return a Radio Text control knob to the right or left to increase or decrease the message broadcast from an FM station (FM mode only).
Page 246 UNDERSTANDING YOUR INSTRUMENT PANEL 245 Push the rotary TUNE/SCROLL control knob again to Program Type 16-Digit Character Display exit setting tone, balance, and fade. College College MUSIC TYPE Button Country Country Pressing this button once will turn on the Music Type Foreign Language Language mode for five seconds.
Page 247 246 UNDERSTANDING YOUR INSTRUMENT PANEL SETUP Button Program Type 16-Digit Character Display Pressing the SETUP button allows you to select between Soft Rhythm and Blues Soft R & B the following items: Sports Sports NOTE: Turn the TUNE/SCROLL control knob to scroll Talk Talk through the entries.
Page 248 UNDERSTANDING YOUR INSTRUMENT PANEL 247 • DVD Play Options - Selecting the DVD Play Options • VES™ Power - Allows you to turn VES™ ON and will display the following: OFF (if equipped). • Subtitle – Repeatedly pressing SELECT will switch •...
Page 249 248 UNDERSTANDING YOUR INSTRUMENT PANEL Menu Language — If Equipped Subtitle Language — If Equipped Selecting this item will allow the user to choose the Selecting this item allows you to choose a default subtitle default startup DVD menu language (effective only if language (effective only if the language is supported by language supported by disc).
Page 250 UNDERSTANDING YOUR INSTRUMENT PANEL 249 AutoPlay — If Equipped and press and release that button. If a button is not When this is set to On and a DVD video is inserted, it will selected within five seconds after pressing the SET but- bypass the DVD menu screen and automatically play the ton, the station will continue to play but will not be movie.
Page 251: Operation Instructions - (Disc Mode For Cd And Mp3/Wma Audio Play, Dvd-Video)
250 UNDERSTANDING YOUR INSTRUMENT PANEL Buttons 1 - 6 CAUTION! These buttons tune the radio to the stations that you commit to pushbutton memory {12 AM, 12 FM, and 12 The radio may shut down during extremely hot Satellite (if equipped) stations}. conditions.
Page 252 UNDERSTANDING YOUR INSTRUMENT PANEL 251 Radio display will show LOADING DISC when the disc The disc can be ejected with the radio and ignition OFF. is loading and “READING DISC” when the radio is SEEK Button (CD MODE) reading the disc. Press the right SEEK button for the next selection on the CD.
Page 253: Notes On Playing Mp3/Wma Files
252 UNDERSTANDING YOUR INSTRUMENT PANEL RW/FF (CD MODE) Supported Medium Formats (File Systems) Press and hold FF (Fast Forward) and the CD player will The medium formats supported by the radio are ISO 9660 begin to fast forward until FF is released, or RW or Level 1 and Level 2 and includes the Joliet extension.
Page 254 UNDERSTANDING YOUR INSTRUMENT PANEL 253 Multisession disc formats are supported by the radio. When using the MP3/WMA encoder to compress audio Multisession discs may contain combinations of normal data to an MP3/WMA file, the bit rate and sampling CD audio tracks and computer files (including MP3/ frequencies in the following table are supported.
Page 255: List Button (Disc Mode For Mp3/Wma Play)
254 UNDERSTANDING YOUR INSTRUMENT PANEL • Number of files and folders - Loading times will ID3 Tag information for artist, song title, and album title are supported for ID3 version 1 tags. ID3 version 2 is not increase with more files and folders supported by the radios.
Page 256: Info Button (Disc Mode For Mp3/Wma Play)
UNDERSTANDING YOUR INSTRUMENT PANEL 255 INFO Button (DISC Mode for MP3/WMA Play) Pressing the AUX button will change the mode to auxil- Pressing the INFO button repeatedly will scroll through iary device if the AUX jack is connected. the following TAG information: Song Title, Artist, File NOTE: The AUX device must be turned on and the Name, and Folder Name (if available).
Page 257 256 UNDERSTANDING YOUR INSTRUMENT PANEL TIME Button (Auxiliary Mode) Operating Instructions - Video Entertainment Press the TIME button to change the display from System (VES)™ (If Equipped) elapsed playing time to time of day. The time of day will Refer to “Video Entertainment System (VES)™” in the display for five seconds.
Page 258: Uconnect™ Multimedia (Satellite Radio) - If Equipped
UNDERSTANDING YOUR INSTRUMENT PANEL 257 DTS™ radio system in your vehicle. Sirius will supply a wel- DTS™ and DTS™ 2.0 are trademarks of Digital The- come kit that contains general information, including ater Systems, Inc. how to setup your on-line listening account. For further information, call the toll-free number 888-539-7474, or Uconnect™...
Page 259 258 UNDERSTANDING YOUR INSTRUMENT PANEL using the TUNE/SCROLL control knob until Sirius ID is Reception Quality selected. Press the TUNE/SCROLL control knob and the Satellite reception may be interrupted due to one of the Sirius ID number will display. The Sirius ID number following reasons: display will time out in two minutes.
Page 260 UNDERSTANDING YOUR INSTRUMENT PANEL 259 SEEK Buttons RW/FF Press and release the SEEK buttons to search for the next Pressing the RW (Rewind) or FF (Fast Forward) buttons channel in Satellite mode. Press the right switch to seek causes the tuner to search for the next channel in the up and the left switch to seek down.
Page 261 260 UNDERSTANDING YOUR INSTRUMENT PANEL By pressing the SEEK button when the Music Type Select the button (1-6) you wish to lock onto this channel function is active, the radio will be tuned to the next and press and release that button. If a button is not channel with the same selected Music Type name.
Page 262: Media Center 730N/430/430N (Rer/Rbz/Rhb) Cd/Dvd/Hdd/Nav - If Equipped
UNDERSTANDING YOUR INSTRUMENT PANEL 261 MEDIA CENTER 730N/430/430N (RER/RBZ/RHB) MEDIA CENTER 130 (SALES CODE RES) CD/DVD/HDD/NAV — IF EQUIPPED NOTE: The radio sales code is located on the lower right NOTE: The sales code is located on the lower right side side of the radio faceplate.
Page 263: Operating Instructions - Radio Mode
262 UNDERSTANDING YOUR INSTRUMENT PANEL Operating Instructions — Radio Mode SEEK Buttons Press and release the SEEK buttons to search for the next NOTE: The ignition switch must be in the ON or ACC listenable station in AM/FM mode. Press the right switch position to operate the radio.
Page 264 UNDERSTANDING YOUR INSTRUMENT PANEL 263 4. Adjust the minutes using the right side TUNE/ Push the rotary TUNE/SCROLL control knob a second SCROLL control knob. Press the TUNE/SCROLL control time and MID will display. Turn the TUNE/SCROLL knob to save time change. control knob to the right or left to increase or decrease the mid-range tones.
Page 265 264 UNDERSTANDING YOUR INSTRUMENT PANEL Push the rotary TUNE/SCROLL control knob again to the SET/RND button twice and SET 2 will show in the exit setting tone, balance, and fade. display window. Each button can be set for SET 1 and SET 2 in both AM and FM.
Page 266: Operation Instructions - Cd Mode For Cd And Mp3 Audio Play
UNDERSTANDING YOUR INSTRUMENT PANEL 265 Operation Instructions — CD MODE For CD And If you insert a disc with the ignition ON and the radio MP3 Audio Play ON, the unit will switch from radio to CD mode and begin to play when you insert the disc. The display will NOTE: show the track number, and index time in minutes and •...
Page 267 266 UNDERSTANDING YOUR INSTRUMENT PANEL EJECT Button - Ejecting a CD the current selection. Pressing and holding the SEEK Press the EJECT button to eject the CD. button will allow faster scrolling through the tracks in CD and MP3 modes. TIME Button Press this button to change the display from a large CD If you have ejected a disc and have not removed it within...
Page 268: Notes On Playing Mp3 Files
UNDERSTANDING YOUR INSTRUMENT PANEL 267 SET/RND Button (Random Play Button) Supported Medium Formats (File Systems) Press this button while the CD is playing to activate The medium formats supported by the radio are ISO 9660 Random Play. This feature plays the selections on the Level 1 and Level 2 and includes the Joliet extension.
Page 269 268 UNDERSTANDING YOUR INSTRUMENT PANEL • Maximum number of characters in file/folder names: When using the MP3 encoder to compress audio data to an MP3 file, the bit rate and sampling frequencies in the • Level 1: 12 (including a separator . and a three- following table are supported.
Page 270: Operation Instructions - Auxiliary Mode
UNDERSTANDING YOUR INSTRUMENT PANEL 269 Playlist files are not supported. MP3 Pro files are not To increase the speed of disc loading, it is recommended supported. to use CD-R media and single-session discs. To create a single-session disc, enable the “Disc at Once” option Playback of MP3 Files before writing to the disc.
Page 271: Media Center 130 With Satellite Radio (Sales Code Res+Rsc)
270 UNDERSTANDING YOUR INSTRUMENT PANEL TIME Button (Auxiliary Mode) Press this button to change the display to time of day. The time of day will display for five seconds (when ignition is OFF). MEDIA CENTER 130 WITH SATELLITE RADIO (SALES CODE RES+RSC) NOTE: The radio sales code is located on the lower right side of the radio faceplate.
Page 272 UNDERSTANDING YOUR INSTRUMENT PANEL 271 Power Switch/Volume Control (Rotary) Voice Command System (Radio) — If Equipped Push the ON/VOLUME control knob to turn on the Refer to “Voice Command” in “Understanding The Fea- radio. Push the ON/VOLUME control knob a second tures If Your Vehicle”.
Page 273 272 UNDERSTANDING YOUR INSTRUMENT PANEL If your vehicle is not equipped with or this feature is not 5. To exit, press any button/knob or wait five seconds. available on your vehicle, a “Not Equipped With The clock can also be set by pressing the SETUP button. Uconnect”...
Page 274 UNDERSTANDING YOUR INSTRUMENT PANEL 273 TUNE Control Push the rotary TUNE/SCROLL control knob a fourth Turn the rotary TUNE/SCROLL control knob clockwise time and BALANCE will display. Turn the TUNE/ to increase or counterclockwise to decrease the frequency. SCROLL control knob to the right or left to adjust the sound level from the right or left side speakers.
Page 275 274 UNDERSTANDING YOUR INSTRUMENT PANEL Toggle the MUSIC TYPE button to select the following Program Type 16-Digit Character Display format types: Public Public Program Type 16-Digit Character Display Rhythm and Blues R & B No program type or Religious Music Rel Musc None undefined...
Page 276 UNDERSTANDING YOUR INSTRUMENT PANEL 275 station with the same selected Music Type name. The AM/FM Button Music Type function only operates when in the FM Press the button to select either AM or FM mode. mode. SET/RND Button — To Set the Pushbutton If a preset button is activated while in the Music Type Memory (Program Type) mode, the Music Type mode will be...
Page 277: Operation Instructions - Cd Mode For Cd And Mp3 Audio Play
276 UNDERSTANDING YOUR INSTRUMENT PANEL • This radio is capable of playing compact discs (CD), and 12 FM stations to be stored into pushbutton memory. The stations stored in SET 2 memory can be selected by recordable compact discs (CD-R), rewritable compact pressing the pushbutton twice.
Page 278 UNDERSTANDING YOUR INSTRUMENT PANEL 277 If you have ejected a disc and have not removed it within CAUTION! 10 seconds, it will be reloaded. If the CD is not removed, • This CD player will accept 4–3/4 in (12 cm) discs the radio will reinsert the CD but will not play it.
Page 279: Notes On Playing Mp3 Files
278 UNDERSTANDING YOUR INSTRUMENT PANEL RW/FF Notes On Playing MP3 Files Press and hold FF (Fast Forward) and the CD player will The radio can play MP3 files; however, acceptable MP3 begin to fast forward until FF is released or RW or file recording media and formats are limited.
Page 280 UNDERSTANDING YOUR INSTRUMENT PANEL 279 • Maximum number of files: 255 Discs created with an option such as keep disc open after writing are most likely multisession discs. The use of • Maximum number of folders. (The radio display of file multisession for CD audio or MP3 playback may result in names and folder names is limited.
Page 281 280 UNDERSTANDING YOUR INSTRUMENT PANEL Playback of MP3 Files MPEG Sampling Bit Rate (kbps) When a medium containing MP3 data is loaded, the Specification Frequency (kHz) radio checks all files on the medium. If the medium 320, 256, 224, contains a lot of folders or files, the radio will take more MPEG-1 Audio 192, 160, 128, 48, 44.1, 32...
Page 282: List Button (Cd Mode For Mp3 Play)
UNDERSTANDING YOUR INSTRUMENT PANEL 281 LIST Button (CD Mode for MP3 Play) Press and hold the INFO button again for three seconds Pressing the LIST button will bring up a list of all folders to return to elapsed time display. on the disc.
Page 283: Uconnect™ Multimedia (Satellite Radio) - If Equipped
282 UNDERSTANDING YOUR INSTRUMENT PANEL TIME Button (Auxiliary Mode) radio system in your vehicle. Sirius will supply a wel- Press this button to change the display to time of day. The come kit that contains general information, including time of day will display for five seconds (when the how to setup your on-line listening account.
Page 284 UNDERSTANDING YOUR INSTRUMENT PANEL 283 using the TUNE/SCROLL control knob until Sirius ID is Reception Quality selected. Press the TUNE/SCROLL control knob and the Satellite reception may be interrupted due to one of the Sirius ID number will display. The Sirius ID number following reasons: display will time out in two minutes.
Page 285 284 UNDERSTANDING YOUR INSTRUMENT PANEL SEEK Buttons additional three seconds will make the radio display the Press and release the SEEK buttons to search for the next Song Title all of the time (press and hold again to return channel in Satellite mode. Press the right switch to seek to normal display).
Page 286 UNDERSTANDING YOUR INSTRUMENT PANEL 285 Toggle the MUSIC TYPE button again to select the music SET Button – To Set the Pushbutton Memory type. When you are receiving a channel that you wish to commit to pushbutton memory, press the SET button. By pressing the SEEK button when the Music Type The symbol SET 1 will now show in the display window.
Page 287: Steering Wheel Audio Controls
286 UNDERSTANDING YOUR INSTRUMENT PANEL Every time a preset button is used, a corresponding button number will display. Buttons 1 - 6 These buttons tune the radio to the channels that you commit to pushbutton memory (12 Satellite stations). Operating Instructions - Uconnect™ Phone (If Equipped) Refer to “Uconnect™...
Page 288: Radio Operation
UNDERSTANDING YOUR INSTRUMENT PANEL 287 Pressing the center button will make the radio switch CD Player between the various modes available (AM/FM/SAT/ Pressing the top of the switch once will go to the next CD/HDD/AUX/VES, etc.). track on the CD. Pressing the bottom of the switch once will go to the beginning of the current track, or to the The left-hand control is a rocker-type switch with a beginning of the previous track if it is within one second...
Page 289: Cd/Dvd Disc Maintenance
288 UNDERSTANDING YOUR INSTRUMENT PANEL CD/DVD DISC MAINTENANCE NOTE: If you experience difficulty in playing a particu- To keep a CD/DVD in good condition, take the following lar disc, it may be damaged (i.e., scratched, reflective precautions: coating removed, a hair, moisture or dew on the disc) oversized, or have protection encoding.
Page 290: Manual Heating And Air Conditioning
UNDERSTANDING YOUR INSTRUMENT PANEL 289 Manual Heating and Air Conditioning Blower Control Rotate this control to regulate the amount of air forced through the ven- tilation system in any mode. The blower speed increases as you move the control to the right from the “O” (OFF) position.
Page 291 290 UNDERSTANDING YOUR INSTRUMENT PANEL NOTE: If your air conditioning performance seems Panel lower than expected, check the front of the A/C con- Air is directed through the outlets in the instrument denser located in front of the radiator for an accumula- panel.
Page 292 UNDERSTANDING YOUR INSTRUMENT PANEL 291 Floor NOTE: • The air conditioning compressor operates in Mix, Air is directed through the floor outlets with a small amount flowing through the defrost and side Defrost, or a blend of these modes, even if the Air window demist outlets.
Page 293 292 UNDERSTANDING YOUR INSTRUMENT PANEL NOTE: Air Conditioning Control • Continuous use of the recirculation mode may make Press this button to engage the Air the inside air stuffy and window fogging may occur. Conditioning. A light will illuminate Extended use of this mode is not recommended. when the Air Conditioning System is engaged.
Page 294: Automatic Temperature Control (Atc) - If Equipped
UNDERSTANDING YOUR INSTRUMENT PANEL 293 Automatic Temperature Control (ATC) — Automatic Operation If Equipped The Automatic Temperature Control system automati- cally maintains the climate in the cabin of the vehicle at the comfort levels desired by the driver and passenger. Operation of the system is quite simple.
Page 295 294 UNDERSTANDING YOUR INSTRUMENT PANEL 2. Dial in the temperature you would NOTE: • The temperature setting can be adjusted at anytime like the system to maintain by rotating the Temperature Control knob. Once without affecting automatic operation. the comfort level is selected, the sys- •...
Page 296 UNDERSTANDING YOUR INSTRUMENT PANEL 295 Blower Control Manual Operation For full automatic operation or for This system offers a full complement of manual override automatic blower operation turn the features, which consist of Blower Preferred Automatic, knob to AUTO position. In manual Mode Preferred Automatic, or Blower and Mode Pre- mode there are six blower speeds that ferred Automatic.
Page 297 296 UNDERSTANDING YOUR INSTRUMENT PANEL...
Page 298 UNDERSTANDING YOUR INSTRUMENT PANEL 297 • Floor The operator can override the AUTO mode setting to change airflow distribution by rotating the Mode Control Air is directed through the floor outlets with a knob (on the right) to one of the following positions. small amount flowing through the defrost and side window demist outlets.
Page 299 298 UNDERSTANDING YOUR INSTRUMENT PANEL • Air Conditioner Control NOTE: • When the ignition switch is turned to the LOCK Press this button to turn on the air conditioning during manual operation position, the recirculation feature will be cancelled. only. When the air conditioning is •...
Page 300: Operating Tips
UNDERSTANDING YOUR INSTRUMENT PANEL 299 • Most of the time, when in Automatic Operation, you Summer Operation can temporarily put the system into Recirculation The engine cooling system in air-conditioned vehicles Mode by pressing the Recirculation button. However, must be protected with a high-quality antifreeze coolant under certain conditions, while in Automatic Mode, to provide proper corrosion protection and to protect the system is blowing air out the defrost vents.
Page 301 300 UNDERSTANDING YOUR INSTRUMENT PANEL Window Fogging Outside Air Intake Interior fogging on the windshield can be quickly re- Make sure the air intake, located directly in front of the moved by turning the mode selector to Defrost. The windshield, is free of obstructions such as leaves. Leaves Defrost/Floor mode can be used to maintain a clear collected in the air intake may reduce airflow, and if they windshield and provide sufficient heating.
Page 302 UNDERSTANDING YOUR INSTRUMENT PANEL 301 Control Setting Suggestions for Various Weather Conditions...
Page 304: Starting And Operating
STARTING AND OPERATING CONTENTS ▫ Brake/Transmission Shift Interlock System . . 311 Starting Procedures ....307 ▫ Normal Starting ..... 307 ▫...
Page 305 304 STARTING AND OPERATING On-Road Driving Tips ....327 Electronic Brake Control System ... 338 ▫...
Page 306 STARTING AND OPERATING 305 ▫ Tire Terminology And Definitions ..355 Tire Rotation Recommendations ... 369 ▫ Tire Loading And Tire Pressure ..356 Tire Pressure Monitor System (TPMS) .
Page 307 306 STARTING AND OPERATING ▫ Trailer And Tongue Weight ... . . 395 Adding Fuel ......384 ▫...
Page 308: Starting Procedures
STARTING AND OPERATING 307 STARTING PROCEDURES Normal Starting Before starting your vehicle, adjust your seat, adjust both NOTE: Normal starting of either a cold or a warm inside and outside mirrors, and fasten your seat belts. engine is obtained without pumping or pressing the accelerator pedal.
Page 309: Extreme Cold Weather (Below -20°F Or -29°C)
308 STARTING AND OPERATING Extreme Cold Weather (below –20°F or –29°C) WARNING! (Continued) To ensure reliable starting at these temperatures, use of • Do not attempt to push or tow your vehicle to get an externally powered electric engine block heater (avail- it started.
Page 310: After Starting
STARTING AND OPERATING 309 With Tip Start ENGINE BLOCK HEATER — IF EQUIPPED If the engine fails to start after you have followed the The engine block heater warms the engine, and permits “Normal Starting” or “Extreme Cold Weather” proce- quicker starts in cold weather.
Page 311: Automatic Transmission
310 STARTING AND OPERATING AUTOMATIC TRANSMISSION WARNING! CAUTION! It is dangerous to move the shift lever out of PARK or NEUTRAL if the engine speed is higher than idle Damage to the transmission may occur if the follow- speed. If your foot is not firmly on the brake pedal, ing precautions are not observed: the vehicle could accelerate quickly forward or in •...
Page 312: Brake/Transmission Shift Interlock System
STARTING AND OPERATING 311 Brake/Transmission Shift Interlock System 3. Using a flat blade screwdriver, carefully remove the This vehicle is equipped with a Brake Transmission Shift shift lock manual override cover which is located on the Interlock System (BTSI) that holds the shift lever in the PRNDL bezel.
Page 313: Four-Speed Automatic Transmission
312 STARTING AND OPERATING 6. Move the shift lever into the NEUTRAL position. 7. The vehicle may then be started in NEUTRAL. Have your vehicle inspected by your local authorized dealer if the shift lock manual override has been used. Four–Speed Automatic Transmission NOTE: Under extreme cold temperatures (-6°F (-21°C) and when in DRIVE, transmission operation may be...
Page 314 STARTING AND OPERATING 313 the parking brake when leaving the vehicle in this range. REVERSE Always apply the parking brake first, then place the shift This range is for moving the vehicle rearward. Use this lever in the PARK position. range only after the vehicle has come to a complete stop.
Page 315 314 STARTING AND OPERATING • vehicle speed is above approximately 30 mph 2 (Second) This range is used for moderate grades and to assist (48 km/h) braking on dry pavement or in mud and snow. Begins at • the TOW/HAUL button has not been activated a stop in low gear with automatic upshift into second gear.
Page 316 STARTING AND OPERATING 315 Transmission Limp Home Mode Transmission function is monitored for abnormal condi- tions. If a condition is detected that could result in transmission damage, the Transmission Limp Home Mode will be engaged. In this mode, the transmission will remain in second gear in any forward driving range.
Page 317: Four-Wheel Drive Operation
316 STARTING AND OPERATING If the problem is no longer detected, the transmission will FOUR-WHEEL DRIVE OPERATION return to normal operation. If the problem persists, MP1522 Command-Trac Transfer Case – PARK, REVERSE, and NEUTRAL will continue to oper- If Equipped ate.
Page 318 STARTING AND OPERATING 317 position locks the front driveshaft and rear driveshaft CAUTION! (Continued) together and forces the front and rear wheels to rotate at • The 4WD LOCK position and 4WD LOW position the same speed. are intended for loose or slippery road surfaces Use the transfer case NEUTRAL position for recreational only.
Page 319 318 STARTING AND OPERATING Shift Positions WARNING! The transfer case switch is located on the center console • You or others could be injured if you leave the next to the shift lever. vehicle unattended with the transfer case in the NEUTRAL position without first fully engaging the parking brake.
Page 320 STARTING AND OPERATING 319 Rear Wheel Drive High Range - This range is used for Neutral - This range disengages both the front driveshaft normal street and highway driving on dry hard-surfaced and rear driveshaft from the powertrain. To be used for flat roads.
Page 321 320 STARTING AND OPERATING NOTE: The “SERV 4WD Warning Light” monitors the the vehicle stopped or in motion. With the vehicle in electric shift four-wheel drive system. If this light re- motion, the transfer case will engage/disengage faster if mains on after engine start up, or it illuminates during you momentarily release the accelerator pedal after mov- driving, it means that the four-wheel drive system is not ing the transfer case switch.
Page 322 STARTING AND OPERATING 321 4WD Lock to 4WD Low Alternate Procedure When shifting into or out of 4WD LOW, some gear noise 1. Bring the vehicle to a complete stop. may be heard. This noise is normal and is not detrimental to the vehicle or its occupants.
Page 323: Mp3022 Selec-Trac Ii Transfer Case - If Equipped
322 STARTING AND OPERATING The ignition switch must be in the ON position for a shift This transfer case is intended to be driven in either the to take place and for the position indicator lights to be two-wheel drive position (2WD) or the four-wheel drive operable.
Page 324 STARTING AND OPERATING 323 CAUTION! WARNING! • You or others could be injured if you leave the • The 4WD LOW position is intended for loose or vehicle unattended with the transfer case in the slippery road surfaces only. Driving in this posi- NEUTRAL position without first fully engaging tion on dry hard-surfaced roads may cause in- the parking brake.
Page 325 324 STARTING AND OPERATING Shift Positions 4WD Auto The transfer case switch is located on the center console Four-Wheel Drive Auto High Range – This active on- next to the shift lever. demand range makes available optimum traction for a wide range of conditions, while maximizing driver con- venience.
Page 326 STARTING AND OPERATING 325 NOTE: The “SERV 4WD Warning Light” monitors the Neutral - This range disengages both the front driveshaft electric shift four-wheel drive system. If this light re- and rear driveshaft from the powertrain. To be used for mains on after engine start up, or it illuminates during flat towing behind another vehicle.
Page 327 326 STARTING AND OPERATING vehicle stopped or in motion. If the vehicle is stopped, 3. While still rolling, move the transfer case switch to the the ignition switch must be in the ON position with the desired position. engine either OFF or RUNNING. This shift cannot be 4.
Page 328: On-Road Driving Tips
STARTING AND OPERATING 327 process, then the indicator light will flash, and the They are not designed for cornering at the same speeds as current transfer case position will be maintained. To retry conventional two-wheel drive vehicles any more than a shift, move the transfer case switch back to the original low-slung sports cars are designed to perform satisfacto- position, make certain all shift requirements have been...
Page 329: Driving Through Water
328 STARTING AND OPERATING Driving Through Water entering. Proceed with caution and maintain a steady Although your vehicle is capable of driving through controlled speed less than 5 mph (8 km/h) in deep water water, there are a number of precautions that must be to minimize wave effects.
Page 330: Driving In Snow, Mud And Sand
STARTING AND OPERATING 329 Maintenance Hill Climbing After driving through deep water, inspect your vehicle NOTE: Before attempting to climb a hill, determine the fluids and lubricants (engine, transmission, axle, transfer conditions at the crest and/or on the other side. case) to assure they have not been contaminated.
Page 331: Traction Downhill
330 STARTING AND OPERATING Traction Downhill WARNING! Shift the transmission into a low gear and the transfer case to 4WD LOW range. Let the vehicle go slowly down If the engine stalls or you lose headway or cannot the hill with all four wheels turning against engine make it to the top of a steep hill or grade, never compression drag.
Page 332: Power Steering
STARTING AND OPERATING 331 • Completely inspect the underbody of your vehicle. WARNING! Check tires, body structure, steering, suspension, and exhaust system for damage. Abrasive material in any part of the brakes may cause excessive wear or unpredictable braking. You might •...
Page 333 332 STARTING AND OPERATING If for some reason the power assist is interrupted, it will WARNING! still be possible to steer your vehicle. Under these condi- tions, you will observe a substantial increase in steering Continued operation with reduced power steering effort, especially at very low vehicle speeds and during assist could pose a safety risk to yourself and others.
Page 334: Power Steering Fluid Check
STARTING AND OPERATING 333 Power Steering Fluid Check WARNING! Checking the power steering fluid level at a defined service interval is not required. The fluid should only be Fluid level should be checked on a level surface and checked if a leak is suspected, abnormal noises are with the engine off to prevent injury from moving apparent, and/or the system is not functioning as antici- parts and to ensure accurate fluid level reading.
Page 335 334 STARTING AND OPERATING possible. To release the parking brake, pull the lever up NOTE: • When the parking brake is applied and the transmis- slightly, press the center button, then lower the lever completely. sion is placed in gear, the “Brake Warning Light” will flash.
Page 336: Anti-Lock Brake System
STARTING AND OPERATING 335 WARNING! WARNING! (Continued) • Always fully apply the parking brake when leav- • Never use the PARK position as a substitute for ing your vehicle or it may roll and cause damage or the parking brake. Always apply the parking injury.
Page 337 336 STARTING AND OPERATING computer to modulate hydraulic pressure, to prevent The ABS pump motor runs during the self-test at 12 mph wheel lock-up and help avoid skidding on slippery (20 km/h) and during an ABS stop. The pump motor surfaces.
Page 338 STARTING AND OPERATING 337 • Do not “ride” the brakes by resting your foot on the WARNING! (Continued) pedal. This could overheat the brakes and result in • The ABS cannot prevent collisions, including unpredictable braking action, longer stopping dis- those resulting from excessive speed in turns, tances, or brake damage.
Page 339: Electronic Brake Control System
338 STARTING AND OPERATING build up between the tire tread and the road. This Two additional electronic brake control system options hydroplaning action can cause loss of traction, braking are Hill Descent Control (HDC) and Trailer Sway Control ability, and control. (TSC).
Page 340: Traction Control System (Tcs)
STARTING AND OPERATING 339 a limited slip differential and controls the wheel spin WARNING! across a driven axle. If one wheel on a driven axle is spinning faster than the other, the system will apply the The Anti-Lock Brake System (ABS) cannot prevent brake of the spinning wheel.
Page 341: Electronic Roll Mitigation (Erm)
340 STARTING AND OPERATING benefit of the system, you must apply continuous brak- Electronic Roll Mitigation (ERM) ing pressure during the stopping sequence, (do not This system anticipates the potential for wheel lift by “pump” the brakes). Do not reduce brake pedal pressure monitoring the driver’s steering wheel input and the unless braking is no longer desired.
Page 342: Hill Start Assist (Hsa)
STARTING AND OPERATING 341 time expires, the system will release brake pressure and WARNING! the vehicle will roll down the hill as normal. The system will release brake pressure in proportion to amount of Many factors, such as vehicle loading, road condi- throttle applied.
Page 343 342 STARTING AND OPERATING WARNING! WARNING! • If you use a trailer brake controller with your There may be situations where the Hill Start Assist (HSA) will not activate and slight rolling may occur, trailer, the trailer brakes may be activated and such as on minor hills (i.e., less than 7%), or with a deactivated with the brake switch.
Page 344 STARTING AND OPERATING 343 Disabling and Enabling HSA 3. Apply the parking brake. This feature can be turned on or turned off. To change the 4. Start the engine. current setting, proceed as follows: 5. Rotate the steering wheel one-half turn to the left. For vehicles equipped with the Electronic Vehicle Infor- mation Center (EVIC), refer to “Hill Start Assist,”...
Page 345: Hill Descent Control (Hdc) - If Equipped
344 STARTING AND OPERATING Hill Descent Control (HDC) – If Equipped control, the accelerator pedal will increase vehicle speed HDC is only intended for low speed off-road driving. in the usual manner. When either the brake or the HDC maintains vehicle speed while descending hills in accelerator is released, HDC will control the vehicle at the off-road driving conditions by applying the brakes when original set speed.
Page 346: Electronic Stability Control (Esc)
STARTING AND OPERATING 345 The “Hill Descent” button is located in the lower switch 2. Press the “Hill Descent” button. The “Hill Descent bank below the climate control. Control Indicator Light” in the instrument cluster will turn on solid. NOTE: If the transfer case is not in 4WD LOW range, the “Hill Descent Control Indicator Light”...
Page 347 346 STARTING AND OPERATING counteracting the oversteer or understeer condition. En- flashes when the TCS is active. If the “ESC Activation/ gine power may also be reduced to help the vehicle Malfunction Indicator Light” begins to flash during accel- maintain the desired path. eration, ease up on the accelerator and apply as little throttle as possible.
Page 348 STARTING AND OPERATING 347 ESC Operating Modes Partial Off – Two-Wheel Drive Vehicles and Depending upon model and mode of operation, the ESC Four-Wheel Drive Vehicles in 2WD and 4WD High system has up to three operating modes: “ESC On” Range “Partial Off,”...
Page 349 348 STARTING AND OPERATING NOTE: To improve the vehicle’s traction when driving running. After five seconds, the “ESC Activation/ with snow chains, or when starting off in deep snow, Malfunction Indicator Light” will illuminate and an “ESC sand, or gravel, it may be desirable to switch to the OFF”...
Page 350: Esc Activation/Malfunction Indicator Light And Esc Off Indicator Light
STARTING AND OPERATING 349 NOTE: ESC Activation/Malfunction Indicator Light and • “Full Off” is the only operating mode for ESC in 4WD ESC OFF Indicator Light LOW range. The ESC system will be in this mode The “ESC Activation/Malfunction Indicator whenever the vehicle is started in 4WD LOW range or Light”...
Page 351: Tire Safety Information
350 STARTING AND OPERATING Malfunction Indicator Light” begins to flash during ac- TIRE SAFETY INFORMATION celeration, ease up on the accelerator and apply as little Tire Markings throttle as possible. Be sure to adapt your speed and driving to the prevailing road conditions. NOTE: •...
Page 352 STARTING AND OPERATING 351 • LT (Light Truck) - Metric tire sizing is based on U.S. NOTE: • P (Passenger) - Metric tire sizing is based on U.S. design standards. The size designation for LT-Metric design standards. P-Metric tires have the letter “P” tires is the same as for P-Metric tires except for the molded into the sidewall preceding the size designa- letters “LT”...
Page 353 352 STARTING AND OPERATING Tire Sizing Chart EXAMPLE: Size Designation: P = Passenger car tire size based on U.S. design standards ..blank..= Passenger car tire based on European design standards LT = Light truck tire based on U.S. design standards T = Temporary spare tire 31 = Overall diameter in inches (in) 215 = Section width in millimeters (mm)
Page 354 STARTING AND OPERATING 353 EXAMPLE: Service Description: 95 = Load Index — A numerical code associated with the maximum load a tire can carry H = Speed Symbol — A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions —...
Page 355: Tire Identification Number (Tin)
354 STARTING AND OPERATING Tire Identification Number (TIN) Look for the TIN on the outboard side of black sidewall The TIN may be found on one or both sides of the tire, tires as mounted on the vehicle. If the TIN is not found on however, the date code may only be on one side.
Page 356: Tire Terminology And Definitions
STARTING AND OPERATING 355 Tire Terminology and Definitions Term Definition B-Pillar The vehicle B-Pillar is a structural member of the body located between the front and rear door (of a four-door vehicle) running from the sill to the roof. Cold Tire Pressure Cold tire inflation pressure is defined as the tire pressure after the vehicle has not been driven for at least 3 hours, or driven less than 1 mile (1.6 km) after sitting for a three hour period.
Page 357: Tire Loading And Tire Pressure
356 STARTING AND OPERATING Tire Loading and Tire Pressure Tire and Loading Information Placard Tire Placard Location NOTE: The proper cold tire inflation pressure is listed on the driver’s side B-Pillar. Tire and Loading Information Placard Tire Placard Location...
Page 358 STARTING AND OPERATING 357 axles must not be exceeded. For further information on This placard tells you important information about GAWRs, vehicle loading, and trailer towing, refer to the: “Vehicle Loading” in this section. 1) number of people that can be carried in the vehicle 2) total weight your vehicle can carry To determine the maximum loading conditions of your vehicle, locate the statement “The combined weight of...
Page 359 358 STARTING AND OPERATING 3. Subtract the combined weight of the driver and pas- 6. If your vehicle will be towing a trailer, load from your sengers from XXX lbs or XXX kg. trailer will be transferred to your vehicle. Consult this manual to determine how this reduces the available 4.
Page 360 STARTING AND OPERATING 359...
Page 361: Tires - General Information
360 STARTING AND OPERATING Safety WARNING! WARNING! Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and • Improperly inflated tires are dangerous and can increase your stopping distance. Use tires of the cause collisions. recommended load capacity for your vehicle.
Page 362: Tire Inflation Pressures
STARTING AND OPERATING 361 stability of the vehicle and can produce a feeling of WARNING! (Continued) sluggish response or over responsiveness in the steering. • Unequal tire pressures from one side of the ve- Unequal tire pressures can cause erratic and unpredict- hicle to the other can cause the vehicle to drift to able steering response.
Page 363 362 STARTING AND OPERATING Tire pressures change by approximately 1 psi (7 kPa) per CAUTION! 12°F (7°C) of air temperature change. Keep this in mind when checking tire pressure inside a garage, especially in After inspecting or adjusting the tire pressure, al- the winter.
Page 364: Tire Pressures For High Speed Operation
STARTING AND OPERATING 363 Tire Pressures For High Speed Operation Radial-Ply Tires The manufacturer advocates driving at safe speeds WARNING! within posted speed limits. Where speed limits or condi- tions are such that the vehicle can be driven at high Combining radial ply tires with other types of tires speeds, maintaining correct tire inflation pressure is very on your vehicle will cause your vehicle to handle...
Page 365: Tire Spinning
364 STARTING AND OPERATING WARNING! CAUTION! Because of the reduced ground clearance, do not take Temporary use spare tires are for emergency use only. your vehicle through an automatic car wash with the With these tires, do not drive more than 50 mph compact spare installed.
Page 366: Tread Wear Indicators
STARTING AND OPERATING 365 Tread Wear Indicators These indicators are molded into the bottom of the tread Tread wear indicators are in the original equipment tires grooves. They will appear as bands when the tread depth to help you in determining when your tires should be becomes 1/16 in (2 mm).
Page 367: Life Of Tire
366 STARTING AND OPERATING Life Of Tire Replacement Tires The service life of a tire is dependent upon various The tires on your new vehicle provide a balance of many factors including but not limited to: characteristics. They should be inspected regularly for wear and correct cold tire inflation pressure.
Page 368: Tire Chains
STARTING AND OPERATING 367 WARNING! WARNING! (Continued) • Failure to equip your vehicle with tires having • Do not use a tire, wheel size or rating other than adequate speed capability can result in sudden tire that specified for your vehicle. Some combinations failure and loss of vehicle control.
Page 369 368 STARTING AND OPERATING CAUTION! CAUTION! (Continued) • Install chains on the rear wheels as tightly as To avoid damage to your vehicle, tires, or chains, possible and then retighten after driving about ⁄ observe the following precautions: mile (0.8 km). •...
Page 370: Tire Rotation Recommendations
STARTING AND OPERATING 369 These cautions apply to all chain traction devices, includ- The suggested rotation method is the “forward-cross” ing link and cable (radial) chains. shown in the following diagram. This rotation pattern does not apply to some directional tires that must not be TIRE ROTATION RECOMMENDATIONS reversed.
Page 371: Tire Pressure Monitor System (Tpms)
370 STARTING AND OPERATING three hour period. The cold tire inflation pressure must CAUTION! not exceed the maximum inflation pressure molded into the tire sidewall. Refer to “Tires – General Information” in Proper operation of four-wheel drive vehicles de- “Starting and Operating” for information on how to pends on tires of equal size, type and circumference properly inflate the vehicle’s tires.
Page 372 STARTING AND OPERATING 371 Monitoring Telltale Light” to turn off. The system will CAUTION! automatically update and the “Tire Pressure Monitoring • The TPMS has been optimized for the original Telltale Light” will turn off once the system receives the updated tire pressures.
Page 373: Base System
372 STARTING AND OPERATING • Seasonal temperature changes will affect tire pressure, NOTE: • The TPMS is not intended to replace normal tire care and the TPMS will monitor the actual tire pressure in and maintenance, or to provide warning of a tire the tire.
Page 374 STARTING AND OPERATING 373 The matching full-size spare wheel and tire assembly (if vehicle may need to be driven for up to 20 minutes above equipped) has a tire pressure monitoring sensor. The 15 mph (25 km/h) in order for the TPMS to receive this matching full-size spare can be used in place of any of the information.
Page 375 374 STARTING AND OPERATING 3. Lots of snow or ice around the wheels or wheel Vehicles with Compact Spare housings. 1. The compact spare tire does not have a tire pressure 4. Using tire chains on the vehicle. monitoring sensor. Therefore, the TPMS will not monitor the pressure in the compact spare tire.
Page 376: Premium System - If Equipped
STARTING AND OPERATING 375 • Three Trigger Modules (mounted in three of the four Telltale Light” will turn off, as long as no tire pressure is below the low-pressure warning limit in any of the four wheel-wells) active road tires. The vehicle may need to be driven for •...
Page 377 376 STARTING AND OPERATING will sound when tire pressure is low in one or more of the Should this occur, you should stop as soon as possible four active road tires. In addition, the Electronic Vehicle and inflate the tires with low pressure (those flashing in Information Center (EVIC) will display a graphic show- the EVIC graphic) to the vehicle’s recommended cold ing the pressure values of each tire with the low tire...
Page 378 STARTING AND OPERATING 377 If the ignition key is cycled, this sequence will repeat, providing the system fault still exists. If the system fault no longer exists, the “Tire Pressure Monitoring Telltale Light” will no longer flash, and the CHECK TPM SYSTEM message will no longer display, and a pressure value will display in place of the dashes.
Page 379 378 STARTING AND OPERATING Vehicles with Full-Size Spare Vehicles with Compact Spare 1. The matching full size spare wheel and tire assembly 1. The compact spare tire does not have a tire pressure has a tire pressure monitoring sensor that can be moni- monitoring sensor.
Page 380: General Information
STARTING AND OPERATING 379 4. For each subsequent ignition key cycle, a chime will General Information sound, the “TPMS Telltale Light” will flash on and off for This device complies with Part 15 of the FCC rules and 75 seconds and then remain on solid, and the EVIC will RSS 210 of Industry Canada.
Page 381: Fuel Requirements
380 STARTING AND OPERATING FUEL REQUIREMENTS Over 40 auto manufacturers worldwide have issued and All engines are designed to meet all emis- endorsed consistent gasoline specifications (the World- sions regulations and provide excellent wide Fuel Charter, WWFC) which define fuel properties fuel economy and performance when us- necessary to deliver enhanced emissions, performance, ing high quality unleaded “regular”...
Page 382: Gasoline/Oxygenate Blends
STARTING AND OPERATING 381 Gasoline/Oxygenate Blends E-85 Usage In Non-Flex Fuel Vehicles Some fuel suppliers blend unleaded gasoline with oxy- Non-FFV vehicles are compatible with gasoline contain- genates such as Ethanol. Fuels blended with oxygenates ing 10% ethanol (E10). Gasoline with higher ethanol may be used in your vehicle.
Page 383: Mmt In Gasoline
382 STARTING AND OPERATING • disconnect and reconnect the battery to reset the Materials Added To Fuel engine controller memory All gasoline sold in the United States is required to contain effective detergent additives. Use of additional More extensive repairs will be required for prolonged detergents or other additives is not needed under normal exposure to E-85 fuel.
Page 384: Carbon Monoxide Warnings
STARTING AND OPERATING 383 Carbon Monoxide Warnings CAUTION! (Continued) • An out-of-tune engine, or certain fuel or ignition WARNING! malfunctions, can cause the catalytic converter to Carbon monoxide (CO) in exhaust gases is deadly. overheat. If you notice a pungent burning odor or Follow the precautions below to prevent carbon some light smoke, your engine may be out of tune monoxide poisoning.
Page 385: Adding Fuel
384 STARTING AND OPERATING WARNING! (Continued) • Guard against carbon monoxide with proper maintenance. Have the exhaust system inspected every time the vehicle is raised. Have any abnor- mal conditions repaired promptly. Until repaired, drive with all side windows fully open. •...
Page 386 STARTING AND OPERATING 385 CAUTION! WARNING! (Continued) • Never add fuel when the engine is running. This is • Damage to the fuel system or emission control in violation of most state and federal fire regula- system could result from using an improper fuel tions and may cause the MIL to turn on.
Page 387: Loose Fuel Filler Cap Message
386 STARTING AND OPERATING Loose Fuel Filler Cap Message This label contains the month and year of manufacture, If the vehicle diagnostic system determines that the fuel Gross Vehicle Weight Rating (GVWR), Gross Axle Weight filler cap is loose, improperly installed, or damaged, a Rating (GAWR) front and rear, and Vehicle Identification gASCAP”...
Page 388 STARTING AND OPERATING 387 Gross Axle Weight Rating (GAWR) Inflation Pressure The GAWR is the maximum permissible load on the front This is the cold tire inflation pressure for your vehicle for and rear axles. The load must be distributed in the cargo all loading conditions up to full GAWR.
Page 389: Trailer Towing
388 STARTING AND OPERATING properly distributed over front and rear axle. Weighing TRAILER TOWING the vehicle may show that the GAWR of either the front or In this section, you will find safety tips and information rear axles has been exceeded, but the total load is within on limits to the type of towing you can reasonably do the specified GVWR.
Page 390 STARTING AND OPERATING 389 exceed the GVWR. Refer to “Vehicle Loading/Vehicle Gross Combination Weight Rating (GCWR) Certification Label” in “Starting and Operating” for The GCWR is the total permissible weight of your vehicle further information. and trailer when weighed in combination. Gross Trailer Weight (GTW) NOTE: The GCWR rating includes a 150 lbs (68 kg) The GTW is the weight of the trailer plus the weight of all...
Page 391 390 STARTING AND OPERATING Tongue Weight (TW) of hitches are the most popular on the market today and The tongue weight is the downward force exerted on the they are commonly used to tow small- and medium- hitch ball by the trailer. In most cases, it should not be less sized trailers.
Page 392 STARTING AND OPERATING 391 WARNING! • An improperly adjusted Weight Distributing Hitch system may reduce handling, stability, brak- ing performance, and could result in a collision. • Weight Distributing Systems may not be compat- ible with Surge Brake Couplers. Consult with your hitch and trailer manufacturer or a reputable Rec- reational Vehicle dealer for additional information.
Page 393 392 STARTING AND OPERATING With Weight Distributing Hitch (Correct) Improper Adjustment of Weight-Distributing Hitch (Incorrect)
Page 394: Trailer Hitch Classification
STARTING AND OPERATING 393 Trailer Hitch Classification Trailer Hitch Classification Definitions Your vehicle is capable of towing trailers up to 2,000 lbs Class Max. Trailer Hitch Industry (907 kg) without added equipment or alterations to the Standards standard equipment. Your vehicle may be factory Class I - Light Duty 2,000 lbs (907 kg) equipped for safe towing of trailers weighing over...
Page 395: Trailer Towing Weights (Maximum Trailer Weight Ratings)
394 STARTING AND OPERATING Trailer Towing Weights (Maximum Trailer Weight Ratings) The following chart provides the maximum trailer weight ratings towable for your given drivetrain. Engine/ Model Frontal Area Max. GTW Max. Tongue Wt. Transmission (Gross Trailer Wt.) (See Note) 3.7L/Automatic 32 sq ft (2.97 sq m) 2,000 lbs (907 kg)
Page 396: Trailer And Tongue Weight
STARTING AND OPERATING 395 When Towing Trailers with Gross Trailer Weight (GTW) between 3,500 Lbs (1 588 kg) and 5,000 Lbs (2 268 kg) The following chart provides maximum trailer weight ratings towable for the following engine/transmission combinations, ONLY if using a weight distributing hitch. Engine/ Model Frontal Area...
Page 397 396 STARTING AND OPERATING which will cause loss of control of vehicle and trailer. Consider the following items when computing the Failure to load trailers heavier in front is the cause of weight on the rear axle of the vehicle: many trailer collisions.
Page 398: Towing Requirements
STARTING AND OPERATING 397 Towing Requirements WARNING! To promote proper break-in of your new vehicle drive- train components, the following guidelines are recom- Improper towing can lead to a collision. Follow these mended: guidelines to make your trailer towing as safe as possible: CAUTION! •...
Page 399 398 STARTING AND OPERATING WARNING! (Continued) WARNING! (Continued) • Safety chains must always be used between your 3. GAWR vehicle and trailer. Always connect the chains to 4. Tongue weight rating for the trailer hitch utilized the frame or hook retainers of the vehicle hitch. (This requirement may limit the ability to always Cross the chains under the trailer tongue and achieve the 10% to 15% range of tongue weight as a...
Page 400 STARTING AND OPERATING 399 − Check for signs of tire wear or visible tire damage − An electronically actuated trailer brake controller is before towing a trailer. Refer to “Tires – General required when towing a trailer with electronically Information” in “Starting and Operating” for informa- actuated brakes.
Page 401 400 STARTING AND OPERATING Towing Requirements – Trailer Lights and Wiring WARNING! Whenever you pull a trailer, regardless of the trailer size, • Do not connect trailer brakes to your vehicle’s stoplights and turn signals on the trailer are required for motoring safety.
Page 402 STARTING AND OPERATING 401 Four-Pin Connector Seven-Pin Connector 1 — Female Pins 4 — Park 1 — Battery 5 — Ground 2 — Male Pin 5 — Left Stop/Turn 2 — Backup Lamps 6 — Left Stop/Turn 3 — Ground 6 —...
Page 403: Towing Tips
402 STARTING AND OPERATING Towing Tips If you REGULARLY tow a trailer for more than 45 min- Before setting out on a trip, practice turning, stopping, utes of continuous operation, then change the automatic and backing the trailer in an area located away from transmission fluid and filter according to the interval heavy traffic.
Page 404 STARTING AND OPERATING 403 Electronic Speed Control – If Equipped Cooling System To reduce potential for engine and transmission over- − Do not use in hilly terrain or with heavy loads. heating, take the following actions: − When using the speed control, if you experience speed −...
Page 405: Recreational Towing (Behind Motorhome, Etc.)
404 STARTING AND OPERATING RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) Towing This Vehicle Behind Another Vehicle Towing Condition Wheel OFF the Two-Wheel Drive Four-Wheel Drive Models Ground Models See Instructions • Transmission in PARK Flat Tow NONE NOT ALLOWED • Transfer case in NEUTRAL (N) •...
Page 406: Recreational Towing - Two-Wheel Drive Models
STARTING AND OPERATING 405 Recreational Towing — Two-Wheel Drive Models 7. Disconnect the negative battery cable and secure it Recreational towing is allowed if the rear wheels are OFF away from the battery post. the ground. This may be accomplished using a tow dolly Flat towing (with all four wheels on the ground) is or vehicle trailer.
Page 407: Recreational Towing - Four-Wheel Drive Models
406 STARTING AND OPERATING and reinstallation procedures, including flange orienta- CAUTION! tion/alignment, use of thread-locking compound, proper • Front or rear wheel lifts should not be used. bolt torque specifications, etc. Internal damage to the transmission or transfer case will occur if a front or rear wheel lift is used CAUTION! when recreational towing.
Page 408 STARTING AND OPERATING 407 Shifting Into NEUTRAL (N) CAUTION! WARNING! It is necessary to follow these steps to be certain that the transfer case is fully in NEUTRAL (N) before You or others could be injured if you leave the recreational towing to prevent damage to internal vehicle unattended with the transfer case in the parts.
Page 409 408 STARTING AND OPERATING button (located above the selector switch) for four sec- 8. Start the engine. onds, until the light behind the N symbol starts to blink, 9. Shift the transmission into REVERSE. indicating shift in progress. The light will stop blinking (stay on solid) when the shift to N (Neutral) is complete.
Page 410 STARTING AND OPERATING 409 14. Attach the vehicle to the tow vehicle using a suitable lights to be operable. If the ignition switch is not in the tow bar. ON/RUN position, the shift will not take place and no position indicator lights will be on or flashing. 15.
Page 411 410 STARTING AND OPERATING 6. Press and hold the brake pedal. 9. After the N (Neutral) indicator light turns off, release the N (Neutral) button. 7. Shift the transmission into NEUTRAL. 10. After the N (Neutral) button has been released, the 8.
Page 412 STARTING AND OPERATING 411 • The ignition switch must be in the ON/RUN position 17. Shift the transmission into DRIVE, release the brake pedal, and check that the vehicle operates normally. for a shift to take place and for the position indicator lights to be operable.
Page 414: What To Do In Emergencies
WHAT TO DO IN EMERGENCIES CONTENTS Hazard Warning Flasher ....414 Jump-Starting Procedures ....421 ▫...
Page 415: Hazard Warning Flasher
414 WHAT TO DO IN EMERGENCIES HAZARD WARNING FLASHER IF YOUR ENGINE OVERHEATS The Hazard Warning flasher switch is located in the In any of the following situations, you can reduce the switch bank below the climate controls. potential for overheating your engine by taking the appropriate action.
Page 416: Jacking And Tire Changing
WHAT TO DO IN EMERGENCIES 415 NOTE: There are steps that you can take to slow down JACKING AND TIRE CHANGING an impending overheat condition: WARNING! • If your air conditioner (A/C) is on, turn it off. The A/C system adds heat to the engine cooling system and •...
Page 417: Jack Location
416 WHAT TO DO IN EMERGENCIES Jack Location Spare Tire Stowage The scissor-type jack and tire changing tools are located The spare tire is stowed underneath the rear of the in the cargo compartment behind a trim cover on the left vehicle and is held in place by a cable winch mechanism.
Page 418: Preparations For Jacking
WHAT TO DO IN EMERGENCIES 417 When the spare is clear, tilt the retainer at the end of the cable, and pull it through the center of the wheel. Preparations For Jacking 1. Park the vehicle on a firm level surface as far from the edge of the roadway as possible.
Page 419: Jacking Instructions
418 WHAT TO DO IN EMERGENCIES 5. Turn the ignition to the LOCK position. Jacking Instructions 6. Block both the front and rear of the WARNING! wheel diagonally opposite of the jack- ing position. For example, if changing Carefully follow these tire changing warnings to the right front tire, block the left rear help prevent personal injury or damage to your wheel.
Page 420 WHAT TO DO IN EMERGENCIES 419 WARNING! (Continued) • Set the parking brake firmly and set an automatic transmission in PARK; a manual transmission in REVERSE. • Never start or run the engine with the vehicle on a Jack Warning Label jack.
Page 421 420 WHAT TO DO IN EMERGENCIES 4. Locate the jack as shown. For the front tires, place it (rearward) of the notch on the body weld seam behind wheel to be changed. For the rear tires, place it under the axle by the wheel to be changed.
Page 422: Jump-Starting Procedures
WHAT TO DO IN EMERGENCIES 421 wheel nut tightness is 95 ft lb (130 N·m). If in doubt about WARNING! the correct tightness, have them checked with a torque wrench by your authorized dealer or at a service station. Raising the vehicle higher than necessary can make the vehicle less stable and cause a collision.
Page 423: Preparations For Jump-Start
422 WHAT TO DO IN EMERGENCIES NOTE: When using a portable battery booster pack NOTE: The positive battery post is covered with a follow the manufacturer’s operating instructions and protective cap. Lift up on the cap to gain access to the precautions.
Page 424 WHAT TO DO IN EMERGENCIES 423 1. Set the parking brake, shift the automatic transmission WARNING! into PARK and turn the ignition to LOCK. • Take care to avoid the radiator cooling fan when- 2. Turn off the heater, radio, and all unnecessary electri- ever the hood is raised.
Page 425: Jump-Starting Procedure
424 WHAT TO DO IN EMERGENCIES Jump-Starting Procedure 3. Connect the negative end (-) of the jumper cable to the negative (-) post of the booster battery. WARNING! 4. Connect the opposite end of the negative (-) jumper cable to a good engine ground (exposed metal part of the Failure to follow this procedure could result in per- discharged vehicle’s engine) away from the battery and sonal injury or property damage due to battery ex-...
Page 426: Towing A Disabled Vehicle
WHAT TO DO IN EMERGENCIES 425 Once the engine is started, remove the jumper cables in CAUTION! the reverse sequence: Accessories that can be plugged into the vehicle 6. Disconnect the negative (-) jumper cable from the power outlets draw power from the vehicle’s battery, engine ground of the vehicle with the discharged battery.
Page 427 426 WHAT TO DO IN EMERGENCIES Towing Condition Wheels OFF 2WD Models 4WD Models the Ground See instructions in “Recreational Tow- ing” under “Starting and Operating” If transmission is operable: • Trans in PARK • Trans in NEUTRAL Flat Tow NONE •...
Page 428: Towing Without The Ignition Key Fob
WHAT TO DO IN EMERGENCIES 427 If the vehicle’s battery is discharged, see “Brake/Trans- Towing Without the Ignition Key Fob mission Interlock Manual Override” under “Automatic Special care must be taken when the vehicle is towed Transmission” in the “Starting and Operating” section for with the ignition in the LOCK position.
Page 429 428 WHAT TO DO IN EMERGENCIES CAUTION! WARNING! Towing faster than 30 mph (48 km/h) or farther than If the driveshaft is removed, the vehicle can roll even 15 miles (24 km) with rear wheels on the ground can if the transmission is in PARK, which could cause cause severe damage to the transmission.
Page 430: Four-Wheel Drive Vehicles
WHAT TO DO IN EMERGENCIES 429 Four-Wheel Drive Vehicles CAUTION! The manufacturer recommends towing with all wheels • Front or rear wheel lifts should not be used. OFF the ground. Acceptable methods are to tow the vehicle on a flatbed or with one end of vehicle raised and Internal damage to the transmission or transfer the opposite end on a towing dolly.
Page 432: Maintaining Your Vehicle
MAINTAINING YOUR VEHICLE CONTENTS ▫ Engine Oil Filter ..... 440 Engine Compartment — 3.7L ... . . 433 ▫...
Page 433 432 MAINTAINING YOUR VEHICLE ▫ Cooling System ..... 448 Bulb Replacement ..... 473 ▫...
Page 434: Engine Compartment - 3.7L
MAINTAINING YOUR VEHICLE 433 ENGINE COMPARTMENT — 3.7L 1 — Air Cleaner Filter 6 — Washer Fluid Reservoir 2 — Engine Oil Dipstick 7 — Engine Coolant Reservoir 3 — Brake Fluid Reservoir 8 — Engine Oil Fill 4 — Integrated Power Module 9 —...
Page 435: Onboard Diagnostic System - Obd Ii
434 MAINTAINING YOUR VEHICLE ONBOARD DIAGNOSTIC SYSTEM — OBD II CAUTION! Your vehicle is equipped with a sophisticated onboard • Prolonged driving with the MIL on could cause diagnostic system called OBD II. This system monitors the performance of the emissions, engine, and automatic further damage to the emission control system.
Page 436: Emissions Inspection And Maintenance Programs
MAINTAINING YOUR VEHICLE 435 “Electronic Vehicle Information Center (EVIC)” in “Un- For states that require an Inspection and Mainte- derstanding Your Instrument Panel” for further informa- nance (I/M), this check verifies the “Malfunction tion. Tighten the gas cap until a clicking sound is heard. Indicator Light (MIL)”...
Page 437 436 MAINTAINING YOUR VEHICLE 2. If you crank or start the engine, you will have to start engine. This means that your vehicle’s OBD II system this test over. is ready and you can proceed to the I/M station. 3. As soon as you turn the ignition switch to the ON If your OBD II system is not ready, you should see your position, you will see the MIL symbol come on as part of authorized dealer or repair facility.
Page 438: Replacement Parts
MAINTAINING YOUR VEHICLE 437 REPLACEMENT PARTS WARNING! Use of genuine MOPAR parts for normal/scheduled maintenance and repairs is highly recommended to en- You can be badly injured working on or around a sure the designed performance. Damage or failures motor vehicle. Only do service work for which you caused by the use of non-MOPAR parts for maintenance have the knowledge and the proper equipment.
Page 439: Engine Oil
438 MAINTAINING YOUR VEHICLE Engine Oil CAUTION! • Failure to properly maintain your vehicle or per- Checking Oil Level To assure proper engine lubrication, the engine oil must form repairs and service when necessary could be maintained at the correct level. Check the oil level at result in more costly repairs, damage to other regular intervals, such as every fuel stop.
Page 440 MAINTAINING YOUR VEHICLE 439 American Petroleum Institute (API) Engine Oil CAUTION! Identification Symbol This symbol means that the oil has Overfilling or underfilling the crankcase will cause been certified by the American aeration or loss of oil pressure. This could damage Petroleum Institute (API).
Page 441: Engine Oil Filter
440 MAINTAINING YOUR VEHICLE starting and vehicle fuel economy. The engine oil filler Disposing of Used Engine Oil and Oil Filters cap also shows the recommended engine oil viscosity for Care should be taken in disposing of used engine oil and your engine.
Page 442: Engine Air Cleaner Filter
MAINTAINING YOUR VEHICLE 441 most efficient service. MOPAR engine oil filters are Engine Air Cleaner Filter Selection high-quality oil filters and are recommended. The quality of replacement engine air cleaner filters varies considerably. Only high quality filters should be used to Engine Air Cleaner Filter assure most efficient service.
Page 443 442 MAINTAINING YOUR VEHICLE WARNING! CAUTION! • Battery fluid is a corrosive acid solution and can • It is essential when replacing the cables on the burn or even blind you. Do not allow battery fluid battery that the positive cable is attached to the to contact your eyes, skin, or clothing.
Page 444: Air Conditioner Maintenance
MAINTAINING YOUR VEHICLE 443 Air Conditioner Maintenance WARNING! For best possible performance, your air conditioner • Use only refrigerants and compressor lubricants should be checked and serviced by an authorized dealer at the start of each warm season. This service should approved by the manufacturer for your air condi- include cleaning of the condenser fins and a performance tioning system.
Page 445: A/C Air Filter - If Equipped
444 MAINTAINING YOUR VEHICLE Protection Agency and is an ozone-saving product. How- tailgate, sliding doors and hood hinges, should be lubri- ever, the manufacturer recommends that air conditioning cated periodically with a lithium based grease, such as service be performed by an authorized dealer or other MOPAR Spray White Lube or equivalent, to assure service facilities using recovery and recycling equipment.
Page 446: Windshield Wiper Blades
MAINTAINING YOUR VEHICLE 445 Windshield Wiper Blades Adding Washer Fluid Clean the rubber edges of the wiper blades and the The windshield and rear window washers share the same windshield periodically with a sponge or soft cloth and a fluid reservoir. The fluid reservoir is located in the front mild non-abrasive cleaner or use the washer solvent.
Page 447: Exhaust System
446 MAINTAINING YOUR VEHICLE into the passenger compartment. In addition, inspect the WARNING! exhaust system each time the vehicle is raised for lubri- cation or oil change. Replace as required. Commercially available windshield washer solvents are flammable. They could ignite and burn you. Care WARNING! must be exercised when filling or working around the washer solution.
Page 448 MAINTAINING YOUR VEHICLE 447 Under normal operating conditions, the catalytic con- CAUTION! verter will not require maintenance. However, it is im- • The catalytic converter requires the use of un- portant to keep the engine properly tuned to assure proper catalyst operation and prevent possible catalyst leaded fuel only.
Page 449: Cooling System
448 MAINTAINING YOUR VEHICLE To minimize the possibility of catalytic converter dam- Cooling System age: WARNING! • Do not shut off the engine or interrupt the ignition, • You or others can be badly burned by hot coolant when the transmission is in gear and the vehicle is in motion.
Page 450 MAINTAINING YOUR VEHICLE 449 spraying water from a garden hose vertically down the Cooling System – Drain, Flush, and Refill face of the A/C condenser (if equipped) or the back of the If the engine coolant (antifreeze) is dirty or contains a radiator core.
Page 451 450 MAINTAINING YOUR VEHICLE Adding Engine Coolant CAUTION! Your vehicle has been built with an improved engine • Mixing of engine coolant (antifreeze) other than coolant (antifreeze) that allows extended maintenance intervals. This engine coolant (antifreeze) can be used up specified HOAT engine coolant (antifreeze), may to five years or 104,000 miles (169 000 km) before result in engine damage and may decrease corro-...
Page 452 MAINTAINING YOUR VEHICLE 451 • Mix a minimum solution of 50% HOAT engine coolant Cooling System Pressure Cap and distilled water. Use higher concentrations (not to The cap must be fully tightened to prevent loss of exceed 70%) if temperatures below 34°F ( 37°C) are coolant, and to ensure that coolant will return to the anticipated.
Page 453 452 MAINTAINING YOUR VEHICLE engine idling, and warm to normal operating tempera- WARNING! (Continued) ture, the level of the engine coolant (antifreeze) in the • Do not use a pressure cap other than the one bottle should be between the ranges indicated on the specified for your vehicle.
Page 454 MAINTAINING YOUR VEHICLE 453 • Maintain engine coolant (antifreeze) concentration at from the front of the engine compartment. This is nor- mally a result of moisture from rain, snow, or high 50% HOAT engine coolant (antifreeze) (minimum) humidity accumulating on the radiator and being vapor- and distilled water for proper corrosion protection of ized when the thermostat opens, allowing hot engine your engine, which contains aluminum components.
Page 455: Brake System
454 MAINTAINING YOUR VEHICLE Brake System Brake Master Cylinder In order to assure brake system performance, all brake The fluid in the master cylinder should be checked when system components should be inspected periodically. performing under hood services or immediately if the Refer to “Maintenance Schedule”...
Page 456: Automatic Transmission
MAINTAINING YOUR VEHICLE 455 WARNING! WARNING! (Continued) • Use only manufacturer’s recommended brake fluid. • Overfilling the brake fluid reservoir can result in Refer to “Fluids, Lubricants, and Genuine Parts” in spilling brake fluid on hot engine parts, causing “Maintaining Your Vehicle” for further informa- the brake fluid to catch fire.
Page 457: Transfer Case
456 MAINTAINING YOUR VEHICLE Special Additives CAUTION! The manufacturer strongly recommends against the ad- dition of any additives to the transmission. The only Using a transmission fluid other than the manufac- exception to this policy is the use of special dyes to aid in turer’s recommended fluid may cause deterioration detecting fluid leaks.
Page 458 MAINTAINING YOUR VEHICLE 457 Draining Fluid First remove the fill plug (1), then the drain plug (2). Recommended tightening torque for the drain and fill plugs is 15–25 ft lbs (20–34 N·m). CAUTION! Do not over-tighten the plugs. You could damage them and cause a leak.
Page 459: Front/Rear Axle Fluid
458 MAINTAINING YOUR VEHICLE the vehicle. Fluid changes are not necessary unless the Adding Fluid fluid becomes contaminated with water. Change the fluid Add lubricant only at the fill hole and only to the level immediately if contaminated with water. specified above.
Page 460 MAINTAINING YOUR VEHICLE 459 subject the top to excessive heat. Frequently vacuum the If hand washing: top and tracks. Periodically wipe dust and dirt from the • Wash in partial shade instead of direct sun. top and inside of the tracks by hand with an alcohol •...
Page 461 460 MAINTAINING YOUR VEHICLE • Multiple cleanings may be necessary to remove stub- repeat the cleaning procedure. When the stain is no born stains. If stains persist, contact your local autho- longer showing, rinse the complete top with warm water. rized dealership for further suggestions.
Page 462: Appearance Care And Protection From Corrosion
MAINTAINING YOUR VEHICLE 461 Appearance Care and Protection from Corrosion The most common causes are: • Road salt, dirt, and moisture accumulation. Protection of Body and Paint from Corrosion Vehicle body care requirements vary according to geo- • Stone and gravel impact. graphic locations and usage.
Page 463 462 MAINTAINING YOUR VEHICLE • Use a high quality cleaner wax, such as MOPAR Special Care Cleaner Wax or equivalent, to remove road film, stains, • If you drive on salted or dusty roads or if you drive and to protect your paint finish. Take care never to near the ocean, hose off the undercarriage at least once scratch the paint.
Page 464 MAINTAINING YOUR VEHICLE 463 • If you carry special cargo such as chemicals, fertilizers, Avoid automatic car washes that use acidic solutions or de-icer salt, etc., assure that such materials are well harsh brushes that may damage the wheels’ protective packaged and sealed.
Page 465 464 MAINTAINING YOUR VEHICLE • Do not use any harsh solvents or any other form of Cleaning Leather Upholstery protectants on Stain Repel products. MOPAR Total Clean or equivalent is specifically recom- mended for leather upholstery. Interior Care Your leather upholstery can be best preserved by regular Instrument Panel Cover cleaning with a damp soft cloth.
Page 466 MAINTAINING YOUR VEHICLE 465 Cleaning Headlights quarter window equipped with the radio antenna. Do Your vehicle has plastic headlights that are lighter and not use scrapers or other sharp instruments, which may less susceptible to stone breakage than glass headlights. scratch the elements.
Page 467: Fuses
466 MAINTAINING YOUR VEHICLE Seat Belt Maintenance Do not bleach, dye, or clean the seat belts with chemical solvents or abrasive cleaners. This will weaken the fabric. Sun damage can also weaken the fabric. If the seat belts need cleaning, use a mild soap solution or lukewarm water.
Page 468 MAINTAINING YOUR VEHICLE 467 Cavity Cartridge Mini- Description Cavity Cartridge Mini- Description Fuse Fuse Fuse Fuse 25 Amp — Driver Door Node 30 Amp — Thatchm Lock/ Natural Pink Unlock – If Equipped 25 Amp — Passenger Door Node 60 Amp —...
Page 469 468 MAINTAINING YOUR VEHICLE Cavity Cartridge Mini- Description Cavity Cartridge Mini- Description Fuse Fuse Fuse Fuse 20 Amp — Front Washer/Rear — 20 Amp Cigar Lighter Blue Washer – If Equipped Yellow 25 Amp — Sunroof Module – — 20 Amp Front Heated Seats –...
Page 470 MAINTAINING YOUR VEHICLE 469 Cavity Cartridge Mini- Description Cavity Cartridge Mini- Description Fuse Fuse Fuse Fuse — 30 Amp Radio/Amplifier – — 10 Amp Airbag Module Green If Equipped — 20 Amp Instrument Cluster/ — 15 Amp Exterior Lighting – Yellow Wireless Control Blue...
Page 471 470 MAINTAINING YOUR VEHICLE Cavity Cartridge Mini- Description Cavity Cartridge Mini- Description Fuse Fuse Fuse Fuse — 15 Amp Interior Lighting/ — 20 Amp Fuel Pump, Diesel Blue Steering Wheel Yellow Lift Pump – Switches – If Equipped If Equipped/Switch —...
Page 472 MAINTAINING YOUR VEHICLE 471 Cavity Cartridge Mini- Description Cavity Cartridge Mini- Description Fuse Fuse Fuse Fuse — 15 Amp Rear Wiper Module – — 10 Amp Park Assist Module – Blue If Equipped/Power If Equipped/Climate Folding Mirror – Control System Mod- If Equipped/ ule –...
Page 473: Replacement Bulbs
472 MAINTAINING YOUR VEHICLE Cavity Cartridge Mini- Description CAUTION! (Continued) Fuse Fuse • When replacing a blown fuse, it is important to — 10 Amp Antilock Brakes/ use only a fuse having the correct amperage rating. Stability Control The use of a fuse with a rating other than indicated System Module/Stop may result in a dangerous electrical system over- Light Switch/Fuel...
Page 474: Bulb Replacement
MAINTAINING YOUR VEHICLE 473 3. Firmly grasp the lock ring and rotate it counterclock- LIGHT BULBS – Exterior Bulb No. wise to unlock it. Headlamp ......9008 H13 Front Park/Turn Signal Lamp.
Page 475: Front Turn Signal And Front Side Marker Lamp
474 MAINTAINING YOUR VEHICLE Front Turn Signal and Front Side Marker Lamp Front Fog Lamp 1. Turn the steering wheel all the way to the right to 1. Open the hood. access the left front turn signal or side marker. Turn the 2.
Page 476: Rear Tail/Stop, Turn Signal, And Back-Up Lamp
MAINTAINING YOUR VEHICLE 475 5. Install the bulb and socket assembly into the into the 5. Remove the two screws that fasten the back plate to fog lamp housing, and rotate the connector clockwise to the taillamp housing. lock it in place. 6.
Page 477: Fluid Capacities
476 MAINTAINING YOUR VEHICLE FLUID CAPACITIES U.S. Metric Fuel (Approximate) 19.5 Gallons 73.8 Liters Engine Oil with Filter 3.7 Liter Engine (SAE 5W-20, API Certified) 5 Quarts 4.7 Liters Cooling System * 3.7 Liter Engine (MOPAR Antifreeze/Engine Coolant 5 14 Quarts 13.3 Liters Year/100,000 Mile Formula or equivalent) * Includes heater and coolant recovery bottle filled to MAX level.
Page 478: Fluids, Lubricants, And Genuine Parts
MAINTAINING YOUR VEHICLE 477 FLUIDS, LUBRICANTS, AND GENUINE PARTS Engine Component Fluid, Lubricant, or Genuine Part Engine Coolant MOPAR Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Organic Additive Technology) or equivalent. Engine Oil Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of Chrysler Material Standard MS-6395.
Page 479: Chassis
478 MAINTAINING YOUR VEHICLE Chassis Component Fluid, Lubricant, or Genuine Part Automatic Transmission MOPAR ATF+4 Automatic Transmission Fluid or equivalent licensed ATF+4 product. Transfer Case MOPAR ATF+4 Automatic Transmission Fluid or equivalent licensed ATF+4 product. Front Axle SAE 80W-90 Multi-Purpose Type, GL-5 Gear Lubricant or equivalent. Rear Axle SAE 75W-90 Gear Lubricant or equivalent.
Page 480 MAINTENANCE SCHEDULES CONTENTS Emissions Control System Maintenance ..480 Maintenance Schedule ....480 ▫ Required Maintenance Intervals ..482...
Page 481 480 MAINTENANCE SCHEDULES EMISSIONS CONTROL SYSTEM MAINTENANCE MAINTENANCE SCHEDULE The Scheduled Maintenance services listed in bold type The oil change indicator system will remind you that it is must be done at the times or mileages specified to ensure time to take your vehicle in for scheduled maintenance. the continued proper functioning of the emissions control On Electronic Vehicle Information Center (EVIC) system.
Page 482 MAINTENANCE SCHEDULES 481 NOTE: referring to the steps described under “Electronic Vehicle • The oil change indicator message will not monitor the Information Center (EVIC)/Oil Change Required” in time since the last oil change. Change your vehicles oil “Understanding Your Instrument Panel” or under “In- if it has been six months since your last oil change even strument Cluster Description/Odometer/Trip Odom- if the oil change indicator message is NOT illumi-...
Page 483 482 MAINTENANCE SCHEDULES Once a Month CAUTION! • Check tire pressure and look for unusual wear or • Failure to perform the required maintenance items damage. may result in damage to the vehicle. • Inspect the battery and clean and tighten the terminals •...
Page 484 MAINTENANCE SCHEDULES 483 8,000 Miles (13,000 km) or 16,000 Miles (26,000 km) or 12 Months Maintenance Service 6 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 485: Service Schedule
484 MAINTENANCE SCHEDULES 24,000 Miles (39,000 km) or 32,000 Miles (52,000 km) or 24 Months Maintenance Service 18 Months Maintenance Schedule ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 486 MAINTENANCE SCHEDULES 485 40,000 Miles (65,000 km) or 48,000 Miles (78,000 km) or 36 Months Maintenance Service 30 Months Maintenance Schedule ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 487 486 MAINTENANCE SCHEDULES 56,000 Miles (91,000 km) or 64,000 Miles (104,000 km) or 48 Months Maintenance Service 42 Months Maintenance Schedule ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 488 MAINTENANCE SCHEDULES 487 72,000 Miles (117,000 km) or 80,000 Miles (130,000 km) or 60 Months Maintenance Service 54 Months Maintenance Schedule ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 489 488 MAINTENANCE SCHEDULES 88,000 Miles (143,000 km) or 66 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 88,000 miles (143 000 km). Odometer Reading Date Repair Order #...
Page 490 MAINTENANCE SCHEDULES 489 96,000 Miles (156,000 km) or 72 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 96,000 miles (156 000 km). ❏...
Page 491 490 MAINTENANCE SCHEDULES 104,000 Miles (169,000 km) or 112,000 Miles (182,000 km) or 84 Months Maintenance Service 78 Months Maintenance Schedule ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 492 MAINTENANCE SCHEDULES 491 120,000 Miles (195,000 km) or 90 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 120,000 miles (195 000 km). ❏...
Page 493 492 MAINTENANCE SCHEDULES 128,000 Miles (208,000 km) or 96 Months Maintenance Service 136,000 Miles (221,000 km) or Schedule 102 Months Maintenance ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 494 MAINTENANCE SCHEDULES 493 144,000 Miles (234,000 km) or 108 Months Maintenance Service 152,000 Miles (247,000 km) or Schedule 114 Months Maintenance ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 495 494 MAINTENANCE SCHEDULES † This maintenance is recommended by the manufacturer to the owner, but is not required to maintain emissions warranty. WARNING! • You can be badly injured working on or around a motor vehicle. Do only service work for which you have the knowledge and the right equipment.
Page 496: If You Need Consumer Assistance
IF YOU NEED CONSUMER ASSISTANCE CONTENTS ▫ Customer Assistance For The Hearing Or Suggestions For Obtaining Service For Your Vehicle ......497 Speech Impaired (TDD/TTY) .
Page 497 496 IF YOU NEED CONSUMER ASSISTANCE ▫ Traction Grades ..... 503 Department Of Transportation Uniform Tire Quality Grades ......502 ▫...
Page 498: Suggestions For Obtaining Service For Your Vehicle
IF YOU NEED CONSUMER ASSISTANCE 497 SUGGESTIONS FOR OBTAINING SERVICE FOR the service advisor and list the items in order of priority. YOUR VEHICLE At many authorized dealers, you may obtain a rental vehicle at a minimal daily charge. If you need a rental, it Prepare For The Appointment is advisable to make these arrangements when you call If you’re having warranty work done, be sure to have the...
Page 499: Chrysler Group Llc Customer Center
498 IF YOU NEED CONSUMER ASSISTANCE This is why you should always talk to an authorized Chrysler Group LLC Customer Center dealer’s service manager first. Most matters can be re- P.O. Box 21–8004 solved with this process. Auburn Hills, MI 48321–8004 Phone: (877) 426–5337 •...
Page 500: Customer Assistance For The Hearing Or Speech Impaired (Tdd/Tty)
IF YOU NEED CONSUMER ASSISTANCE 499 Customer Assistance For The Hearing Or Speech the manufacturer’s service contracts. If you purchased a Impaired (TDD/TTY) manufacturer’s service contract, you will receive Plan To assist customers who have hearing difficulties, the Provisions and an Owner Identification Card in the mail manufacturer has installed special TDD (Telecommuni- within three weeks of the vehicle delivery date.
Page 501: Warranty Information
500 IF YOU NEED CONSUMER ASSISTANCE We appreciate that you have made a major investment WARRANTY INFORMATION when you purchased the vehicle. An authorized dealer See the Warranty Information Booklet, located on the has also made a major investment in facilities, tools, and DVD, for the terms and provisions of Chrysler Group training to assure that you are absolutely delighted with LLC warranties applicable to this vehicle and market.
Page 502: In Canada
IF YOU NEED CONSUMER ASSISTANCE 501 If NHTSA receives similar complaints, it may open an Canada, Motor Vehicle Defect Investigations and Recalls at investigation, and if it finds that a safety defect exists in 1-800-333-0510 or go to http://www.tc.gc.ca/roadsafety/ a group of vehicles, it may order a recall and remedy PUBLICATION ORDER FORMS campaign.
Page 503 502 IF YOU NEED CONSUMER ASSISTANCE vehicle, system, and/or components is written in acquaint you with specific Chrysler Group LLC ve- straightforward language with illustrations, diagrams, hicles. Included are starting, operating, emergency and charts. and maintenance procedures as well as specifications, capabilities and safety tips.
Page 504 IF YOU NEED CONSUMER ASSISTANCE 503 in each category is shown on the sidewall of the tires on Traction Grades your vehicle. The Traction grades, from highest to lowest, are AA, A, B, and C. These grades represent the tire’s ability to stop on All passenger car tires must conform to Federal safety wet pavement, as measured under controlled conditions requirements in addition to these grades.
Page 505 504 IF YOU NEED CONSUMER ASSISTANCE Temperature Grades WARNING! The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat The temperature grade for this tire is established for and its ability to dissipate heat, when tested under a tire that is properly inflated and not overloaded.
Page 506 INDEX...
Page 507 506 INDEX About Your Brakes ..... . . 333 Airbag, Window (Side Curtain) ....60 ABS (Anti-Lock Brake System) .
Page 508 INDEX 507 Automatic Door Locks ....30,31 Battery ....... 441 Automatic Headlights .
Page 509 508 INDEX Bulbs, Light ......88,472 Cellular Phone ......99,288 Certification Label .
Page 510 INDEX 509 Compact Disc (CD) Maintenance ... . . 288 Selection of Coolant (Antifreeze) ..449,476,477 Compact Spare Tire ..... . 363 Corrosion Protection .
Page 511 510 INDEX Disposal Brake Assist System ....339 Antifreeze (Engine Coolant) ....452 Electronic Roll Mitigation .
Page 512 INDEX 511 Coolant (Antifreeze) ....448,477 Enhanced Accident Response Feature ..71 Cooling ......448 Entry System, Illuminated .
Page 513 512 INDEX Flash-To-Pass ......159 Four Wheel Drive Flipper Glass, Liftgate ..... 38 Shifting .
Page 514 INDEX 513 Garage Door Opener (HomeLink ) ... 180 Hands-Free Phone (Uconnect™) ....99 Gas Cap (Fuel Filler Cap) ... . 384,386,434 Hazard Gas Gauge (Fuel Gauge) .
Page 515 514 INDEX Heated Mirrors ......98 Illuminated Entry ......19 Heated Seats .
Page 516 INDEX 515 Jump Starting ......421 Liftgate ....... . 38 Liftgate Flipper Glass .
Page 517 516 INDEX Fog ......158,217,474 Rear Servicing ......475 Four-Wheel Drive Indicator .
Page 518 INDEX 517 Automatic Door ......30 Manual Transmission Child Protection ......32 Lubricant Selection .
Page 519 518 INDEX Mopar Parts ......437,500 Dipstick ......438 MTBE/ETBE .
Page 520 INDEX 519 Paint Care ......461 Sunroof ......186 Paint Damage .
Page 521 520 INDEX Rear Window Defroster ....205 Replacement Bulbs ..... . . 472 Rear Window Features .
Page 522 INDEX 521 Safety, Exhaust Gas ..... . . 85 Seats ....... . . 135 Safety Information, Tire .
Page 523 522 INDEX Sentry Key Replacement ....16 Spark Plugs ......477 Service Assistance .
Page 524 INDEX 523 Steering Wheel Mounted Sound System Tie Down Hooks, Cargo ....201 Controls ......286 Tilt Steering Column .
Page 525 524 INDEX Pressure Monitor System (TPMS) ... 370 Recreational ......404 Pressure Warning Light .
Page 526 INDEX 525 Transmission ......312 Untwisting Procedure, Seat Belt ....47 Automatic .
Page 527 526 INDEX Warranty Information ..... 500 Windshield Defroster ....86,291,297 Washers, Windshield .
Page 528 Chrysler Group LLC 11KK74-126-AB Second Edition Printed in U.S.A.

Jeep 2011 Liberty Owner's Manual

Liberty

Things to Know before Starting Your Vehicle

Understanding the Features of Your Vehicle

Understanding Your Instrument Panel

Starting and Operating

Quick Links

Chapters

Related Manuals for Jeep 2011 Liberty

Summary of Contents for Jeep 2011 Liberty
