Summary of Contents for Jeep Liberty

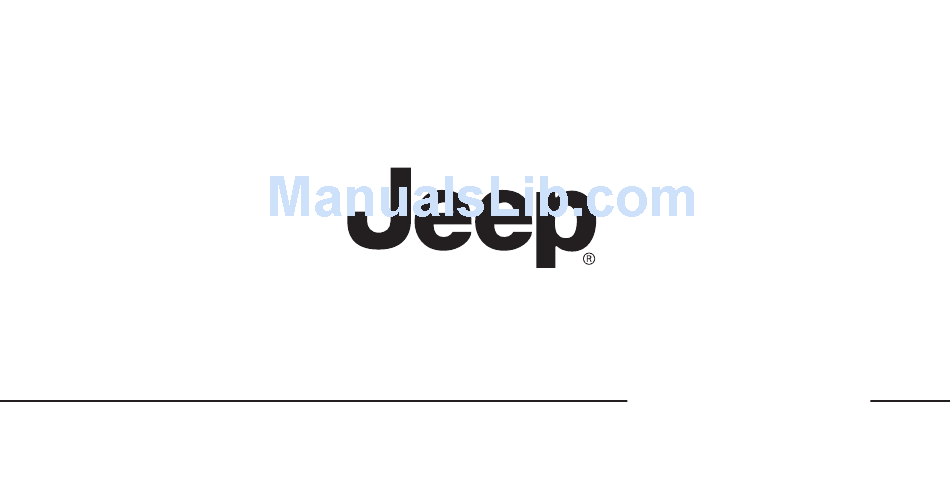

Page 1 Liberty 2 0 1 1 O W N E R ’ S M A N U A L...
Page 2 VEHICLES SOLD IN CANADA With respect to any Vehicles Sold in Canada, the name This manual illustrates and describes the operation of Chrysler Group LLC shall be deemed to be deleted and features and equipment that are either standard or op- the name Chrysler Canada Inc.
Page 3: Introduction
TABLE OF CONTENTS SECTION PAGE ............3 INTRODUCTION .
Page 5: Table Of Contents
INTRODUCTION CONTENTS Introduction ......4 Warnings And Cautions ....7 Rollover Warning .
Page 6: Introduction
4 INTRODUCTION INTRODUCTION When it comes to service, remember that your authorized Congratulations on selecting your new Chrysler Group dealer knows your vehicle best, has factory-trained tech- LLC vehicle. Be assured that it represents precision nicians and genuine MOPAR parts, and cares about workmanship, distinctive styling, and high quality - all your satisfaction.
Page 7: How To Use This Manual
INTRODUCTION 5 control. Failure to operate this vehicle safely may result seat belts could cut the highway death toll by 10,000 or in a collision, rollover of the vehicle, and severe or fatal more each year and could reduce disabling injuries by injury.
Page 8 6 INTRODUCTION...
Page 9: Warnings And Cautions
INTRODUCTION 7 WARNINGS AND CAUTIONS This Owner’s Manual contains WARNINGS against op- erating procedures that could result in a collision or bodily injury. It also contains CAUTIONS against proce- dures that could result in damage to your vehicle. If you do not read this entire manual, you may miss important information.
Page 10: Vehicle Modifications/Alterations
8 INTRODUCTION VEHICLE MODIFICATIONS/ALTERATIONS WARNING! Any modifications or alterations to this vehicle could seriously affect its roadworthiness and safety and may lead to a accident resulting in serious injury or death.
Page 11: Things To Know Before Starting Your Vehicle
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CONTENTS A Word About Your Keys ....12 To Arm The System ....18 Ignition Key Removal .
Page 12 10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Using The Panic Alarm ....24 Wind Buffeting ..... . . 39 Programming Additional Transmitters .
Page 13 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11 Energy Management Feature ... . . 58 Engine Break-In Recommendations ..87 Seat Belts And Pregnant Women ..58 Safety Tips .
Page 14: Things To Know Before Starting Your Vehicle 9
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A WORD ABOUT YOUR KEYS The authorized dealer that sold you your new vehicle has You can insert the double-sided keys into the locks with the key code numbers for your vehicle locks. These either side up.
Page 15 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13 NOTE: For vehicles not equipped with the Electronic Vehicle Information Center (EVIC), features such as the power window switches, radio, power sunroof or Sky Slider (if equipped), and power outlets will remain active for 45 seconds after the ignition switch is turned to the LOCK position.
Page 16: Key-In-Ignition Reminder
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Key-In-Ignition Reminder WARNING! If you open the driver’s door and the key is in the ignition, a chime will sound to remind you to remove the Never leave children alone in a vehicle. Leaving key.
Page 17 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15 The system uses ignition keys that have an embedded someone used an invalid key to try to start the engine. electronic chip (transponder) to prevent unauthorized Either of these conditions will result in the engine being vehicle operation.
Page 18: Replacement Keys
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Replacement Keys procedure. This procedure consists of programming a blank key to the vehicle electronics. A blank key is one NOTE: Only keys that are programmed to the vehicle that has never been programmed. electronics can be used to start and operate the vehicle.
Page 19: General Information
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17 3. Insert the second valid key into the ignition switch. Repeat this procedure to program up to eight keys. If you Turn the ignition switch to the ON/RUN position within do not have a programmed Sentry Key , contact your 15 seconds.
Page 20: Vehicle Security Alarm - If Equipped
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE VEHICLE SECURITY ALARM — IF EQUIPPED one should go off in the future, you will need to know The Vehicle Security Alarm monitors the vehicle doors, which mode has been activated in order to deactivate it. liftgate, and liftgate flipper glass for unauthorized entry Rearming Of The System and ignition for unauthorized operation.
Page 21: To Disarm The System
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19 3. Close all doors. The Vehicle Security Light in the When the Vehicle Security Alarm is armed, the interior instrument cluster will flash rapidly for about 16 seconds power door lock switches will not unlock the doors. to signal that the Vehicle Security Alarm is arming.
Page 22: Illuminated Entry
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ILLUMINATED ENTRY The Illuminated Entry system will not operate if the The courtesy lights will turn on when you use the dimmer control is in the “Dome defeat” position Remote Keyless Entry (RKE) transmitter to unlock the (extreme bottom position).
Page 23: To Unlock The Doors And Liftgate
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21 Remote Key Unlock, Driver Door/All Doors First This feature lets you program the system to unlock either the driver’s door or all doors and the liftgate on the first press of the UNLOCK button on the RKE transmitter. To change the current setting, proceed as follows: For vehicles equipped with the Electronic Vehicle Information Center (EVIC), refer to “Electronic Vehicle...
Page 24: To Lock The Doors And Liftgate
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 3. Test the feature from outside the vehicle by pressing To Lock The Doors And Liftgate the LOCK and UNLOCK buttons on the RKE transmitter. Press and release the LOCK button on the RKE transmit- ter to lock all doors and the liftgate.
Page 25 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23 For vehicles not equipped with the EVIC, perform the Flash Lights With Lock following steps: The feature will cause the turn signal lights to flash when the doors are locked or unlocked with the RKE transmit- 1.
Page 26: To Unlatch The Liftgate Flipper Glass
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 3. Test the feature from outside the vehicle by pressing Remote Open Window Feature — If Equipped the LOCK and UNLOCK buttons on the RKE transmitter. This feature allows you to remotely lower both front door windows at the same time.
Page 27: Programming Additional Transmitters
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25 To turn the PANIC Alarm feature ON or OFF, press and Programming Additional Transmitters hold the PANIC button on the RKE transmitter for at Refer to Sentry Key “Customer Key Programming.” least one second and release. When the PANIC Alarm is If you do not have a programmed RKE transmitter, on, the headlights and turn signal lights will flash, the contact your authorized dealer for details.
Page 28: General Information
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 2. With the RKE transmitter buttons facing down, use a 3. Remove and replace the battery. Avoid touching the flat blade tool to pry the two halves of the RKE transmit- new battery with your fingers. Skin oils may cause ter case apart.
Page 29: Remote Starting System - If Equipped
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27 NOTE: Changes or modifications not expressly ap- How To Use Remote Start proved by the party responsible for compliance could All of the following conditions must be met before the void the user’s authority to operate the equipment. engine will remote start: If your RKE transmitter fails to operate from a normal Shift lever in PARK.
Page 30 28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: WARNING! For security, power window operation and sunroof or Sky Slider operation (if equipped) is disabled when Do not start or run an engine in a closed garage or the vehicle is in the Remote Start mode. confined area.
Page 31: Door Locks
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29 To Exit Remote Start Mode And Drive The Vehicle Before the end of the 15-minute cycle, press and release the UNLOCK button on the RKE transmitter to unlock the doors and disarm the Vehicle Security Alarm (if equipped).
Page 32: Power Door Locks
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Power Door Locks WARNING! A power door lock switch is located on each of the front door trim panels. Use this switch to lock or unlock the For personal security and safety in the event of an doors and liftgate.
Page 33 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31 If you press the power door LOCK switch while the key 6. The doors were not previously locked using the power is in the ignition, and any front door is open, the power door lock switch or Remote Keyless Entry (RKE) locks will not operate.
Page 34 32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 2. Within 15 seconds, cycle the ignition switch between Automatic Unlock Doors On Exit LOCK and ON/RUN and then back to LOCK four times The doors will unlock automatically on vehicles with ending up in the LOCK position (do not start the engine).
Page 35: Child-Protection Door Lock System - Rear Doors
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33 Automatic Unlock Doors On Exit Programming 4. A single chime will indicate the completion of the The Automatic Unlock Doors On Exit feature can be programming. enabled or disabled as follows: Repeat these steps if you want to return this feature to its For vehicles equipped with the Electronic Vehicle previous setting.
Page 36 34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE opened by using the outside door handle even if the After disengaging the Child-Protection Door Lock inside door lock is in the unlocked position. system, always test the door from the inside to make certain it is in the desired position.
Page 37: Windows
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35 WINDOWS There are single window controls on each passenger door trim panel, which operate the passenger door windows. Power Windows The window controls will operate when the ignition The window controls on the driver’s door trim panel switch is in the ON/RUN or ACC position.
Page 38 36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE To open the window part way, press the window switch Auto Up Feature With Anti-Pinch Protection — to the first detent and release it when you want the If Equipped window to stop. On some models, the driver’s and front passenger’s (if equipped for passenger side) power window switches To stop the window from going all the way down during...
Page 39 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37 For vehicles equipped with the EVIC, the power window WARNING! switches will remain active for up to 10 minutes after the ignition switch is turned to the LOCK position. Opening There is no anti-pinch protection when the window either front door will cancel this feature.
Page 40 38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Window Lockout Button The window lockout button on the driver’s door trim panel allows you to disable the window control on the other doors. To disable the window control on the other doors, press and release the window LOCKOUT button (setting it in the down position).
Page 41: Wind Buffeting
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39 Wind Buffeting Wind buffeting can be described as the perception of pressure on the ears or a helicopter-type sound in the ears. Your vehicle may exhibit wind buffeting with the windows down, or the sunroof or Sky Slider™ (if equipped) in certain open or partially open positions.
Page 42: Liftgate Flipper Glass
40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! Driving with the liftgate open can allow poisonous exhaust gases into your vehicle. You and your pas- sengers could be injured by these fumes. Keep the liftgate closed when you are operating the vehicle. Liftgate Flipper Glass The liftgate flipper glass is also unlocked when the liftgate is unlocked.
Page 43: Occupant Restraints
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41 OCCUPANT RESTRAINTS WARNING! Some of the most important safety features in your vehicle are the restraint systems: To avoid injury, stand back when opening. Glass may automatically rise. Three-point lap and shoulder belts for all seating positions NOTE: If a malfunction to the liftgate latch should Advanced Front Air Bags for driver and front passen-...
Page 44 42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Front seat belts incorporate pretensioners that may NOTE: The Advanced Front Air Bags have a multistage enhance occupant protection by managing occupant inflator design. This allows the air bag to have different energy during an impact event rates of inflation based on the severity and type of collision.
Page 45 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43 secured in the rear seat in child restraints or belt- 4. Do not lean against the door or window. If your positioning booster seats. Older children who do not use vehicle has side air bags, and deployment occurs, the child restraints or belt-positioning booster seats should side air bags will inflate forcefully into the space ride properly buckled up in the rear seat.
Page 46: Lap/Shoulder Belts
44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Buckle up even though you are an excellent driver, even WARNING! (Continued) on short trips. Someone on the road may be a poor driver Being too close to the steering wheel or instrument and cause an accident that includes you.
Page 47 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45 WARNING! WARNING! (Continued) Wearing your belt in the wrong place could make It is dangerous to ride in a cargo area, inside or your injuries in an accident much worse. You outside of a vehicle. In an accident, people riding might suffer internal injuries, or you could even in these areas are more likely to be seriously slide out of part of the belt.
Page 48 46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE seat belt latch plates are located on the C-Pillar for the 3. When the belt is long enough to fit, insert the latch outboard rear seating positions and next to your arm in plate into the buckle until you hear a “click.”...
Page 49 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47 WARNING! WARNING! (Continued) A belt that is worn under your arm is dangerous. A belt that is buckled into the wrong buckle will Your body could strike the inside surfaces of the not protect you properly.
Page 50 48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE tight, tilt the latch plate and pull on the lap belt. A snug belt reduces the risk of sliding under the belt in an accident. WARNING! A lap belt worn too high can increase the risk of injury in an accident.
Page 51 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49 the shoulder belt anchorage to be adjusted in the upward WARNING! position without pressing the release button. To verify the shoulder belt anchorage is latched, pull downward A frayed or torn belt could rip apart in an accident on the shoulder belt anchorage until it is locked into and leave you with no protection.
Page 52: Lap/Shoulder Belt Untwisting Procedure
50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE As a guide, if you are shorter than average, you will Seat Belt Pretensioner prefer a lower position, and if you are taller than average, The belt for driver seating position is equipped with a you will prefer a higher position.
Page 53: Seat Belt Lock Out
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51 Seat Belt Lock Out ALR — Automatic Locking Retractor The center rear seat belt system has a lock out feature that If the passenger seating position is equipped with an will not allow you to extract the center webbing unless ALR and is being used for normal usage: the rear seat upper latch is engaged.
Page 54: Supplemental Active Head Restraints (Ahr)
52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE anytime a child safety seat is installed in a seating WARNING! position that has a belt with this feature. Children 12 years old and under should always be properly The belt and retractor assembly must be replaced restrained in the rear seat.
Page 55 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53 How The Active Head Restraints (AHR) Work The Occupant Restraint Controller (ORC) determines whether the severity, or type of rear impact will require the Active Head Restraints (AHR) to deploy. If a rear impact requires deployment, both the driver and front passenger seat AHRs will be deployed.
Page 56 54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 1. Grasp the deployed AHR from the rear seat. CAUTION! All occupants, including the driver, should not oper- ate a vehicle or sit in a vehicle’s seat until the head restraints are placed in their proper positions in order to minimize the risk of neck injury in the event of an accident.
Page 57 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55 1 — Downward Movement 3 — Final Downward Movement To Engage Locking Mechanism 2 — Rearward Movement...
Page 58: Enhanced Seat Belt Use Reminder System (Beltalert )
56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 4. The AHR front soft foam and trim half should lock For safety reasons, have the Active Head Restraints into the back decorative plastic half. checked by a qualified specialist at an authorized dealer.
Page 59 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57 BeltAlert will chime as a single notification and illumi- 1. Turn the ignition switch to the OFF position, and nate the Seat Belt Reminder Light, then will proceed to buckle the driver’s seat belt. the 96 second reminder sequence.
Page 60: Energy Management Feature
58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Energy Management Feature Seat Belts And Pregnant Women This vehicle has a safety belt system with an energy We recommend that pregnant women use the seat belts management feature in the front seating positions to help throughout their pregnancy.
Page 61: Supplemental Restraint System (Srs) - Air Bags
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59 WARNING! Using a seat belt extender when not needed can increase the risk of injury in an accident. Only use when the lap belt is not long enough when it is worn low and snug, and in the recommended seating positions.
Page 62 60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE This vehicle may be equipped with driver and/or front passenger seat track position sensors that may adjust the inflation rate of the Advanced Front Air Bags based upon seat position. This vehicle may be equipped with a driver and/or front passenger seat belt buckle switch that detects whether the driver or front passenger seat belt is fastened.
Page 63 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61 Air Bag System Components Supplemental Active Head Restraint for Driver and Your vehicle may be equipped with the following air bag Front Passenger system components: Occupant Classification System (OCS) Occupant Restraint Controller (ORC) Occupant Classification Module (OCM) Air Bag Warning Light Passenger Air Bag Disable (PAD) Indicator Light...
Page 64 62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: The passenger Advanced Front Air Bag may not WARNING! (Continued) deploy, even when the driver Advanced Front Air Bag Do not put anything on or around the air bag has, if the Occupant Classification System (refer to Oc- covers or attempt to manually open them.
Page 65 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 63 NOTE: WARNING! (Continued) Should a vehicle rollover occur, the pretensioners Do not have any accessory items installed which and/or SABIC air bags on both sides of the vehicle will alter the roof, including adding a sunroof to may deploy.
Page 66: Air Bag Deployment Sensors And Controls
64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Do not use accessory seat covers or place objects Along with seat belts and pretensioners, Advanced Front between you and the side air bags; the performance Air Bags work with the knee bolsters to provide im- could be adversely affected and/or objects could be proved protection for the driver and front passenger.
Page 67 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 65 Advanced Front Air Bags are designed to provide addi- Because air bag sensors measure vehicle deceleration tional protection by supplementing the seat belts in over time, vehicle speed and damage by themselves are certain frontal collisions depending on the severity and not good indicators of whether or not an air bag should type of collision.
Page 68 66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Also, the ORC turns on the “Air Bag Warning WARNING! Light” for four to eight seconds for a self-check when the ignition is first turned to ON/RUN. Ignoring the Air Bag Warning Light in your instru- After the self-check, the “Air Bag Warning ment panel could mean you won’t have the air bags Light”...
Page 69 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67 Occupant Classification Module (OCM) “PASS AIR BAG OFF” to show that the passenger The OCM is located beneath the front passenger seat. The Advanced Front Air Bag will not inflate during a collision OCM classifies the occupant into categories based on the requiring air bag deployment.
Page 70 68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The PAD indicator light should not be illuminated when Passenger Air Bag Disable (PAD) System an adult passenger is properly seated in the front passen- Front Passenger Indicator Light Air Bag Status ger seat.
Page 71 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69 Drivers and adult passengers should verify that the PAD If there is a fault present in the air bag system, the Air Bag Indicator Light is not illuminated when an adult is riding Warning Light (a red light located in the center of the in the front passenger seat.
Page 72 70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Driver And Passenger Advanced Front Air Bag The Advanced Front Air Bag gas is vented through the Inflator Units vent holes in the sides of the air bag. In this way, the air The Driver And Passenger Advanced Front Air Bag bags do not interfere with your control of the vehicle.
Page 73 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71 and damage by themselves are not good indicators of WARNING! whether or not an air bag should have deployed. If your vehicle is equipped with left and right A quantity of non-toxic gas is generated to inflate the side Supplemental Side Air Bag Inflatable Curtains curtain air bag.
Page 74 72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The following requirements must be strictly adhered to: WARNING! Do not modify the front passenger seat assembly or Unapproved modifications or service procedures to components in any way. the front passenger seat assembly, its related compo- Do not use prior or future model year seat covers not nents or seat cover may inadvertently change the air designated for the specific model being repaired.
Page 75 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73 Enhanced Accident Response System NOTE: Front and/or side air bags will not deploy in all In the event of an impact causing air bag deployment, if collisions. This does not mean something is wrong with the communication network remains intact, and the the air bag system.
Page 76 74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE bag inflation. These airborne particles may irritate the Maintaining Your Air Bag System skin, eyes, nose, or throat. If you have skin or eye WARNING! irritation, rinse the area with cool water. For nose or throat irritation, move to fresh air.
Page 77 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 75 Air Bag Warning Light WARNING! (Continued) You will want to have the air bags ready to Do not attempt to modify any part of your air bag inflate for your protection in a collision. The system.
Page 78: Event Data Recorder (Edr)
76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: If the speedometer, tachometer, or any engine Whether or not the driver and passenger safety belts related gauges are not working, the Occupant Restraint were buckled/fastened; Controller (ORC) may also be disabled. The air bags may How far (if at all) the driver was depressing the not be ready to inflate for your protection.
Page 79: Child Restraints
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 77 In addition to the vehicle manufacturer, other parties, WARNING! such as law enforcement, that have the special equip- ment, can read the information if they have access to the In a collision, an unrestrained child, even a tiny baby, vehicle or the EDR.
Page 80 78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Infants And Child Restraints WARNING! Safety experts recommend that children ride Rearward-facing child seats must never be used in rearward-facing in the vehicle until they are at least the front seat of a vehicle with the front passenger air one year old and weigh at least 20 lbs (9 kg).
Page 81 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 79 The belt-positioning booster seat is for children weighing Check belt fit periodically. A child’s squirming or more than 40 lbs (18 kg), but who are still too small to fit slouching can move the belt out of position. the vehicle’s seat belts properly.
Page 82 80 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Here are some tips on getting the most out of your child WARNING! restraint: Improper installation can lead to failure of an Before buying any restraint system, make sure that it infant or child restraint. It could come loose in a has a label certifying that it meets all applicable Safety collision.
Page 83 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 81 have features for installation using the vehicle’s seat WARNING! belts. Child restraints having tether straps and hooks for connection to the top tether anchorages have been avail- When your child restraint is not in use, secure it in able for some time.
Page 84 82 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If you are installing LATCH-compatible child restraints The rear seat lower anchorages are round bars, located at in adjacent rear seating positions, you can use the the rear of the seat cushion where it meets the seatback, LATCH anchors or the vehicle’s seat belt for the outboard and are just visible when you lean into the rear seat to position, but you must use the vehicle’s seat belt at the...
Page 85 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 83 In addition, there are tether strap anchorages behind each means of adjusting the tension in the strap. Forward- rear seating position located on the back of the seat. facing toddler restraints and some rear-facing infant restraints will also be equipped with a tether strap, a hook for attachment to the tether strap anchorage and a means of adjusting the tension of the strap.
Page 86 84 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE downward into the seat, removing slack in the straps will make a ratcheting noise if you extract the entire belt according to the child restraint manufacturer’s instruc- from the retractor and then allow the belt to retract into tions.
Page 87 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 85 through the belt path of the child restraint. Slide the latch 2. Finally, pull on any excess webbing to tighten the lap plate into the buckle until you hear a “click.” Next, portion around the child restraint.
Page 88 86 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Route the tether strap to provide the most direct path WARNING! for the strap between the anchor and the child seat, preferably between the head restraint posts under- An incorrectly anchored tether strap could lead to neath the head restraint.
Page 89: Engine Break-In Recommendations
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 87 ENGINE BREAK-IN RECOMMENDATIONS A new engine may consume some oil during its first few A long break-in period is not required for the engine and thousand miles (kilometers) of operation. This should be drivetrain (transmission and axle) in your vehicle.
Page 90: Exhaust Gas
88 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Exhaust Gas WARNING! (Continued) It is extremely dangerous to ride in a cargo area, WARNING! inside or outside of a vehicle. In a collision, people Exhaust gases can injure or kill. They contain carbon riding in these areas are more likely to be seri- monoxide (CO), which is colorless and odorless.
Page 91: Safety Checks You Should Make Inside The Vehicle
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 89 If you are required to drive with the trunk/liftgate open, Safety Checks You Should Make Inside The make sure that all windows are closed and the climate Vehicle control BLOWER switch is set at high speed. DO NOT Seat Belts use the recirculation mode.
Page 92 90 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Defroster WARNING! (Continued) Check operation by selecting the defrost mode and place Always make sure that floor mats are properly the blower control on high speed. You should be able to attached to the floor mat fasteners. feel the air directed against the windshield.
Page 93: Periodic Safety Checks You Should Make Outside The Vehicle
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 91 lodged in the tread or sidewall. Inspect the tread for cuts WARNING! (Continued) and cracks. Inspect sidewalls for cuts, cracks and bulges. Always make sure that objects cannot fall into the Check the wheel nuts for tightness. Check the tires driver footwell while the vehicle is moving.
Page 95: Understanding The Features Of Your Vehicle
UNDERSTANDING THE FEATURES OF YOUR VEHICLE CONTENTS Mirrors ......99 Uconnect™ Phone — If Equipped ..103 Inside Day/Night Mirror .
Page 96 94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Voice Command — If Equipped ... 133 60/40 Split Folding Rear Seat With Fold-Flat Feature ......149 Voice Command System Operation .
Page 97 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95 Headlights With Wipers (Available With Windshield Wipers And Washers ..164 Automatic Headlights Only) ... . 160 Windshield Wiper Operation .
Page 98 96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To Resume Speed ....173 Garage Door Opener — If Equipped ..183 To Vary The Speed Setting .
Page 99 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97 Closing Sunroof — Manual Mode ..191 Opening The Sky Slider™ ....196 Pinch Protect Feature .
Page 100 98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Cargo Area Features ....204 Rear Window Features ....210 Cargo Load Floor .
Page 101: Mirrors
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99 MIRRORS Inside Day/Night Mirror A two-point pivot system allows for horizontal and vertical mirror adjustment. Adjust the mirror to center on the view through the rear window. Headlight glare can be reduced by moving the small control under the mirror to the night position (toward the rear of vehicle).
Page 102: Automatic Dimming Mirror - If Equipped
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Automatic Dimming Mirror — If Equipped This mirror automatically adjusts for headlight glare from vehicles behind you. You can turn the feature on or off by pressing the button at the base of the mirror. A light to the left of the button will illuminate to indicate when the dimming feature is activated.
Page 103: Outside Mirrors
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101 Outside Mirrors Power Mirrors To receive maximum benefit, adjust the outside mirror(s) The power mirror switch is located on the driver’s door to center on the adjacent lane of traffic and a slight trim panel.
Page 104: Heated Mirrors - If Equipped
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Models With Express Window Feature Heated Mirrors — If Equipped Press and release the mirror select button marked L (left) These mirrors are heated to melt frost or ice. This or R (right) and then press one of the four arrow buttons feature is activated whenever you turn on the rear to move the mirror in the direction the arrow is pointing.
Page 105: Sun Visor "Slide-On-Rod" Feature - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103 2. Unclip the visor from the center clip. 3. Pull the sun visor toward the inside rearview mirror to extend it. Uconnect™ Phone — IF EQUIPPED Uconnect™ Phone is a voice-activated, hands-free, in- vehicle communications system.
Page 106 Only one linked (or paired) mobile phone can be used with the system at a time. The system is available in www.jeep.com/uconnect English, Spanish, or French languages. or call 1–877–855–8400 WARNING! Uconnect™...
Page 107: Operation
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105 Uconnect™ Phone Button The Uconnect™ Phone is fully integrated with the vehi- The radio or steering wheel controls (if cle’s audio system. The volume of the Uconnect™ Phone equipped) will contain the two control buttons can be adjusted either from the radio volume control (Uconnect™...
Page 108 106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE For certain operations, compound commands can be Help Command used. For example, instead of saying “Setup” and then If you need assistance at any prompt, or if you want to “Pair a Device”, the following compound command know your options at any prompt, say “Help”...
Page 109 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107 To complete the pairing process, you will need to refer- For identification purposes, you will be prompted to ence your mobile phone Owner’s Manual. The give the Uconnect™ Phone a name for your mobile Uconnect™...
Page 110 108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Dial By Saying A Number The system will prompt you to say the name of the person you want to call. Press the button to begin. After the “Ready” prompt and the following beep, say After the “Ready”...
Page 111 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109 After the “Ready” prompt and the following beep, say The Uconnect™ Phone will allow you to enter up to 32 “Phonebook New Entry”. names in the phonebook with each name having up to four associated phone numbers and designations.
Page 112 110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Automatic download and update, if supported, begins This downloaded phonebook cannot be edited or as soon as the Bluetooth wireless phone connection is deleted on the Uconnect™ Phone. These can only be made to the Uconnect™ Phone, for example, after you edited on the mobile phone.
Page 113 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111 Next, choose the number designation (home, work, Press the button to begin. mobile, or other) that you wish to edit. After the “Ready” prompt and the following beep, say When prompted, recite the new phone number for the “Phonebook Delete”.
Page 114 112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Note that only the phonebook entry in the current Automatic downloaded phonebook entries cannot be language is deleted. deleted or edited. Automatic downloaded phonebook entries cannot be List All Names In The Uconnect™ Phonebook deleted or edited.
Page 115: Phone Call Features
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113 The selected number will be dialed. Answer Or Reject An Incoming Call — Call Currently In Progress Phone Call Features If a call is currently in progress and you have another The following features can be accessed through the incoming call, you will hear the same network tones for Uconnect™...
Page 116 114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE in progress. To go back to the first call, refer to “Toggling Conference Call Between Calls” in this section. To combine two calls, refer When two calls are in progress (one active and one on to “Conference Call”...
Page 117 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115 Call Termination Call Continuation To end a call in progress, momentarily press the Call continuation is the progression of a phone call on the Uconnect™ Phone after the vehicle ignition key has been button.
Page 118: Uconnect™ Phone Features
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Uconnect™ Phone Features Emergency Assistance If you are in an emergency and the mobile phone is Language Selection reachable: To change the language that the Uconnect™ Phone is using: Pick up the phone and manually dial the emergency number for your area.
Page 119 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117 Canada and 060 for Mexico). The number dialed may Towing Assistance not be applicable with the available mobile service and If you need towing assistance: area. Press the button to begin. If supported, this number may be programmable on After the “Ready”...
Page 120 118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Paging When calling a number with your Uconnect™ Phone that To learn how to page, refer to “Working with Automated normally requires you to enter in a touch-tone sequence Systems”. Paging works properly except for pagers of on your mobile phone keypad, you can press the certain companies, which time out a little too soon to button and say the sequence you wish to enter, followed...
Page 121 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119 The Uconnect™ Phone will then send the corresponding Turning Confirmation Prompts ON/OFF phone number associated with the phonebook entry, as Turning confirmation prompts off will stop the system tones over the phone. from confirming your choices (e.g., the Uconnect™ Phone will not repeat a phone number before you dial it).
Page 122: Advanced Phone Connectivity
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Dialing Using The Mobile Phone Keypad Mute/Un-Mute (Mute OFF) You can dial a phone number with your mobile phone When you mute the Uconnect™ Phone, you will still be keypad and still use the Uconnect™ Phone (while dialing able to hear the conversation coming from the other via the mobile phone keypad, the user must exercise party, but the other party will not be able to hear you.
Page 123 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121 from your Uconnect™ Phone paired mobile phone to the When prompted, say “List Phones”. Uconnect™ Phone or vice versa, press the button The Uconnect™ Phone will play the phone names of and say “Transfer Call”. all paired mobile phones in order from the highest to the lowest priority.
Page 124: Things You Should Know About Your Uconnect™ Phone
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE The selected phone will be used for the next phone Things You Should Know About Your Uconnect™ call. If the selected phone is not available, the Phone Uconnect™ Phone will return to using the highest Uconnect™...
Page 125 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123 You can either press the Uconnect™ Phone button to Voice Command restore the factory setting or repeat the words and For best performance, adjust the rearview mirror to phrases when prompted by the Uconnect™ Phone. For provide at least ⁄...
Page 126 124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE fully closed windows, Numbers must be spoken in single digits. “800” must be spoken “eight-zero-zero” not “eight hundred”. dry weather condition. You can say “O” (letter “O”) for “0” (zero). Even though the system is designed for users speaking in North American English, French, and Spanish ac- Even though international dialing for most number cents, the system may not always work for some.
Page 127 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125 fully closed windows, Uconnect™ Phone can read or send new messages on dry weather conditions, and your phone. operation from the driver’s seat. Read Messages: Performance, such as audio clarity, echo, and loudness If you receive a new text message while your phone is to a large degree rely on the phone and network, and connected to Uconnect™...
Page 128 126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Send Messages: 3. Where are you? You can send messages using Uconnect™ Phone. To send 4. I need more direction. a new message: 5. L O L Press the button. 6. Why After the “Ready” prompt and the following beep, say 7.
Page 129 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127 16. Can this wait? Bluetooth Communication Link Mobile phones have been found to lose connection to the 17. Bye for now Uconnect™ Phone. When this happens, the connection 18. When can we meet can generally be reestablished by switching the phone off/on.
Page 130 128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE...
Page 131 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129...
Page 132 130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE...
Page 133 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131 Voice Commands Voice Commands Primary Alternate(s) Primary Alternate(s) zero call cancel confirmation prompts three continue four delete five dial download seven edit eight emergency nine English star (*) erase all plus (+) Espanol pound (#) Francais add location...
Page 134 132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Voice Commands Voice Commands Primary Alternate(s) Primary Alternate(s) language return to main menu return or main menu list names select phone select list phones send mobile set up phone settings or phone set up mute towing assistance mute off...
Page 135: General Information
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133 General Information NOTE: Take care to speak into the Voice Interface This device complies with Part 15 of the FCC rules and System as calmly and normally as possible. The ability of RSS 210 of Industry Canada. Operation is subject to the the Voice Interface System to recognize user voice com- following conditions: mands may be negatively affected by rapid speaking or a...
Page 136: Commands
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE If you ever wish to interrupt the system while it lists The system will best recognize your speech if the win- options, press the Voice Command button, listen dows are closed, and the heater/air conditioning fan is set to low.
Page 137 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135 2. Say a command (e.g., “Help”). Radio AM To switch to the AM band, say “AM” or “Radio AM”. In 3. Use the ON/OFF VOLUME rotary knob to adjust the this mode, you may say the following commands: volume to a comfortable level while the Voice Command system is speaking.
Page 138 136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE “Menu Radio” (to switch to the radio menu) Disc To switch to the disc mode, say “Disc”. In this mode, you “Main Menu” (to switch to the main menu) may say the following commands: Satellite Radio “Track”...
Page 139 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137 − “Continue” (to continue recording) “Switch to system setup” − “Delete” (to delete the recording) “Change to setup” “Play Memos” (to play previously recorded memos) “Main menu setup” or — During the playback you may press the Voice “Switch to setup”...
Page 140: Voice Training
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Voice Training SEATS For users experiencing difficulty with the system recog- Seats are a part of the Occupant Restraint System of the nizing their voice commands or numbers the Uconnect™ vehicle. Voice “Voice Training” feature may be used. WARNING! 1.
Page 141: Driver's Power Seat - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139 Driver’s Power Seat — If Equipped Adjusting The Seat Forward Or Rearward The power seat switch is located on the outboard side of The seat can be adjusted both forward and rearward. the seat near the floor. Use this switch to move the seat up Push the seat switch forward or rearward, the seat will or down, forward or rearward or to tilt the seat.
Page 142: Heated Seats - If Equipped
140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Passenger Power Seat — If Equipped CAUTION! Vehicle’s equipped with passenger power seats can only be adjusted forward and backward. Do not place any article under a power seat or impede its ability to move as it may cause damage to WARNING! the seat controls.
Page 143 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141 You can choose from HIGH, LOW or OFF heat settings. NOTE: When a heat setting is selected, heat will be felt Amber indicator lights in each switch indicate the level of within two to five minutes. heat in use.
Page 144: Manual Front Seat Adjustments
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Manual Front Seat Adjustments While sitting in the seat, lift up on the bar and move the For models equipped with manual seats, the driver and seat forward or rearward. Release the bar once you have passenger seats can be adjusted forward or rearward by reached the desired position.
Page 145: Front Seat - Manual Recline
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143 Front Seat — Manual Recline WARNING! To recline the seatback, lean forward slightly and lift the lever. Then lean back to the position desired and release Do not ride with the seatback reclined so that the the lever.
Page 146: Manual Lumbar Support - If Equipped
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Manual Lumbar Support — If Equipped Fold-Flat Front Passenger Seat — If Equipped For models equipped with manual lumbar the support This feature allows the front passenger seatback to fold lever is located on the inboard side of the seat. Turn the flat for extended cargo space.
Page 147: Head Restraints
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145 Head Restraints Active Head Restraints — Front Seats Head restraints are designed to reduce the risk of injury Active Head Restraints are passive, deployable compo- by restricting head movement in the event of a rear nents, and vehicles with this equipment cannot be readily impact.
Page 148 146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To raise the head restraint, pull upward on the head For comfort the Active Head Restraints can be tilted restraint. To lower the head restraint, press the adjust- forward and backward. To tilt the head restraint closer to ment button, located at the base of the head restraint, and the back of your head, pull forward on the bottom of the push downward on the head restraint.
Page 149 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147 In the event of deployment of an Active Head Re- straint, refer to “Occupant Restraints/Resetting Active Head Restraints (AHR)” in “Things To Know Before Starting Your Vehicle” for further information. WARNING! Do not place items over the top of the Active Head Restraint, such as coats, seat covers or portable DVD players.
Page 150 148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! (Continued) Active Head Restraints may be deployed if they are struck by an object such as a hand, foot or loose cargo. To avoid accidental deployment of the Ac- tive Head Restraint ensure that all cargo is se- cured, as loose cargo could contact the Active Head Restraint during sudden stops.
Page 151: 60/40 Split Folding Rear Seat With Fold-Flat Feature
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149 Refer to “Occupant Restraints” in “Things To Know be sure that the front seats are fully upright and posi- Before Starting Your Vehicle” for information on tether tioned forward. This will allow the rear seat to fold down routing.
Page 152 150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 2. Pull the release strap (toward the front of the vehicle). To Raise The Rear Seat NOTE: If interference from the cargo area prevents the seatback from fully locking, you will have difficulty returning the seat to its proper position.
Page 153: Driver Memory Seat - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151 Recliner Adjustment WARNING! The rear seatback also reclines for additional passenger comfort. Pull the release strap while sitting in the rear Do not ride with the seatback reclined so that the seat to recline the seatback. shoulder belt is no longer resting against your chest.
Page 154: Programming The Memory Feature
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE recall either of the two pre-programmed memory profiles 1. Turn the ignition ON. by pressing the appropriate side of the switch. 2. Adjust all memory profile settings to desired prefer- ences (i.e., seat, side mirror and radio station presets). 3.
Page 155: Linking And Unlinking The Remote Keyless Entry Transmitter To Memory
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153 3. Press and release the SET button on the memory Linking And Unlinking The Remote Keyless Entry switch, then press the side of the rocker switch labeled (2) Transmitter To Memory within five seconds. The EVIC, if equipped, will display Your Remote Keyless Entry (RKE) transmitters can be which memory position is being set.
Page 156: Memory Position Recall
154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: Your RKE transmitters can be unlinked to the To recall the memory settings for driver one, press memory setting by pressing the SET button followed by MEMORY button number 1 or the UNLOCK button on the UNLOCK button on the RKE transmitter in Step 4 the RKE transmitter linked to memory position 1.
Page 157 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155 The distance the driver seat moves depends on where set position when you insert the key into the ignition you have the driver seat positioned when you remove the switch and turn it out of the LOCK position. key from the ignition switch.
Page 158: To Open And Close The Hood
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE TO OPEN AND CLOSE THE HOOD 2. Outside of the vehicle, locate the safety latch lever Two latches must be released to open the hood. between the grille and hood opening (left of center when facing hood).
Page 159 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157 Use the hood prop rod to secure the hood in the open WARNING! position. Place the upper end of the prop rod in the hole on the underside of the hood. Be sure the hood is fully latched before driving your vehicle.
Page 160: Lights
158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE LIGHTS Headlights And Parking Lights Turn the end of the multifunction lever to the first detent Multifunction Lever for parking light operation. Turn the end of the lever to The multifunction lever on the left side of the steering the second detent for headlight operation.
Page 161: Automatic Headlights - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159 Automatic Headlights — If Equipped This system automatically turns the headlights on or off according to ambient light levels. To turn the system on, turn the end of the multifunction lever to the AUTO position (third detent).
Page 162: Headlights With Wipers (Available With Automatic Headlights Only)
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Headlights With Wipers To activate the delay, turn the ignition switch to the (Available With Automatic Headlights Only) LOCK position while the headlights are still on. Then, When this feature is active, the headlights will turn on turn off the headlights within 45 seconds.
Page 163: Daytime Running Lights - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161 Daytime Running Lights — If Equipped The headlights will turn on as Daytime Running Lights (DRL) and operate at lower intensity whenever the ignition is ON, the engine is running, the headlight switch is off, the parking brake is released and the shift lever is in any position except PARK.
Page 164: Turn Signals
162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Turn Signals NOTE: If either light remains on and does not flash, or Move the multifunction lever up or down and the arrows there is a very fast flash rate, check for a defective outside on each side of the instrument cluster flash to show light bulb.
Page 165: Instrument Panel Dimmer
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163 NOTE: If the multifunction lever is held in the flash-to- pass position for more than 15 seconds, the high beams will shut off. If this occurs, wait 30 seconds before activating the flash-to-pass function again. Instrument Panel Dimmer Rotate the center portion of the lever to the extreme bottom position to fully dim the instrument panel lights...
Page 166: Cargo Light
164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE UNLOCK button on the Remote Keyless Entry (RKE) WINDSHIELD WIPERS AND WASHERS transmitter is pressed, or when the dimmer control is The windshield wiper/washer control lever is located on turned completely upward to the second detent. the right side of the steering column.
Page 167: Windshield Wiper Operation
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165 Windshield Wiper Operation NOTE: The wipers will automatically return to the Rotate the end of the lever upward to the second detent “park” position if you turn OFF the ignition switch while past the intermittent settings for low-speed wiper opera- they are operating.
Page 168: Intermittent Wiper System
166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CAUTION! (Continued) Always remove any buildup of snow that prevents the windshield wiper blades from returning to the off position. If the windshield wiper control is turned off and the blades cannot return to the off position, damage to the wiper motor may occur.
Page 169: Windshield Washers
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 167 There are five delay settings, which allow you to regulate If you activate the washer while the wiper control is in the wipe interval from a minimum of one cycle every the delay range, the wipers will operate in low-speed for second to a maximum of approximately 36 seconds two or three wipe cycles after releasing the lever and then between cycles or from a minimum of one cycle every...
Page 170: Mist Feature
168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Mist Feature Rain Sensing Wipers — If Equipped Push downward on the windshield wiper/washer con- This feature senses moisture on the windshield and trol lever to activate a single wipe cycle to clear the automatically activates the wipers for the driver.
Page 171 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169 NOTE: The rain-sensing system has protective features for the The rain-sensing feature will not operate when the wiper blades and arms. It will not operate under the wiper speed is in the low or high position. following conditions: The rain-sensing feature may not function properly Low Temperature Wipe Inhibit —...
Page 172: Headlights With Wipers (Available With Automatic Headlights Only)
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Remote Start Wipe Inhibit (Vehicles Equipped with The Headlights with Wipers feature can be turned on or Remote Start System) — The rain-sensing feature will off through the Electronic Vehicle Information Center not operate when the vehicle is in remote start mode. (EVIC) —...
Page 173: Electronic Speed Control - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171 WARNING! Do not adjust the steering column while driving. Adjusting the steering column while driving or driv- ing with the steering column unlocked, could cause the driver to lose control of the vehicle. Be sure the steering column is locked before driving your ve- hicle.
Page 174: To Activate
172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE The Electronic Speed Control buttons are located on the the same time. If this occurs, the Electronic Speed Control right side of the steering wheel. System can be reactivated by pushing the Electronic Speed Control ON/OFF button and resetting the desired vehicle set speed.
Page 175: To Set A Desired Speed
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 173 To Set A Desired Speed To Resume Speed Turn the Electronic Speed Control ON. When the vehicle To resume a previously set speed, push the RES (+) has reached the desired speed, press the SET (-) button button and release.
Page 176: To Accelerate For Passing
174 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To decrease speed while the Electronic Speed Control is NOTE: The Electronic Speed Control system maintains set, push the SET (-) button. If the button is continually speed up and down hills. A slight speed change on held in the SET (-) position, the set speed will continue to moderate hills is normal.
Page 177: Parksense Rear Park Assist - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175 PARKSENSE REAR PARK ASSIST — ParkSense Sensors IF EQUIPPED The four ParkSense sensors, located in the rear fascia/ bumper, monitor the area behind the vehicle that is The ParkSense Rear Park Assist system provides visual within the sensors’...
Page 178: Parksense Display
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE The ParkSense Warning Display is located in the Instru- ParkSense Display ment cluster’s EVIC display. It provides both visual and When the vehicle is in REVERSE, the warning display audible warnings to indicate the distance between the will turn ON indicating the system status.
Page 179 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177 Park Assist Off Slow Tone The system will indicate a detected obstacle by showing three solid arcs and will produce a one-half second tone. As the vehicle moves closer to the object the EVIC display will show fewer arcs and the sound tone will change from slow, to fast, to continuous.
Page 180 178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Fast Tone Continuous Tone The vehicle is close to the obstacle when the EVIC display shows one flashing arc and sounds a continuous tone. The following chart shows the warning alert operation when the system is detecting an obstacle:...
Page 181 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 179 WARNING ALERTS Rear Distance Greater than 79-39 in 39-25 in 25-12 in Less than (in/cm) 79 in (200 cm) (200-100 cm) (100-65 cm) (65-30 cm) 12 in (30 cm) Audible Alert None Single 1/2 Slow Fast Continuous...
Page 182: Enabling And Disabling Parksense
180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Enabling And Disabling ParkSense The ParkSense switch LED will be ON when Park- ParkSense can be enabled and disabled with a switch Sense is disabled or defective. The ParkSense switch located in the switch bank of the instrument panel or LED will be OFF when the system is enabled.
Page 183: Cleaning The Parksense System
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181 Cleaning The ParkSense System When you move the shift lever to the REVERSE Clean the ParkSense sensors with water, car wash soap position and ParkSense is turned off, the instrument and a soft cloth. Do not use rough or hard cloths. Do not cluster will display “PARK ASSIST OFF”...
Page 184 182 UNDERSTANDING THE FEATURES OF YOUR VEHICLE object as a sensor problem, causing the “SERVICE WARNING! PARK ASSIST SYSTEM” message to be displayed in the EVIC. Drivers must be careful when backing up even when using the ParkSense Rear Park Assist Sys- CAUTION! tem.
Page 185: Garage Door Opener - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 183 door openers, motorized gates, lighting or home security WARNING! (Continued) systems. The HomeLink unit operates off your vehicle’s Before using the ParkSense Rear Park Assist battery. System, it is strongly recommended that the ball The HomeLink buttons that are located in the headliner mount and hitch ball assembly is disconnected or sun visor designate the three different HomeLink...
Page 186: Programming Homelink
184 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: HomeLink is disabled when the Vehicle Secu- WARNING! (Continued) rity Alarm is active. Vehicle exhaust contains carbon monoxide, a dan- gerous gas. Do not run your vehicle in the garage WARNING! while training the transceiver. Exhaust gas can Your motorized door or gate will open and close cause serious injury or death.
Page 187 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 185 Your vehicle should be parked outside of the garage NOTE: when programming. Some gate operators and garage door openers may require you to replace Step 3 with procedures noted in 1. Turn the ignition switch to the ON/RUN position. the “Gate Operator/Canadian Programming”...
Page 188 186 UNDERSTANDING THE FEATURES OF YOUR VEHICLE If the indicator light blinks rapidly for two seconds, and then turns to a constant light, continue with program- ming for a Rolling Code. 5. Programming A Rolling Code System At the garage door opener motor (in the garage), locate the “Learn”...
Page 189: Gate Operator/Canadian Programming
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 187 7. Return to the vehicle and press the programmed Similar to this Canadian law, some U.S. gate operators are HomeLink button twice (holding the button for two designed to “time-out” in the same manner. seconds each time).
Page 190: Using Homelink
188 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Then proceed with Step 4 under “Programming 3. Without releasing the button, proceed with Program- HomeLink ” earlier in this section. ming HomeLink Step 2 and follow all remaining steps. Using HomeLink Security To operate, press and release the programmed It is advised to erase all channels before you sell or turn HomeLink button.
Page 191: General Information
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 189 Press the LEARN button on the Garage Door Opener 2. This device must accept any interference that may be to complete the training for a Rolling Code. received including interference that may cause undesired operation.
Page 192: Power Sunroof - If Equipped
190 UNDERSTANDING THE FEATURES OF YOUR VEHICLE POWER SUNROOF — IF EQUIPPED WARNING! The power sunroof switch is located between the sun visors on the overhead console. Never leave unattended children in a vehicle with the key in the ignition switch. Occupants, particu- larly unattended children, can become entrapped by the power sunroof while operating the power sunroof switch.
Page 193: Opening Sunroof - Express
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 191 Opening Sunroof — Express position. The sunroof will close fully and stop automati- Press the switch rearward and release it within one-half cally. This is called “Express Close”. During Express second and the sunroof will open automatically from any Close operation, any movement of the switch will stop position.
Page 194: Pinch Protect Override
192 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Pinch Protect Override NOTE: The sunshade cannot be closed if the sunroof is If a known obstruction (ice, debris, etc.) prevents closing open. and moves the sunroof in the opposite direction, press Wind Buffeting the switch forward and hold.
Page 195: Ignition Off Operation
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 193 Ignition Off Operation Sky Slider™ Usage Precautions For vehicles not equipped with the Electronic Vehicle NOTE: Information Center (EVIC), the power sunroof switch The system will not operate when ambient tempera- will remain active for 45 seconds after the ignition switch ture is at –4°F (–20°C) or lower.
Page 196 194 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CAUTION! (Continued) WARNING! Opening the Sky Slider™ when damp, wet, or Failure to follow these warnings can result in injuries dirty can cause stains, mildew, and damage to the that are serious or fatal to you, your passengers, and soft-top material and the inside of your vehicle.
Page 197: Sky Slider™ Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 195 Sky Slider™ Control WARNING! (Continued) The Sky Slider™ switch is located between the sun visors If potential danger exists while opening or closing on the overhead console. the Sky Slider™ in Automatic Mode, press and release the switch immediately to interrupt the operation.
Page 198: Opening The Sky Slider
196 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Opening The Sky Slider™ Using Operator Mode Press the switch rearward and hold it, the Sky Slider™ Using Automatic Mode will open from the front and move toward the rear of the Press the switch rearward and release it within one-half vehicle.
Page 199: Anti-Pinch Protect Feature
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 197 Using Operator Mode completely. The left motor facing forward will close the If the Sky Slider™ is open from the front, press the switch top when it is open from the rear of the vehicle. The right forward and hold it, the Sky Slider™...
Page 200: Sky Slider™ Maintenance
198 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ears. Your vehicle may exhibit wind buffeting with the windows down, or the Sky Slider™ in certain open or partially open positions. This is a normal occurrence and can be minimized. If the buffeting occurs with the rear windows open, then open the front and rear windows together to minimize the buffeting.
Page 201 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 199 CAUTION! Do not exceed the maximum power of 160 Watts (13 Amps) at 12 Volts. If the 160 Watt (13 Amp) power rating is exceeded the fuse protecting the system will need to be replaced. Power outlets are designed for accessory plugs only.
Page 202 200 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! (Continued) CAUTION! (Continued) Only devices designed for use in this type of Accessories that draw higher power (i.e., coolers, outlet should be inserted into any 12 Volt outlet. vacuum cleaners, lights, etc.) will degrade the battery even more quickly.
Page 203: Cupholders
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 201 CUPHOLDERS The rear passengers have cupholders at the rear of the There are two cupholders for the front seat passengers, center console. located in the center console. Rear Cupholders Front Cupholders...
Page 204: Storage
202 UNDERSTANDING THE FEATURES OF YOUR VEHICLE STORAGE Front Storage Compartment The front storage compartment (located on the left side of Glove Box Storage Compartment the instrument panel) can hold cell phones, PDAs, and The glove box storage compartment is located on the other small items.
Page 205: Console Storage Compartment
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 203 Console Storage Compartment The center console has a removable storage tray which To open, press the latch and lift the cover. can hold cell phones, PDAs, and other small items. Center Console Removable Storage Tray...
Page 206: Cargo Area Features
204 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To provide additional storage area, each rear seat can be WARNING! folded flat. This allows for extended cargo space and still maintains some rear seating room. Refer to “Seats” in Do not operate this vehicle with a console compart- “Understanding the Features of Your Vehicle”...
Page 207 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 205 4. Turn over the cover and reinstall it. NOTE: You can install the cover with either side facing upward. 5. With the cover seated in the floor, pull upward on loops and twist them one-quarter turn so that they are no longer parallel to the slots in the cover.
Page 208 206 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Cargo Tie-Down Hooks And Loops The tie-downs located on cargo area floor should be used to secure loads safely when the vehicle is moving. Cargo Tie-Down Loops Cargo tie-down loops are located on the trim panels. Cargo Tie-Down Hooks...
Page 209 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 207 WARNING! WARNING! Cargo tie-downs are not safe anchors for a child The weight and position of cargo and passengers can seat tether strap. In a sudden stop or accident, a change the vehicle center of gravity and vehicle tie-down could pull loose and allow the child seat handling.
Page 210 208 UNDERSTANDING THE FEATURES OF YOUR VEHICLE The cover rolls away neatly inside its housing when not WARNING! (Continued) in use. You can also remove the cover from the vehicle to Do not pile luggage or cargo higher than the top of make more room in the cargo area.
Page 211 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 209 Next, grab the cover handle and pull the cover toward you. As the cover nears the liftgate opening, guide the rear attachment posts (on both ends of the cover) into the notches in the trim panels. Then, lower the cover to position the posts into the bottom of the notches and release the handle.
Page 212: Rear Window Features
210 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! In a collision, a cargo cover loose in the vehicle could cause injury. It could fly around in a sudden stop and strike someone in the vehicle. Do not store the cargo cover on the cargo floor or in the passenger compart- ment.
Page 213: Rear Window Defroster
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 211 Rotate the switch upward past the first detent to defroster automatically turns off after approximately activate the rear washer. The washer pump will 10 minutes. For an additional five minutes of operation, continue to operate as long as the switch is held press the button a second time.
Page 214: Roof Luggage Rack - If Equipped
212 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Crossbars should always be used whenever cargo is CAUTION! (Continued) placed on the roof rack. Check the straps frequently to be Do not use scrapers, sharp instruments, or abra- sure that the load remains securely attached. sive window cleaners on the interior surface of the NOTE: Crossbars are offered by MOPAR accessories.
Page 215 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 213 CAUTION! WARNING! To avoid damage to the roof rack and vehicle, do Cargo must be securely tied down before driving not exceed the maximum roof rack load capacity. your vehicle. Improperly secured loads can fly off the Always distribute heavy loads as evenly as pos- vehicle, particularly at high speeds, resulting in per- sible and secure the load appropriately.
Page 217: Understanding Your Instrument Panel
UNDERSTANDING YOUR INSTRUMENT PANEL CONTENTS Instrument Panel Features ....218 Compass Display / ECO (Fuel Saver Mode) — If Equipped ..241 Instrument Cluster .
Page 218 216 UNDERSTANDING YOUR INSTRUMENT PANEL List Button Operation Instructions — (Disc Mode For MP3/WMA Play) ..261 CD Mode For CD And MP3 Audio Play ..272 Info Button Notes On Playing MP3 Files .
Page 219 UNDERSTANDING YOUR INSTRUMENT PANEL 217 Steering Wheel Audio Controls ... . 293 Climate Controls ..... . 295 Radio Operation .
Page 220: Instrument Panel Features
218 UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT PANEL FEATURES 1 — Air Outlet 4 — Radio 7 — Power Outlet 2 — Instrument Cluster 5 — Glove Compartment 8 — Lower Switch Bank 3 — Storage Tray 6 — Climate Control 9 —...
Page 221: Instrument Cluster
UNDERSTANDING YOUR INSTRUMENT PANEL 219 INSTRUMENT CLUSTER...
Page 222: Instrument Cluster Descriptions
220 UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT CLUSTER DESCRIPTIONS by the vehicle manufacturer on the vehicle placard or tire inflation pressure label. (If your vehicle has tires of a 1. Fuel Gauge different size than the size indicated on the vehicle The fuel gauge shows level of fuel in tank when ignition placard or tire inflation pressure label, you should deter- switch is in the ON/RUN position.
Page 223 UNDERSTANDING YOUR INSTRUMENT PANEL 221 Please note that the TPMS is not a substitute for proper TPMS malfunction telltale after replacing one or more tire maintenance, and it is the driver’s responsibility to tires or wheels on your vehicle, to ensure that the maintain correct tire pressure, even if under-inflation has replacement or alternate tires and wheels allow the TPMS not reached the level to trigger illumination of the TPMS...
Page 224 222 UNDERSTANDING YOUR INSTRUMENT PANEL 5. Electronic Throttle Control (ETC) Light 6. Malfunction Indicator Light (MIL) This light informs you of a problem with the The Malfunction Indicator Light (MIL) is part of Electronic Throttle Control (ETC) system. If a an onboard diagnostic system, called OBD, that problem is detected, the light will come on monitors engine and automatic transmission con-...
Page 225 UNDERSTANDING YOUR INSTRUMENT PANEL 223 7. High Beam Indicator CAUTION! This indicator shows that the high beam head- lights are on. Pull the multifunction control lever Prolonged driving with the MIL on could cause on the left side of the steering column toward you to damage to the engine control system.
Page 226 224 UNDERSTANDING YOUR INSTRUMENT PANEL If the vehicle electronics sense that the vehicle is driven NOTE: more than 1 mile (1.6 km) with either turn signal on, a The “ESC Off Indicator Light” and the “ESC continuous chime will sound to alert you to turn the Activation/Malfunction Indicator Light”...
Page 227 UNDERSTANDING YOUR INSTRUMENT PANEL 225 the charging system light remains on, it means that the 14. Anti-Lock Brake (ABS) Light vehicle is experiencing a problem with the charging This light monitors the Anti-Lock Brake System system. Obtain SERVICE IMMEDIATELY. See an autho- (ABS).
Page 228 226 UNDERSTANDING YOUR INSTRUMENT PANEL green area, you are driving the vehicle in a fuel efficient 18. TOW/HAUL Indicator — If Equipped manner. Before the pointer reaches the red area, ease up This light will illuminate when selecting on the accelerator to prevent engine damage. TOW/HAUL.
Page 229 UNDERSTANDING YOUR INSTRUMENT PANEL 227 21. SERV (Service) 4WD Indicator Light — If Equipped If the light turns on while driving, safely pull over and The “SERV 4WD Indicator Light” will turn on stop the vehicle. If the A/C system is on, turn it off. Also, when the ignition key is turned to the ON/ shift the transmission into NEUTRAL and idle the ve- RUN position and it will stay on for two...
Page 230 228 UNDERSTANDING YOUR INSTRUMENT PANEL CAUTION! WARNING! Driving with a hot engine cooling system could A hot engine cooling system is dangerous. You or damage your vehicle. If the temperature gauge reads others could be badly burned by steam or boiling “H”...
Page 231 UNDERSTANDING YOUR INSTRUMENT PANEL 229 25. Odometer / Trip Odometer / ECO (Fuel Saver CAUTION! Indicator) Button Continuous driving with the Transmission Tempera- Changing the Display ture Warning Light illuminated will eventually cause Press this button to change the display from odometer to severe transmission damage or transmission failure.
Page 232 230 UNDERSTANDING YOUR INSTRUMENT PANEL 26. 4WD Indicator — Vehicles Equipped with cannot do so, then the odometer must be set at zero, and Selec-Trac II a sticker must be placed in the door jamb stating what the This light alerts the driver that the vehicle is in mileage was before the repair or service.
Page 233 UNDERSTANDING YOUR INSTRUMENT PANEL 231 On vehicles equipped with a Premium Instrument Clus- gASCAP Message ter, this display shows the Electronic Vehicle Information If the vehicle diagnostic system determines that the fuel Center (EVIC) messages when the appropriate conditions filler cap is loose, improperly installed, or damaged, the exist.
Page 234 232 UNDERSTANDING YOUR INSTRUMENT PANEL CHAngE OIL Message (Base And Mid Line Clusters 2. Fully depress the accelerator pedal slowly three Only) times within 10 seconds. Your vehicle is equipped with an engine oil change 3. Turn the ignition switch to the LOCK position. indicator system.
Page 235 UNDERSTANDING YOUR INSTRUMENT PANEL 233 the driver’s seat belt is unbuckled, a chime will sound. System (ABS) / Electronic Stability Control (ESC) system. After the bulb check or when driving, if the driver seat In this case, the light will remain on until the condition belt remains unbuckled, the Seat Belt Warning Light will has been corrected.
Page 236 234 UNDERSTANDING YOUR INSTRUMENT PANEL If brake failure is indicated, immediate repair is neces- unless the parking brake is applied or a brake fault is sary. detected. If the light does not illuminate, have the light inspected by an authorized dealer. WARNING! The light also will turn on when the parking brake is applied with the ignition switch in the ON/RUN posi-...
Page 237: Electronic Vehicle Information Center (Evic) - If Equipped
UNDERSTANDING YOUR INSTRUMENT PANEL 235 33. Airbag Warning Light ELECTRONIC VEHICLE INFORMATION CENTER This light will turn on for four to eight seconds (EVIC) — IF EQUIPPED as a bulb check when the ignition switch is first The Electronic Vehicle Information Center (EVIC) fea- turned to ON/RUN.
Page 238 236 UNDERSTANDING YOUR INSTRUMENT PANEL This system conveniently allows the driver to select a The system allows the driver to select information by variety of useful information by pressing the switches pressing the following buttons mounted on the steering mounted on the steering wheel. The EVIC consists of the wheel: following: System Status...
Page 239: Electronic Vehicle Information Center (Evic) Displays
UNDERSTANDING YOUR INSTRUMENT PANEL 237 MENU Button COMPASS Button Press and release the MENU button and the Press release COMPASS/ mode displayed will change between Trip TEMPERATURE button to display one of eight Functions, Uconnect™ gps (if equipped), Sys- compass readings and the outside temperature. tem Status, and Personal Settings.
Page 240 238 UNDERSTANDING YOUR INSTRUMENT PANEL Memory #1/#2 Profile Set Left/Right Rear Door Ajar (one or more doors open, with a single chime if speed is above 1 mph Memory #1/#2 Profile Recall (1.6 km/h)) Memory System Disabled – Vehicle Not in Park (with Door(s) Ajar (with a single chime if vehicle is in a single chime) —...
Page 241: Oil Change Required
UNDERSTANDING YOUR INSTRUMENT PANEL 239 Right Rear Low Pressure (with a single chime). Refer scheduled oil change interval. The engine oil change to “Tire Pressure Monitoring System” in “Starting And indicator system is duty cycle based, which means the Operating”. engine oil change interval may fluctuate dependent upon your personal driving style.
Page 242: Trip Functions
240 UNDERSTANDING YOUR INSTRUMENT PANEL NOTE: If the indicator message illuminates when you The Trip Functions mode displays the following informa- start the vehicle, the oil change indicator system did not tion: reset. If necessary, repeat this procedure. Average Fuel Economy Trip Functions Shows the average fuel economy since the last reset.
Page 243: Compass Display / Eco (Fuel Saver Mode) - If Equipped
UNDERSTANDING YOUR INSTRUMENT PANEL 241 NOTE: Significant changes in driving style or vehicle To Reset The Display loading will greatly affect the actual drivable distance of Reset will only occur while a resettable function is being the vehicle, regardless of the DTE displayed value. displayed.
Page 244 242 UNDERSTANDING YOUR INSTRUMENT PANEL be driven several minutes before the updated tempera- metallic objects) until the “CAL” message displayed in ture is displayed. Engine temperature can also affect the the EVIC turns off. The compass will now function displayed temperature; therefore, temperature readings normally.
Page 245 UNDERSTANDING YOUR INSTRUMENT PANEL 243 3. Press the SCROLL button until “Calibrate Compass” NOTE: Magnetic materials should be kept away from displays in the EVIC. the top of the right rear quarter window. This is where the compass sensor is located. 4.
Page 246: Personal Settings (Customer-Programmable Features)
244 UNDERSTANDING YOUR INSTRUMENT PANEL 2. Press the MENU button until the Personal Settings Use the SCROLL button to display one of the following (Customer-Programmable Features) menu displays in the choices: EVIC. Language 3. Press the SCROLL button until “Compass Variance” When in this display you may select one of five lan- displays in the EVIC.
Page 247 UNDERSTANDING YOUR INSTRUMENT PANEL 245 NEUTRAL position and the driver’s door is opened. To memory profile contains desired position settings for the make your selection, press and release the FUNCTION driver seat, side mirror, adjustable pedals (if equipped), SELECT button until “ON” or “OFF” appears. power tilt and telescopic steering column (if equipped), and a set of desired radio station presets.
Page 248 246 UNDERSTANDING YOUR INSTRUMENT PANEL Automatically Move Seat Back on Exit — If Headlights On with Wipers Equipped (Available with Auto Headlights Only) This feature provides automatic driver seat positioning to When on is selected, and the headlight switch is in the enhance driver mobility when entering and exiting the AUTO position, the headlights will turn on approxi- vehicle.
Page 249 UNDERSTANDING YOUR INSTRUMENT PANEL 247 Turn Headlights On with Remote Key Unlock Illumination Approach When this feature is selected, the headlights will activate When this feature is selected, the headlights will activate and remain on for up to 90 seconds when the doors are and remain on for up to 90 seconds when the doors are unlocked with the RKE transmitter.
Page 250: Media Center 230 (Req) - Am/Fm Stereo Radio And 6-Disc Cd/Dvd Changer (Mp3/Wma Aux Jack)
248 UNDERSTANDING YOUR INSTRUMENT PANEL Hill Start Assist (HSA) — If Equipped MEDIA CENTER 230 (REQ) — AM/FM STEREO When on is selected, the HSA system is active. Refer to RADIO AND 6–DISC CD/DVD CHANGER “Electronic Brake Control System” in “Starting And (MP3/WMA AUX JACK) Operating”...
Page 251: Operating Instructions - Radio Mode
UNDERSTANDING YOUR INSTRUMENT PANEL 249 Operating Instructions - Radio Mode SEEK Buttons Press and release the SEEK buttons to search for the next NOTE: The ignition switch must be in the ON or ACC listenable station in AM/FM mode. Press the right switch position to operate the radio.
Page 252 250 UNDERSTANDING YOUR INSTRUMENT PANEL If your vehicle is not equipped with or this feature is not Clock Setting Procedure available on your vehicle, a “Not Equipped With 1. Press and hold the TIME button until the hours blink. Uconnect Phone” message will display on the radio screen.
Page 253 UNDERSTANDING YOUR INSTRUMENT PANEL 251 INFO Button Push the rotary TUNE/SCROLL control knob a second Press the INFO button for an RDS station (one with call time and MID will display. Turn the TUNE/SCROLL letters displayed). The radio will return a Radio Text control knob to the right or left to increase or decrease the message broadcast from an FM station (FM mode only).
Page 254 252 UNDERSTANDING YOUR INSTRUMENT PANEL MUSIC TYPE Button Program Type 16-Digit Character Display Pressing this button once will turn on the Music Type Information Inform mode for five seconds. Pressing the MUSIC TYPE button Jazz Jazz or turning the TUNE/SCROLL control knob within five News News seconds will allow the program format type to be se-...
Page 255 UNDERSTANDING YOUR INSTRUMENT PANEL 253 DVD Enter - When the disc is in DVD Menu mode, Program Type 16-Digit Character Display selecting DVD Enter will allow you to play the current Top 40 Top 40 highlighted selection. Use the remote control to scroll Weather Weather up and down the menu (if equipped).
Page 256 254 UNDERSTANDING YOUR INSTRUMENT PANEL Angle – Repeatedly pressing SELECT will change Set Home Clock - Pressing the SELECT button allows the viewing angle if supported by the DVD disc (if you to set the clock. Turn the TUNE/SCROLL control equipped).
Page 257 UNDERSTANDING YOUR INSTRUMENT PANEL 255 Audio Language — If Equipped Audio DRC — If Equipped Selecting this item allows you to choose a default audio Selecting this item allows you to limit maximum audio language (effective only if the language is supported by dynamic range.
Page 258 256 UNDERSTANDING YOUR INSTRUMENT PANEL NOTE: The user will have to set these defaults before You may add a second station to each pushbutton by loading a disc. If changes are made to these settings after repeating the above procedure with this exception: Press a disc is loaded, changes will not be effective.
Page 259: Operation Instructions - (Disc Mode For Cd And Mp3/Wma Audio Play, Dvd-Video)
UNDERSTANDING YOUR INSTRUMENT PANEL 257 Operation Instructions - (DISC MODE for CD and NOTE: The ignition switch must be in the ON or ACC MP3/WMA Audio Play, DVD-VIDEO) position to operate the radio. The radio DVD player and many DVD discs are coded by LOAD Button —...
Page 260 258 UNDERSTANDING YOUR INSTRUMENT PANEL Eject Button — Ejecting Compact Disc(s) SCAN Button (CD MODE) Press the EJECT button and the pushbutton Press the SCAN button to scan through each track on the with the corresponding number (1-6) where the CD currently playing.
Page 261: Notes On Playing Mp3/Wma Files
UNDERSTANDING YOUR INSTRUMENT PANEL 259 Notes On Playing MP3/WMA Files The radio uses the following limits for file systems: The radio can play MP3/WMA files; however, acceptable Maximum number of directory levels: 8 MP3/WMA file recording media and formats are limited. When writing MP3/WMA files, pay attention to the Maximum number of files: 255 following restrictions.
Page 262 260 UNDERSTANDING YOUR INSTRUMENT PANEL If a disc contains multi-formats, such as CD audio and MPEG Sampling Fre- Bit Rate (kbps) MP3/WMA tracks, the radio will only play the MP3/ Specification quency (kHz) WMA tracks on that disc. 320, 256, 224, MPEG-1 Audio 192, 160, 128, Supported MP3/WMA File Formats...
Page 263: List Button (Disc Mode For Mp3/Wma Play)
UNDERSTANDING YOUR INSTRUMENT PANEL 261 Playback of MP3/WMA Files LIST Button (DISC Mode for MP3/WMA Play) When a medium containing MP3/WMA data is loaded, Pressing the LIST button will bring up a list of all folders the radio checks all files on the medium. If the medium on the disc.
Page 264 262 UNDERSTANDING YOUR INSTRUMENT PANEL Press and hold the INFO button again for three seconds SCAN Button (Auxiliary Mode) to return to elapsed time display. No function. Operation Instructions - Auxiliary Mode EJECT Button (Auxiliary Mode) The auxiliary (AUX) jack is an audio input jack which No function.
Page 265 UNDERSTANDING YOUR INSTRUMENT PANEL 263 Operating Instructions — Voice Command System Dolby (If Equipped) Manufactured under license from Dolby Laboratories. For the radio, Refer to “Voice Command” in the Dolby and the double-D symbol are trademarks of Uconnect™ User Manual located on the DVD for further Dolby Laboratories.
Page 266: Equipped
264 UNDERSTANDING YOUR INSTRUMENT PANEL Uconnect™ Multimedia (Satellite Radio) — If visit the Sirius web site at www.sirius.com, or at Equipped www.siriuscanada.ca for Canadian residents. Satellite radio uses direct satellite-to-receiver broadcast- Electronic Serial Number/Sirius Identification ing technology to provide clear digital sound, coast to Number (ESN/SID) coast.
Page 267 UNDERSTANDING YOUR INSTRUMENT PANEL 265 Sirius ID number will display. The Sirius ID number Reception Quality display will time out in two minutes. Press any button on Satellite reception may be interrupted due to one of the the radio to exit this screen. following reasons: Selecting Uconnect™...
Page 268 266 UNDERSTANDING YOUR INSTRUMENT PANEL SEEK Buttons RW/FF Press and release the SEEK buttons to search for the next Pressing the RW (Rewind) or FF (Fast Forward) buttons channel in Satellite mode. Press the right switch to seek causes the tuner to search for the next channel in the up and the left switch to seek down.
Page 269 UNDERSTANDING YOUR INSTRUMENT PANEL 267 By pressing the SEEK button when the Music Type Select the button (1-6) you wish to lock onto this channel function is active, the radio will be tuned to the next and press and release that button. If a button is not channel with the same selected Music Type name.
Page 270: If Equipped
268 UNDERSTANDING YOUR INSTRUMENT PANEL MEDIA CENTER 730N/430/430N (RHR/RER/RBZ/ MEDIA CENTER 130 (SALES CODE RES) RHB) CD/DVD/HDD/NAV — IF EQUIPPED NOTE: The radio sales code is located on the lower right NOTE: The sales code is located on the lower right side side of the radio faceplate.
Page 271: Operating Instructions - Radio Mode
UNDERSTANDING YOUR INSTRUMENT PANEL 269 Operating Instructions — Radio Mode SEEK Buttons Press and release the SEEK buttons to search for the next NOTE: The ignition switch must be in the ON or ACC listenable station in AM/FM mode. Press the right switch position to operate the radio.
Page 272 270 UNDERSTANDING YOUR INSTRUMENT PANEL 4. Adjust the minutes using the right side TUNE/ Push the rotary TUNE/SCROLL control knob a second SCROLL control knob. Press the TUNE/SCROLL control time and MID will display. Turn the TUNE/SCROLL knob to save time change. control knob to the right or left to increase or decrease the mid-range tones.
Page 273 UNDERSTANDING YOUR INSTRUMENT PANEL 271 Push the rotary TUNE/SCROLL control knob again to You may add a second station to each pushbutton by exit setting tone, balance, and fade. repeating the above procedure with this exception: Press the SET/RND button twice and SET 2 will show in the AM/FM Button display window.
Page 274: Operation Instructions - Cd Mode For Cd And Mp3 Audio Play
272 UNDERSTANDING YOUR INSTRUMENT PANEL Operation Instructions — CD MODE For CD And If you insert a disc with the ignition ON and the radio MP3 Audio Play ON, the unit will switch from radio to CD mode and begin to play when you insert the disc. The display will NOTE: show the track number, and index time in minutes and The ignition switch must be in the ON or ACC...
Page 275 UNDERSTANDING YOUR INSTRUMENT PANEL 273 EJECT Button - Ejecting a CD SEEK Button Press the EJECT button to eject the CD. Press the right SEEK button for the next selection on the CD. Press the left SEEK button to return to the beginning of the current selection, or return to the beginning of the previous selection if the CD is within the first second of the current selection.
Page 276: Notes On Playing Mp3 Files
274 UNDERSTANDING YOUR INSTRUMENT PANEL SET/RND Button (Random Play Button) Supported Medium Formats (File Systems) Press this button while the CD is playing to activate The medium formats supported by the radio are ISO 9660 Random Play. This feature plays the selections on the Level 1 and Level 2 and includes the Joliet extension.
Page 277 UNDERSTANDING YOUR INSTRUMENT PANEL 275 Maximum number of characters in file/folder names: When using the MP3 encoder to compress audio data to an MP3 file, the bit rate and sampling frequencies in the Level 1: 12 (including a separator . and a three- following table are supported.
Page 278: Operation Instructions - Auxiliary Mode
276 UNDERSTANDING YOUR INSTRUMENT PANEL Playlist files are not supported. MP3 Pro files are not To increase the speed of disc loading, it is recommended supported. to use CD-R media and single-session discs. To create a single-session disc, enable the “Disc at Once” option Playback of MP3 Files before writing to the disc.
Page 279: Media Center 130 With Satellite Radio (Sales Code Res+Rsc)
UNDERSTANDING YOUR INSTRUMENT PANEL 277 TIME Button (Auxiliary Mode) Press this button to change the display to time of day. The time of day will display for five seconds (when ignition is OFF). MEDIA CENTER 130 WITH SATELLITE RADIO (SALES CODE RES+RSC) NOTE: The radio sales code is located on the lower right side of the radio faceplate.
Page 280 278 UNDERSTANDING YOUR INSTRUMENT PANEL Power Switch/Volume Control (Rotary) Voice Command System (Radio) — If Equipped Push the ON/VOLUME control knob to turn on the Refer to “Voice Command” in “Understanding The Fea- radio. Push the ON/VOLUME control knob a second tures If Your Vehicle”.
Page 281 UNDERSTANDING YOUR INSTRUMENT PANEL 279 If your vehicle is not equipped with or this feature is not 5. To exit, press any button/knob or wait five seconds. available on your vehicle, a “Not Equipped With Uconnect The clock can also be set by pressing the SETUP button. Phone”...
Page 282 280 UNDERSTANDING YOUR INSTRUMENT PANEL TUNE Control Push the rotary TUNE/SCROLL control knob a fourth Turn the rotary TUNE/SCROLL control knob clockwise time and BALANCE will display. Turn the TUNE/ to increase or counterclockwise to decrease the frequency. SCROLL control knob to the right or left to adjust the sound level from the right or left side speakers.
Page 283 UNDERSTANDING YOUR INSTRUMENT PANEL 281 Toggle the MUSIC TYPE button to select the following Program Type 16-Digit Character Display format types: Public Public Program Type 16-Digit Character Display Rhythm and Blues R & B No program type or Religious Music Rel Musc None undefined...
Page 284 282 UNDERSTANDING YOUR INSTRUMENT PANEL If a preset button is activated while in the Music Type SET/RND Button — To Set the Pushbutton (Program Type) mode, the Music Type mode will be Memory exited and the radio will tune to the preset station. When you are receiving a station that you wish to commit to pushbutton memory, press the SET/RND SETUP Button...
Page 285: Operation Instructions - Cd Mode For Cd And Mp3 Audio Play
UNDERSTANDING YOUR INSTRUMENT PANEL 283 Every time a preset button is used, a corresponding This radio is capable of playing compact discs (CD), button number will display. recordable compact discs (CD-R), rewritable compact discs (CD-RW), compact discs with MP3 tracks and Buttons 1 - 6 multisession compact discs with CD and MP3 tracks.
Page 286 284 UNDERSTANDING YOUR INSTRUMENT PANEL If you have ejected a disc and have not removed it within CAUTION! 10 seconds, it will be reloaded. If the CD is not removed, the radio will reinsert the CD but will not play it. This CD player will accept 4–3/4 in (12 cm) discs only.
Page 287: Notes On Playing Mp3 Files
UNDERSTANDING YOUR INSTRUMENT PANEL 285 RW/FF Notes On Playing MP3 Files Press and hold FF (Fast Forward) and the CD player will The radio can play MP3 files; however, acceptable MP3 begin to fast forward until FF is released or RW or file recording media and formats are limited.
Page 288 286 UNDERSTANDING YOUR INSTRUMENT PANEL Maximum number of files: 255 Multisession disc formats are supported by the radio. Multisession discs may contain combinations of normal Maximum number of folders. (The radio display of file CD audio tracks and computer files (including MP3 files). names and folder names is limited.
Page 289 UNDERSTANDING YOUR INSTRUMENT PANEL 287 rates (VBR) are also supported. The majority of MP3 files Playback of MP3 Files use a 44.1 kHz sampling rate and a 192, 160, 128, 96 or When a medium containing MP3 data is loaded, the VBR bit rates.
Page 290: List Button (Cd Mode For Mp3 Play)
288 UNDERSTANDING YOUR INSTRUMENT PANEL LIST Button (CD Mode for MP3 Play) Press and hold the INFO button for three seconds or Pressing the LIST button will bring up a list of all folders more and the radio will display song titles for each file. on the disc.
Page 291: Uconnect™ Multimedia (Satellite Radio) - If Equipped
UNDERSTANDING YOUR INSTRUMENT PANEL 289 TIME Button (Auxiliary Mode) radio system in your vehicle. Sirius will supply a wel- Press this button to change the display to time of day. The come kit that contains general information, including time of day will display for five seconds (when the how to setup your on-line listening account.
Page 292 290 UNDERSTANDING YOUR INSTRUMENT PANEL using the TUNE/SCROLL control knob until Sirius ID is Reception Quality selected. Press the TUNE/SCROLL control knob and the Satellite reception may be interrupted due to one of the Sirius ID number will display. The Sirius ID number following reasons: display will time out in two minutes.
Page 293 UNDERSTANDING YOUR INSTRUMENT PANEL 291 SEEK Buttons RW/FF Press and release the SEEK buttons to search for the next Pressing the RW (Rewind) or FF (Fast Forward) buttons channel in Satellite mode. Press the right switch to seek causes the tuner to search for the next channel in the up and the left switch to seek down.
Page 294 292 UNDERSTANDING YOUR INSTRUMENT PANEL By pressing the SEEK button when the Music Type Select the button (1-6) you wish to lock onto this channel function is active, the radio will be tuned to the next and press and release that button. If a button is not channel with the same selected Music Type name.
Page 295: Steering Wheel Audio Controls
UNDERSTANDING YOUR INSTRUMENT PANEL 293 Operating Instructions - Uconnect™ Phone (If Equipped) Refer to “Uconnect™ Phone” in “Understanding The Features If Your Vehicle”. STEERING WHEEL AUDIO CONTROLS The remote sound system controls are located on the rear surface of the steering wheel. Reach behind the wheel to access the switches.
Page 296: Radio Operation
294 UNDERSTANDING YOUR INSTRUMENT PANEL Pressing the center button will make the radio switch CD Player between the various modes available (AM/FM/SAT/ Pressing the top of the switch once will go to the next CD/HDD/AUX/VES, etc.). track on the CD. Pressing the bottom of the switch once will go to the beginning of the current track, or to the The left-hand control is a rocker-type switch with a beginning of the previous track if it is within one second...
Page 297: Cd/Dvd Disc Maintenance
UNDERSTANDING YOUR INSTRUMENT PANEL 295 CD/DVD DISC MAINTENANCE NOTE: If you experience difficulty in playing a particu- To keep a CD/DVD in good condition, take the following lar disc, it may be damaged (i.e., scratched, reflective precautions: coating removed, a hair, moisture or dew on the disc) oversized, or have protection encoding.
Page 298: Manual Heating And Air Conditioning
296 UNDERSTANDING YOUR INSTRUMENT PANEL Manual Heating And Air Conditioning Blower Control Rotate this control to regulate the amount of air forced through the ven- tilation system in any mode. The blower speed increases as you move the control to the right from the “O” (OFF) position.
Page 299 UNDERSTANDING YOUR INSTRUMENT PANEL 297 NOTE: If your air conditioning performance seems Panel lower than expected, check the front of the A/C con- Air is directed through the outlets in the instrument denser located in front of the radiator for an accumula- panel.
Page 300 298 UNDERSTANDING YOUR INSTRUMENT PANEL Floor NOTE: Air is directed through the floor outlets with a The air conditioning compressor operates in Mix, small amount flowing through the defrost and side Defrost, or a blend of these modes, even if the Air window demist outlets.
Page 301 UNDERSTANDING YOUR INSTRUMENT PANEL 299 NOTE: Air Conditioning Control Continuous use of the Recirculation mode may make Press this button to engage the Air the inside air stuffy and window fogging may occur. Conditioning. A light will illuminate Extended use of this mode is not recommended. when the Air Conditioning system is engaged.
Page 302: Automatic Temperature Control (Atc) - If
300 UNDERSTANDING YOUR INSTRUMENT PANEL Automatic Temperature Control (ATC) — Operation of the system is quite simple. If Equipped 1. Turn the Mode Control knob (on the right) and the Blower Control knob (on the left) to AUTO. NOTE: The AUTO position performs best for front seat occupants only.
Page 303 UNDERSTANDING YOUR INSTRUMENT PANEL 301 The recommended setting for maximum comfort is 72°F Blower Control (22°C) for the average person; however, this may vary. For full automatic operation or for automatic blower operation, turn the NOTE: knob to the AUTO position. In manual The temperature setting can be adjusted at anytime mode there are six blower speeds that without affecting automatic operation.
Page 304 302 UNDERSTANDING YOUR INSTRUMENT PANEL...
Page 305 UNDERSTANDING YOUR INSTRUMENT PANEL 303 The operator can override the AUTO mode setting to Floor change airflow distribution by rotating the Mode Control Air is directed through the floor outlets with a knob (on the right) to one of the following positions. small amount flowing through the defrost and side window demist outlets.
Page 306 304 UNDERSTANDING YOUR INSTRUMENT PANEL Air Conditioner Control NOTE: Press this button to turn on the air When the ignition switch is turned to the LOCK conditioning during manual operation position, the recirculation feature will be cancelled. only. When the air conditioning is In cold weather, use of the Recirculation mode may turned on, cool dehumidified air will lead to excessive window fogging.
Page 307: Operating Tips
UNDERSTANDING YOUR INSTRUMENT PANEL 305 Most of the time, when in Automatic Operation, you Summer Operation can temporarily put the system into Recirculation The engine cooling system in air-conditioned vehicles Mode by pressing the Recirculation button. However, must be protected with a high-quality antifreeze coolant under certain conditions, while in Automatic Mode, to provide proper corrosion protection and to protect the system is blowing air out the defrost vents.
Page 308 306 UNDERSTANDING YOUR INSTRUMENT PANEL Window Fogging Outside Air Intake Interior fogging on the windshield can be quickly re- Make sure the air intake, located directly in front of the moved by turning the mode selector to Defrost. The windshield, is free of obstructions such as leaves. Leaves Defrost/Floor mode can be used to maintain a clear collected in the air intake may reduce airflow, and if they windshield and provide sufficient heating.
Page 309 UNDERSTANDING YOUR INSTRUMENT PANEL 307 Control Setting Suggestions for Various Weather Conditions...
Page 311: Starting And Operating
STARTING AND OPERATING CONTENTS Starting Procedures ....313 Brake/Transmission Shift Interlock System . . 317 Normal Starting ..... 313 Four–Speed Automatic Transmission .
Page 312 310 STARTING AND OPERATING Off-Road Driving Tips ....333 Traction Control System (TCS) ... 345 When To Use 4WD Low Range .
Page 313 STARTING AND OPERATING 311 Tires — General Information ... . . 366 Replacement Tires ....374 Tire Pressure .
Page 314 312 STARTING AND OPERATING Fuel System Cautions ....391 Trailer And Tongue Weight ... . . 405 Carbon Monoxide Warnings .
Page 315: Starting Procedures
STARTING AND OPERATING 313 STARTING PROCEDURES Normal Starting Before starting your vehicle, adjust your seat, adjust both NOTE: Normal starting of either a cold or a warm inside and outside mirrors, and fasten your seat belts. engine is obtained without pumping or pressing the accelerator pedal.
Page 316: Extreme Cold Weather (Below -20°F Or -29°C)
314 STARTING AND OPERATING Extreme Cold Weather (below –20°F or –29°C) WARNING! (Continued) To ensure reliable starting at these temperatures, use of Do not attempt to push or tow your vehicle to get an externally powered electric engine block heater (avail- it started.
Page 317: After Starting
STARTING AND OPERATING 315 With Tip Start ENGINE BLOCK HEATER — IF EQUIPPED If the engine fails to start after you have followed the The engine block heater warms the engine, and permits “Normal Starting” or “Extreme Cold Weather” proce- quicker starts in cold weather.
Page 318: Automatic Transmission
316 STARTING AND OPERATING AUTOMATIC TRANSMISSION WARNING! CAUTION! It is dangerous to move the shift lever out of PARK or NEUTRAL if the engine speed is higher than idle Damage to the transmission may occur if the follow- speed. If your foot is not firmly on the brake pedal, ing precautions are not observed: the vehicle could accelerate quickly forward or in Shift into PARK only after the vehicle has come to...
Page 319: Brake/Transmission Shift Interlock System
STARTING AND OPERATING 317 Brake/Transmission Shift Interlock System This vehicle is equipped with a Brake Transmission Shift Interlock System (BTSI) that holds the shift lever in the PARK position when the ignition switch is in the LOCK position. To move the shift lever out of the PARK position, the ignition switch must be turned to the ON or START position (engine running or not) and the brake pedal must be pressed.
Page 320 318 STARTING AND OPERATING the parking brake when leaving the vehicle in this range. REVERSE Always apply the parking brake first, then place the shift This range is for moving the vehicle rearward. Use this lever in the PARK position. range only after the vehicle has come to a complete stop.
Page 321 STARTING AND OPERATING 319 2 (Second) vehicle speed is above approximately 30 mph This range is used for moderate grades and to assist (48 km/h) braking on dry pavement or in mud and snow. Begins at the TOW/HAUL button has not been activated a stop in low gear with automatic upshift into second gear.
Page 322 320 STARTING AND OPERATING NOTE: TOW/HAUL mode locks out Overdrive. Transmission Limp Home Mode Transmission function is monitored for abnormal condi- tions. If a condition is detected that could result in transmission damage, the Transmission Limp Home Mode will be engaged. In this mode, the transmission will remain in second gear in any forward driving range.
Page 323: Four-Wheel Drive Operation
STARTING AND OPERATING 321 If the problem is no longer detected, the transmission will FOUR-WHEEL DRIVE OPERATION return to normal operation. If the problem persists, Command-Trac II Transfer Case – If Equipped PARK, REVERSE, and NEUTRAL will continue to oper- ate.
Page 324 322 STARTING AND OPERATING position locks the front driveshaft and rear driveshaft CAUTION! (Continued) together and forces the front and rear wheels to rotate at The 4WD LOCK position and 4WD LOW position the same speed. are intended for loose or slippery road surfaces Use the transfer case NEUTRAL position for recreational only.
Page 325 STARTING AND OPERATING 323 WARNING! WARNING! (Continued) Since four-wheel drive provides improved trac- You or others could be injured if you leave the tion, there is a tendency to exceed safe turning and vehicle unattended with the transfer case in the stopping speeds.
Page 326 324 STARTING AND OPERATING Shift Positions The transfer case switch is located on the center console Rear Wheel Drive High Range - This range is used for next to the shift lever. normal street and highway driving on dry hard-surfaced roads.
Page 327 STARTING AND OPERATING 325 NOTE: The “SERV 4WD Warning Light” monitors the Neutral - This range disengages both the front driveshaft electric shift four-wheel drive system. If this light re- and rear driveshaft from the powertrain. To be used for mains on after engine start up, or it illuminates during flat towing behind another vehicle.
Page 328 326 STARTING AND OPERATING the vehicle stopped or in motion. With the vehicle in 4WD Lock To 4WD Low motion, the transfer case will engage/disengage faster if When shifting into or out of 4WD LOW, some gear noise you momentarily release the accelerator pedal after mov- may be heard.
Page 329: Selec-Trac Ii Transfer Case - If Equipped
STARTING AND OPERATING 327 Alternate Procedure The ignition switch must be in the ON position for a shift to take place and for the position indicator lights to be 1. Bring the vehicle to a complete stop. operable. If the ignition switch is not in the ON position, 2.
Page 330 328 STARTING AND OPERATING This transfer case is intended to be driven in either the CAUTION! two-wheel drive position (2WD) or the four-wheel drive Auto position (4WD AUTO) for normal street and high- The 4WD LOW position is intended for loose or way conditions such as dry hard-surfaced roads.
Page 331 STARTING AND OPERATING 329 WARNING! WARNING! (Continued) Since four-wheel drive provides improved trac- You or others could be injured if you leave the tion, there is a tendency to exceed safe turning and vehicle unattended with the transfer case in the stopping speeds.
Page 332 330 STARTING AND OPERATING Shift Positions 4WD Auto The transfer case switch is located on the center console Four-Wheel Drive Auto High Range – This active on- next to the shift lever. demand range makes available optimum traction for a wide range of conditions, while maximizing driver con- venience.
Page 333 STARTING AND OPERATING 331 NOTE: The “SERV 4WD Warning Light” monitors the Neutral - This range disengages both the front driveshaft electric shift four-wheel drive system. If this light re- and rear driveshaft from the powertrain. To be used for mains on after engine start up, or it illuminates during flat towing behind another vehicle.
Page 334 332 STARTING AND OPERATING vehicle stopped or in motion. If the vehicle is stopped, 3. While still rolling, move the transfer case switch to the the ignition switch must be in the ON position with the desired position. engine either OFF or RUNNING. This shift cannot be 4.
Page 335: On-Road Driving Tips
STARTING AND OPERATING 333 process, then the indicator light will flash, and the They are not designed for cornering at the same speeds as current transfer case position will be maintained. To retry conventional two-wheel drive vehicles any more than a shift, move the transfer case switch back to the original low-slung sports cars are designed to perform satisfacto- position, make certain all shift requirements have been...
Page 336: Driving Through Water
334 STARTING AND OPERATING Driving Through Water entering. Proceed with caution and maintain a steady Although your vehicle is capable of driving through controlled speed less than 5 mph (8 km/h) in deep water water, there are a number of precautions that must be to minimize wave effects.
Page 337: Driving In Snow, Mud And Sand
STARTING AND OPERATING 335 Maintenance Avoid abrupt downshifts on icy or slippery roads be- After driving through deep water, inspect your vehicle cause engine braking may cause skidding and loss of fluids and lubricants (engine, transmission, axle, transfer control. case) to assure they have not been contaminated. Con- Hill Climbing taminated fluids and lubricants (milky, foamy in appear- ance) should be flushed/changed as soon as possible to...
Page 338: Traction Downhill
336 STARTING AND OPERATING Traction Downhill WARNING! Shift the transmission into a low gear and the transfer case to 4WD LOW range. Let the vehicle go slowly down If the engine stalls or you lose headway or cannot the hill with all four wheels turning against engine make it to the top of a steep hill or grade, never compression drag.
Page 339: Power Steering
STARTING AND OPERATING 337 Completely inspect the underbody of your vehicle. WARNING! Check tires, body structure, steering, suspension, and exhaust system for damage. Abrasive material in any part of the brakes may cause excessive wear or unpredictable braking. You might Inspect the radiator for mud and debris and clean as not have full braking power when you need it to required.
Page 340 338 STARTING AND OPERATING If for some reason the power assist is interrupted, it will WARNING! still be possible to steer your vehicle. Under these condi- tions, you will observe a substantial increase in steering Continued operation with reduced power steering effort, especially at very low vehicle speeds and during assist could pose a safety risk to yourself and others.
Page 341: Power Steering Fluid Check
STARTING AND OPERATING 339 Power Steering Fluid Check WARNING! Checking the power steering fluid level at a defined service interval is not required. The fluid should only be Fluid level should be checked on a level surface and checked if a leak is suspected, abnormal noises are with the engine off to prevent injury from moving apparent, and/or the system is not functioning as antici- parts and to ensure accurate fluid level reading.
Page 342 340 STARTING AND OPERATING The parking brake lever is located in the center console. When the parking brake is applied with the ignition To apply the parking brake, pull the lever up as firmly as switch ON, the “Brake Warning Light” in the instrument possible.
Page 343 STARTING AND OPERATING 341 make it difficult to move the shift lever out of PARK. The WARNING! (Continued) parking brake should always be applied whenever the Be sure the parking brake is fully disengaged driver is not in the vehicle. before driving;...
Page 344: Anti-Lock Brake System
342 STARTING AND OPERATING ANTI-LOCK BRAKE SYSTEM The ABS conducts a low-speed self-test at about 12 mph The Anti-Lock Brake System (ABS) is designed to aid the (20 km/h). If you have your foot lightly on the brake driver in maintaining vehicle control under adverse while this test is occurring, you may feel slight pedal braking conditions.
Page 345 STARTING AND OPERATING 343 WARNING! (Continued) CAUTION! The ABS cannot prevent the natural laws of phys- The ABS is subject to possible detrimental effects of ics from acting on the vehicle, nor can it increase electronic interference caused by improperly in- braking or steering efficiency beyond that af- stalled aftermarket radios or telephones.
Page 346: Electronic Brake Control System
344 STARTING AND OPERATING Engines may idle at higher speeds during warm-up, ELECTRONIC BRAKE CONTROL SYSTEM which could cause rear wheels to spin and result in Your vehicle is equipped with an advanced electronic loss of vehicle control. Be especially careful while brake control system commonly referred to as ESC.
Page 347: Traction Control System (Tcs)
STARTING AND OPERATING 345 help avoid skidding on slippery surfaces during braking. Traction Control System (TCS) Refer to “Anti-Lock Brake System” in “Starting and This system monitors the amount of wheel spin of each of Operating” for further information. the driven wheels. If wheel spin is detected, brake pressure is applied to the slipping wheel(s) and engine WARNING! power is reduced to provide enhanced acceleration and...
Page 348: Brake Assist System (Bas)
346 STARTING AND OPERATING Brake Assist System (BAS) WARNING! The BAS is designed to optimize the vehicle’s braking capability during emergency braking maneuvers. The The Brake Assist System (BAS) cannot prevent the system detects an emergency braking situation by sens- natural laws of physics from acting on the vehicle, ing the rate and amount of brake application and then nor can it increase the traction afforded by prevailing...
Page 349: Electronic Roll Mitigation (Erm)
STARTING AND OPERATING 347 Electronic Roll Mitigation (ERM) WARNING! This system anticipates the potential for wheel lift by monitoring the driver’s steering wheel input and the Many factors, such as vehicle loading, road condi- speed of the vehicle. When ERM determines that the rate tions, and driving conditions, influence the chance of change of the steering wheel angle and vehicle’s speed that wheel lift or rollover may occur.
Page 350 348 STARTING AND OPERATING time expires, the system will release brake pressure and WARNING! the vehicle will roll down the hill as normal. The system will release brake pressure in proportion to amount of There may be situations where the Hill Start Assist throttle applied.
Page 351 STARTING AND OPERATING 349 Disabling And Enabling HSA WARNING! This feature can be turned on or turned off. To change the current setting, proceed as follows: If you use a trailer brake controller with your trailer, the trailer brakes may be activated and For vehicles equipped with the Electronic Vehicle Infor- deactivated with the brake switch.
Page 352: Hill Descent Control (Hdc) - If Equipped
350 STARTING AND OPERATING 3. Apply the parking brake. Hill Descent Control (HDC) – If Equipped HDC is only intended for low speed off-road driving. 4. Start the engine. HDC maintains vehicle speed while descending hills in 5. Rotate the steering wheel one-half turn to the left. off-road driving conditions by applying the brakes when necessary.
Page 353 STARTING AND OPERATING 351 control, the accelerator pedal will increase vehicle speed The “Hill Descent” button is located in the lower switch in the usual manner. When either the brake or the bank below the climate control. accelerator is released, HDC will control the vehicle at the original set speed.
Page 354: Electronic Stability Control (Esc)
352 STARTING AND OPERATING 2. Press the “Hill Descent” button. The “Hill Descent counteracting the oversteer or understeer condition. En- Control Indicator Light” in the instrument cluster will gine power may also be reduced to help the vehicle turn on solid. maintain the desired path.
Page 355 STARTING AND OPERATING 353 Light” also flashes when the TCS is active. If the “ESC ESC Operating Modes Activation/Malfunction Indicator Light” begins to flash Depending upon model and mode of operation, the ESC during acceleration, ease up on the accelerator and apply system has up to three operating modes: “ESC On”...
Page 356 354 STARTING AND OPERATING Partial Off – Two-Wheel Drive Vehicles And NOTE: To improve the vehicle’s traction when driving Four-Wheel Drive Vehicles In 2WD And 4WD High with snow chains, or when starting off in deep snow, sand, or gravel, it may be desirable to switch to the Range The “Partial Off”...
Page 357 STARTING AND OPERATING 355 Malfunction Indicator Light” will illuminate and an “ESC NOTE: OFF” message will appear in the odometer. Press and “Full Off” is the only operating mode for ESC in 4WD release the trip odometer button located on the instru- LOW range.
Page 358: Esc Activation/Malfunction Indicator Light And Esc Off Indicator Light
356 STARTING AND OPERATING ESC Activation/Malfunction Indicator Light And Malfunction Indicator Light” begins to flash during ac- ESC OFF Indicator Light celeration, ease up on the accelerator and apply as little The “ESC Activation/Malfunction Indicator throttle as possible. Be sure to adapt your speed and Light”...
Page 359: Tire Safety Information
STARTING AND OPERATING 357 TIRE SAFETY INFORMATION NOTE: P (Passenger) - Metric tire sizing is based on U.S. Tire Markings design standards. P-Metric tires have the letter “P” molded into the sidewall preceding the size designa- tion. Example: P215/65R15 95H. European-Metric tire sizing is based on European design standards.
Page 360 358 STARTING AND OPERATING Tires designed to this standard have the letter “T” High flotation tire sizing is based on U.S. design molded into the sidewall preceding the size designa- standards and it begins with the tire diameter molded tion. Example: T145/80D18 103M. into the sidewall.
Page 361 STARTING AND OPERATING 359 EXAMPLE: Service Description: 95 = Load Index — A numerical code associated with the maximum load a tire can carry H = Speed Symbol — A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions —...
Page 362: Tire Identification Number (Tin)
360 STARTING AND OPERATING Tire Identification Number (TIN) Look for the TIN on the outboard side of black sidewall The TIN may be found on one or both sides of the tire, tires as mounted on the vehicle. If the TIN is not found on however, the date code may only be on one side.
Page 363: Tire Terminology And Definitions
STARTING AND OPERATING 361 Tire Terminology And Definitions Term Definition B-Pillar The vehicle B-Pillar is a structural member of the body located between the front and rear door (of a four-door vehicle) running from the sill to the roof. Cold Tire Pressure Cold tire inflation pressure is defined as the tire pressure after the vehicle has not been driven for at least 3 hours, or driven less than 1 mile (1.6 km) after sitting for a three hour period.
Page 364: Tire Loading And Tire Pressure
362 STARTING AND OPERATING Tire Loading And Tire Pressure Tire And Loading Information Placard Tire Placard Location NOTE: The proper cold tire inflation pressure is listed on the driver’s side B-Pillar. Tire and Loading Information Placard Tire Placard Location...
Page 365 STARTING AND OPERATING 363 axles must not be exceeded. For further information on This placard tells you important information about GAWRs, vehicle loading, and trailer towing, refer to the: “Vehicle Loading” in this section. 1) number of people that can be carried in the vehicle 2) total weight your vehicle can carry To determine the maximum loading conditions of your vehicle, locate the statement “The combined weight of...
Page 366 364 STARTING AND OPERATING 3. Subtract the combined weight of the driver and pas- 6. If your vehicle will be towing a trailer, load from your sengers from XXX lbs or XXX kg. trailer will be transferred to your vehicle. Consult this manual to determine how this reduces the available 4.
Page 367 STARTING AND OPERATING 365...
Page 368: Tires - General Information
366 STARTING AND OPERATING Safety WARNING! WARNING! Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and Improperly inflated tires are dangerous and can increase your stopping distance. Use tires of the cause collisions. recommended load capacity for your vehicle. Never Under-inflation increases tire flexing and can re- overload them.
Page 369: Tire Inflation Pressures
STARTING AND OPERATING 367 stability of the vehicle and can produce a feeling of WARNING! (Continued) sluggish response or over responsiveness in the steering. Unequal tire pressures from one side of the ve- Unequal tire pressures can cause erratic and unpredict- hicle to the other can cause the vehicle to drift to able steering response.
Page 370 368 STARTING AND OPERATING Tire pressures change by approximately 1 psi (7 kPa) per CAUTION! 12°F (7°C) of air temperature change. Keep this in mind when checking tire pressure inside a garage, especially in After inspecting or adjusting the tire pressure, al- the winter.
Page 371: Tire Pressures For High Speed Operation
STARTING AND OPERATING 369 Tire Pressures For High Speed Operation Radial-Ply Tires The manufacturer advocates driving at safe speeds WARNING! within posted speed limits. Where speed limits or condi- tions are such that the vehicle can be driven at high Combining radial ply tires with other types of tires speeds, maintaining correct tire inflation pressure is very on your vehicle will cause your vehicle to handle...
Page 372: Compact Spare Tire - If Equipped
370 STARTING AND OPERATING vehicle. If your vehicle has this option refer to an Compact Spare Tire – If Equipped authorized tire dealer for the recommended tire rotation The compact spare is for temporary emergency use only. pattern. You can identify if your vehicle is equipped with a compact spare by looking at the spare tire description on If your vehicle is not equipped with an original equip- the Tire and Loading Information Placard located on the...
Page 373: Full Size Spare - If Equipped
STARTING AND OPERATING 371 your original equipment tire, replace (or repair) the WARNING! original equipment tire and reinstall on the vehicle at the first opportunity. Compact spares are for temporary emergency use only. With these spares, do not drive more than Limited-Use Spare –...
Page 374: Tire Spinning
372 STARTING AND OPERATING WARNING! WARNING! Limited-use spares are for emergency use only. In- Fast spinning tires can be dangerous. Forces gener- stallation of this limited-use spare tire affects vehicle ated by excessive wheel speeds may cause tire dam- handling. With this tire, do not drive more than the age or failure.
Page 375: Life Of Tire
STARTING AND OPERATING 373 CAUTION! Proper operation of four-wheel drive vehicles de- pends on tires of equal size, type and circumference on each wheel. Any difference in tire size can cause damage to the transfer case. Tire rotation schedule should be followed to balance tire wear. Life Of Tire The service life of a tire is dependent upon various factors including but not limited to:...
Page 376: Replacement Tires
374 STARTING AND OPERATING Information” placard for the size designation of your tire. WARNING! The Load Index and Speed Symbol for your tire will be found on the original equipment tire sidewall. See the Tires and the spare tire should be replaced after six Tire Sizing Chart example found in the Tire Safety years, regardless of the remaining tread.
Page 377: Tire Chains
STARTING AND OPERATING 375 WARNING! WARNING! (Continued) Failure to equip your vehicle with tires having Do not use a tire, wheel size or rating other than adequate speed capability can result in sudden tire that specified for your vehicle. Some combinations failure and loss of vehicle control.
Page 378 376 STARTING AND OPERATING CAUTION! CAUTION! (Continued) Install chains on the rear wheels as tightly as To avoid damage to your vehicle, tires, or chains, possible and then retighten after driving about ⁄ observe the following precautions: mile (0.8 km). Do not use tire chains on vehicles equipped with Do not exceed 45 mph (72 km/h).
Page 379: Tire Rotation Recommendations
STARTING AND OPERATING 377 These cautions apply to all chain traction devices, includ- The suggested rotation method is the “forward-cross” ing link and cable (radial) chains. shown in the following diagram. This rotation pattern does not apply to some directional tires that must not be TIRE ROTATION RECOMMENDATIONS reversed.
Page 380: Tire Pressure Monitor System (Tpms)
378 STARTING AND OPERATING three hour period. The cold tire inflation pressure must CAUTION! not exceed the maximum inflation pressure molded into the tire sidewall. Refer to “Tires – General Information” Proper operation of four-wheel drive vehicles de- in “Starting and Operating” for information on how to pends on tires of equal size, type and circumference properly inflate the vehicle’s tires.
Page 381 STARTING AND OPERATING 379 cold placard pressure in order for the “Tire Pressure Telltale Light” will turn off only after the tires are inflated Monitoring Telltale Light” to turn off. The system will to the vehicle’s recommended cold placard pressure automatically update and the “Tire Pressure Monitoring value.
Page 382: Base System
380 STARTING AND OPERATING The TPMS is not a substitute for proper tire mainte- CAUTION! (Continued) nance, and it is the driver’s responsibility to maintain After inspecting or adjusting the tire pressure, correct tire pressure using an accurate tire pressure always reinstall the valve stem cap.
Page 383 STARTING AND OPERATING 381 The TPMS consists of the following components: Tire Pressure Monitoring Low Pressure Warnings The “Tire Pressure Monitoring Telltale Light” will Receiver Module illuminate in the instrument cluster and a chime Four Tire Pressure Monitoring Sensors will sound when tire pressure is low in one or more of the four active road tires.
Page 384 382 STARTING AND OPERATING sequence will repeat, providing the system fault still Vehicles With Full-Size Spare exists. The “Tire Pressure Monitoring Telltale Light” will 1. The matching full-size spare wheel and tire assembly turn off when the fault condition no longer exists. A has a tire pressure monitoring sensor that can be moni- system fault can occur due to any of the following: tored by the TPMS.
Page 385: Premium System - If Equipped
STARTING AND OPERATING 383 2. If you install the compact spare tire in place of a road Premium System – If Equipped tire that has a pressure below the low-pressure warning The Tire Pressure Monitor System (TPMS) uses wireless limit, a chime will sound and the “TPMS Telltale Light” technology with wheel rim mounted electronic sensors to will turn on upon the next ignition key cycle.
Page 386 384 STARTING AND OPERATING Various Tire Pressure Monitoring System messages, Tire Pressure Monitoring Low Pressure Warnings which display in the Electronic Vehicle Information The “Tire Pressure Monitoring Telltale Light” will Center (EVIC) illuminate in the instrument cluster and a chime will sound when tire pressure is low in one or Tire Pressure Monitoring Telltale Light more of the four active road tires.
Page 387 STARTING AND OPERATING 385 Should this occur, you should stop as soon as possible seconds and then display dashes (- -) in place of the and inflate the tires with low pressure (those flashing in pressure value to indicate which sensor is not being the EVIC graphic) to the vehicle’s recommended cold received.
Page 388 386 STARTING AND OPERATING If the ignition key is cycled, this sequence will repeat, Vehicles With Full-Size Spare providing the system fault still exists. If the system fault 1. The matching full size spare wheel and tire assembly no longer exists, the “Tire Pressure Monitoring Telltale has a tire pressure monitoring sensor that can be moni- Light”...
Page 389 STARTING AND OPERATING 387 value. The EVIC will also display a “SPARE LOW addition, the EVIC will display a CHECK TPM SYS- PRESSURE” message to remind you to service the flat TEM message for three seconds and then display dashes tire.
Page 390: General Information
388 STARTING AND OPERATING vehicle may need to be driven for up to 20 minutes above FUEL REQUIREMENTS 15 mph (24 km/h) in order for the TPMS to receive this All engines are designed to meet all emis- information. sions regulations and provide excellent fuel economy and performance when us- General Information ing high quality unleaded “regular”...
Page 391: Reformulated Gasoline
STARTING AND OPERATING 389 Over 40 auto manufacturers worldwide have issued and Gasoline/Oxygenate Blends endorsed consistent gasoline specifications (the World- Some fuel suppliers blend unleaded gasoline with oxy- wide Fuel Charter, WWFC) which define fuel properties genates such as Ethanol. Fuels blended with oxygenates necessary to deliver enhanced emissions, performance, may be used in your vehicle.
Page 392: E-85 Usage In Non-Flex Fuel Vehicles
390 STARTING AND OPERATING E-85 Usage In Non-Flex Fuel Vehicles disconnect and reconnect the battery to reset the Non-FFV vehicles are compatible with gasoline contain- engine controller memory ing 10% ethanol (E10). Gasoline with higher ethanol More extensive repairs will be required for prolonged content may void the vehicle’s warranty.
Page 393: Materials Added To Fuel
STARTING AND OPERATING 391 MMT can be used at levels higher than those allowed in CAUTION! (Continued) the United States. MMT is prohibited in Federal and The use of leaded gas is prohibited by Federal law. California reformulated gasoline. Using leaded gasoline can impair engine perfor- Materials Added To Fuel mance, and damage the emission control system.
Page 394: Carbon Monoxide Warnings
392 STARTING AND OPERATING NOTE: Intentional tampering with emissions control WARNING! (Continued) systems can result in civil penalties being assessed Do not inhale exhaust gases. They contain carbon against you. monoxide, a colorless and odorless gas, which can Carbon Monoxide Warnings kill.
Page 395: Adding Fuel
STARTING AND OPERATING 393 ADDING FUEL CAUTION! Fuel Filler Cap (Gas Cap) Damage to the fuel system or emission control The gas cap is located behind the fuel filler door, on the system could result from using an improper fuel driver’s side of the vehicle.
Page 396: Loose Fuel Filler Cap Message
394 STARTING AND OPERATING If the gas cap is not tightened properly, the MIL will WARNING! come on. Be sure the gas cap is tightened every time the vehicle is refueled. Never have any smoking materials lit in or near the vehicle when the gas cap is removed or the Loose Fuel Filler Cap Message tank is being filled.
Page 397: Vehicle Loading
STARTING AND OPERATING 395 VEHICLE LOADING Gross Vehicle Weight Rating (GVWR) The GVWR is the total permissible weight of your vehicle Certification Label including driver, passengers, vehicle, options, trailer As required by National Highway Traffic Safety Admin- tongue weight, and cargo. The label also specifies maxi- istration regulations, your vehicle has a certification label mum capacities of front and rear axle systems (GAWR).
Page 398 396 STARTING AND OPERATING Each axle’s GAWR is determined by the components in Curb Weight the system with the lowest load carrying capacity (axle, The curb weight of a vehicle is defined as the total weight springs, tires, or wheels). Heavier axles or suspension of the vehicle with all fluids, including vehicle fuel, at full components, sometimes specified by purchasers for in- capacity conditions, and with no occupants or cargo...
Page 399: Trailer Towing
STARTING AND OPERATING 397 the front or rear axles has been exceeded, but the total TRAILER TOWING load is within the specified GVWR. If so, weight must be In this section, you will find safety tips and information shifted from front to rear, or rear to front, as appropriate on limits to the type of towing you can reasonably do until the specified weight limitations are met.
Page 400 398 STARTING AND OPERATING exceed the GVWR. Refer to “Vehicle Loading/Vehicle Gross Combination Weight Rating (GCWR) Certification Label” in “Starting and Operating” for The GCWR is the total permissible weight of your vehicle further information. and trailer when weighed in combination. Gross Trailer Weight (GTW) NOTE: The GCWR rating includes a 150 lbs (68 kg) The GTW is the weight of the trailer plus the weight of all...
Page 401 STARTING AND OPERATING 399 Tongue Weight (TW) of hitches are the most popular on the market today and The tongue weight is the downward force exerted on the they are commonly used to tow small- and medium- hitch ball by the trailer. In most cases, it should not be less sized trailers.
Page 402 400 STARTING AND OPERATING WARNING! An improperly adjusted Weight Distributing Hitch system may reduce handling, stability, brak- ing performance, and could result in a collision. Weight Distributing Systems may not be compat- ible with Surge Brake Couplers. Consult with your hitch and trailer manufacturer or a reputable Rec- reational Vehicle...
Page 403 STARTING AND OPERATING 401 With Weight Distributing Hitch (Correct) Improper Adjustment of Weight-Distributing Hitch (Incorrect)
Page 404: Trailer Hitch Classification
402 STARTING AND OPERATING Trailer Hitch Classification Trailer Hitch Classification Definitions Your vehicle is capable of towing trailers up to 2,000 lbs Class Max. Trailer Hitch Industry (907 kg) without added equipment or alterations to the Standards standard equipment. Your vehicle may be factory Class I - Light Duty 2,000 lbs (907 kg) equipped for safe towing of trailers weighing over...
Page 405: Trailer Towing Weights (Maximum Trailer Weight Ratings)
STARTING AND OPERATING 403 Trailer Towing Weights (Maximum Trailer Weight Ratings) The following chart provides the maximum trailer weight ratings towable for your given drivetrain. Engine/ Model Frontal Area Max. GTW (Gross Trailer Max. Tongue Wt. (See Transmission Wt.) Note) 3.7L/Automatic 32 sq ft (2.97 sq m) 2,000 lbs (907 kg)
Page 406 404 STARTING AND OPERATING When Towing Trailers With Gross Trailer Weight (GTW) Between 3,500 Lbs (1 588 kg) And 5,000 Lbs (2 268 kg) The following chart provides maximum trailer weight ratings towable for the following engine/transmission combinations, ONLY if using a weight distributing hitch. Engine/ Model Frontal Area...
Page 407: Trailer And Tongue Weight
STARTING AND OPERATING 405 Trailer And Tongue Weight Always load a trailer with 60% to 65% of the weight in the front of the trailer. This places 10% to 15% of the Gross Trailer Weight (GTW) on the tow hitch of your vehicle.
Page 408: Towing Requirements
406 STARTING AND OPERATING NOTE: Remember that everything put into or on the CAUTION! (Continued) trailer adds to the load on your vehicle. Also, additional Then, during the first 500 miles (805 km) that a factory-installed options, or authorized dealer-installed trailer is towed, do not drive over 50 mph options, must be considered as part of the total load on (80 km/h) and do not make starts at full throttle.
Page 409 STARTING AND OPERATING 407 WARNING! (Continued) WARNING! (Continued) Make certain that the load is secured in the trailer Vehicles with trailers should not be parked on a and that is will not shift during travel. When grade. When parking, apply the parking brake on trailering cargo that is not fully secured, dynamic the tow vehicle.
Page 410 408 STARTING AND OPERATING Towing Requirements – Tires on replacement tires and for the proper tire replace- ment procedures. Replacing tires with a higher load − Do not attempt to tow a trailer while using a compact carrying capacity will not increase the vehicle’s GVWR spare tire.
Page 411 STARTING AND OPERATING 409 CAUTION! WARNING! (Continued) Towing any trailer will increase your stopping If the trailer weighs more than 1,000 lbs (454 kg) distance. When towing you should allow for addi- loaded, it should have its own brakes, and they tional space between your vehicle and the vehicle should be of adequate capacity.
Page 412 410 STARTING AND OPERATING The electrical connections are all complete to the vehicle but you must mate the harness to a trailer connector. Refer to the following illustrations. Seven-Pin Connector 1 — Battery 5 — Ground 2 — Backup Lamps 6 —...
Page 413: Towing Tips
STARTING AND OPERATING 411 Towing Tips If you REGULARLY tow a trailer for more than 45 min- Before setting out on a trip, practice turning, stopping, utes of continuous operation, then change the automatic and backing the trailer in an area located away from transmission fluid and filter according to the interval heavy traffic.
Page 414 412 STARTING AND OPERATING Electronic Speed Control – If Equipped Cooling System To reduce potential for engine and transmission over- − Do not use in hilly terrain or with heavy loads. heating, take the following actions: − When using the speed control, if you experience speed −...
Page 415: Recreational Towing (Behind Motorhome, Etc.)
STARTING AND OPERATING 413 RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) Towing This Vehicle Behind Another Vehicle Towing Condition Wheel OFF the Two-Wheel Drive Four-Wheel Drive Models Ground Models See Instructions Transmission in PARK Flat Tow NONE NOT ALLOWED Transfer case in NEUTRAL (N) Tow in forward direction Front NOT ALLOWED...
Page 416: Recreational Towing - Two-Wheel Drive Models
414 STARTING AND OPERATING Recreational Towing — Two-Wheel Drive Models 7. Disconnect the negative battery cable and secure it Recreational towing is allowed if the rear wheels are OFF away from the battery post. the ground. This may be accomplished using a tow dolly Flat towing (with all four wheels on the ground) is or vehicle trailer.
Page 417: Recreational Towing - Four-Wheel Drive Models
STARTING AND OPERATING 415 and reinstallation procedures, including flange orienta- CAUTION! tion/alignment, use of thread-locking compound, proper Front or rear wheel lifts should not be used. bolt torque specifications, etc. Internal damage to the transmission or transfer case will occur if a front or rear wheel lift is used CAUTION! when recreational towing.
Page 418 416 STARTING AND OPERATING Shifting Into NEUTRAL (N) CAUTION! WARNING! It is necessary to follow these steps to be certain that the transfer case is fully in NEUTRAL (N) before You or others could be injured if you leave the recreational towing to prevent damage to internal vehicle unattended with the transfer case in the parts.
Page 419 STARTING AND OPERATING 417 button (located above the selector switch) for four sec- 8. Start the engine. onds, until the light behind the N symbol starts to blink, 9. Shift the transmission into REVERSE. indicating shift in progress. The light will stop blinking (stay on solid) when the shift to N (Neutral) is complete.
Page 420 418 STARTING AND OPERATING 14. Attach the vehicle to the tow vehicle using a suitable lights to be operable. If the ignition switch is not in the tow bar. ON/RUN position, the shift will not take place and no position indicator lights will be on or flashing. 15.
Page 421 STARTING AND OPERATING 419 6. Press and hold the brake pedal. 9. After the N (Neutral) indicator light turns off, release the N (Neutral) button. 7. Shift the transmission into NEUTRAL. 10. After the N (Neutral) button has been released, the 8.
Page 422 420 STARTING AND OPERATING 17. Shift the transmission into DRIVE, release the brake The ignition switch must be in the ON/RUN position pedal, and check that the vehicle operates normally. for a shift to take place and for the position indicator lights to be operable.
Page 423: What To Do In Emergencies
WHAT TO DO IN EMERGENCIES CONTENTS Hazard Warning Flashers ....422 Jump-Starting Procedures ....430 If Your Engine Overheats .
Page 424: Hazard Warning Flashers
422 WHAT TO DO IN EMERGENCIES HAZARD WARNING FLASHERS IF YOUR ENGINE OVERHEATS The Hazard Warning flasher switch is located in the In any of the following situations, you can reduce the switch bank below the climate controls. potential for overheating your engine by taking the appropriate action.
Page 425: Jacking And Tire Changing
WHAT TO DO IN EMERGENCIES 423 NOTE: There are steps that you can take to slow down JACKING AND TIRE CHANGING an impending overheat condition: WARNING! If your air conditioner (A/C) is on, turn it off. The A/C system adds heat to the engine cooling system and Do not attempt to change a tire on the side of the turning the A/C off can help remove this heat.
Page 426: Jack Location
424 WHAT TO DO IN EMERGENCIES WARNING! (Continued) The jack is designed to be used as a tool for changing tires only. The jack should not be used to lift the vehicle for service purposes. The vehicle should be jacked on a firm level surface only. Avoid ice or slippery areas.
Page 427: Spare Tire Removal
WHAT TO DO IN EMERGENCIES 425 Spare Tire Removal CAUTION! Fit the jack handle extension over the drive nut located in the rear cargo area inside the vehicle. Use the lug wrench The winch mechanism is designed for use with the to rotate the nut counterclockwise until the spare is on jack extension tube only.
Page 428: Preparations For Jacking
426 WHAT TO DO IN EMERGENCIES Preparations For Jacking 6. Block both the front and rear of the wheel diagonally opposite of the jack- 1. Park the vehicle on a firm level surface as far from the ing position. For example, if changing edge of the roadway as possible.
Page 429 WHAT TO DO IN EMERGENCIES 427 WARNING! (Continued) Turn on the Hazard Warning flasher. Block the wheel diagonally opposite the wheel to be raised. Set the parking brake firmly and set an automatic Jack Warning Label transmission in PARK; a manual transmission in REVERSE.
Page 430 428 WHAT TO DO IN EMERGENCIES 3. Loosen (but do not remove) the wheel lug nuts by For the rear tires, place it under the axle by the wheel to turning them to the left one turn while the wheel is still be changed.
Page 431 WHAT TO DO IN EMERGENCIES 429 and enough clearance is obtained to install the spare tire. 8. Lower the vehicle by turning the jack screw to the left, Minimum tire lift provides maximum stability. and remove the jack. 9. Finish tightening the lug nuts. Push down on the WARNING! wrench while tightening for increased leverage.
Page 432: Jump-Starting Procedures
430 WHAT TO DO IN EMERGENCIES 12. Remove blocks from wheels. WARNING! JUMP-STARTING PROCEDURES Do not attempt jump-starting if the battery is frozen. If your vehicle has a discharged battery it can be jump- It could rupture or explode and cause personal injury. started using a set of jumper cables and a battery in another vehicle or by using a portable battery booster Preparations For Jump-Start...
Page 433 WHAT TO DO IN EMERGENCIES 431 WARNING! Take care to avoid the radiator cooling fan when- ever the hood is raised. It can start anytime the ignition switch is on. You can be injured by moving fan blades. Remove any metal jewelry such as watch bands or bracelets that might make an inadvertent electrical contact.
Page 434: Jump-Starting Procedure
432 WHAT TO DO IN EMERGENCIES 3. If using another vehicle to jump-start the battery, park CAUTION! the vehicle within the jumper cables reach, set the parking brake and make sure the ignition is OFF. Failure to follow these procedures could result in damage to the charging system of the booster vehicle WARNING! or the discharged vehicle.
Page 435 WHAT TO DO IN EMERGENCIES 433 8. Disconnect the opposite end of the positive (+) jumper WARNING! cable from the positive (+) post of the booster battery. Do not connect the cable to the negative post (-) of the 9. Disconnect the positive (+) end of the jumper cable discharged battery.
Page 436: Freeing A Stuck Vehicle
434 WHAT TO DO IN EMERGENCIES FREEING A STUCK VEHICLE NOTE: If your vehicle is equipped with Traction Con- If your vehicle becomes stuck in mud, sand or snow, it trol or Electronic Stability Control (ESC), turn the system can often be moved by a rocking motion. Turn your OFF before attempting to “rock”...
Page 437: Shift Lever Override
WHAT TO DO IN EMERGENCIES 435 SHIFT LEVER OVERRIDE WARNING! If a malfunction occurs and the shift lever cannot be moved out of the PARK position, you can use the Fast spinning tires can be dangerous. Forces gener- following procedure to temporarily move the shift lever: ated by excessive wheel speeds may cause damage, or even failure, of the axle and tires.
Page 438: Towing A Disabled Vehicle
436 WHAT TO DO IN EMERGENCIES 3. Turn the ignition to the ON/RUN position without 6. Move the shift lever into the NEUTRAL position. starting the engine. 7. The vehicle may then be started in NEUTRAL. 4. Press and maintain firm pressure on the brake pedal. 8.
Page 439 WHAT TO DO IN EMERGENCIES 437 Towing Condition Wheels OFF 2WD Models 4WD Models the Ground See instructions in “Recreational Tow- ing” under “Starting and Operating” If transmission is operable: Transmission in PARK Transmission in NEUTRAL Flat Tow NONE Transfer Case in NEUTRAL 30 mph max speed(48 km/h) Tow in forward direction 15 miles (24 km) max distance...
Page 440: Towing Without The Ignition Key Fob
438 WHAT TO DO IN EMERGENCIES If the vehicle’s battery is discharged, refer to “Shift Lever Towing Without The Ignition Key Fob Override” in “What To Do In Emergencies” for instruc- Special care must be taken when the vehicle is towed tions on shifting the automatic transmission out of the with the ignition in the LOCK/OFF position.
Page 441 WHAT TO DO IN EMERGENCIES 439 CAUTION! WARNING! Towing faster than 30 mph (48 km/h) or farther than If the driveshaft is removed, the vehicle can roll even 15 miles (24 km) with rear wheels on the ground can if the transmission is in PARK, which could cause cause severe damage to the transmission.
Page 442: Four-Wheel Drive Models
440 WHAT TO DO IN EMERGENCIES Four-Wheel Drive Models CAUTION! The manufacturer recommends towing with all wheels OFF the ground. Acceptable methods are to tow the Front or rear wheel lifts should not be used. vehicle on a flatbed or with one end of vehicle raised and Internal damage to the transmission or transfer the opposite end on a towing dolly.
Page 443: Maintaining Your Vehicle
MAINTAINING YOUR VEHICLE CONTENTS Engine Compartment — 3.7L ... . . 443 Engine Oil Filter ..... 450 Onboard Diagnostic System —...
Page 444 442 MAINTAINING YOUR VEHICLE Cooling System ..... 458 Bulb Replacement ..... 484 Brake System .
Page 445: Engine Compartment - 3.7L
MAINTAINING YOUR VEHICLE 443 ENGINE COMPARTMENT — 3.7L 1 — Air Cleaner Filter 6 — Washer Fluid Reservoir 2 — Engine Oil Dipstick 7 — Engine Coolant Reservoir 3 — Brake Fluid Reservoir 8 — Engine Oil Fill 4 — Integrated Power Module (Fuses) 9 —...
Page 446: Onboard Diagnostic System - Obd Ii
444 MAINTAINING YOUR VEHICLE ONBOARD DIAGNOSTIC SYSTEM — OBD II CAUTION! Your vehicle is equipped with a sophisticated onboard diagnostic system called OBD II. This system monitors Prolonged driving with the MIL on could cause the performance of the emissions, engine, and automatic further damage to the emission control system.
Page 447: Emissions Inspection And Maintenance Programs
MAINTAINING YOUR VEHICLE 445 “Electronic Vehicle Information Center (EVIC)” in “Un- For states that require an Inspection and Mainte- derstanding Your Instrument Panel” for further informa- nance (I/M), this check verifies the “Malfunction tion. Tighten the gas cap until a clicking sound is heard. Indicator Light (MIL)”...
Page 448: Replacement Parts
446 MAINTAINING YOUR VEHICLE 3. As soon as you turn the ignition switch to the ON you may need to do nothing more than drive your position, you will see the MIL symbol come on as part of vehicle as you normally would in order for your OBD II a normal bulb check.
Page 449: Dealer Service
MAINTAINING YOUR VEHICLE 447 DEALER SERVICE MAINTENANCE PROCEDURES Your authorized dealer has the qualified service person- The pages that follow contain the required maintenance nel, special tools, and equipment to perform all service services determined by the engineers who designed your operations in an expert manner.
Page 450: Engine Oil
448 MAINTAINING YOUR VEHICLE Checking the oil while the vehicle is on level ground will CAUTION! (Continued) improve the accuracy of the oil level readings. Always Your vehicle has been built with improved fluids maintain the oil level within the SAFE zone on the that protect the performance and durability of dipstick.
Page 451 MAINTAINING YOUR VEHICLE 449 NOTE: Under no circumstances should oil change CAUTION! intervals exceed 8,000 miles (13 000 km) or six months, whichever occurs first. Do not use chemical flushes in your engine oil as the chemicals can damage your engine. Such damage is Engine Oil Selection not covered by the New Vehicle Limited Warranty.
Page 452: Engine Oil Filter
450 MAINTAINING YOUR VEHICLE Synthetic Engine Oils Engine Oil Filter You may use synthetic engine oils provided the recom- The engine oil filter should be replaced with a new filter mended oil quality requirements are met, and the recom- at every engine oil change. mended maintenance intervals for oil and filter changes NOTE: For best access to the oil filter, a drive on hoist are followed.
Page 453: Maintenance-Free Battery
MAINTAINING YOUR VEHICLE 451 Maintenance-Free Battery WARNING! Your vehicle is equipped with a maintenance-free battery. You will never have to add water, nor is periodic main- The air induction system (air cleaner, hoses, etc.) can tenance required. provide a measure of protection in the case of engine backfire.
Page 454 452 MAINTAINING YOUR VEHICLE WARNING! (Continued) CAUTION! Battery gas is flammable and explosive. Keep It is essential when replacing the cables on the flame or sparks away from the battery. Do not use battery that the positive cable is attached to the a booster battery or any other booster source with positive post and the negative cable is attached to an output greater than 12 Volts.
Page 455: Air Conditioner Maintenance
MAINTAINING YOUR VEHICLE 453 Air Conditioner Maintenance WARNING! For best possible performance, your air conditioner should be checked and serviced by an authorized dealer Use only refrigerants and compressor lubricants at the start of each warm season. This service should approved by the manufacturer for your air condi- include cleaning of the condenser fins and a performance tioning system.
Page 456: A/C Air Filter - If Equipped
454 MAINTAINING YOUR VEHICLE Refrigerant Recovery And Recycling Body Lubrication R-134a air conditioning refrigerant is a hydrofluoro- Locks and all body pivot points, including such items as carbon (HFC) that is endorsed by the Environmental seat tracks, door hinge pivot points and rollers, liftgate, Protection Agency and is an ozone-saving product.
Page 457: Windshield Wiper Blades
MAINTAINING YOUR VEHICLE 455 amount of a high quality lubricant, such as MOPAR performance of blades may be present with chattering, Lock Cylinder Lubricant or equivalent, directly into the marks, water lines or wet spots. If any of these conditions lock cylinder.
Page 458: Exhaust System
456 MAINTAINING YOUR VEHICLE exceeds the temperature range of your climate. This have an authorized technician inspect the complete ex- rating information can be found on most washer fluid haust system and adjacent body areas for broken, dam- containers. aged, deteriorated, or mispositioned parts. Open seams or loose connections could permit exhaust fumes to seep WARNING! into the passenger compartment.
Page 459 MAINTAINING YOUR VEHICLE 457 WARNING! (Continued) CAUTION! (Continued) A hot exhaust system can start a fire if you park Damage to the catalytic converter can result if your over materials that can burn. Such materials might vehicle is not kept in proper operating condition. be grass or leaves coming into contact with your In the event of engine malfunction, particularly exhaust system.
Page 460: Cooling System
458 MAINTAINING YOUR VEHICLE NOTE: Intentional tampering with emissions control Do not idle the engine with any spark plug wires systems can result in civil penalties being assessed disconnected or removed, such as when diagnostic against you. testing, or for prolonged periods during very rough idle or malfunctioning operating conditions.
Page 461 MAINTAINING YOUR VEHICLE 459 rusty in appearance, the system should be drained, bottle. DO NOT REMOVE THE COOLANT PRESSURE flushed, and refilled with fresh coolant. Check the front CAP WHEN THE COOLING SYSTEM IS HOT. of the A/C condenser (if equipped) or radiator for any Cooling System –...
Page 462 460 MAINTAINING YOUR VEHICLE Adding Engine Coolant CAUTION! Your vehicle has been built with an improved engine Mixing of engine coolant (antifreeze) other than coolant (antifreeze) that allows extended maintenance specified HOAT engine coolant (antifreeze), may intervals. This engine coolant (antifreeze) can be used up result in engine damage and may decrease corro- to five years or 104,000 miles (169 000 km) before sion protection.
Page 463 MAINTAINING YOUR VEHICLE 461 Mix a minimum solution of 50% HOAT engine coolant Cooling System Pressure Cap and distilled water. Use higher concentrations (not to The cap must be fully tightened to prevent loss of exceed 70%) if temperatures below 34°F ( 37°C) are coolant, and to ensure that coolant will return to the anticipated.
Page 464 462 MAINTAINING YOUR VEHICLE Engine Coolant Level WARNING! (Continued) The coolant bottle provides a quick visual method for Do not use a pressure cap other than the one determining that the coolant level is adequate. With the specified for your vehicle. Personal injury or en- engine idling, and warm to normal operating tempera- gine damage may result.
Page 465 MAINTAINING YOUR VEHICLE 463 Points To Remember If frequent engine coolant (antifreeze) additions are required, or if the level in the coolant recovery bottle NOTE: When the vehicle is stopped after a few miles/ does not drop when the engine cools, the cooling kilometers of operation, you may observe vapor coming system should be pressure tested for leaks.
Page 466: Brake System
464 MAINTAINING YOUR VEHICLE Do not change the thermostat for Summer or Winter Brake Master Cylinder operation. If replacement is ever necessary, install The fluid in the master cylinder should be checked when ONLY the correct type thermostat. Other designs may performing under hood services or immediately if the result in unsatisfactory cooling performance, poor gas “Brake Warning Light”...
Page 467 MAINTAINING YOUR VEHICLE 465 WARNING! WARNING! (Continued) To avoid contamination from foreign matter or Use only manufacturer’s recommended brake moisture, use only new brake fluid or fluid that fluid. Refer to “Fluids, Lubricants, and Genuine has been in a tightly closed container. Keep the Parts”...
Page 468: Automatic Transmission
466 MAINTAINING YOUR VEHICLE WARNING! (Continued) CAUTION! Do not allow petroleum based fluid to contami- Using a transmission fluid other than the manufac- nate the brake fluid. Brake seal components could turer’s recommended fluid may cause deterioration be damaged, causing partial or complete brake in transmission shift quality and/or torque converter failure.
Page 469 MAINTAINING YOUR VEHICLE 467 CAUTION! CAUTION! Do not use chemical flushes in your transmission as Using a transmission fluid other than the manufac- the chemicals can damage your transmission compo- turer’s recommended fluid may cause deterioration nents. Such damage is not covered by the New in transmission shift quality and/or torque converter Vehicle Limited Warranty.
Page 470: Transfer Case
468 MAINTAINING YOUR VEHICLE Transfer Case Adding Fluid Fluid should be added only to fill hole until fluid begins Fluid Level Check to run out of the hole. The fluid level should be to the bottom edge of the fill hole (1) when the vehicle is in a level position.
Page 471: Front/Rear Axle Fluid
MAINTAINING YOUR VEHICLE 469 Frequency Of Fluid Change Rear axle lubricant should be 0.5 in (11 mm) below the Under normal operating conditions, the fluid installed at bottom edge of the oil fill hole when the vehicle is in a the factory will give satisfactory lubrication for the life of level position.
Page 472: Sky Slider™ Top Care
470 MAINTAINING YOUR VEHICLE Sky Slider™ Top Care General Cleaning Immediate removal of any contaminant is recommended. Careful vacuuming of the top before washing is helpful Regular washing of the top will enhance its life and in removing dust and other foreign particles. appearance, and make successive cleaning easier.
Page 473 MAINTAINING YOUR VEHICLE 471 Allow the top to dry before opening. Vacuuming the equivalent to the complete stain, extending 2 in (50 mm) top with a wet/dry shop vacuum will decrease the beyond the stain. With a soft bristle brush, scrub in all tops drying time, ensure removal of all dirt, and delete directions over the stain.
Page 474: Appearance Care And Protection From Corrosion
472 MAINTAINING YOUR VEHICLE Weather Strip Care The following maintenance recommendations will enable Lubricate the weather strips periodically with MOPAR you to obtain maximum benefit from the corrosion Weather Strip Lubricant or equivalent, to keep them soft resistance built into your vehicle. and pliable.
Page 475 MAINTAINING YOUR VEHICLE 473 Washing CAUTION! Wash your vehicle regularly. Always wash your ve- Do not use abrasive or strong cleaning materials hicle in the shade using MOPAR Car Wash or equiva- such as steel wool or scouring powder, which will lent, or a mild car wash soap, and rinse the panels scratch metal and painted surfaces.
Page 476 474 MAINTAINING YOUR VEHICLE If you detect any stone chips or scratches in the paint, Wheel And Wheel Trim Care touch them up immediately. The cost of such repairs is All wheels and wheel trim, especially aluminum and considered the responsibility of the owner. chrome-plated wheels should be cleaned regularly with mild soap and water to prevent corrosion.
Page 477 MAINTAINING YOUR VEHICLE 475 For tough stains, apply MOPAR Total Clean or Cleaning Interior Trim equivalent, or a mild soap solution to a clean, damp Clean interior trim with a damp cloth and MOPAR Total cloth and remove the stain. Use a fresh, damp towel to Clean or equivalent, and if necessary, follow with remove soap residue.
Page 478 476 MAINTAINING YOUR VEHICLE leather upholstery. Application of a leather conditioner is Do not use abrasive cleaning components, solvents, steel not required to maintain the original condition. wool or other aggressive material to clean the lenses. Glass Surfaces WARNING! All glass surfaces should be cleaned on a regular basis with MOPAR Glass Cleaner or any commercial Do not use volatile solvents for cleaning purposes.
Page 479 MAINTAINING YOUR VEHICLE 477 When cleaning the rear view mirror, spray cleaner on the Seat Belt Maintenance towel or rag that you are using. Do not spray cleaner Do not bleach, dye, or clean the seat belts with chemical directly on the mirror. solvents or abrasive cleaners.
Page 480: Fuses
478 MAINTAINING YOUR VEHICLE FUSES Cavity Cartridge Mini- Description Fuse Fuse Totally Integrated Power Module — — — The Totally Integrated Power Module is located in the 30 Amp — Transfer Case Module engine compartment near the battery. This center contains Pink –...
Page 481 MAINTAINING YOUR VEHICLE 479 Cavity Cartridge Mini- Description Cavity Cartridge Mini- Description Fuse Fuse Fuse Fuse 40 Amp — Power Seats – If 60 Amp — Radiator Fan Green Equipped Yellow — — — 30 Amp — Front Wiper Pink —...
Page 482 480 MAINTAINING YOUR VEHICLE Cavity Cartridge Mini- Description Cavity Cartridge Mini- Description Fuse Fuse Fuse Fuse — 25 Amp Power Inverter – If — 10 Amp Climate Control Sys- Natural Equipped tem – If Equipped — 20 Amp Rain Sensor – If —...
Page 483 MAINTAINING YOUR VEHICLE 481 Cavity Cartridge Mini- Description Cavity Cartridge Mini- Description Fuse Fuse Fuse Fuse — 10 Amp Airbag Module — 15 Amp Interior Lighting/ Blue Steering Wheel Switches – If — 15 Amp Exterior Lighting – Left Equipped/Switch Blue Front Park and Side Bank/Steering Column...
Page 484 482 MAINTAINING YOUR VEHICLE Cavity Cartridge Mini- Description Cavity Cartridge Mini- Description Fuse Fuse Fuse Fuse — 10 Amp Power Mirror Switch/ — 20 Amp Back-Up Lights Driver Window Switch Yellow — 10 Amp Ignition Switch/ — 10 Amp Airbag Module Wireless Control Module/Steering Col- —...
Page 485 MAINTAINING YOUR VEHICLE 483 Cavity Cartridge Mini- Description CAUTION! Fuse Fuse When installing the Integrated Power Module — — — cover, it is important to ensure the cover is prop- — 10 Amp Antilock Brakes/ erly positioned and fully latched. Failure to do so Stability Control Sys- may allow water to get into the Integrated Power tem Module/Stop...
Page 486: Replacement Bulbs
484 MAINTAINING YOUR VEHICLE REPLACEMENT BULBS BULB REPLACEMENT Headlamp LIGHT BULBS – Interior Bulb No. 1. Open the hood. Cargo Lamp......TL212–2 Overhead Console Lamp .
Page 487: Front Turn Signal And Front Side Marker Lamp
MAINTAINING YOUR VEHICLE 485 3. Gently flex the wheel-well liner forward to access the CAUTION! bulb. Do not touch the new bulb with your fingers. Oil 4. Rotate the bulb’s socket counterclockwise, and remove contamination will severely shorten bulb life. If the the bulb and socket assembly from the housing.
Page 488: Rear Tail/Stop, Turn Signal, And Back-Up Lamp
486 MAINTAINING YOUR VEHICLE 3. Rotate the bulb’s socket counterclockwise, and remove 2. Remove the screws that fasten the taillamp housing to the bulb and socket assembly from the fog lamp housing. the vehicle. 4. Pull the bulb out of the socket and insert the replace- 3.
Page 489: Fluid Capacities
MAINTAINING YOUR VEHICLE 487 FLUID CAPACITIES U.S. Metric Fuel (Approximate) 19.5 Gallons 73.8 Liters Engine Oil with Filter 3.7 Liter Engine (SAE 5W-20, API Certified) 5 Quarts 4.7 Liters Cooling System * 3.7 Liter Engine (MOPAR Antifreeze/Engine Coolant 5 14 Quarts 13.3 Liters Year/100,000 Mile Formula or equivalent) * Includes heater and coolant recovery bottle filled to MAX level.
Page 490: Fluids, Lubricants, And Genuine Parts
488 MAINTAINING YOUR VEHICLE FLUIDS, LUBRICANTS, AND GENUINE PARTS Engine Component Fluid, Lubricant, or Genuine Part Engine Coolant MOPAR Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hy- brid Organic Additive Technology) or equivalent. Engine Oil Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of Chrysler Material Standard MS-6395.
Page 491: Chassis
MAINTAINING YOUR VEHICLE 489 Chassis Component Fluid, Lubricant, or Genuine Part Automatic Transmission MOPAR ATF+4 Automatic Transmission Fluid or equivalent licensed ATF+4 product. Transfer Case MOPAR ATF+4 Automatic Transmission Fluid or equivalent licensed ATF+4 product. Front Axle SAE 80W-90 Multi-Purpose Type, GL-5 Gear Lubricant or equivalent. Rear Axle SAE 75W-90 Gear Lubricant or equivalent.
Page 493 MAINTENANCE SCHEDULES CONTENTS Maintenance Schedule ....492 Required Maintenance Intervals ..494...
Page 494 492 MAINTENANCE SCHEDULES MAINTENANCE SCHEDULE On Non-EVIC equipped vehicles “Change Oil” will flash The Scheduled Maintenance services listed in this in the instrument cluster odometer and a single chime manual must be done at the times or mileages specified will sound, indicating that an oil change is necessary. to protect your vehicle warranty and ensure the best Based on engine operation conditions the oil change vehicle performance and reliability.
Page 495 MAINTENANCE SCHEDULES 493 NOTE: referring to the steps described under “Electronic Vehicle The oil change indicator message will not monitor the Information Center (EVIC)/Oil Change Required” in time since the last oil change. Change your vehicles oil “Understanding Your Instrument Panel” or under “In- if it has been six months since your last oil change even strument Cluster Description/Odometer/Trip Odom- if the oil change indicator message is NOT illumi-...
Page 496 494 MAINTENANCE SCHEDULES Once A Month CAUTION! Check tire pressure and look for unusual wear or Failure to perform the required maintenance items damage. may result in damage to the vehicle. Inspect the battery and clean and tighten the terminals Proper operation of four-wheel drive vehicles de- as required.
Page 497 MAINTENANCE SCHEDULES 495 8,000 Miles (13,000 km) or 16,000 Miles (26,000 km) or 12 Months Maintenance Service 6 Months Maintenance Service Schedule Schedule Change the engine oil and engine oil filter. Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before Change the engine oil and engine oil 16,000 miles (26 000 km).
Page 498: Service Schedule
496 MAINTENANCE SCHEDULES 24,000 Miles (39,000 km) or 32,000 Miles (52,000 km) or 24 Months Maintenance Service 18 Months Maintenance Schedule Service Schedule Change the engine oil and engine oil filter. Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before Change the engine oil and engine oil 32,000 miles (52 000 km).
Page 499 MAINTENANCE SCHEDULES 497 40,000 Miles (65,000 km) or 48,000 Miles (78,000 km) or 36 Months Maintenance Service 30 Months Maintenance Schedule Service Schedule Change the engine oil and engine oil filter. Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before Change the engine oil and engine oil 48,000 miles (78 000 km).
Page 500 498 MAINTENANCE SCHEDULES 56,000 Miles (91,000 km) or 64,000 Miles (104,000 km) or 48 Months Maintenance Service 42 Months Maintenance Schedule Service Schedule Change the engine oil and engine oil filter. Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before Change the engine oil and engine oil 64,000 miles (104 000 km).
Page 501 MAINTENANCE SCHEDULES 499 72,000 Miles (117,000 km) or 80,000 Miles (130,000 km) or 60 Months Maintenance Service 54 Months Maintenance Schedule Service Schedule Change the engine oil and engine oil filter. Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before Change the engine oil and engine oil 80,000 miles (130 000 km).
Page 502 500 MAINTENANCE SCHEDULES 88,000 Miles (143,000 km) or 66 Months Maintenance Service Schedule Change the engine oil and engine oil filter. Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 88,000 miles (143 000 km). Odometer Reading Date Repair Order #...
Page 503 MAINTENANCE SCHEDULES 501 96,000 Miles (156,000 km) or 72 Months Maintenance Service Schedule Change the engine oil and engine oil filter. Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 96,000 miles (156 000 km). Replace the engine air cleaner filter.
Page 504 502 MAINTENANCE SCHEDULES 104,000 Miles (169,000 km) or 112,000 Miles (182,000 km) or 84 Months Maintenance Service 78 Months Maintenance Schedule Service Schedule Change the engine oil and engine oil filter. Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before Change the engine oil and engine oil 112,000 miles (182 000 km).
Page 505 MAINTENANCE SCHEDULES 503 120,000 Miles (195,000 km) or 90 Months Maintenance Service Schedule Change the engine oil and engine oil filter. Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 120,000 miles (195 000 km). Inspect the CV joints.
Page 506 504 MAINTENANCE SCHEDULES 128,000 Miles (208,000 km) or 96 Months Maintenance Service 136,000 Miles (221,000 km) or Schedule 102 Months Maintenance Change the engine oil and engine oil filter. Service Schedule Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before Change the engine oil and engine oil 128,000 miles (208 000 km).
Page 507 MAINTENANCE SCHEDULES 505 144,000 Miles (234,000 km) or 108 Months Maintenance Service 152,000 Miles (247,000 km) or Schedule 114 Months Maintenance Change the engine oil and engine oil filter. Service Schedule Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before Change the engine oil and engine oil 144,000 miles (234 000 km).
Page 508 506 MAINTENANCE SCHEDULES † This maintenance is recommended by the manufacturer to the owner, but is not required to maintain emissions warranty. WARNING! You can be badly injured working on or around a motor vehicle. Do only service work for which you have the knowledge and the right equipment.
Page 509: If You Need Consumer Assistance
IF YOU NEED CONSUMER ASSISTANCE CONTENTS Suggestions For Obtaining Service For Your Customer Assistance For The Hearing Or Vehicle......509 Speech Impaired (TDD/TTY) .
Page 510 508 IF YOU NEED CONSUMER ASSISTANCE Department Of Transportation Uniform Tire Traction Grades ..... 515 Quality Grades ......515 Temperature Grades .
Page 511: Suggestions For Obtaining Service For Your Vehicle
IF YOU NEED CONSUMER ASSISTANCE 509 SUGGESTIONS FOR OBTAINING SERVICE FOR the service advisor and list the items in order of priority. YOUR VEHICLE At many authorized dealers, you may obtain a rental vehicle at a minimal daily charge. If you need a rental, it Prepare For The Appointment is advisable to make these arrangements when you call If you’re having warranty work done, be sure to have the...
Page 512: Chrysler Group Llc Customer Center
510 IF YOU NEED CONSUMER ASSISTANCE This is why you should always talk to an authorized Chrysler Group LLC Customer Center dealer’s service manager first. Most matters can be re- P.O. Box 21–8004 solved with this process. Auburn Hills, MI 48321–8004 Phone: (877) 426–5337 If for some reason you are still not satisfied, talk to the general manager or owner of the authorized dealer-...
Page 513: Customer Assistance For The Hearing Or Speech Impaired (Tdd/Tty)
IF YOU NEED CONSUMER ASSISTANCE 511 Customer Assistance For The Hearing Or Speech the manufacturer’s service contracts. If you purchased a Impaired (TDD/TTY) manufacturer’s service contract, you will receive Plan To assist customers who have hearing difficulties, the Provisions and an Owner Identification Card in the mail manufacturer has installed special TDD (Telecommuni- within three weeks of the vehicle delivery date.
Page 514: Warranty Information
512 IF YOU NEED CONSUMER ASSISTANCE We appreciate that you have made a major investment WARRANTY INFORMATION when you purchased the vehicle. An authorized dealer See the Warranty Information Booklet, located on the has also made a major investment in facilities, tools, and DVD, for the terms and provisions of Chrysler Group training to assure that you are absolutely delighted with LLC warranties applicable to this vehicle and market.
Page 515: In Canada
IF YOU NEED CONSUMER ASSISTANCE 513 If NHTSA receives similar complaints, it may open an In Canada investigation, and if it finds that a safety defect exists in If you believe that your vehicle has a safety defect, you a group of vehicles, it may order a recall and remedy should contact the Customer Service Department imme- campaign.
Page 516 514 IF YOU NEED CONSUMER ASSISTANCE Service Manuals Owner’s Manuals These comprehensive Service Manuals provide the These Owner’s Manuals have been prepared with the information that students and professional technicians assistance of service and engineering specialists to need in diagnosing/troubleshooting, problem solving, acquaint you with specific Chrysler Group LLC ve- maintaining, servicing, and repairing Chrysler Group hicles.
Page 517 IF YOU NEED CONSUMER ASSISTANCE 515 DEPARTMENT OF TRANSPORTATION UNIFORM significantly from the norm due to variations in driving TIRE QUALITY GRADES habits, service practices, and differences in road charac- The following tire grading categories were established by teristics and climate. the National Highway Traffic Safety Administration.
Page 518 516 IF YOU NEED CONSUMER ASSISTANCE Temperature Grades WARNING! The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat The temperature grade for this tire is established for and its ability to dissipate heat, when tested under a tire that is properly inflated and not overloaded.
Page 519 INDEX...
Page 520 518 INDEX About Your Brakes ..... . . 339 Airbag, Window (Side Curtain) ....63 ABS (Anti-Lock Brake System) .
Page 521 INDEX 519 Automatic Door Locks ....31,32 B-Pillar Location ......362 Automatic Headlights .
Page 522 520 INDEX Bulbs, Light ......91,484 Cellular Phone ..... . . 103,295 Certification Label .
Page 523 INDEX 521 Compact Disc (CD) Maintenance ... . . 295 Selection of Coolant (Antifreeze) ..459,487,488 Compact Spare Tire ..... . 370 Corrosion Protection .
Page 524 522 INDEX Disposal Brake Assist System ....346 Antifreeze (Engine Coolant) ... . . 462 Electronic Roll Mitigation .
Page 525 INDEX 523 Coolant (Antifreeze) ....458,488 Engine Oil Viscosity Chart ....449 Cooling .
Page 526 524 INDEX Flashers Four Wheel Drive Hazard Warning ..... 422 Shifting ....321,324,327,330 Turn Signal .
Page 527 INDEX 525 Fuses ....... . 478 Gross Axle Weight Rating ....395,398 Gross Vehicle Weight Rating .
Page 528 526 INDEX Passing ......162 Ignition ....... 12 Replacing .
Page 529 INDEX 527 Jack Location ......424 Lead Free Gasoline ..... . 388 Jack Operation .
Page 530 528 INDEX Electronic Stability Program (ESP) Indicator . . 356 Oil Pressure ......225 Engine Temperature Warning ... . 227 Park .
Page 531 INDEX 529 Loading Vehicle ......395 Maintenance, Sunroof ..... 192 Tires .
Page 532 530 INDEX Vanity ......102 Oil, Engine ......448,488 Modifications/Alterations, Vehicle .
Page 533 INDEX 531 Overdrive OFF Switch ....319 Power Overheating, Engine ....228,422 Door Locks .
Page 534 532 INDEX Radio Operation ......295 Remote Control Rain Sensitive Wiper System ....168 Starting System .
Page 535 INDEX 533 Rotation, Tires ......377 Pretensioners ......50 Reminder .
Page 536 534 INDEX Selection of Coolant (Antifreeze) ..459,488 Side Window Demisters (Defrosters) ..306 Selection of Oil ......449 Signals, Turn .
Page 537 INDEX 535 Steering Tachometer ......225 Power ......337,339 Temperature Control, Automatic (ATC) .
Page 538 536 INDEX General Information ....366 Torque Converter Clutch ....321 High Speed .
Page 539 INDEX 537 Transaxle ......316 Trip Odometer Reset Button ....229 Automatic .
Page 540 538 INDEX Voice Recognition System (VR) ....133 Wind Buffeting ..... 39,192,197 Window Fogging .
Page 541 INSTALLATION OF RADIO TRANSMITTING EQUIPMENT Special design considerations are incorporated into this The antenna cable should be as short as practical and vehicle’s electronic system to provide immunity to radio routed away from the vehicle wiring when possible. Use frequency signals. Mobile two-way radios and telephone only fully shielded coaxial cable.
Page 542 Chrysler Group LLC 11KK74-126-AF Sixth Edition Printing in U.S.A.

This manual is also suitable for:

2011 liberty

Save PDF
