- Page 1 Installation manual Wireless LAN connecting adapter BRP069C41 BRP069C41 BRP069C51 BRP069C81 Installation manual English BRP069C82 Wireless LAN connecting adapter BRP069C41...
-
Page 2: Table Of Contents
5.5.1 To mount the adapter.............. 12 Starting up the system Configuration 7.1 To install the ONECTA app..............14 7.2 To configure the adapter..............14 Hand-over to the user Installation manual BRP069C51, BRP069C81, BRP069C82 Wireless LAN connecting adapter BRP069C41 4P567679-2H – 2022.04... -
Page 3: About This Document
▪ Format: Digital files on https://www.daikin.eu. Use the search function to find your model. ▪ Declaration of conformity: INFORMATION: Declaration of conformity Hereby, Daikin Industries Czech Republic s.r.o. declares that the radio equipment type BRP069C41 is in compliance with Directive 2014/53/EU S.I. 2017/1206: Radio Equipment Regulations 2017. -
Page 4: Specific Installer Safety Instructions
Latest revisions of the supplied documentation may be available on the regional Daikin website or via your dealer. The original documentation is written in English. All other languages are translations. - Page 5 ▪ In case you drop or damage the adapter, disconnect the indoor unit from its power supply. Otherwise, this can lead to fire or malfunction. If this happens, consult your dealer. Installation manual BRP069C51, BRP069C81, BRP069C82 Wireless LAN connecting adapter BRP069C41 4P567679-2H – 2022.04...
-
Page 6: About The Adapter

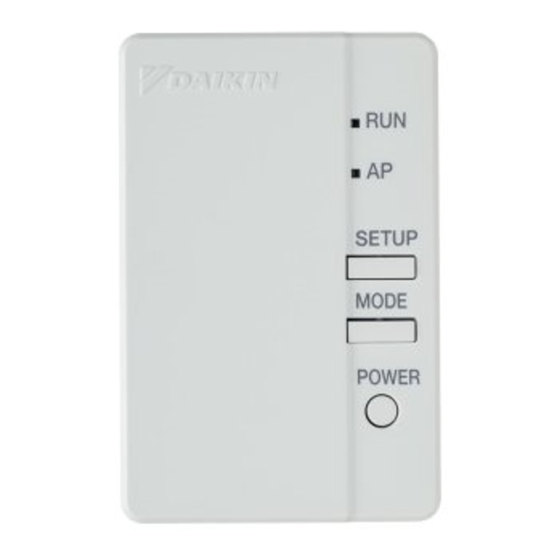

3 About the adapter About the adapter Wireless LAN adapter to connect the heat pump system to the Daikin Cloud via the internet, allowing for control of the heat pump system with the ONECTA app. INFORMATION For option model names BRP069C51, BRP069C81 and BRP069C82, wireless LAN adapter inside is BRP069C41. -
Page 7: Compatibility
About the box To unpack the adapter 1 Open the box. 2 Take out the adapter BRP069C41 from the option kit box (BRP069C51, BRP069C81 or BRP069C82). BRP069C41 BRP069C41 BRP069C41 3 Separate the accessories. -
Page 8: Installation
DANGER: RISK OF ELECTROCUTION Do NOT turn on the power supply before you have connected the electrical wiring, closed the adapter, and mounted it to the indoor unit. Installation manual BRP069C51, BRP069C81, BRP069C82 Wireless LAN connecting adapter BRP069C41 4P567679-2H – 2022.04... -
Page 9: Overview Of Electrical Connections
Overview of electrical connections BRP069C51 BRP069C81 X35A X801A BRP069C82 X35A a Wireless LAN adapter BRP069C41 b1 BRP069C51 connection cable b2 BRP069C81 connection cable b3 BRP069C82 connection cable c PCB port X801A d PCB port X50A (type 1) e PCB port X35A... -
Page 10: To Connect The Adapter With The Unit
Indoor unit side connector X50A (type 1) c Adapter side connector Connection cable for BRP069C82: a Indoor unit side connector X35A b Indoor unit side connector X50A (type 2) c Adapter side connector Installation manual BRP069C51, BRP069C81, BRP069C82 Wireless LAN connecting adapter BRP069C41 4P567679-2H – 2022.04... -
Page 11: Closing The Adapter
Closing the adapter 5.4.1 To close the adapter 1 Hook the front casing into the rear casing. 2 Insert the two screws from the accessory bag. 2× Installation manual BRP069C51, BRP069C81, BRP069C82 Wireless LAN connecting adapter BRP069C41 4P567679-2H – 2022.04... -
Page 12: Mounting The Adapter
For more information, visit app.daikineurope.com. When using screws 1 Fix the adapter holder on the wall/surface with 2 screws M3×16 (accessory). 2 Slide the adapter into the holder. Installation manual BRP069C51, BRP069C81, BRP069C82 Wireless LAN connecting adapter BRP069C41 4P567679-2H – 2022.04... -
Page 13: Starting Up The System
Turn on the power supply and check that the RUN lamp of the product blinks. Installation manual BRP069C51, BRP069C81, BRP069C82 Wireless LAN connecting adapter BRP069C41 4P567679-2H – 2022.04... -
Page 14: Configuration
Hand-over to the user After having installed and configured the adapter, hand over this installation manual to the user and make him/her aware of the following safety precautions. Installation manual BRP069C51, BRP069C81, BRP069C82 Wireless LAN connecting adapter BRP069C41 4P567679-2H – 2022.04... - Page 15 Otherwise, this can lead to fire or malfunction. If this happens, consult your dealer. NOTICE Do not use the adapter near microwave ovens. This can affect wireless LAN communications. Installation manual BRP069C51, BRP069C81, BRP069C82 Wireless LAN connecting adapter BRP069C41 4P567679-2H – 2022.04...
