Summary of Contents for Rosco STSK4533

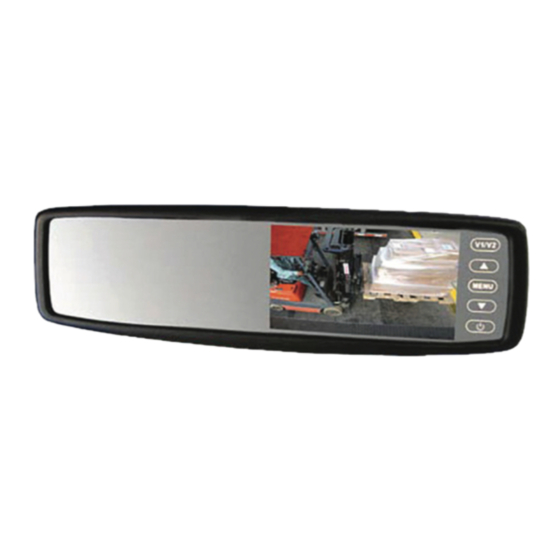

- Page 1 Smart-Vision 4.3" Rearview Mirror/Monitor Combo Backup Camera System INSTALLATION/USER'S MANUAL STSK4533 - With License Plate Camera STSK4532 - With Bumper "Bullet" Camera 90-21 144th Place Jamaica, NY 11435 1.800.227.2095 www.roscovision.com...
-
Page 2: Windshield Mount
STSK4533 Component List Qty. STSC112 BACK UP LICENSE PLATE CAMERA STSM230 4.3" COLOR MIRROR MONITOR STSW1000 WINDSHIELD MOUNT STSH4530 MONITOR POWER HARNESS STSH330 25' EXTENSION HARNESS STSH373 CAMERA POWER STSH374 SPLITTER HARNERR STSM230 STSC112 STSW1000 STSH4530 STSH330 STSH374 STSH373 Notes: •... - Page 3 STSK4532 Component List Qty. STSC106 BACK UP BULLET CAMERA STSM231 4.3" COLOR MIRROR MONITOR STSW1000 WINDSHIELD MOUNT STSH4530 MONITOR POWER HARNESS STSH330 25' EXTENSION HARNESS STSH373 CAMERA POWER STSH374 SPLITTER HARNESS STSM230 STSC106 STSH330 STSH374 STSW1000 STSH4530 STSH373 www.roscovision.com...
- Page 4 At other times, the full area of the mirror-glass Wiring is reflective just like a standard interior mirror. Diagram ..5-6 Rosco’s rear view license plate camera gives the driver Rearview Mirror a 180 degree wide and clear views of what's behind Installation ..8...
- Page 5 How To Operate Display How To Operate Display: Monitor Technical Specifications: 1. V1/V2 - Not Applicable. Screen: 4.3" TFT Color LCD Brightness: 500cd/m 2. "Up" - Menu selection control. Contrast ratio: 300:1 Resolution: 480 x 272 3. Menu - Switches to setup menu. Current Draw: Max 120mA Video format: NTSC/PAL...
- Page 6 STSC112 License Plate Color Camera Camera Technical Specifications: Features and Benefits: • Superb Night Vision Processor: 1/4" Sharp® CCD Sync System: Internal • 180° Diagonal field of vision Horizontal Resolution: 420TVL Minimum Illumination: 0 Lux • Easy installation Diagonal Angle: 180°...
- Page 7 STSC106 Bumper Bullet Camera Camera Technical Specifications: Features and Benefits: • 6 High Output InfraRed LED’s Processor: 1/4” Sharp CCD for Enhanced Night Vision Sync System: Internal Horizontal Resolution: 420TVL • 180° Diagonal field of vision Minimum Illumination: 0 Lux Diagonal Angle: 180°...
-
Page 8: Wiring Diagram
Wiring Diagram Wiring Diagram Option #1: Power Provided From Back of Vehicle Option #1: Power Provided From Back of Vehicle Option #2: Power Provided From Front of Vehicle Option #2: Power Provided From Front of Vehicle Option #3: Power Provided From Front and Option #3: Power Provided From Front and (Most Common) (Most Common) - Page 9 STSC106 Camera Installation Camera mount in suggested location 1. Find a flat centered location on your bumper. (Figures 3a & 3b) 2. Make sure clearance behind camera location is unobstructed. 3. Using a 31mm (1.25”) hole saw Figure. 3a (not included). Carefully drill a hole in the surface.
- Page 10 STSC112 Camera Installation Camera mount in suggested location 1. Locate rear license plate and remove screws. 2. Find suitable location to drill connector hole above/behind license plate. 3. Once the location is chosen, drill pilot hole to the inside of the Figure.
-
Page 11: Rearview Mirror Installation
Rearview Mirror Installation For standard mirror monitor 1. Attach windshield mounting bracket to the back of STSM230 mirror/ monitor. Be certain that the monitor is in the upright position when attaching the mounting bracket. (Figure 1) 2. Remove old rearview mirror from factory mirror-mount tab. -
Page 12: Testing And Maintenance
Testing & Maintenance How to Test: 1. Apply the parking brakes. 2. Turn Ignition on. (DO NOT TURN ON VEHICLE) 3. Shift into reverse gear. 4. Image should appear on the monitor. Trouble Shooting: Problem Solution Check power and reverse No power to monitor while reversing. - Page 13 Testing & Maintenance How to Test: 1. Apply the parking brakes. 2. Turn Ignition on. (DO NOT TURN ON VEHICLE) 3. Shift into reverse gear. 4. Image should appear on the monitor. Trouble Shooting: Problem Solution Check power and reverse No power to monitor while reversing.
- Page 14 NOTES ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ _______________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ www.roscovision.com...
- Page 15 90-21 144th Place Jamaica, NY 11435 www.roscovision.com Ph. 1.800.227.2095 Fx. 1.718.297.0323 Printed in China Lit. P/N: 04242012 A Century of Automotive Safety...
