Summary of Contents for Rosco Safe-T-Scope STSK7565
Page 1

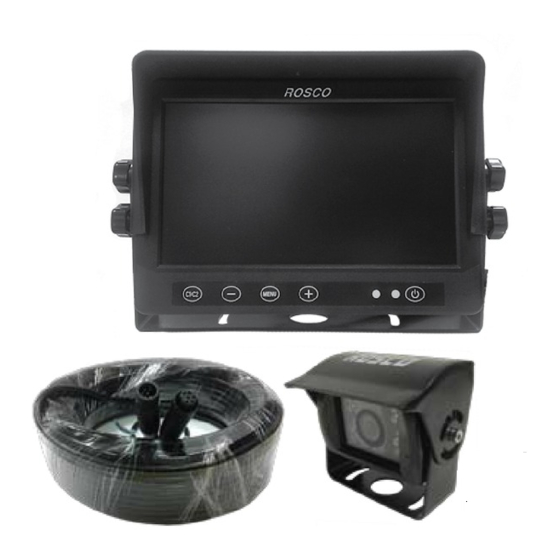

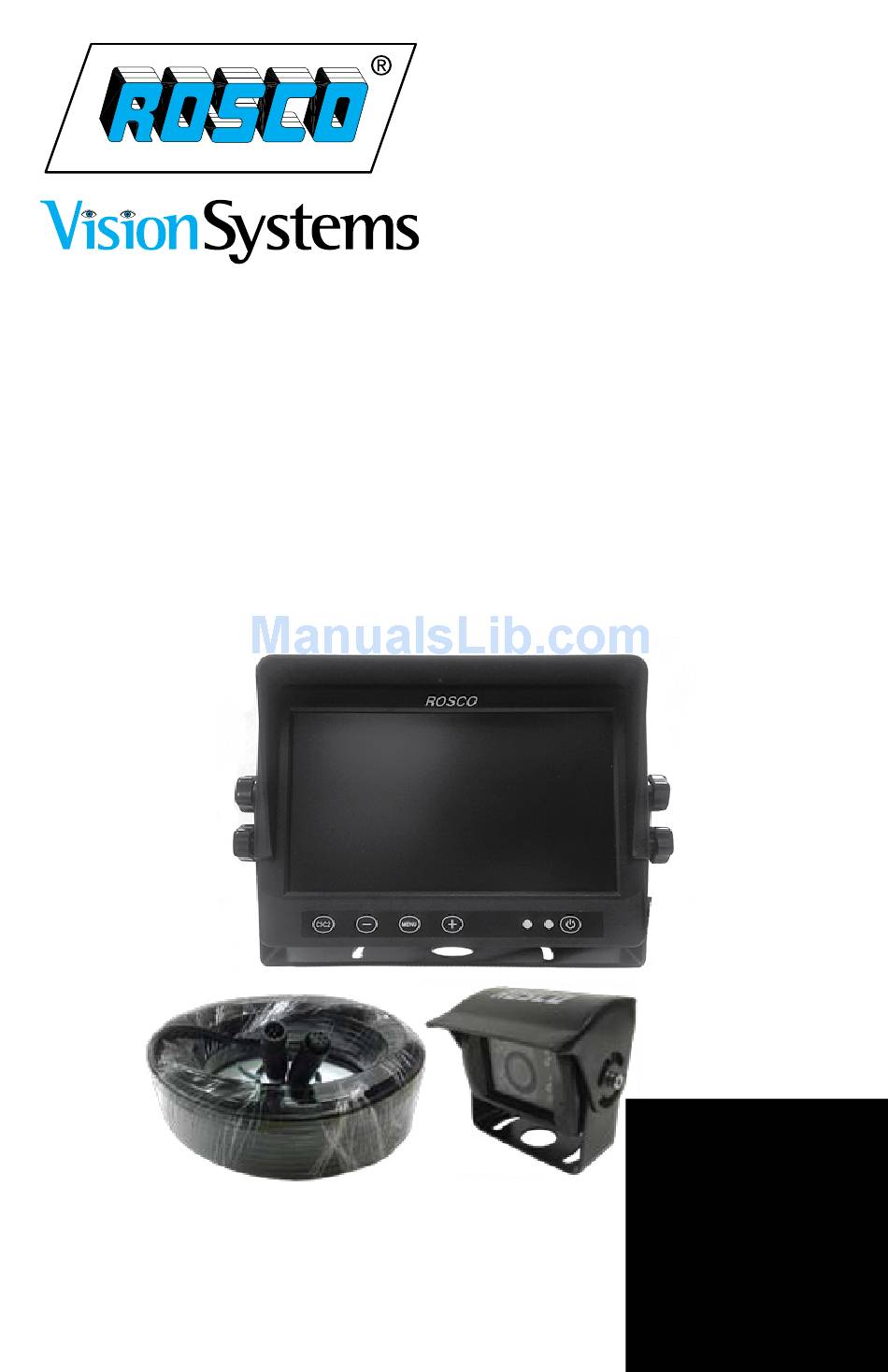

Safe-T-Scope™ 7” Rearview Backup Camera System INSTALLATION/USER’S MANUAL STSK7565 90-21 144th Place Jamaica, NY 11435 1.800.227.2095 www.roscovision.com...
Page 2
WARNING To prevent electrical shock, DO NOT OPEN THE MONITOR CASE. There are dangerous voltages inside the monitor. There are no user serviceable parts inside. Avoid exposing monitor to water, rain, moisture etc. It is NOT waterproof. Any moisture inside the monitor could cause extensive damage. Do not disassemble the camera or the monitor.
Page 3
2. Use a mild household detergent and clean the unit with a slightly damp cloth. GENERAL 1. Do not expose the monitor to excessive heat or cold. The storage temperature º º º~+70º. of this machine is -30 ~+80 C, and operating temperature is -20 This system is intended for use in automotive applications.
Page 5
COLOR BACKUP CAMERA SYSTEM STSK7565 INTRODUCTION Please read this manual thoroughly. This manual contains instructions to make the installation of the camera and monitor easier. The color backup camera system is a supplement to standard rear-view mirror systems, and will provide additional rear-view vision when installed and maintained properly.
INSTALLATION INSTRUCTIONS IMPORTANT: For typical rear-view installation, the rear camera MUST be connected to the power harness at the connector marked “REVERSE” Note: The following instructions are for typical rear-view application. STSC150 CAMERA Attach camera bracket close to rear marker lights, centered on vehicle (see Fig. 1). Attachment point must be sturdy enough to support camera and bracket.
Page 7
1. Monitor: Connect the red wire to an ignition switched accessory (ex: radio) power source, and connect the black wire to chassis ground. See wiring diagram for connections (See Fig. 7.) 2. The monitor terminates in a 13-pin connector, which should be connected to the mating 13-pin receptacle end of the power/video/audio distribution harness.
FUNCTIONS AND OPERATION MONITOR POWER When the ignition is switched on, the monitor will be in standby mode (steady red light, no image will be on the screen), waiting for trigger signal. When a trigger wire is energized by 12v power (steady green light, such as backup lights turning on), the image captured by the selected camera will appear on the monitor.
Page 9
HOW TO SET YOUR MONITOR TO YOUR REQUIREMENTS NOTE: On-screen menu commands should only be selected when monitor is in Steady-on (green light) mode. Never change settings while operating vehicle. Press the MENU button once to set desired brightness. Press +/- to increase/reduce the brightness. Wait 3 seconds to exit setup mode.
(W x H x D) DISCLAIMER The use of the STSK7565 Vehicle CCTV system should not in any way be used as a substitute for careful and cautious driving. Always obey traffic laws and motor safety regulations must always be adhered to.
Page 11
Fig. 1 Camera mount in suggested location Mount camera assembly high. (Centered) Camera mounting hole pattern - 10 -...
Page 12
Fig. 2 Position of camera Vehicles behind truck Street Rear Bumper Typical monitor image of view from properly installed camera - 11 -...
Page 14
Fig. 5 Mounting on ceiling Mounting on the dash, console etc. Fig. 6 - 13 -...
Page 15
Fig. 7 POWER INPUT LEAD (RED) To Ignition Switched Accessory GROUND WIRE (BLACK) To metal point of the vehicle Filter (CAM2) CAM2 REVERSE Trigger (WHITE) (Reverse) REVERSE Trigger (GREEN) Note: For typical single camera installation, this trigger wire should be connected to the vehicle’s “back up lights”...
Page 16
90-21 144th Place Jamaica, NY 11435 www.roscovision.com Ph. 1.800.227.2095 Fx. 1.718.297.0323 A Century of Printed in China Automotive Safety Lit. P/N: 04242012...
