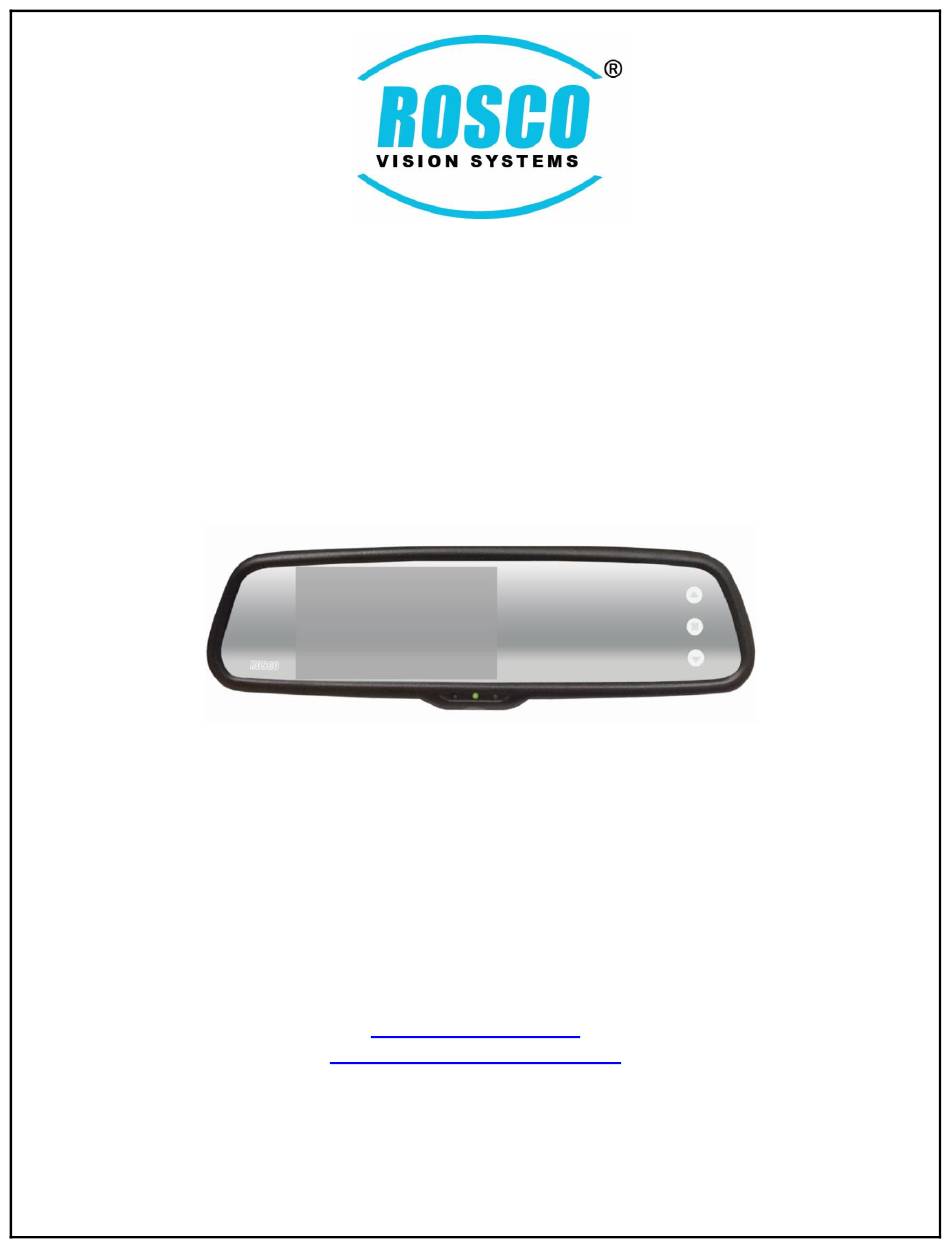

STSM240 Monitor
Installation Guide and User Manual
January 5, 2018
th
90-21 144
Place, Jamaica, New York USA 11435
Phone: 800-227-2095
www.roscovision.com
techsupport@roscovision.com
Version 1.0
©2017 Rosco® Vision Systems, All Rights Reserved
Specifications and details are subject to change without prior notice.
Patent Pending
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rosco STSM240
Summary of Contents for Rosco STSM240
- Page 1 Installation Guide and User Manual January 5, 2018 90-21 144 Place, Jamaica, New York USA 11435 Phone: 800-227-2095 www.roscovision.com techsupport@roscovision.com Version 1.0 ©2017 Rosco® Vision Systems, All Rights Reserved Specifications and details are subject to change without prior notice. Patent Pending...
-
Page 2: Table Of Contents
Monitor Setup......................9 Triggering ........................9 Technical Specifications ..................10 Compatible Hardware ................... 11 Complete Kits Containing STSM240 ..............11 Commercial Warranty ................... 12 IMPORTANT If you have a problem printing this document, please download and install the latest version of Adobe Reader:... -
Page 3: Introduction

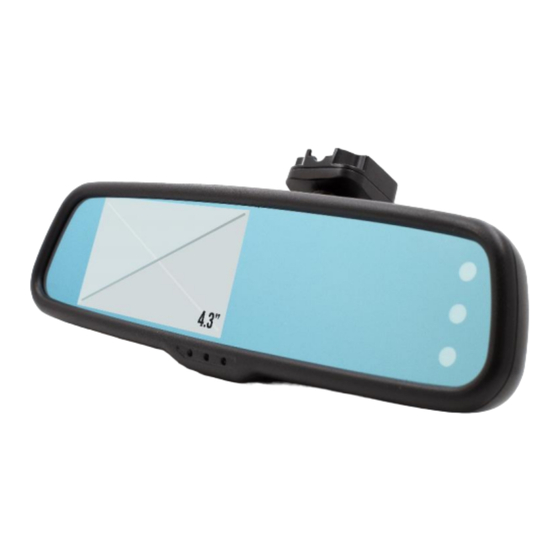

Introduction Rosco Vision Systems introduces a revolutionary new monitor system for small to medium vehicles. Mirror / Monitor utilizes an interior rearview mirror to display a 4.3” LCD ® The STSM240 MOR-Vision monitor with two input channels and audio. Both inputs can be triggered manually by pressing touch buttons on the mirror or via 12-24 volt triggers from reverse, turn signal, or any other analog source within the vehicle. -
Page 4: Contents
• Controls for volume, brightness, contrast, color, and sharpness. • Features reset to set controls back to default settings Contents A. STSM240MO - Mirror/Monitor B. STSM240/PHAR - Power/video input harness C. Allen Wrench D. Windshield Mounting Button E. Cable Raceway... -
Page 5: Installation
DO NOT attempt to disassemble, repair, or modify the products. • Make sure the red wire from the power harness (STSM240/PHAR) is secured to the vehicle fuse block at terminals which will be at zero-voltage state when the vehicle ignition key is OFF. A typical location on a fuse block would be the ACC port for cigarette-lighter power. -
Page 6: Stsm240/Phar
STSM240/PHAR • The monitor is connected to vehicle power, input triggers, and video inputs via the STSM240/PHAR harness, shown below. -
Page 7: Installation Examples
Installation Examples One Camera System (STSK4642B) -
Page 8: Two Camera System
Two Camera System... -
Page 9: Device Setup And Operation
Device Setup and Operation Monitor Operation • To manually activate/deactivate inputs: press “up” or “down” arrow on right side of mirror. • Down arrow activates camera 1, up arrow activates camera 2. Pressing arrow again will deactivate input. Monitor Setup •... -
Page 10: Technical Specifications
Technical Specifications SYSTEM SPECIFICATIONS 4.3” Screen Size Screen Type TFT LCD Display Resolution 480 x 272 Aspect Ratio 16:9 Input Voltage 12 VDC to 24 VDC Audio/Video Input Composite Video & Mono Audio; 2 Channels Power Output to 12VDC Cameras Operational -4⁰F to 149⁰F (-20⁰C to 65⁰C) Environment... -
Page 11: Compatible Hardware
4 Channel HD DVR Complete Kits Containing STSM240 Rosco Sales Description Part Number STSK4640 STSM240 WITH STSC141 BACKUP CAMERA AND EXTENSION HARNESS STSK4642B STSM240 WITH STSC109B BACKUP CAMERA AND EXTENSION HARNESS STSK4540 STSM240 WITH STSC149A BRAKELIGHT CAMERA, FORD TRANSIT MODEL YEAR 2016-... -
Page 12: Commercial Warranty
If the alleged defect is due to any of these causes, the customer will be advised of the findings and asked what action is to be taken. If ROSCO is requested to repair the product, a repair charge estimate will be prepared and the customer’s written permission (purchase order, repair, etc.) will be necessary to proceed with the repair of the product and/or...
