REARVIEW MIRROR/MONITOR COMBO
BACKUP CAMERA SYSTEM
INSTALLATION/USER'S MANUAL
STSK453X SERIES

Advertisement

loading
Need help?

Need help?

Do you have a question about the STSK453X Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rosco STSK453X Series

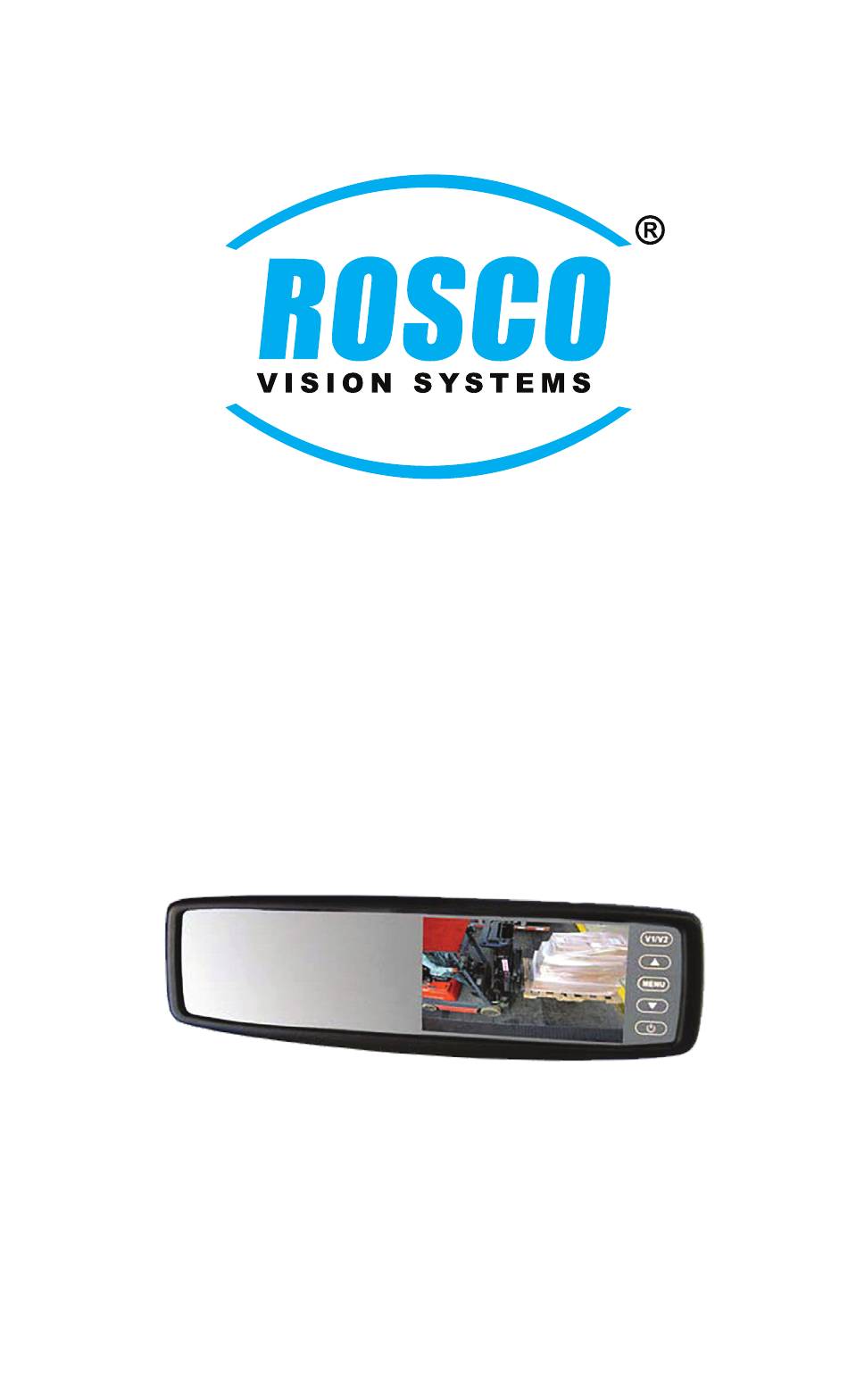

  • Page 1 REARVIEW MIRROR/MONITOR COMBO BACKUP CAMERA SYSTEM INSTALLATION/USER’S MANUAL STSK453X SERIES...
  • Page 2: Table Of Contents

    Camera Installation ....................10 Testing ........................11 MOR-VISION™ REARVIEW MIRROR/MONITOR COMBO BACKUP CAMERA SYSTEM Rosco Vision Systems introduces a revolutionary new backup camera system for small to medium vehicles. MOR-Vision utilizes an interior rearview mirror to display a 4.3” LCD monitor when the vehicle shifts into reverse. This monitor allows the driver to see behind the vehicle for added convenience and safety.
  • Page 3: Component List

    Back up camera mirror/monitor includes: STSM230 P/N STSM230MO 4.3” color mirror/monitor STSDF1003 P/N STSW1003 windshield mount #1 for mirror/monitor P/N STSH4530 monitor power harness Backup camera extension harness, 250FT, Rosco STSH330 STSM230 STSM230MO STSC130W STSC130R STSC130B STSM4530 STSDF1003 STSC130WCO STSC130RCO STSC130BCO...
  • Page 4 Back up camera mirror/monitor includes: STSM231 P/N STSM231MO 4.3” clip on color mirror/monitor P/N STSH4530 monitor power harness Backup camera extension harness, 250FT, STSH330 Rosco, P/N STSH330 STSM231 STSM231MO STSM4530 STSC130WCO STSC130RCO STSC130BCO STSH333 STSH330 Notes: •...
  • Page 5: How To Operate Display

    HOW TO OPERATE DISPLAY Display Operation Monitor Technical Specifications: 1. V1/V2 - Switches video feed from channel Screen: 4.3” TFT Color LCD 1 to channel 2. Brightness: 350cd/m2 2. “Up” - Menu selection control. Contrast Ratio: 300:1 3. Menu - Switches to setup menu. Resolution: 480 x 272 4.
  • Page 6: Wiring Diagram

    STSK453X Installation/User’s Manual WIRING DIAGRAM Option #1: Power Provided From Back of Vehicle Option #2: Power Provided F Option #1: Power provided from back of vehicle Option #2: Power provided (Most Common) (Most Common) 7” 7” P/N: STSM230MO P/N: STSH4530 P/N: STSH4530 68”...
  • Page 7 From Front of Vehicle Option #3: Power Provided From Front and Option #3: Power provided from front and back of d from front of vehicle Back of Vehicle (Least Common) vehicle (Least Common) 7” P/N: STSM230MO P/N: STSM230MO P/N: STSH4530 68”...
  • Page 8: Color Camera

    STSK453X Installation/User’s Manual COLOR CAMERA Camera Technical Specifications: Features and Benefits: Signal System: NTSC • Superb Night Vision Sensing Area: 5.55x5.55mm • 170° Diagonal field of vision Sync System: Internal • Easy install Horizontal Resolution: 420TVL Minimum Illumination: 0.2Lux Diagonal Angle: 170° Video Output: RCA, 1.0Vp-p, 75ohm SNR: Better than 48db...
  • Page 9: Rearview Mirror Installation

    REARVIEW MIRROR INSTALLATION 1. Attach windshield mounting bracket to the back of STSM230 mirror/monitor. Be certain that the monitor is in the upright position when attaching the mounting bracket. (Figure 1) 2. Remove old rearview mirror from factory mirror-mount tab. 3.
  • Page 10: Camera Installation

    STSK453X Installation/User’s Manual CAMERA INSTALLATION 1. Select a high and centered location at the rear of the vehicle to mount the STSC130 camera. IMPORTANT: When selecting this location it is highly recommended Camera mount that the image transmitted by the in suggested location camera show the rear bumper and area behind the vehicle.
  • Page 11: Testing

    TESTING How to Test: 1. Apply the parking brakes. 2. Turn Ignition on. 3. Shift into reverse gear. 4. Image should appear on the monitor. Trouble Shooting Problem Solution Check all camera connections (ex. Power, Ground, AV1, AV2) No video signal appears while reversing the vehicle.
  • Page 12 A C E N T U R Y O F A U T O M O T I V E V I S I O N S A F E T Y 90-21 144th Place, Jamaica, New York 11435 TEL (800) 227-2095 • FAX (718) 297-0323 info@roscomirrors.com www.roscomirrors.com www.roscovision.com...
