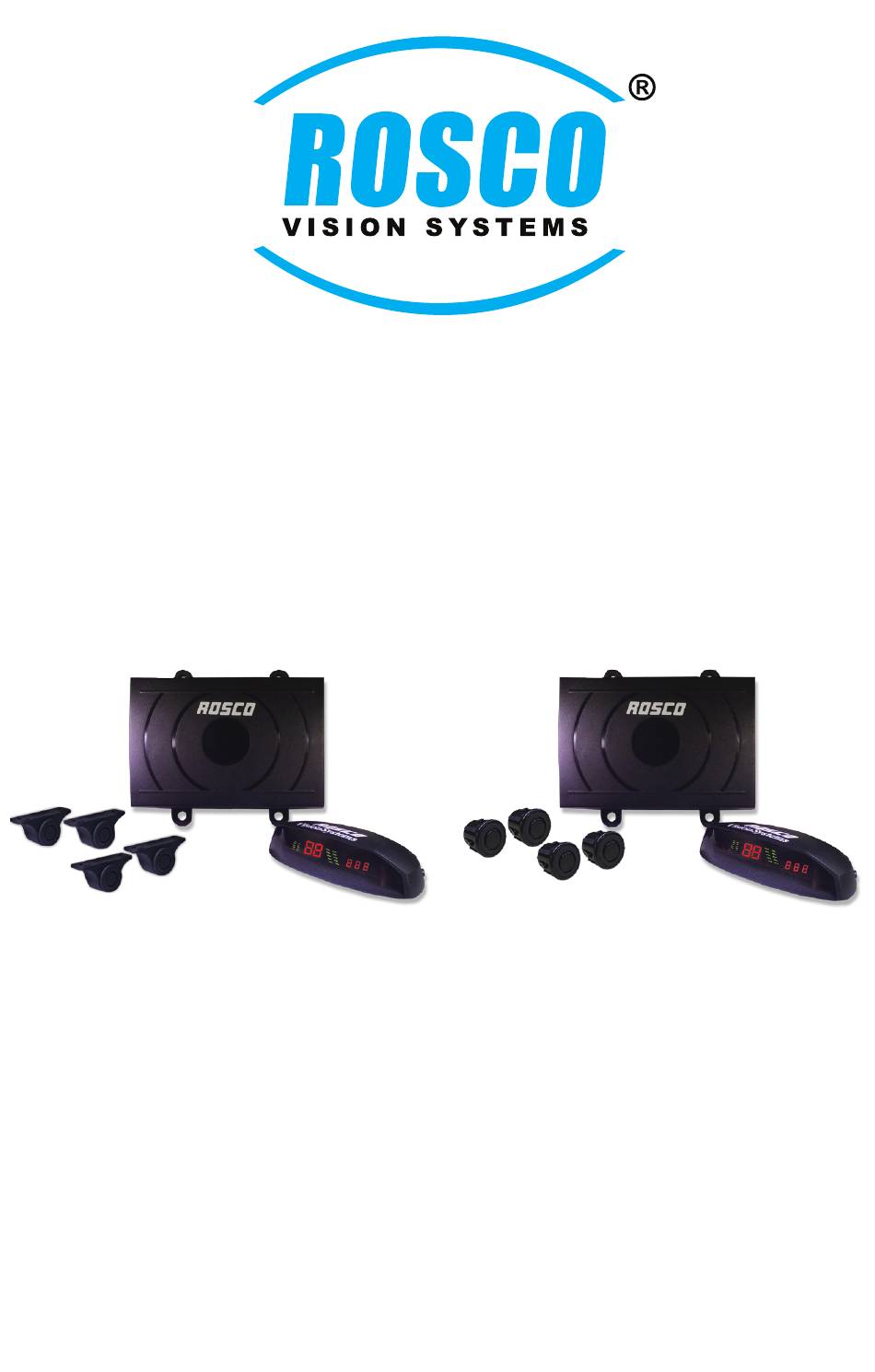

- Page 1 & BSSK1000 BSSK1001 Wireless Ultrasonic Parking Sensor Systems for Commercial Vehicles BSSK1001: BSSK1000: Flush Mount Backup Sensor System Under Mount Backup Sensor System INSTALLATION / USER'S MANUAL...
-
Page 2: Table Of Contents

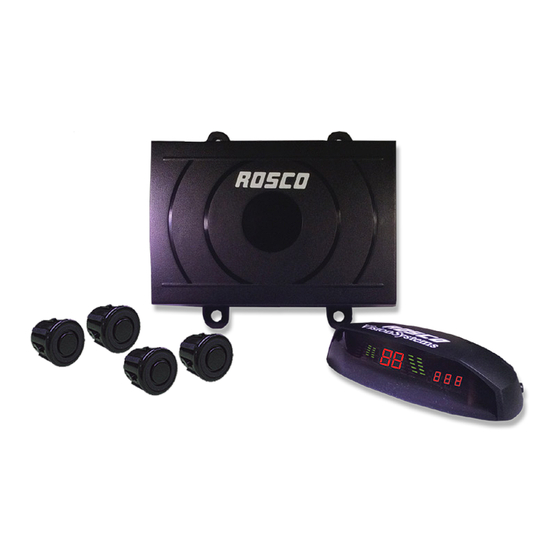

Hardware Kit Group 3: Tie Wraps BSSK1001 FLUSH MOUNT BACKUP SENSOR SYSTEM COMPONENT LIST: Rosco ultrasonic wireless backup sensor systems provide safety advantages that protect drivers, vehicles and business profits. These systems are ideal for school buses, work trucks, RVs and other commercial Components: Qty. -
Page 3: How To Read Display
BSSK1000/1001 - INSTALLATION MANUAL BSSK1000/1001 - INSTALLATION MANUAL HOW TO READ DISPLAY SENSOR DETECTION RANGE & WARNING METHOD Safe Zone Distance (ft) 8.0 ft to 3.5 ft 1. Safe Zone Green Lights Safe Zone Distance Display: (8.0 ft to 3.5 ft) 8.0 to 3.5 ft. -
Page 4: Sensor Installation
Control box BSSK1000/1001 - INSTALLATION MANUAL BSSK1000/1001 - INSTALLATION MANUAL SENSOR INSTALLATION SENSOR INSTALLATION IMPORTANT: IMPORTANT: The sensor installation steps are applicable The marked sensor cables (A,B,C,D) must be to BOTH the Flush Mount and Under Mount connected to the corresponding marked inputs on Backup Sensor Systems. -
Page 5: Wiring Diagram
BSSK1000/1001 - INSTALLATION MANUAL BSSK1000/1001 - INSTALLATION MANUAL HOW TO TEST WIRING DIAGRAM Red 12V Wire 1. Apply the parking brakes. 30" To Positive 12V Wire on the Reverse Light Circuit To Termination/Chassis Ground Black Ground Wire 7" 2. Turn Ignition on (DO NOT START). - Page 6 NOTES NOTES...
- Page 7 A CENTURY OF AUTOMOTIVE VISION SAFETY 90-21 144th Place, Jamaica, New York 11435 TEL (800) 227- 2095 • FAX (718) 297- 0323 techsupport@roscovision.com www.roscovision.com Lit. P/N: MO071615...
