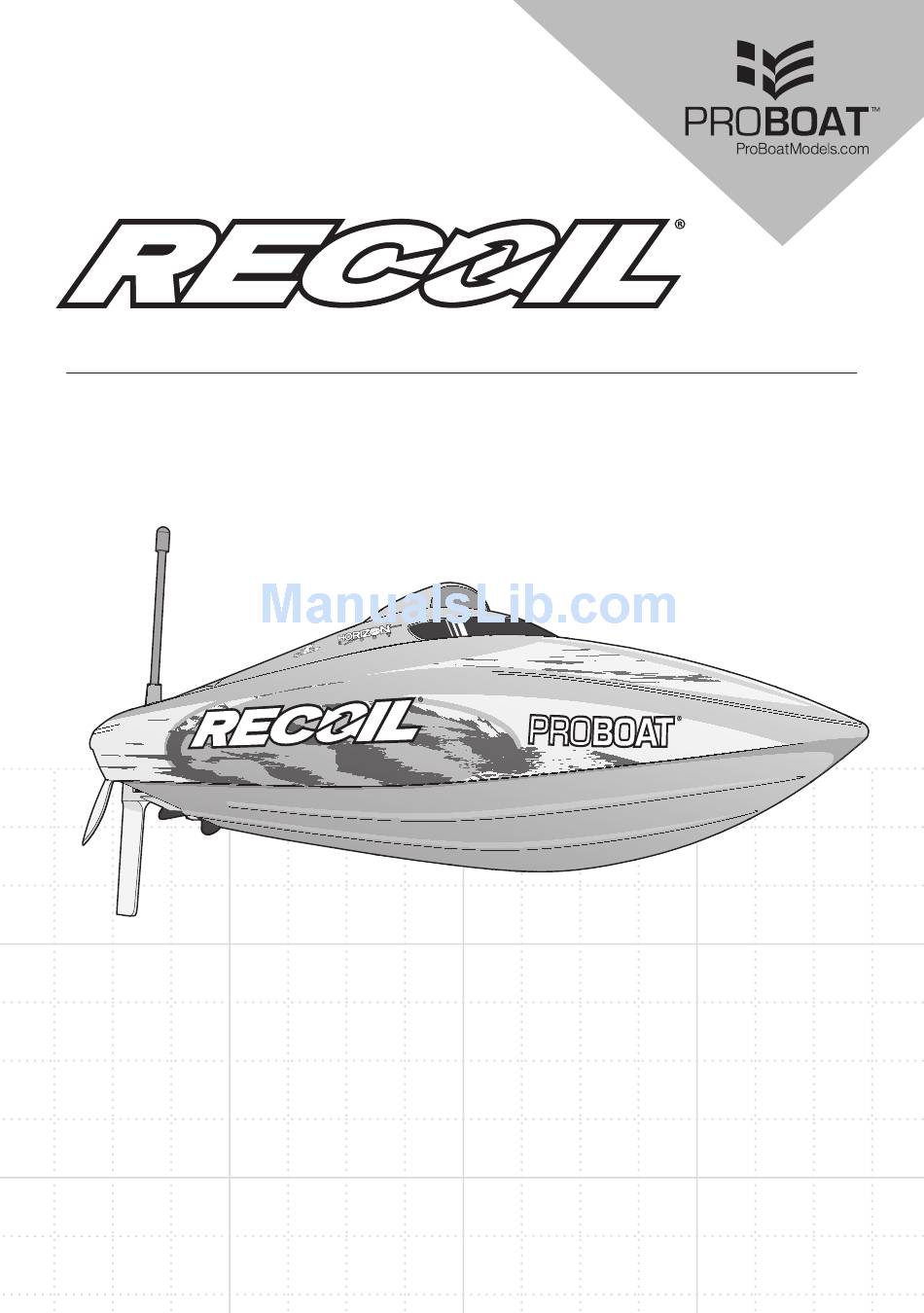

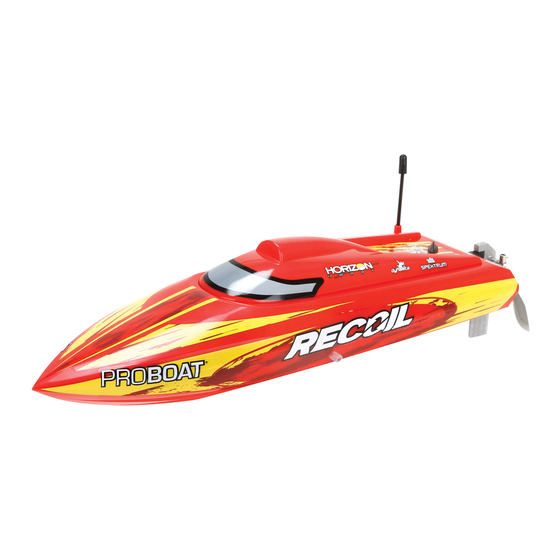

- Page 1 17-INCH BRUSHLESS RTR DEEP–V BOAT PRB08016 Owners Manual • Bedienungsanleitung Manuel de l'utilisateur • Manuale dell'utente...
-
Page 2: Meaning Of Special Language
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit http://www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury. -
Page 3: Table Of Contents
General Precautions Wet Conditions Maintenance • Read through the wet conditions maintenance • Drain any water that has collected in the hull by procedures and make sure that you have all the tools removing the drain plug or canopy and tilting the boat you will need to properly maintain your boat. -
Page 4: Transmitter Controls
Transmitter Controls Reverse Switch Battery Level Indicator Solid Red and Green: Battery voltage is good (above 4V). Solid Red: Battery voltage is critically low (below 4V). Replace Allows you to change the direction of transmitter batteries. steering (ST. REV) and throttle (TH. REV) controls (Ensure proper function with a radio system test). -
Page 5: Getting Started
• Phillips screwdriver: #1 • Hex wrench: 1.5mm, 2mm, 2.5mm, 3mm • Clear tape (DYNM0102) • Pro Boat ® Marine Grease and Gun • Hook and Loop Tape Set, WP 4pcs Range Check IMPORTANT: Perform a range check at the beginning of each boating session, after repair or after installation of new batteries. -
Page 6: Boating Tips
• Remove the hatch before storing your boat • Repair any damage or wear to the boat • Lubricate the drive shaft using Pro Boat Marine Grease (PRB0100) • Make note of lessons learned from the trimming of your boat, including water and wind conditions Tip: The hook and loop strips in the boat retain water. -
Page 7: Maintenance
Maintenance NOTICE: Running the boat in saltwater could cause some Drivetrain Lubrication parts to corrode. If you run the boat in saltwater, rinse it Always replace the drivetrain parts when they are thoroughly in freshwater after each use and lubricate the damaged or show visible wear or injury and damage may drive system. -
Page 8: Rudder Trim
Rudder Trim If the boat does not go straight, adjust the steering trim dial on the transmitter. If you are using all the steering trim on your transmitter to make the boat drive straight, return the trim to neutral and mechanically center the rudder. To do this, loosen the hex nut (A) from the rudder horn (B), then adjust the linkage (C) until the rudder is properly centered. -
Page 9: Water Cooling System
Water Cooling System 1. Disassemble and clean the water cooling system to If water does not stream out of the water outlets while remove blockage and prevent overheating. the boat is moving forward, immediately stop the boat and clean the obstruction from the water cooling system. 2. -
Page 10: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Boat will not respond to throttle but responds Throttle channel is reversed Reverse throttle channel on transmitter to other controls Damaged propeller, shaft or motor Replace damaged parts Extra noise or extra vibration Propeller is out of balance Balance or replace propeller Boat battery charge is low Completely recharge battery... -
Page 11: Limited Warranty
Problem Possible Cause Solution Replace or repair damaged parts and adjust Rudder, linkage or servo damage controls Steering servo wire is damaged or Do a check of steering servo wires and connections are loose connections, connect or replace as needed Rudder does not move Transmitter is not bound correctly Re-bind... -
Page 12: Warranty And Service Contact Information
Inspection or Services Non-Warranty Service If this Product needs to be inspected or serviced and is Should your service not be covered by warranty, service compliant in the country you live and use the Product in, will be completed and payment will be required without please use the Horizon Online Service Request submission notification or estimate of the expense unless the expense process found on our website or call Horizon to obtain a... -
Page 13: Compliance Information For The European Union
FCC Information This product contains a radio transmitter with wireless technology which has been tested and found to be This device complies with part 15 of the FCC rules. compliant with the applicable regulations governing Operation is subject to the following two conditions: a radio transmitter in the 2.400GHz to 2.4835GHz frequency range. -
Page 14: Replacement Parts
Replacement Parts / Ersatzteile / Pièces de rechange / Pezzi di ricambio Part # English Deutsch Français Italiano Dynamite Reaction Air Batterie Li-Po 3S 11.1V Batteria LiPo 11.1V 11.1V 1400mAh 3S 20C DYN1477 11.1V 1400mAh 3S 20C 1400mA 20C avec prise 1400mAh 3S 20C LiPo LiPo w/EC3 LiPo m. - Page 15 45438 Created: 12/2014 ©2014 Horizon Hobby, LLC. Pro Boat, the Pro Boat logo, Recoil, Dynamite, ECX, Prophet, EC3, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. PRB08016...
