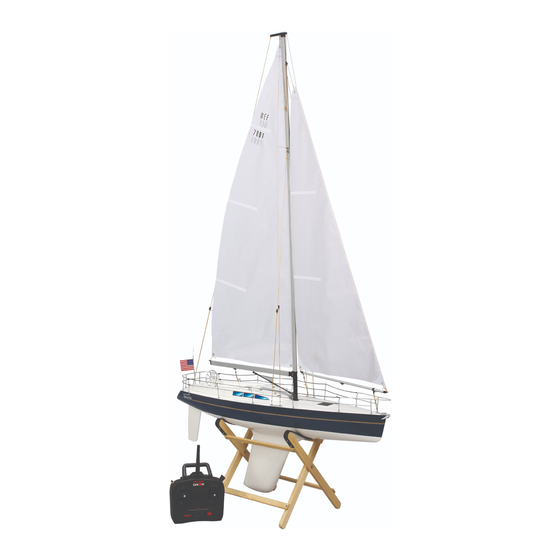

Summary of Contents for Pro Boat Serenity
- Page 1 1-Meter Sailing Yacht 1 Meter Segel Yacht Voilier mètre Yacht a vela 1 metro Owners Manual Bedienungsanleitung Manuel d'utilisation ® Manuale dell'utente...
- Page 2 Notice All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit http://www. horizonhobby.com and click on the support tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property...
-
Page 3: Table Of Contents
Table of Contents Recommended Accessories ..................3 General Guidelines and Safety Precautions .............. 3 Railing Installation ....................4 Installing the Ballast ..................... 6 Sail Installation ....................7 Rigging Guide ....................11 Charging the Receiver Battery ................12 Transmitter Battery Installation and Checking the Controls ........13 Sailing Tips ...................... -
Page 4: Railing Installation
Railing Installation 1. Take out the two-piece mast, main sail 4. Locate the stern railing and insert it boom, boat stand, sails and hardware and into the railing stands. so on. Put the hull on the boat stand. 5. - Page 5 7. Tie a knot with a line to fix the railing 10. Apply a drop or two of thin CA to line and cut off the excess lines. each of the points where the railing fits into the railing stands on the hull. 11.
-
Page 6: Installing The Ballast
13. Guide the long antenna wire through 14. The flag mast is then inserted through the mounts on the stern railing. Slide the the mounts and into the hull. Gently flag mast over the antenna. guide the antenna through and out the top of the flag mast. -
Page 7: Sail Installation
Sail Installation 1. Slide the upper and lower mast halves 4. Install the adjust support which together. connects the main mast and main sail boom. 2. Join the two halves using four 2mm x 4mm screws. 5. Slide the mast assembly into the fitting ... - Page 8 7. Mount the masthead crane to the top 10. Open the rigging clip and attach it to of the mast. the eye plate where the marked letter is the same as the letter on the according rigging, such as “C” to “C” as shown in the picture.
- Page 9 12. Pass the rigging line of the jib sail 14. Pass the rigging line of the main sail through the eye plate on the mast and through the hole of the masthead crane, then thread the line into the jib stay. thread the line through a jib stay and at Thread the line through the swivel and tie last thread the line through the swivel,...
- Page 10 16. Pull up the jib stay on the jib boom to 18. The sailboat with installation finished. adjust the tension of the lines. 17. Pull up the jib stay of the main boom to adjust the tension of the lines. Note: Adjust the lines so the mast is Note: Keep the main and jib boom lines centered and perpendicular to the hull.
-
Page 11: Rigging Guide
Rigging Guide... -
Page 12: Charging The Receiver Battery
Charging the Receiver Battery 1. Use a charger (we recommend the 3. Check the switch harness to make sure SPM9526 Spektrum 150mA wall charger) it is in the OFF position. Plug the receiver to charge the receiver battery. Allow battery into the switch harness. -
Page 13: Transmitter Battery Installation And Checking The Controls
Transmitter Battery Installation and Checking the Controls 1. Slide the battery cover off in the 4. Move the stick on the transmitter to directions shown to access the battery the right. The rear edge of the rudder compartment. will move to the right as shown. - Page 14 5. With the radio system on, move the 6. Move the left stick of your transmitter left stick on your transmitter "up" and "down" to close the sails. The sails should manually push the main sail and jib sail close, with the jib sail being tighter than open.
-
Page 15: Sailing Tips
After you have finished rigging the sails, it will be helpful to adjust the sails in order to optimize the performance of your boat. It is often necessary to briefly sail the Serenity in order to see how the sails need to be trimmed. Take your time to optimize your sailing pleasure. - Page 16 WIND Wind Abeam Sails: Each at a position of 45° Bearing Away Rudder: In center position Sails: Let both out so as not to shiver Quarter Lee Rudder: To the left Sails: Letting both out a little more Rudder: To the left STARBOARD TACK Tacking Sails:...
-
Page 17: Warranty And Repair Policy
Warranty and Repair Policy Warranty Period Exclusive Warranty- Horizon Hobby, Inc., (Horizon) warranties that the Products purchased (the “Product”) will be free from defects in materials and workmanship at the date of purchase by the Purchaser. Limited Warranty Horizon reserves the right to change or modify this warranty without notice and disclaims all other warranties, express or implied. - Page 18 for merchandise until it arrives and is accepted at our facility. An Online Repair Request is available at www.horizonhobby.com http://www.horizonhobby.com under the Repairs tab. If you do not have internet access, please contact Horizon Product Support to obtain a RMA number along with instructions for submitting your product for repair.
-
Page 19: Compliance Information For The European Union
No. HH2011030701 Declaration of Conformity (in accordance with ISO/IEC 17050-1) No. HH2011030701 Product(s): PRB Serenity 1 Meter Sailboat RTR Item Number(s): PRB3450 Equipment class: The object of declaration described above is in conformity with the requirements of the specifications listed below, following the provisions of the European R&TTE directive 1999/5/EC:... -
Page 20: Replacement Parts
Instructions for Disposal of WEEE by Users in the European Union This product must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. - Page 21 ® © 2011 Horizon Hobby, Inc. horizonhobby.com www.proboatmodels.com The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other marks are trademarks or registered trademarks of Horizon Hobby, Inc US 7,391,320. Other patents pending. Printed 03/2011 31120...
