Summary of Contents for Pro Boat Blackjack 29 PRB4150

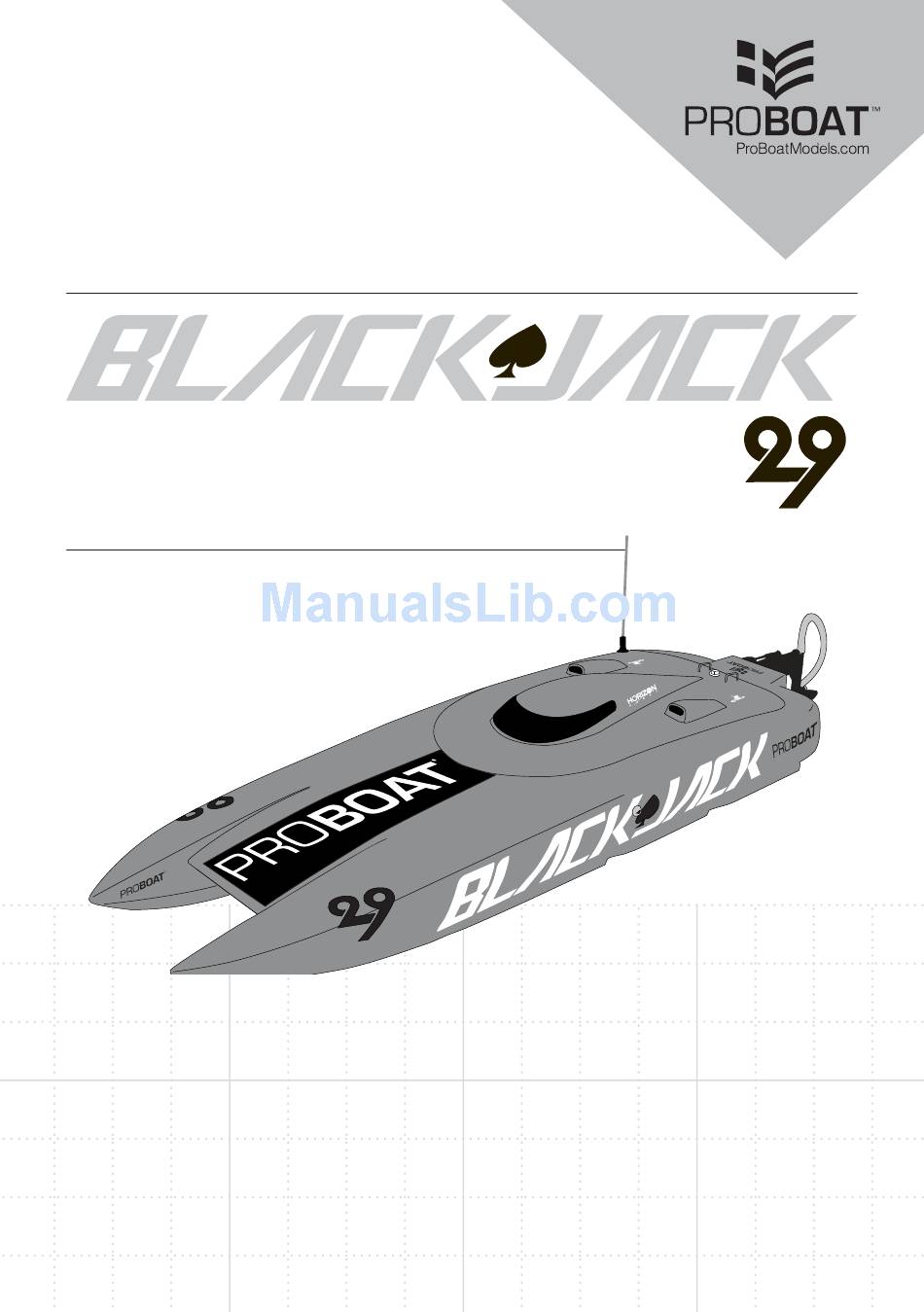

- Page 1 ™ Owners Manual • Bedienungsanleitung Manuel de l'utilisateur • Manuale dell'utente PRB4150...
-
Page 2: Table Of Contents
NOTICE WARNINg: Read the ENTIRE instruction All instructions, warranties and other collateral manual to become familiar with the features of the documents are subject to change at the sole product before operating. Failure to operate the discretion of Horizon Hobby, Inc. For up-to-date product correctly can result in damage to the product literature, visit www.horizonhobby.com product, personal property and cause serious injury. -
Page 3: Introduction
Whether your passion leads you towards the pure serenity of sailing or the all-out speed of a Deep-V, Pro Boat models fit your taste, budget and lifestyle. You can count on us to be available any time you need help—the brand is backed by Horizon Hobby, one of the world’s largest distributor of hobby-grade RC products. -
Page 4: Battery Safety Precautions
Battery Safety precautions • When using a Li-Po battery, always ensure the • Always disconnect a battery from the ESC Battery Chemistry Switch is in the ON position. when not in use. • Never discharge a Li-Po battery below 3V per cell. • Avoid continually operating to LVC, as this could result in damage to the battery. -
Page 5: Battery Chemistry Switch
Battery Chemistry Switch This switch allows the ESC to detect voltage. When the At the factory, the ESC is programmed at High Cutoff. switch is in the OFF position, low voltage cutoff (LVC) High Cutoff: The Ni-MH cutoff voltage is .9 volts per is disabled. -
Page 6: Transmitter Controls
Transmitter Controls Reverse Switch Allows you to change the BIND direction of steering (ST. BIND REV) and throttle (TH. REV) controls. Perform transmitter test to ensure proper function. Steering Trim Steering Rate Throttle Trim Adjust to make Adjusts the Adjusts the amount the the vehicle drive neutral point of rudder moves when the... -
Page 7: Getting Started
getting Started 1. Power on the transmitter. 6. After launching the boat in the water, start driving 4. Power on the ESC switch. slowly, and, if the boat does not go straight, adjust 2. Turn ON the Li-Po battery 5. Do a test of the transmitter’s the steering trim dial on the transmitter. -
Page 8: Binding
Binding 4. Release the bind button when the green LED flashes. Binding is the process of programming the receiver to Bind Button recognize the GUID (Globally Unique Identifier) code of a single specific transmitter. The DX2E and MR200 are bound at the factory. If you need to rebind, follow the BIND instructions below. -
Page 9: Center Of Gravity
Center of gravity 2. Move the batteries toward the front of the boat for Moving the batteries to the front or back can significantly faster initial acceleration, to eliminate oscillation or affect the boat's performance. bouncing, and to increase stability. 1. -
Page 10: Maintenance
Maintenance 4. Carefully reinstall the flex shaft in the drive strut, Always replace the flex shaft when it is damaged or stuffing box and collet. If the flex shaft is difficult to shows visible wear or injury and property damage may remove or install in the collet, use a flat screwdriver to result. -
Page 11: Esc
Brake: ON or Off The included ESC programming card (DYNM3821) allows you to quickly program your Dynamite® Marine Brushless ON: The boat will stop immediately when the throttle is ESC control settings. returned to neutral. OFF: The boat will coast to a stop. programmable Settings Timing: low Timing or High Timing Throttle Reverse: ON or Off... -
Page 12: Checklists Before Boating
Checklists Before Boating After Boating • Install fully charged batteries in your boat and • Always power off the receiver before powering off transmitter the transmitter to maintain control of the boat and to retain transmitter binding • Connect the boat’s battery to the ESC • Disconnect the battery from the receiver and remove • Make sure the boat is bound to the transmitter the batteries from the boat... - Page 13 Troubleshooting guide Boat will not connect Transmitter is too near boat during Move powered transmitter a few feet from boat, (after binding) to connecting process disconnect and reconnect battery to boat transmitter Boat or transmitter is too close to large Move the boat and transmitter to another location metal object, wireless source or and attempt connecting again...
-
Page 14: Limited Warranty
limited Warranty What this Warranty Covers as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser Horizon Hobby, Inc. (“Horizon”) warrants to the original is advised to return the Product immediately in new and purchaser that the product purchased (the "Product") will unused condition to the place of purchase. -
Page 15: Warranty And Service Contact Information
Warranty Requirements You must include this request with your item submitted for service. Non-warranty service estimates will be billed for Warranty consideration, you must include a minimum of ½ hour of labor. In addition you will be your original sales receipt verifying the proof-of- billed for return freight. -
Page 17: Identification Of Components
Identification of components / Identifizierung der Komponenten Identification des composants / Identificazione dei componenti Blackjack 29... -
Page 18: Replacement Parts
replacement Parts / ersatzteile / Pièces de rechange / Pezzi di ricambio PRB3830 1800Kv BL Motor 1800Kv BL Motor Moteur brushless 1800Kv 1800Kv BL Motore PRB3307 Motor Mount Motorhalter Support moteur Supporto motore PRB4107 Flex shaft Flexwelle Flexible Albero flessibile PRB4109 Prop Nut Propeller Mutter... - Page 19 Created: 11/2013 ©2012 Horizon Hobby, Inc. Pro Boat, DSM, DSM2, Dynamite, Speedpack, Prophet, EC3, the Pro Boat logo and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, Inc. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
