Summary of Contents for Pro Boat Blackjack 24

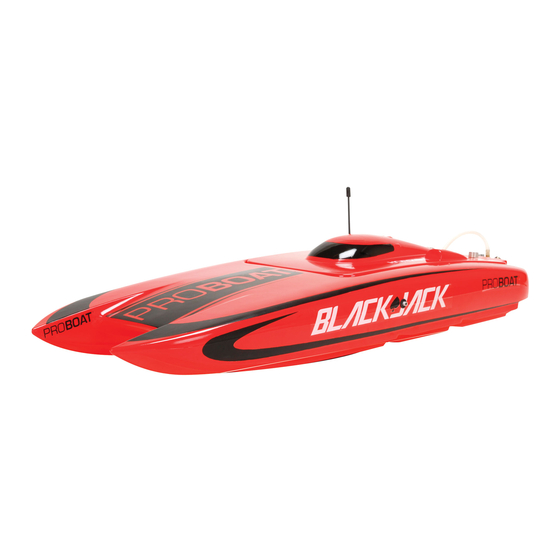

- Page 1 Blackjack 24 - INCH BRUSHLESS RTR CATAMARAN PRB08007 Owners Manual • Bedienungsanleitung Manuel de l'utilisateur • Manuale dell'utente...
-
Page 2: Table Of Contents
Warranty and Service Contact Information ....15 Range Check ..............8 Compliance Information for the European Union ..16 Testing Your Boat in the Water ........8 Replacement Parts ............62 Boating Tips ..............9 Optional Parts ..............62 Blackjack 24... -
Page 3: Water-Resistant Boat With Waterproof Electronics
• Let the boat air dry before you store it. Water (and oil) • Driving in wet conditions can reduce the life of the may continue to drip for a few hours. motor. The additional resistance of operating in water causes excess strain. Blackjack 24... -
Page 4: Introduction
Whether your passion leads you towards the pure serenity of sailing or the all-out speed of a Deep-V, Pro Boat models fit your taste, budget and lifestyle. You can count on us to be available any time you need help—the brand is backed by Horizon Hobby, one of the world’s largest distributors of hobby-grade RC products. -
Page 5: Transmitter Controls
NOTICE: Never charge a battery in the boat or damage battery. We recommend either the Dynamite Prophet ™ may result. Sport Plus 50W AC/DC Charger or the Dynamite Prophet Sport Duo 2 X 50W charger. Refer to your charger manual for charging instructions and safety information. Blackjack 24... -
Page 6: Antenna Tube Installation
Tip: Move the packs forward or back to adjust the center of gravity for your boat. Move the packs toward the bow so the bow rides lower in the water. Move the packs away from the bow so that the bow rides higher in the water. Blackjack 24... -
Page 7: Low Voltage Cutoff (Lvc)
• 1 beep: Ni-MH or Ni-Cd • 2 beeps: 2S Li-Po • 3 beeps: 3S Li-Po One short beep will sound when the ESC is ready to run. 4. Test the transmitter’s control of the boat with the boat on the display stand. Blackjack 24... -
Page 8: Range Check
To do this, remove the ball link from the rudder horn, then turn the ball link on the linkage threads until the rudder is properly centered. Use needle-nose pliers or ball link pliers (RVO1005) to remove or install a link on a control horn. Blackjack 24... -
Page 9: Boating Tips
2. Power off the transmitter. 3. Disconnect and remove the 1. Power off the receiver. battery from the boat. Tip: Always remove the canopy before storage or moisture may allow mold and mildew to grow in the boat. Blackjack 24... -
Page 10: After Boating And Maintenance
• Remove the hatch before storing your boat a car. Doing so can damage the boat. • Repair any damage or wear to the boat • Lubricate the flex shaft using Pro Boat Marine Grease (PRB0100) • Make note of lessons learned from the trimming of your boat, including water and wind conditions Tip: The hook and loop strips in the boat retain water. -
Page 11: Water Cooling System
1. Loosen 2 bolts and 2 nuts from the drive strut on the rear of the boat. 2. Slide the strut up or down to change the angle of the propeller in relation to the hull. 3. Adjust as desired and tighten the nut and bolt. Blackjack 24... -
Page 12: Drivetrain Lubrication
Ensure there is a 1–2mm gap between the drive strut and drive dog to allow for flex shaft shrinkage under load. Blackjack 24... -
Page 13: Troubleshooting Guide
Rudder does not move Transmitter is not bound correctly Re-bind BEC (Battery Elimination Circuit) of the Replace ESC ESC is damaged ESC switch is off Power on ESC switch Blackjack 24... -
Page 14: Limited Warranty
UNDER THIS WARRANTY IS THE PURCHASER’S SOLE horizonhobby.com, submit a Product Support Inquiry, AND EXCLUSIVE REMEDY. or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative. Blackjack 24... -
Page 15: Warranty And Service Contact Information
11 Rue Georges Charpak France Horizon Hobby SAS 77127 Lieusaint, France +33 (0) 1 60 18 34 90 info@horizonhobby.com.cn Service/Parts/Sales: Room 506, No. 97 Changshou Rd. China Horizon Hobby – China Shanghai, China 200060 +86 (021) 5180 9868 Blackjack 24... -
Page 16: Compliance Information For The European Union
This product must not be disposed of with other waste. HH2014060504U1 Instead, it is the user’s responsibility to dispose of their Product(s): Blackjack 24 Catamaran BL RTF waste equipment by handing it over to a designated Item Number(s): PRB08007C collection point for the recycling of waste electrical Equipment class: and electronic equipment.
