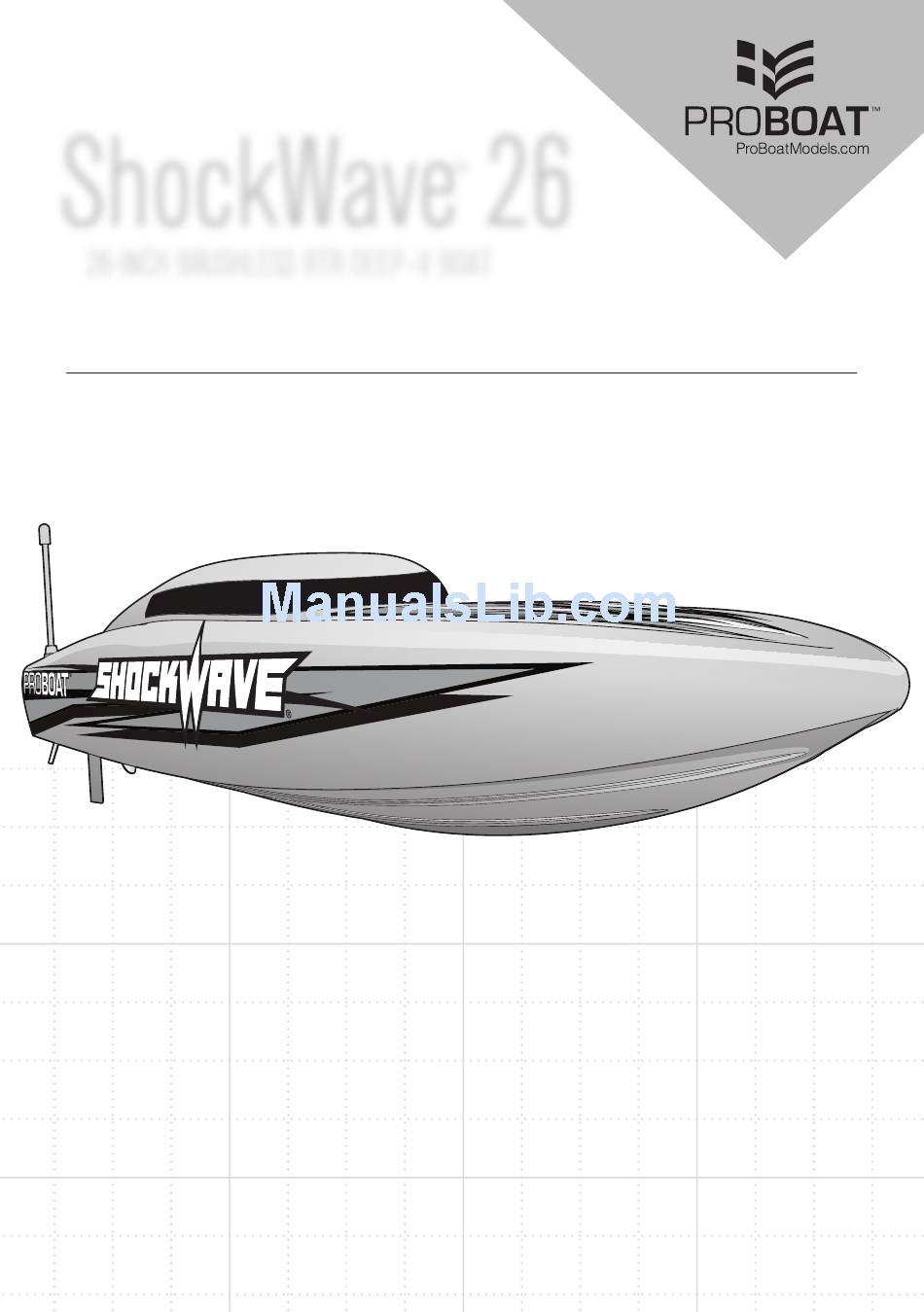

- Page 1 ShockWave 26 - INCH BRUSHLESS RTR DEEP–V BOAT PRB08014 Owners Manual • Bedienungsanleitung Manuel de l'utilisateur • Manuale dell'utente...
-
Page 2: Table Of Contents
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit http://www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury. -
Page 3: Water-Resistant Boat With Waterproof Electronics
Water-resistant Boat with Waterproof Electronics Your new Horizon Hobby boat has been designed and built with a combination of waterproof and water-resistant components to allow you to operate the product in calm, fresh water conditions. While the entire boat is highly water-resistant, it is not completely waterproof and your boat should NOT be treated like a submarine. -
Page 4: Introduction
Whether your passion leads you towards the pure serenity of sailing or the all-out speed of a Deep-V, Pro Boat models fit your taste, budget and lifestyle. You can count on us to be available any time you need help—the brand is backed by Horizon Hobby, one of the world’s largest distributors of hobby-grade RC products. -
Page 5: Transmitter Controls
Transmitter Controls Reverse Switch Battery Level Indicator Solid Red and Green: Battery voltage is good (above 4V). Solid Red: Battery voltage is critically low (below 4V). Replace Allows you to change the direction of transmitter batteries. steering (ST. REV) and throttle (TH. REV) controls (Ensure proper function with a radio system test). -
Page 6: Antenna Tube Installation
Antenna Tube Installation NOTICE: Do not cut or kink the Install the receiver antenna in the tube as shown. receiver antenna or damage may Keep the end of the antenna above the boat’s result. waterline to get the best transmitter reception. Apply clear tape (DYNM0102), if desired. -
Page 7: Battery Chemistry
Low Voltage Cutoff (LVC) Battery Chemistry The ESC comes from the factory in Li-Po Mode. To Discharging a Li-Po battery below 3V per cell may change battery chemistry: damage your battery.The included ESC protects the boat battery from over-discharge using Low Voltage Cutoff 1. -
Page 8: Range Check
Range Check IMPORTANT: Perform a range check at the beginning of each boating session, after repair or after installation of new batteries. Ensure the receiver antenna is extended properly and all batteries are fully charged. 1. With the radio system powered on and connected, walk away from your boat 90 feet (32 m). -
Page 9: When You Are Finished
Boating Tips If the propeller and rudder are blocked with debris or When running your boat for the first time, we vegetation, remove the boat from the water and remove recommend calm wind and water conditions so that you the debris before continuing operation. can learn how the boat responds to your control. -
Page 10: After Boating And Maintenance
• Remove the hatch before storing your boat a car. Doing so can damage the boat. • Repair any damage or wear to the boat • Lubricate the flex shaft using Pro Boat Marine Grease (PRB0100) • Make note of lessons learned from the trimming of your boat, including water and wind conditions Tip: The hook and loop strips in the boat retain water. -
Page 11: Water Cooling System
Water Cooling System 1. Disassemble and clean the water cooling system to If water does not stream out of the water outlets while remove blockage and prevent overheating. the boat is moving forward, immediately stop the boat and clean the obstruction from the water cooling system. 2. -
Page 12: Drivetrain Lubrication
Drivetrain Lubrication NOTICE: Running the boat in saltwater could cause some Always replace the drivetrain parts when they are parts to corrode. If you run the boat in saltwater, rinse it damaged or show visible wear or injury and damage may thoroughly in freshwater after each use and lubricate the result. -
Page 13: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Boat will not respond to throttle but responds Throttle channel is reversed Reverse throttle channel on transmitter to other controls Damaged propeller, shaft or motor Replace damaged parts Extra noise or extra vibration Propeller is out of balance Balance or replace propeller Boat battery charge is low Completely recharge battery... -
Page 14: Limited Warranty
Problem Possible Cause Solution Replace or repair damaged parts and adjust con- Rudder, linkage or servo damage trols Steering servo wire is damaged or Do a check of steering servo wires and connec- connections are loose tions, connect or replace as needed Rudder does not move Transmitter is not bound correctly Re-bind... -
Page 15: Warranty And Service Contact Information
Inspection or Services Non-Warranty Service If this Product needs to be inspected or serviced and is Should your service not be covered by warranty, service compliant in the country you live and use the Product in, will be completed and payment will be required without please use the Horizon Online Service Request submission notification or estimate of the expense unless the expense process found on our website or call Horizon to obtain a... -
Page 16: Fcc And Ic Information
FCC Information This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. -
Page 17: Replacement Parts
