Summary of Contents for Pro Boat Miss Geico
- Page 1 Инструкция для Proboat Miss Geico 29 Catamaran RTR Перейти в карточку товара 8 800 775 98 98...

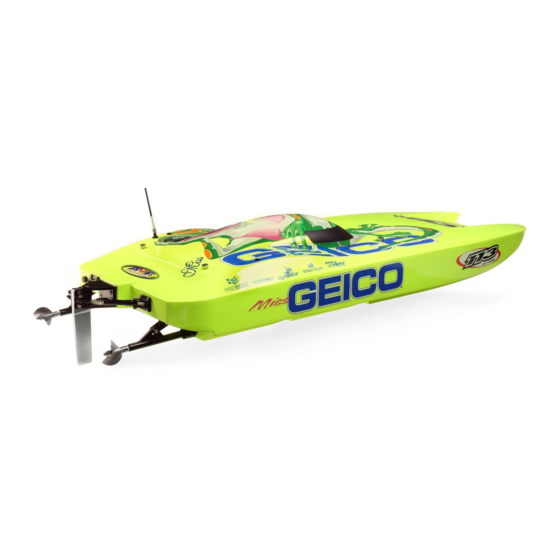

- Page 2 ® Owners Manual Specifications Length ..................30 in (762mm) Beam .................... 11 in (279mm) Motor ............A3630-1500Kv Water-Cooled Brushless Receiver ................. Spektrum 2.4GHz Marine Speed Control ............45-amp Waterproof Brushless Hull Material ................Fiberglass Composite Battery ..7.4V 2S 25C Li-Po or 7.2V Sub-C with Deans Connector (2) (not included) Radio ....................2-channel www.ProBoatModels.com...
-
Page 3: Table Of Contents
Notice All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit http://www. horizonhobby.com and click on the support tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property... -
Page 4: Recommended Tools And Adhesives
It is preferable to operate the Miss Geico in boat. Failure to read and understand the low wake, low wind conditions and in areas manual could result in personal injury, free of people, wildlife and objects. -
Page 5: Basic Assembly
Basic Assembly Required Equipment and Accessories 3. Install the four AA batteries in the battery holder. Match the polarity of the Transmitter batteries to the molded markings in the AA battery (4) Motor battery (2) (charged) battery holder. Hook and loop tape 1. - Page 6 6. Remove the radio box cover from the 8. Place the motor batteries in the hull. hull by lifting it up using the tab at the There will be one battery on the left of the rear of the cover. hull, and one on the right side of the hull.
- Page 7 About your Speed Controller Be sure to use a Programming Module (PRB3311) to adjust the cutoff voltage when using Li-Po batteries to protect against over- discharging the batteries. Note: The ESC is factory-set for use with Ni-MH batteries. The programming module offers other beneficial adjustments like exponential throttle curves and timing adjustments.
-
Page 8: Handling Adjustments
13. Place the clear battery cover back Note: The radio system is pre-bound at into position. We suggest using clear tape the factory but the 2.4GHz radio system (PRB102) around the edge of the main may not bind correctly if the radio is hatch to keep it in place in the event of a adjacent to a large amount of metal such roll over. -
Page 9: Maintenance
Raising the drive helps eliminate oscillation or Use a 3mm hex wrench and 7mm nut driver bouncing and assist with top end stability but to loosen the bolt that attaches the output to excessively raising the drive can reduce top the bracket to adjust the height. - Page 10 2. Use two 10mm open end wrenches to 5. Apply a waterproof marine grease to loosen the ferrule that secures the flex the flex shaft. We recommend the Pro shaft to the motor. Boat marine grease available at your local hobby dealer.
-
Page 11: Warranty And Repair Policy
Warranty and Repair Policy Warranty Period by anyone other than Horizon. Return of any Product by Purchaser must be approved in Exclusive Warranty- Horizon Hobby, Inc., writing by Horizon before shipment. (Horizon) warranties that the Products purchased (the “Product”) will be free from defects in materials and workmanship at the date of purchase by the Purchaser. -
Page 12: Warranty Services
Warranty Services Damage Limits Inspection or Repairs HORIZON SHALL NOT BE LIABLE FOR If this Product needs to be inspected or SPECIAL, INDIRECT OR CONSEQUENTIAL repaired, please use the Horizon Online Repair DAMAGES, LOSS OF PROFITS OR Request submission process found on our PRODUCTION OR COMMERCIAL LOSS IN website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. -
Page 13: Warranty Services
Warranty Services Warranty Inspection and Repairs United States To receive warranty service, you must (Electronics and engines) include your original sales receipt Horizon Service Center verifying the proof-of-purchase date. Provided 4105 Fieldstone Rd warranty conditions have been met, your Champaign, Illinois Product will be repaired or replaced free of 61822 USA charge. -
Page 14: Compliance Information For The European Union
Product(s): PRB Miss Geico The separate collection and recycling of your Item Number(s): PRB4100 waste equipment at the time of disposal will... -
Page 15: Replacement Parts
Replacement Parts Go to ProBoatModels.com to see photos of the replacement parts listed under Miss Geico. If you have any questions concerning the setup or running of your model, please see page 12 to contact the appropriate Horizon service center. -
Page 16: Item Identification
Item Identification Cooling Line Receiver Speed Control Switch Rudder Linkage Motor Stuffing Box Propeller Rudder Steering Servo Antenna Hull Hatch Cover Water Outlet Radio Box Stand Cover... - Page 17 ® © 2010 Horizon Hobby, Inc. horizonhobby.com www.proboatmodels.com Printed 06/2010 17976...
- Page 18 Proboat Miss Geico 29 Catamaran RTR Описание...
