Summary of Contents for Pro Boat Miss GEICO Zelos

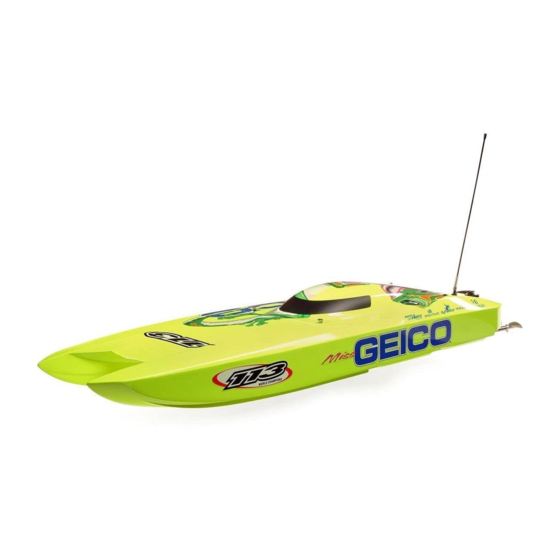

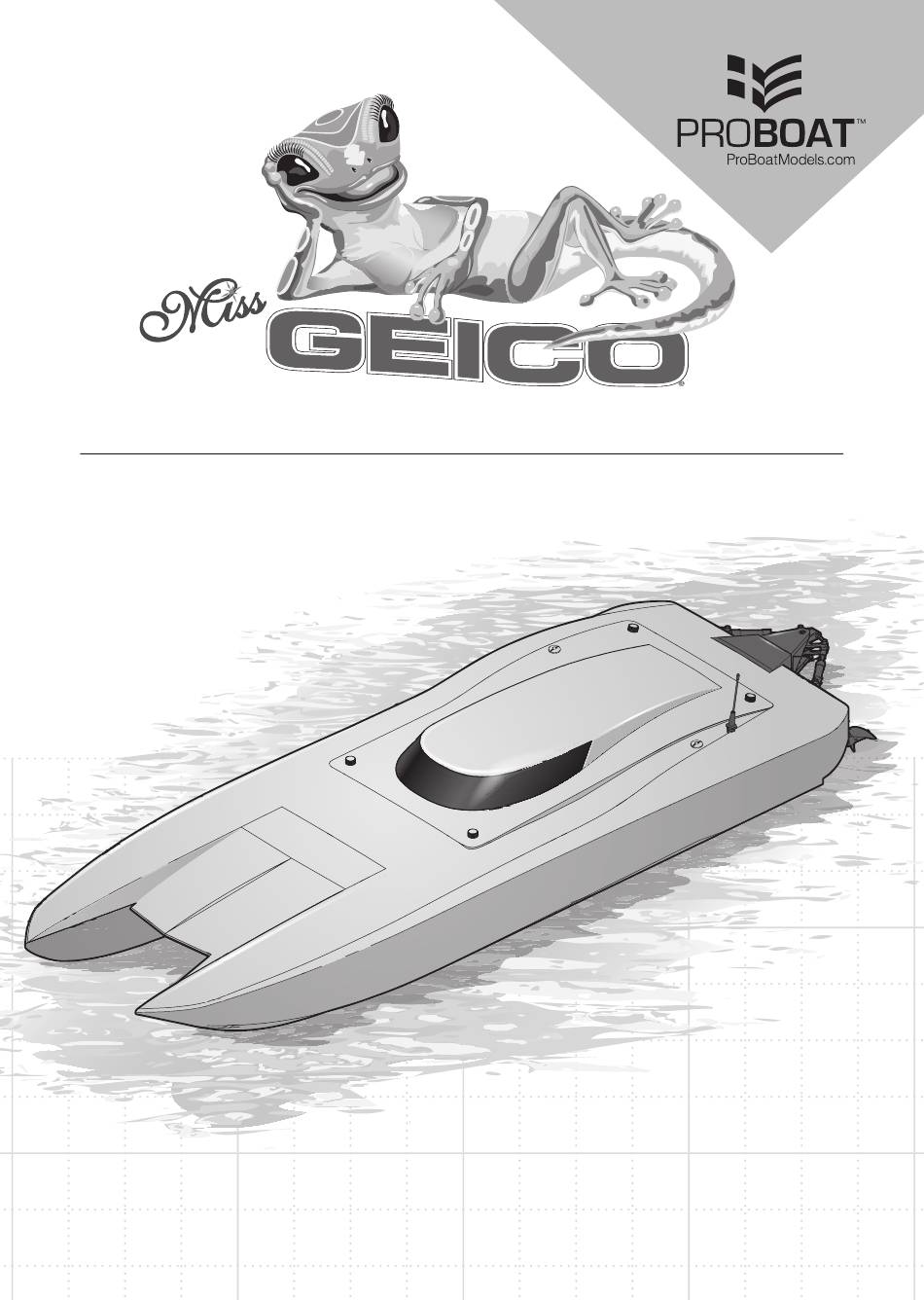

- Page 1 36-INCH TWIN BRUSHLESS RTR BOAT PRB08040 Owners Manual • Bedienungsanleitung Manuel de l’utilisateur • Manuale dell’utente Batteries sold separately Batteries sold separately...
-
Page 2: Table Of Contents
Battery Pack Installation ..........7 FCC Information ............15 Control Check ..............7 Replacement Parts ............57 Getting Started ..............8 Optional Parts ..............58 When You Are Finished ........... 8 Boating Tips ..............8 Miss GEICO Zelos Twin 36 ®... -
Page 3: Water-Resistant Boat With Waterproof Electronics
• Remove the battery pack(s) and disconnect the ESC and motor. Dry the contacts. If you have an air compressor or a can of compressed air, blow out any water that may Miss GEICO Zelos ® Twin 36... -
Page 4: Box Contents
Box Contents • Pro Boat ® Miss GEICO Zelos ® 36-Inch Brushless Catamaran A battery (sold separately) is required to • Spektrum™ DX2E 2CH DSMR ® Transmitter operate the boat. • Spektrum™ MR4000 DSMR 4 CH MARINE RECEIVER (SPMR4000) • Dynamite ® 120A Brushless 2–6S Marine ESC (DYNM3878) •... -
Page 5: Transmitter Controls
Keep the end of the antenna above the boat’s waterline to get the best transmitter reception. NOTICE: Do not cut or kink the receiver antenna or dam- age may result. Miss GEICO Zelos ® Twin 36... -
Page 6: Battery Pack Selection
NOTCE: Remove the factory installed harness from both ESCs before installing the (2) SPMXCA506 optional battery harnesses. 7 .4V (2S) pack 11.1V (3S) pack 2 PACKS INCLUDED 50-65 MPH 7 .4V (2S) pack 11.1V (3S) pack Miss GEICO Zelos Twin 36 ®... -
Page 7: Battery Pack Installation
2. Place the boat securely on the boat stand. NOTICE: Do not operate the motor without water cooling circulation or damage may result. 3. Check steering and throttle on the transmitter. Miss GEICO Zelos ® Twin 36... -
Page 8: Getting Started
7 . Repair any damage or wear to the boat. 8. Lubricate the fl ex shaft using Pro Boat® Marine Grease (DYNE4200 or DYNE4201) (see, Drivetrain Lubrication). NOTICE: Never store the boat without greasing the fl ex shafts or they may rust. -
Page 9: Strut Angle Adjustment
5. Place the second ruler across the fi rst ruler, forming a 90 strut adjustment. degree angle against the propeller strut. Stock Setting Minimum Setting 2.5mm Miss GEICO Zelos ® Twin 36... -
Page 10: Maintenance
4. Assemble in reverse order. Correctly align the propeller with the drive dog on the driveshaft. NOTICE: The counter-rotating propellers must rotate inward. The clockwise propeller goes on the left and the counterclockwise propeller goes on the right. Miss GEICO Zelos Twin 36 ®... -
Page 11: General Information
30mph will prevent water from circulating through the electronics, causing them to overheat and 1. Disassemble and clean the water cooling system to possibly become damaged. remove blockage and prevent overheating. 2. Replace any damaged parts. Miss GEICO Zelos ® Twin 36... -
Page 12: Low Voltage Cutoff (Lvc)
Replace damaged parts Extra noise or extra Propeller is out of balance Balance or replace propeller vibration Boat squeals or makes a high pitch sound Lubricate fl ex shafts when applying power to motors Miss GEICO Zelos Twin 36 ®... -
Page 13: Troubleshooting Guide
Adjust the struts downward to drive the bow Water conditions are too choppy or windy of the boat down or move the batteries further forward for better weight distribution Miss GEICO Zelos ® Twin 36... -
Page 14: Limited Warranty
Horizon will hold non-compliant Product for a period of 60 days from notification, after Questions, Assistance, and Services which it will be discarded. Your local hobby store and/or place of purchase cannot provide 10/15 Miss GEICO Zelos Twin 36 ®... -
Page 15: Contact Information
For more information about where you can drop off your waste equipment for recycling, please contact your local city offi ce, your household waste disposal service or where you purchased the product. Miss GEICO Zelos ® Twin 36... -
Page 16: Replacement Parts
Zelos 36 Twin 36 Twin "NYA Batt Adptr, EC5: "NYA Akku Adptr, EC5: PED Adaptateur de batte- "Adattatore batteria NYA, "PRB18031 Miss GEICO 36" rie, EC5 : Miss GEICO 36 EC5: Miss GEICO 36" Miss GEICO 36" Miss GEICO Zelos ® Twin 36... -
Page 17: Optional Parts
2S 50C, hardcase: 50C LiPo,Hrdcs:EC5 LiPo, Hartschale: EC5 5000 mAh 3S 50 C : EC5 120A bürstenloser MARINE- 120A BL MARINE Variateur ESC marin 120A DYNM3875 Geschwindigkeitsregler ESC marino 120A BL 2-6S ESC 2-6S BL 2-6 S 2–6S Miss GEICO Zelos Twin 36 ®... -
Page 18: Miss Geico Zelos ® Twin
Surface Sx Oberfl ächenservo standard S6170 digitale standard Sx S6250 Servocomando S6250 High Torque, S6250 Digitaler HV-Servo Couple élevé S6250, SPMSS6250 digitale a coppia elevata HV Dig Servo mit hohem Drehmoment servo numérique HV Miss GEICO Zelos ® Twin 36... - Page 19 60223.1 Created: 07/2019 ©2019 Horizon Hobby, LLC. Pro Boat, the Pro Boat logo, Zelos, Dynamite, Prophet, Reaction, EC5, DSM, DSMR, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
