Introduction
Information/procedure
Extensions and upgrades
– Removing the airduct
– Removing the fanbox
– Extending/replacing the main memory
– Installing a second processor / replacing the
processor / replacing the heat sink
– Installing accessible drives
– Installing a Local View module
– Installing a PCI controller
– Installing a battery for the PCI controller
– Installing UFM
– Installing TPM
– Installing Front VGA
Cabling
Replacement routines:
– Replacing the operating panel
– Replacing the USB module
– Replacing the backplane
– Replacing the SAS backplane
– Replacing the IDTEMP Combo
– Replacing the fan box backplane
– Replacing the system board
– Replacing the TPM
– Replacing the UFM
Settings and Board layouts
BIOS setup

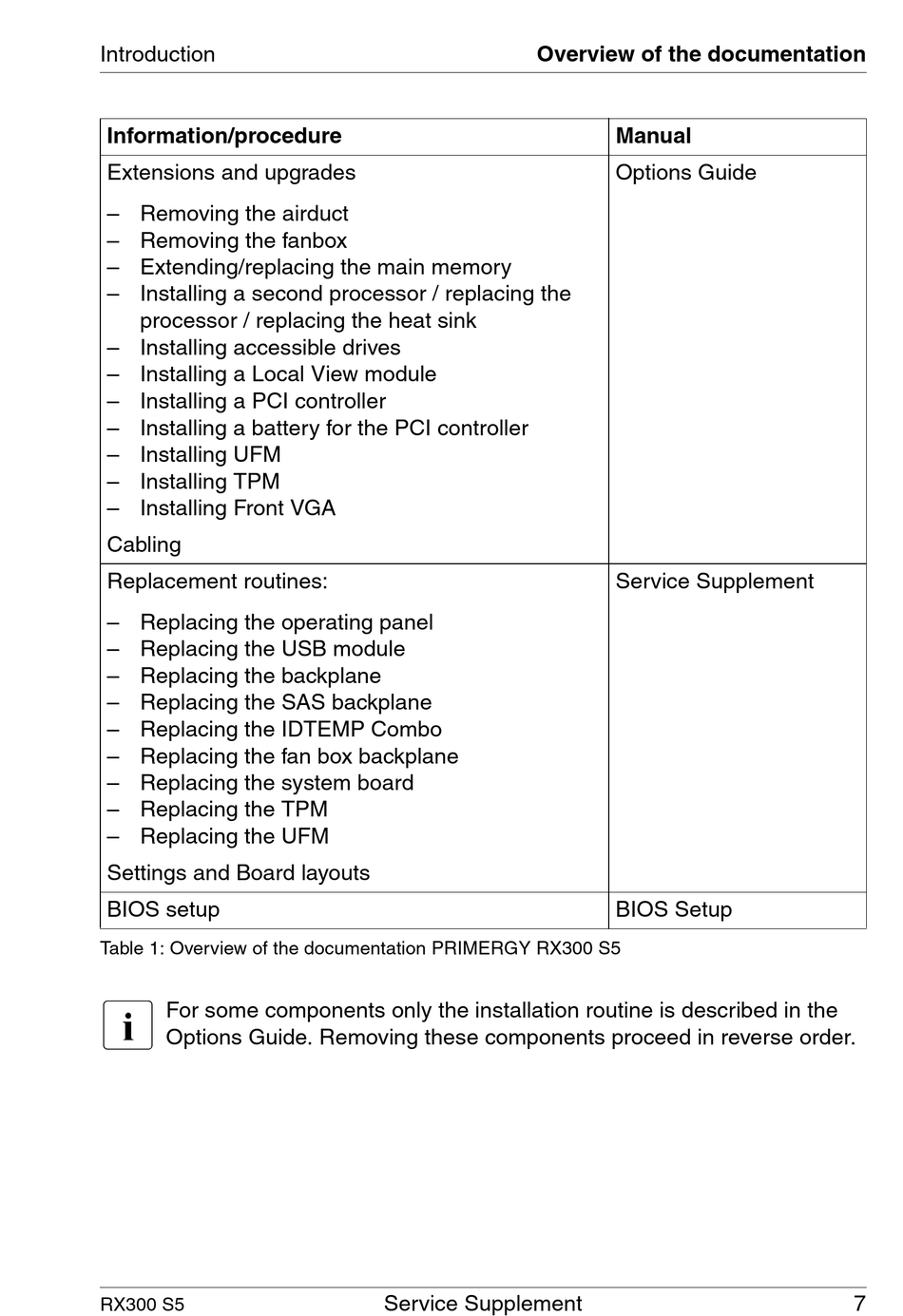

Table 1: Overview of the documentation PRIMERGY RX300 S5
I
For some components only the installation routine is described in the
Options Guide. Removing these components proceed in reverse order.
RX300 S5
Overview of the documentation
Service Supplement
Manual
Options Guide
Service Supplement
BIOS Setup
7
