Options Guide - English

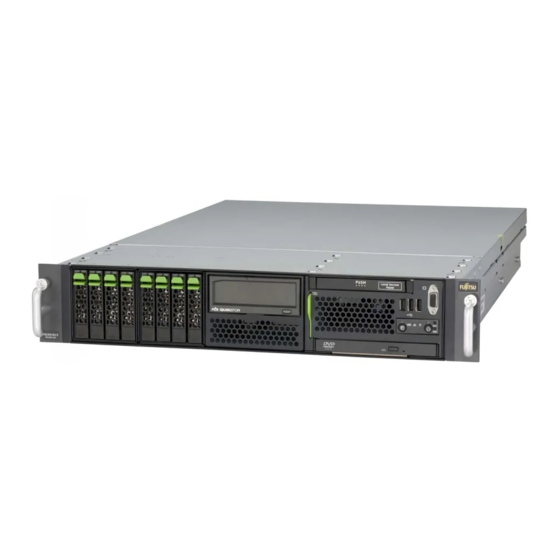

PRIMERGY RX300 S6
Server
Options Guide
Edition October 2012

Advertisement

Table of Contents
loading

Related Manuals for Fujitsu PRIMERGY RX300 S6

Summary of Contents for Fujitsu PRIMERGY RX300 S6

  • Page 1 Options Guide - English PRIMERGY RX300 S6 Server Options Guide Edition October 2012...

  • Page 2: Copyright And Trademarks

    All hardware and software names used are trademarks of their respective manufacturers. – The contents of this manual may be revised without prior notice. – Fujitsu assumes no liability for damages to third party copyrights or other rights arising from the use of any information in this manual.
  • Page 3 Before reading this manual For your safety This manual contains important information for safely and correctly using this product. Carefully read the manual before using this product. Pay particular attention to the accompanying manual "Safety Notes and Regulations" and ensure these safety notes are understood before using the product.
  • Page 4 Please consult the sales staff of Fujitsu if intending to use this product for high safety use. Measures against momentary voltage drop This product may be affected by a momentary voltage drop in the power supply caused by lightning.
  • Page 5 Only for the Japanese market: Although described in this manual, some sections do not apply to the Japanese market. These options and routines include: – USB Flash Module (UFM) – Trusted Platform Module (TPM) Options Guide RX300 S6...
  • Page 6 Options Guide RX300 S6...

  • Page 7: Table Of Contents

    Content Preface ......11 Concept and target groups ....12 Documentation overview .
  • Page 8 Content Accessible drives and LSP/LSD ....55 Installing LSP or LSD ..... . 56 Installing an optical drive .
  • Page 9 Content Appendix ......125 11.1 Cable list ......125 11.2 Cabling plans .
  • Page 10 Content Options Guide RX300 S6...

  • Page 11: Preface

    The system was developed specifically for configurations with multiple servers (clusters), front-end solutions, e-commerce applications and ERP solutions. The PRIMERGY RX300 S6 is ideal for applications and operational areas that require maximum scalability, performance and availability in a space-saving rack cabinet.

  • Page 12: Concept And Target Groups

    The installation and removal of the hot-plug components is described in the Operating Manual supplied with the server. Documentation overview More information on your PRIMERGY RX300 S6 can be found in the following documents: – "Quick Start Hardware - PRIMERGY RX300 S6" leaflet "...
  • Page 13 Internet. The overview page showing the online documentation available on the Internet can be found using the URL (for EMEA market): http://manuals.ts.fujitsu.com. The PRIMERGY server documentation can be accessed using the Industry standard servers navigation option. For the Japanese market please use the URL: http://primeserver.fujitsu.com/primergy/manual.html.

  • Page 14: Expansions And Conversions

    Preface Expansions and conversions Main memory The system board offers 18 slots for memory modules. 9 memory slots can be used in mono processor configurations. ECC with memory scrubbing and the Single Device Data Correction (SDDC) function is standard. There are three modes of operation for the main memory: –...
  • Page 15 (e.g. drive encryption using Windows Bitlocker Drive Encryption). The TPM is activated via the BIOS system (for more information, refer to the "D2619-N BIOS Setup Utility for PRIMERGY RX300 S6 and TX300 S6" manual). CAUTION! – When using the TPM, note the program descriptions provided by the third party manufacturers.

  • Page 16: Notational Conventions

    Preface – You must also create a backup of the TPM content. To do this, follow the third party manufacturer's instructions. Without this backup, if the TPM or the system board is faulty you will not be able to access your data.

  • Page 17: Procedure

    117. Ê Start the operating system and make the appropriate configuration if necessary (see the Operating Manual). For the latest information on optional products provided for the RX300 S6 see the configurator of this server: https://sp.ts.fujitsu.com/dmsp/docs/cnfgrx300s6.pdf Options Guide RX300 S6...
  • Page 18 Procedure Options Guide RX300 S6...

  • Page 19: Safety Instructions

    Safety instructions The following safety instructions are also provided in the manual "Safety Notes and Regulations" or " 安全上のご注意 ". This device meets the relevant safety regulations for IT equipment. If you have any questions about whether you can install the server in the intended environment, please contact your sales outlet or our customer service team.
  • Page 20 Safety instructions Installation and operation CAUTION! This unit should not be operated in ambient temperatures above ● 35 °C. If the unit is integrated into an installation that draws power from an ● industrial power supply network with an IEC309 connector, the power supply's fuse protection must comply with the requirements for non- industrial power supply networks for type A connectors.
  • Page 21 Safety instructions CAUTION! Ensure that the power sockets on the device and the properly ● grounded power outlets are freely accessible. The On/Off button or the main power switch (if present) does not ● isolate the device from the mains power supply. To disconnect it completely from the mains power supply, unplug all network power plugs from the properly grounded power outlets.
  • Page 22 Safety instructions CAUTION! Proper operation of the system (in accordance with IEC 60950-1/2 ● resp. EN 60950-1/2) is only ensured if the casing is completely assembled and the rear covers for the installation slots have been fitted (electric shock, cooling, fire protection, interference suppression).
  • Page 23 Safety instructions CAUTION! Install the screw removed during installation/detaching Internal ● Options in former device/position. To use a screw of the different kind causes a breakdown of equipment. The installation indicated on this note is sometimes changed to the ● kind of possible options without notice.
  • Page 24 Safety instructions Shocks and vibrations are also to be avoided. ● Do not insert any objects other than the specified CDs/DVDs/BDs. ● Do not pull on, press hard, or otherwise handle the CD/DVD/BD tray ● roughly. Do not disassemble the optical drive. ●...
  • Page 25 Safety instructions You can prevent damage from the optical drive and the CDs/DVDs/BDs, as well as premature wear of the disks, by observing the following suggestions: – Only insert disks in the drive when needed and remove them after use. –...
  • Page 26 Safety instructions The equipment and tools you use must be free of static charges. ● Only touch the components at the positions highlighted in green (touch ● points). Do not touch any exposed pins or conductors on a component. ● Use a grounding cable designed for this purpose to connect yourself to the ●...

  • Page 27: Preparation

    Preparation CAUTION! Before removing or attaching covers, turn off the server, all peripheral ● devices, and any other connected devices. Also unplug all power cords from the power outlet. Failure to do so can cause electric shock. Only for rack model: ●...

  • Page 28: Removing The Server From The Rack

    Preparation Removing the server from the rack Ê Terminate all applications and shut down the server correctly. Ê If your operating system has not switched off the server, press the on/off button. Ê Pull all power connectors out of the power outlets. Figure 2: Knurled screws loosened and the server pulled out Ê...

  • Page 29: Opening The Server

    Preparation Opening the server Figure 3: Removing the top cover Ê Press the two locks down. Ê Slide the cover back and take it off. Options Guide RX300 S6...

  • Page 30: Removing The Air Duct

    Preparation Removing the air duct You only need to remove the air duct if you want to work in the area of the expansion cards, main memory or processors. Figure 4: Removing the air duct If you have installed an SAS/SATA RAID controller with a BBU: pay attention to the BBU cable when lifting off the air duct! If you want to remove the air duct from the server completely, first disconnect the BBU cable from the controller.

  • Page 31: Removing The Fan Box

    Preparation Removing the fan box Figure 5: Removing the fan box Ê Push in the fan box locks on the right and left-hand side. Ê Pull the fan box straight up and out. Ê Place the fan box on the plate over the drives. Options Guide RX300 S6...

  • Page 32: Removing The Power Supply Cage

    Preparation Removing the power supply cage Removing the power supply and dummy module Figure 6: Removing the power supply dummy module Ê Unlock the dummy module and pull it out. Figure 7: Removing the power supply module Options Guide RX300 S6...
  • Page 33 Preparation Ê Unlock the power supply module and pull it out. Figure 8: Removing the power supply cage Ê Remove the two screws (yellow circles) on the upper rear side. Ê Loosen the four captive screws (blue circles). Ê Remove the power supply cage by lifting it straight up to avoid damaging the plugs on the system board.
  • Page 34 Preparation Options Guide RX300 S6...

  • Page 35: Main Memory

    Main memory CAUTION! Before installing/removing memory to/from the server, turn off the ● server, all peripheral devices, and any other connected devices. Also unplug all power cords from the power outlet. Failure to do so can cause electric shock. A memory module consists of parts that are very vulnerable to ●...

  • Page 36: Population Rules

    Main memory Population rules The system board supports up to 192 GB main memory. There are 18 slots available for the main memory. Each slot can be populated with 1 GB, 2 GB single or dual rank UDIMM or 1 GB, 2 GB, 4 GB, 8 GB, 16 GB single, dual or quad rank RDIMM memory modules (1 GB memory modules for the Japanese market only).
  • Page 37 Main memory There are three modes of operation for the main memory: – Independent Channel Mode (maximum memory configuration) The populated memory in the 6 channels (A-F) can be used in full (max. 192 GB). – Mirrored Channel Mode (maximum security) Only the populated memory in the 2 channels A and D can be used (max.

  • Page 38: Expanding The Main Memory

    Main memory Expanding the main memory Ê Open the server as described in chapter "Preparation" on page Ê Remove the air duct over the main memory (see "Removing the air duct" on page 30). Figure 10: Removing a memory module Ê...
  • Page 39 Main memory Ê Insert the air duct back into the server (see section "Inserting the air duct" on page 120). Ê Return the housing cover to its position (see section "Closing the server" on page 121). Ê Close the server, connect it to the power outlet, and switch it on as described in the chapter "Completion"...
  • Page 40 Main memory Options Guide RX300 S6...

  • Page 41: Processors

    Processors CAUTION! Before installing/removing processors to/from the server, turn off the ● server, all peripheral devices, and any other connected devices. Also unplug all power cords from the power outlet. Failure to do so can cause electric shock. Do not touch the circuitry on boards and soldered parts. Hold the ●...

  • Page 42: Installing A Second Processor

    Processors Installing a second processor The system board can be upgraded with a second processor. The upgrade kit consists of a processor and a heat sink. CAUTION! Only identic processors may be used on the system board. Both processors must have the same clock frequency and the same cache. For dual operation, use a suitable multiprocessor operating system.
  • Page 43 Processors Figure 13: Opening the processor holder Ê Open the processor holder. Figure 14: Removing the socket cover Options Guide RX300 S6...
  • Page 44 Processors Ê Take hold of the socket cover by the handles. Lift the socket cover straight up and off. CAUTION! If the socket cover is tilted when it is lifted off, the contact springs of the processor socket will be damaged. Figure 15: Slot for second CPU, socket coding and marking Figure 16: Inserting the processor Options Guide...
  • Page 45 Processors Ê Position the new processor above the socket, and press it into the socket. CAUTION! The processor can only be installed in one particular direction. Note the marking on one of the corners. CAUTION! If the processor is tilted when it is inserted, the contact springs of the processor socket will be damaged.
  • Page 46 Processors Figure 18: Engaging the socket release lever Ê Engage the socket release lever. Options Guide RX300 S6...
  • Page 47 Processors Installing the heat sink Figure 19: Installing the heat sink Ê Remove the protective cover on the underside of the heat sink. When doing so, do not touch the thermal paste on the underside of the heat sink. Ê Place the heat sink on the processor. Options Guide RX300 S6...
  • Page 48 Processors Figure 20: Closing the heat sink retention levers Ê Close the two heat sink retention levers at the same time. Ê Engage the two heat sink retention levers. CAUTION! Never install a processor without a heat sink. Doing so may cause the processor to overheat.

  • Page 49: Replacing The Processor

    Processors Replacing the processor CAUTION! Only identic processors may be used on the system board. The second processor must have the same clock frequency and the same cache as the first processor. For dual operation, use a suitable multiprocessor operating system. Install the heat sink as described in the sections "Installing the heat sink"...
  • Page 50 Processors Figure 22: Disengaging the socket release lever Ê Open the socket release lever (1) and swing it up as far as possible. Ê Open the processor holder (2). Ê Carefully lift the installed processor, that remains in vertical position, up and out of the socket.
  • Page 51 Processors Figure 23: Inserting the processor Ê Position the new processor over the socket and then carefully press it into the socket. CAUTION! The processor can only be installed in one particular direction. Pay attention to the marking on one of the corners and the socket coding. To avoid damaging the connections (pins) or the processor, do not force it into the socket.

  • Page 52: Replacing The Heat Sink

    Processors Figure 24: Installing the heat sink Ê Close the two heat sink retention levers at the same time. Ê Replace the air duct over the main memory (see section "Inserting the air duct" on page 120). Ê Close the server, connect it to the power outlet, and switch it on as described in the chapter "Completion"...
  • Page 53 Processors When doing so, do not touch the thermal paste on the underside of the heat sink. Ê Place the heat sink on the processor socket (see section "Replacing the processor" on page 49). Ê Close the two heat sink retention levers at the same time. Ê...
  • Page 54 Processors Options Guide RX300 S6...

  • Page 55: Accessible Drives And Lsp/Lsd

    Accessible drives and LSP/LSD CAUTION! Before installing/removing an accessible drive to/from the server, turn ● off the server, all peripheral devices, and any other connected devices. Also unplug all power cords from the power outlet. Failure to do so can cause electric shock. When installing an accessible drive, hold it by the side.

  • Page 56: Installing Lsp Or Lsd

    Accessible drives and LSP/LSD Installing LSP or LSD The ServerView Local Service Panel (LSP) and ServerView Local Service Display (LSD) are optional extra modules for PRIMERGY series servers. The display field allows you to read status reports directly on the server. These status reports provide you with information about the system and inform you of hardware errors (e.g.
  • Page 57 Accessible drives and LSP/LSD Removing the dummy module If you want to upgrade from the Local Service Panel to the Local Service Display, remove the Local Service Panel in the same way as the dummy module, and remove the cable when you have pulled the Local Service Panel right out.
  • Page 58 Accessible drives and LSP/LSD Figure 27: Removing the dummy module Ê Pull out the dummy module frontward. Options Guide RX300 S6...
  • Page 59 Accessible drives and LSP/LSD Figure 28: Connecting the ServerView Local View Service Module Ê Thread the cable through the bay to the front. Ê Connect the cable to the ServerView Local Service Display. Options Guide RX300 S6...
  • Page 60 Accessible drives and LSP/LSD Figure 29: Inserting the ServerView Local Service Module Carefully insert the ServerView Local Service Module horizontally to avoid damaging the EMC springs. Ê Push the ServerView Local Service Module right in. Further information on usage and display modes is provided in the documentation for the ServerView Local Service Panel or ServerView Local Service Display.

  • Page 61: Installing An Optical Drive

    Accessible drives and LSP/LSD Installing an optical drive Ê Open the server as described in chapter "Preparation" on page Figure 30: Unlocking the dummy module Ê Unlock the dummy module. Ê Push the dummy module frontward. Carefully push the dummy module out horizontally to avoid damaging the EMC springs.
  • Page 62 Accessible drives and LSP/LSD Figure 31: Remove the dummy module Ê Remove the dummy module from the bay. CAUTION! Store the dummy module in a safe place. If you remove the accessible drive and do not replace it with a new one, the dummy module must be reinstalled to comply with EMC regulations and to satisfy cooling requirements and fire protection measures.
  • Page 63 Accessible drives and LSP/LSD Figure 32: Installing an optical drive in the frame Ê Install the optical drive in the frame. Pay attention to the plastic pins that hold the drive in the frame. Ê Thread the power cable and SATA cable through the bay. Figure 33: Connect the power and data cable.
  • Page 64 Accessible drives and LSP/LSD Ê Connect the power cable to the optical drive (see the cabling plans in the chapter "Appendix" on page 125). Ê Connect the SATA cable to the drive (see the cabling plan in the chapter "Appendix" on page 125).
  • Page 65 Accessible drives and LSP/LSD Figure 35: Connecting the SATA cable to the system board Ê Route the cable into the cable guide. Ê Connect the SATA cable to the connector SATA1 on the system board (see the cabling plans in the chapter "Appendix"...

  • Page 66: Usb Tape Drive/Usb Rdx Drive

    Accessible drives and LSP/LSD USB tape drive/USB RDX drive A USB drive can only be installed in the 6x 3.5" and 8x 2.5" hard disk drive variant. Ê Open the server as described in section "Opening the server" on page Ê...
  • Page 67 Accessible drives and LSP/LSD Figure 37: USB tape drive Figure 38: USB RDX drive Options Guide RX300 S6...
  • Page 68 Accessible drives and LSP/LSD Figure 39: Installing a USB tape drive in a drive cage Ê Insert the USB drive into the drive cage. Figure 40: Securing the USB tape drive with screws Ê Secure the USB tape drive with 2 screws (M3x4,5) on the left and right-hand side.

  • Page 69: Installing A Usb Drive

    Accessible drives and LSP/LSD 7.3.1.2 Installing a USB drive Installing a USB tape drive Figure 41: Connecting the power supply adapter cable Ê Remove the power supply cable for the USB drive from the fan box holder. Ê Connect the adapter cable. Connecting the tape drive Figure 42: Pushing the power supply and USB cable frontward through the bay Ê...
  • Page 70 Accessible drives and LSP/LSD Figure 43: Connecting the cables to the USB tape drive Ê Connect the two cables to the USB tape drive. Figure 44: Pushing the USB tape drive into the server Ê Before pushing in the USB tape drive route the USB cable und the connector to the right side.
  • Page 71 Accessible drives and LSP/LSD Figure 45: Installing a USB tape drive Ê Push the drive in. Make sure that the locking levers at both sides (see circles) are engaged. Press the locking levers outward. Ê When pushing in the drive, pull the cables back carefully to ensure that they do not become trapped.
  • Page 72 Accessible drives and LSP/LSD Figure 47: Connecting the USB cable to the system board Ê Connect the USB cable to the system board in USB slot 1 (see cabling plan in the chapter "Appendix" on page 125). Options Guide RX300 S6...
  • Page 73 Accessible drives and LSP/LSD Figure 48: Routing cables in the fan box holder and air duct holder Ê Route the cables in the fan box holder and air duct holder as shown in the photograph. Ê Replace the fan box (see section "Installing a fan box"...
  • Page 74 Accessible drives and LSP/LSD Installing a USB RDX drive Figure 49: Pushing the power supply and USB cable frontward through the bay Ê Push the power supply cable frontward through the bay. Ê Push the USB cable frontward through the bay. The black plug must be on the outside.
  • Page 75 Accessible drives and LSP/LSD Ê When pushing in the drive, pull the cables back carefully to ensure that they do not become trapped. Figure 51: Installing a USB RDX drive Ê First route the cables to the right (see photograph) and then up, to ensure that the cables do not become trapped between the backplane and the USB drive module.
  • Page 76 Accessible drives and LSP/LSD Figure 52: Connecting the USB cable to the system board Ê Connect the USB cable to the system board in USB slot 1 (see cabling plan in the chapter "Appendix" on page 125). Options Guide RX300 S6...
  • Page 77 Accessible drives and LSP/LSD Figure 53: Routing the USB cable and power supply cable through the fan box holder and air duct holder Ê Route the cables in the fan box holder and air duct holder as shown in the photograph.

  • Page 78: Installing A Usb Drive In The 8X 2.5" Variant

    Accessible drives and LSP/LSD 7.3.2 Installing a USB drive in the 8x 2.5" variant In the 8x 2.5" variant, the DAT and RDX drive are installed using the same method, except for the cabling. 7.3.2.1 Installing a USB drive Figure 54: Removing a drive module Ê...
  • Page 79 Accessible drives and LSP/LSD Figure 55: Preparing the drive module Ê Remove the two screws on both sides. Ê Remove the cover. Figure 56: Inserting the USB drive into the drive module Options Guide RX300 S6...
  • Page 80 Accessible drives and LSP/LSD Ê Insert the USB drive into the drive module. Ê Secure the drive with the 4 screws (M3x4). Figure 57: Inserting the drive module Ê Insert the drive module. CAUTION! When you push back the USB drive module, take care that the SAS backplane do not lay in front of the drive module.

  • Page 81: Connecting A Usb Drive

    Accessible drives and LSP/LSD 7.3.2.2 Connecting a USB drive Connecting a USB tape drive Figure 58: Connecting the power supply cable Ê Connect the power supply cable to the USB drive. Options Guide RX300 S6...
  • Page 82 Accessible drives and LSP/LSD Figure 59: Connecting the USB cable Ê Connect the USB cable to the USB drive. Options Guide RX300 S6...
  • Page 83 Accessible drives and LSP/LSD Figure 60: Connecting the USB cable for the tape drive to the system board Ê Connect the USB cable to the system board in USB slot 1 (see cabling plan in the chapter "Appendix" on page 125).
  • Page 84 Accessible drives and LSP/LSD Figure 61: Routing cables in the fan box holder and air duct holder Ê Route the cables in the fan box holder and air duct holder as shown in the photograph. Ê Replace the fan box (see section "Installing a fan box"...
  • Page 85 Accessible drives and LSP/LSD Connecting a USB RDX drive Figure 62: Connecting the power supply cable Ê Connect the power supply cable to the USB drive. Figure 63: Connecting the USB cable Options Guide RX300 S6...
  • Page 86 Accessible drives and LSP/LSD Ê Connect the USB cable to the USB drive. Figure 64: Connecting the USB cable for the tape drive to the system board Ê Connect the USB cable to the system board in USB slot 1 (see cabling plan in the chapter "Appendix"...
  • Page 87 Accessible drives and LSP/LSD Figure 65: Routing cables in the fan box holder and air duct holder Ê Route the cables in the fan box holder and air duct holder as shown in the photograph. Ê Replace the fan box (see section "Installing a fan box"...
  • Page 88 Accessible drives and LSP/LSD Options Guide RX300 S6...

  • Page 89: Expansion Cards And Bbu

    Expansion cards and BBU CAUTION! Before installing/removing expansion cards to/from the server, turn ● off the server, all peripheral devices, and any other connected devices. Also unplug all power cables from the power outlet. Failure to do so can cause electric shock. The circuit boards and soldered parts of internal options are exposed ●...

  • Page 90: Installing Expansion Cards

    Expansion cards and BBU Installing expansion cards The system board offers seven low profile PCI slots: There are no hot-plug slots. In the standard setup, slot 1 is populated with a SAS/SATA RAID controller. You will find an overview of the slots in the technical manual for the system board D2619-N.

  • Page 91: Upgrading A Sas/Sata Raid Controller

    Expansion cards and BBU Figure 67: Installing a controller Ê Install the expansion card into the PCI slot and press it carefully into the associated plug-in location on the system board. Ê Secure the slot cover with the screw. Ê If required, connect the cables to the system board or other components. Ê...
  • Page 92 Expansion cards and BBU Preparing a SAS RaidController for installation Figure 68: SAS RAID controller with a low profile slot cover Ê Secure the slot cover using the 2 screws in the square holes of the SAS/SATA RAID controller. Options Guide RX300 S6...
  • Page 93 Expansion cards and BBU Installing a SAS RAID controller Figure 69: Removing a controller Ê Remove the screw. Ê Loosen the two SAS cables. Ê Pull out the controller. Options Guide RX300 S6...
  • Page 94 Expansion cards and BBU Figure 70: Installing a controller Ê Insert the SAS/SATA RAID controller into PCI slot 1 (1) and push it carefully to secure. Ê Secure the slot cover (2) with a screw. Ê Connect plug X1 to the upper slot and plug X2 to the lower slot of the controller (3).

  • Page 95: Installing A Bbu

    Expansion cards and BBU Installing a BBU CAUTION! Do not connect the cable using excessive force, the connector is ● weak. Follow the safety instructions in the chapter "Safety instructions" on ● page Ê Open the server as described in section "Opening the server"...
  • Page 96 Expansion cards and BBU Installing the iBBU07 for a SAS/SATA RAID controller on the air duct Figure 72: Installing the iBBU07 for a SAS/SATA RAID controller on the air duct Ê Place the BBU on the air duct in such a way that the 3 holes are in line with the bolts on the BBU.
  • Page 97 Expansion cards and BBU The side of the plug with 2 pin rows must be facing upward. Installing the iBBU08 for a SAS/SATA RAID controller on the air duct Figure 74: Installing the iBBU08 for a SAS/SATA RAID controller on the air duct Ê...
  • Page 98 Expansion cards and BBU Figure 75: Connecting the BBU cable Ê Connect the BBU cable. Use the short cable for the controller in slot 1. The side of the plug with 2 pin rows must be facing upward. Options Guide RX300 S6...
  • Page 99 Expansion cards and BBU Connecting the BBU cable for SAS/SATA RAID controllers Figure 76: Inserting the air duct Ê Insert the air duct. Figure 77: Connecting the BBU to a SAS/SATA RAID controller Options Guide RX300 S6...
  • Page 100 Expansion cards and BBU Ê Connect the connecting cable (BBU to controller) on the controller. The side of the plug with 2 pin rows must be facing upward. Installing BBU2 for slot 7 Ê For iBBU07 connect the cable from the battery to the board see figure 71 on page Figure 78: Connecting the BBU cable to iBBU07...
  • Page 101 Expansion cards and BBU Figure 79: Connecting the BBU cable to iBBU08 Ê Connect the BBU cable. Use the long cable for the controller in slot 7. The side of the plug with 2 pin rows must be facing upward. Ê...
  • Page 102 Expansion cards and BBU Ê Secure the BBU 2 to the holder for the 2 BBU using the 3 screws. For iBBU08: install the BBU on the holder according to the installation on the air duct, see "Installing the iBBU08 for a SAS/SATA RAID controller on the air duct"...
  • Page 103 Expansion cards and BBU Figure 82: Connecting the cable to the controller Ê Connect the connecting cable (BBU to controller) on the controller. The side of the plug with 2 pin rows must be facing upward. Ê Push the cable behind the controller between the power supply cage and the controller.
  • Page 104 Expansion cards and BBU Options Guide RX300 S6...

  • Page 105: Further Options

    Further options CAUTION! Please note the safety instructions in chapter "Safety instructions" on page 19 T-handles Figure 83: Installing the T-handle Ê Remove the black pads (1) out of the square hole in the front cover. Ê Insert the handle from the front side (2). Ê...

  • Page 106: Front Video Connector (Vga)

    Further options Front video connector (VGA) Ê Open the server as described in chapter "Preparation" on page Ê Remove the air duct as described in section "Removing the air duct" on page Figure 84: Removing a VGA cover Ê Remove the VGA cover at the front of the server. Options Guide RX300 S6...
  • Page 107 Further options Figure 85: Preparing the video connector Ê Remove both screws from the plug. Figure 86: Removing the fan box holder Ê Remove the cables from the fan box holder. Ê Loosen the screw and remove the fan box holder. Options Guide RX300 S6...
  • Page 108 Further options Figure 87: Removing the front panel frame Ê Push the locking lever up. Ê Pull the front panel frame inward and out. Options Guide RX300 S6...
  • Page 109 Further options Figure 88: Installing the video connector in the front panel frame Ê Push the video connector through the front panel frame (1). Ê Tighten both screws (2). Options Guide RX300 S6...
  • Page 110 Further options Figure 89: Installing the front panel frame Ê Installing the front panel frame. Ê Push the front panel frame forward until it engages. Ê Replace the fan box holder, and secure with screws. Ê Route the cables in the fan box holder and air duct holder. Figure 90: Connecting the front VGA cable to the system board Options Guide RX300 S6...

  • Page 111: Tpm

    Further options Ê Connect the front VGA cable to the system board. See cabling plan chapter "Appendix" on page 125. Ê Replace the fan box (see section "Installing a fan box" on page 117). Ê Close the server, connect it to the power outlet, and switch it on as described in the chapter "Completion"...
  • Page 112 Further options Figure 92: Inserting the TPM spacer on the system board Ê Insert the TPM spacer into the hole on the system board. Figure 93: Installing the TPM Ê Insert the TPM on the system board. Options Guide RX300 S6...
  • Page 113 Further options Figure 94: Securing a TPM Module Ê Fasten the TPM with the special screw for the TPM. Please use the TPM screwdriver insert bit to tighten the special screw. Do not fasten the screw too tightly (torque value of 0.6 Nm). Ê...

  • Page 114: Usb Flash Module (Ufm)

    Further options USB Flash Module (UFM) Figure 95: UFM installation kit USB Flash Module (UFM) UFM spacer UFM nylon screw Ê Open the server as described in section "Opening the server" on page Ê Remove the air duct as described in section "Removing the air duct"...
  • Page 115 Further options Figure 96: Connecting the UFM to the system board Ê Connect the USB Flash Module to the system board. The spacer must click into the hole on the system board. Ê Insert the power supply cage as in section "Installing a power supply cage"...
  • Page 116 Further options Options Guide RX300 S6...

  • Page 117: Completion

    Completion CAUTION! Please note the safety instructions in chapter "Safety instructions" on page 10.1 Installing a fan box Figure 97: Installing a fan box Ê Install the fan box perfectly straight. Ê Push fan box down until it engages. Make sure that all cables lie in fan box holder and air duct holder. The power cables must be under the SAS cables in the holders.

  • Page 118: Installing A Power Supply Cage

    Completion 10.2 Installing a power supply cage Figure 98: Installing a power supply cage Ê When installing the power supply cage, keep it perfectly straight and horizontal to avoid damaging the plugs on the system board, then push to secure. Ê...
  • Page 119 Completion Figure 99: Installing the power supply dummy module Ê Reinstall the dummy module and the power supply module(s), depending on the configuration. Options Guide RX300 S6...

  • Page 120: Inserting The Air Duct

    Completion 10.3 Inserting the air duct Figure 100: Inserting the air duct over the main memory and processors Ê Replace the air duct over the main memory and processors. Ê If a SAS/SATA RAID controller is installed and you loosened the BBU cable when removing the air duct, re-connect the BBU cable.

  • Page 121: Closing The Server

    Completion 10.4 Closing the server Figure 101: Closing the top cover Ê Replace the top cover. Ê Slide the cover forward. Ê Make sure that the locks engage. Options Guide RX300 S6...

  • Page 122: Installing The Server In The Rack

    Completion 10.5 Installing the server in the rack If you have not removed the server from the rack cabinet, please skip this section: Figure 102: Installing the server in the rack cabinet CAUTION! Ensure that the safety lock has been inserted before the server is inserted.
  • Page 123 Completion Ê Connect all power plugs to the power outlets. Ê Press the On/Off button to start up the server. Options Guide RX300 S6...
  • Page 124 Completion Options Guide RX300 S6...

  • Page 125: Appendix

    Appendix 11.1 Cable list Cable # * Part number Code number Name T26139-Y3994-V1 A3C40097650 Front VGA T26139-Y3925-V303 A3C40097642 Front panel T26139-Y3928-V205 A3C40103930 SATA T26139-Y3807-V201 A3C40097864 Front USB cable T26139-Y3986-V301 A3C40097692 Optical / USB drive power supply for barebone model S26361-K1344-A100/A200 T26139-Y3986-V302 A3C40103416 Optical drive power supply for barebone model S26361-K1344-A300...
  • Page 126 Appendix Cable # * Part number Code number Name T26139-Y3963-V109 A3C40103414 SAS C2/X2 für 2.5"- backplane (barebone models S26361-K1344- A200 and S26361-K1344- A300) T26139-Y3973-V96 A3C40099017 Internal USB drives T26139-Y3987-V3 A3C40092034 BBU Slot 1 T26139-Y3987-V2 A3C40090454 BBU Slot 7 T26139-Y3969-V251 A3C40114137 SATA onboard (8 x2.5" only) The following table shows a cable overview: *Refers to the following cabling plans.

  • Page 127: Cabling Plans

    System Board D2619-N H D D Inte rn only Inte rn USB1 only Inte rn USB2 only Fan backplane 6x3,5” 1 2 V/5 V backplane Figure 103: Cabling for PRIMERGY RX300 S6 with 3.5" hard disk drives Options Guide RX300 S6...
  • Page 128 Inte rn only Inte rn USB1 only only Inte rn USB2 only Fan backplane 6x3,5“ 1 2 V/5 V backplane Figure 104: Cabling for PRIMERGY RX300 S6 with 3.5" hard disk drives and 1 USB drive Options Guide RX300 S6...

  • Page 129: Options Guide

    Fan backplane 1 2 V/5 V 8x3 ,5 “ S A S b a ckp la n e Figure 105: Cabling for PRIMERGY RX300 S6 with 8x 2.5" hard disk drives and 1 USB drive Options Guide RX300 S6...
  • Page 130 USB2 Fan backplane 1 2 V/5 V 8x3 ,5 “ S A S b a ckp la n e Figure 106: Cabling for PRIMERGY RX300 S6 with 8x 2.5" hard disk drives and 1 USB drive Options Guide RX300 S6...
  • Page 131 Inte rn only Inte rn only USB1 Inte rn only USB2 Fan backplane 1 2 V/5 V S A S backplane 12x2,5 “ Figure 107: Cabling for PRIMERGY RX300 S6 with 12 x 2.5" hard disk drives Options Guide RX300 S6...

  • Page 132: Configuration Schema

    Appendix 11.3 Configuration schema Area for 9 slots for FAN1 PSU1 T4 (ambient memory PSU1 sensor, located at • Temp FAN2 PSU 1 board) • FAN1 PSU2 2 • CPU 1 • PSU2 • Front VGA redundant FAN2 PSU2 Drive Area based on 3 different SAS - BP - 6 x 3,5”...
