Leica S4 E StereoZoom Assembly Manual

Assembly manual
Leica S4 E with A-Stand
Congratulations on the purchase of your new StereoZoom®. Soon you will be enjoying some of the finest imaging capabilities
modern technology can provide. All items are packed individually to secure optimal protection for storage and shipping. Prior to
unpacking or assembly please make sure that your shipment contains the following individual inner boxes:
Kit # # 1 1 0 8 8 10 0 0 14
1 Box 10446293 S4 E StereoZoom
1 Box 10447130 10x Eyepiece, fix
1 Box 10447131 10x Eyepiece, adj.
1 Box 10446339 Focus column
1 Box 10446340 Base
1 Box 10447039 Dust cover

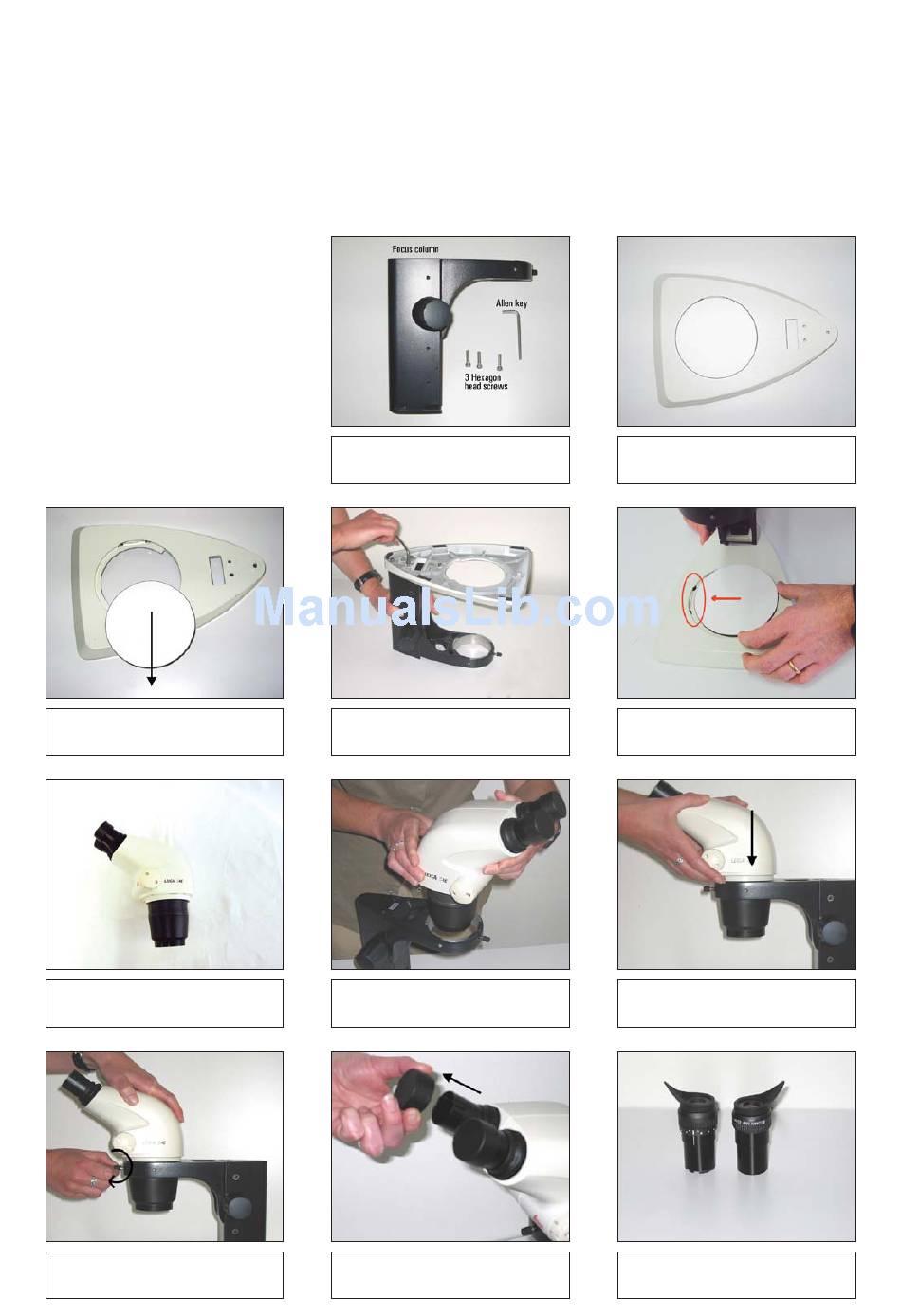

Remove stage plate for assembly
of the focus column
Unpack 10446293 StereoZoom®
Leica S4 E
Fix StereoZoom® with clamping
screw by turning screw clockwise
Open your box 10446399 "Focus
column" and you will find:
Insert 3 screws from the bottom of
the base and screw them tightly
Insert your StereoZoom® ...
Remove tube caps from the
StereoZoom®
Open box 10446340 "Base"
Slide in the stage plate from the
side as shown in the picture
... in the focus column
Unpack the eyepiece 10447130
and the eyepiece 10447131
