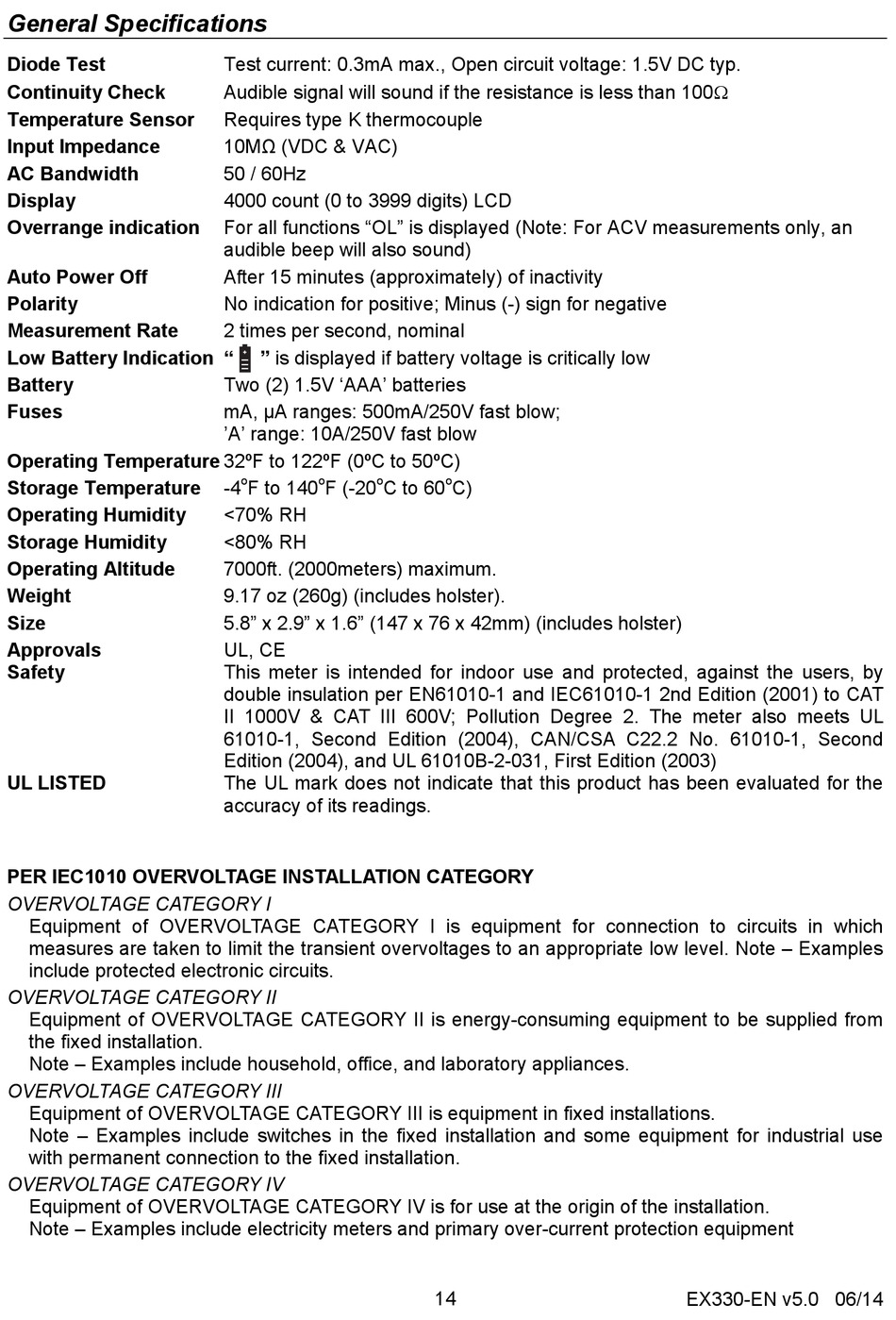

General Specifications

Diode Test
Continuity Check
Temperature Sensor
Input Impedance
AC Bandwidth
Display
Overrange indication
Auto Power Off
Polarity
Measurement Rate
Low Battery Indication "
Battery
Fuses
Operating Temperature 32ºF to 122ºF (0ºC to 50ºC)
Storage Temperature
Operating Humidity
Storage Humidity
Operating Altitude
Weight
Size
Approvals
Safety
UL LISTED
PER IEC1010 OVERVOLTAGE INSTALLATION CATEGORY
OVERVOLTAGE CATEGORY I
Equipment of OVERVOLTAGE CATEGORY I is equipment for connection to circuits in which
measures are taken to limit the transient overvoltages to an appropriate low level. Note – Examples
include protected electronic circuits.
OVERVOLTAGE CATEGORY II
Equipment of OVERVOLTAGE CATEGORY II is energy-consuming equipment to be supplied from
the fixed installation.
Note – Examples include household, office, and laboratory appliances.
OVERVOLTAGE CATEGORY III
Equipment of OVERVOLTAGE CATEGORY III is equipment in fixed installations.
Note – Examples include switches in the fixed installation and some equipment for industrial use
with permanent connection to the fixed installation.
OVERVOLTAGE CATEGORY IV
Equipment of OVERVOLTAGE CATEGORY IV is for use at the origin of the installation.
Note – Examples include electricity meters and primary over-current protection equipment
Test current: 0.3mA max., Open circuit voltage: 1.5V DC typ.
Audible signal will sound if the resistance is less than 100
Requires type K thermocouple
10MΩ (VDC & VAC)
50 / 60Hz
4000 count (0 to 3999 digits) LCD
For all functions "OL" is displayed (Note: For ACV measurements only, an
audible beep will also sound)
After 15 minutes (approximately) of inactivity
No indication for positive; Minus (-) sign for negative
2 times per second, nominal
" is displayed if battery voltage is critically low
Two (2) 1.5V 'AAA' batteries
mA, µA ranges: 500mA/250V fast blow;
'A' range: 10A/250V fast blow
o o o
-4 F to 140 F (-20 C to 60
<70% RH
<80% RH
7000ft. (2000meters) maximum.
9.17 oz (260g) (includes holster).
5.8" x 2.9" x 1.6" (147 x 76 x 42mm) (includes holster)
UL, CE
This meter is intended for indoor use and protected, against the users, by
double insulation per EN61010-1 and IEC61010-1 2nd Edition (2001) to CAT
II 1000V & CAT III 600V; Pollution Degree 2. The meter also meets UL
61010-1, Second Edition (2004), CAN/CSA C22.2 No. 61010-1, Second
Edition (2004), and UL 61010B-2-031, First Edition (2003)
The UL mark does not indicate that this product has been evaluated for the
accuracy of its readings.
o
C)
14 EX330-EN v5.0 06/14
