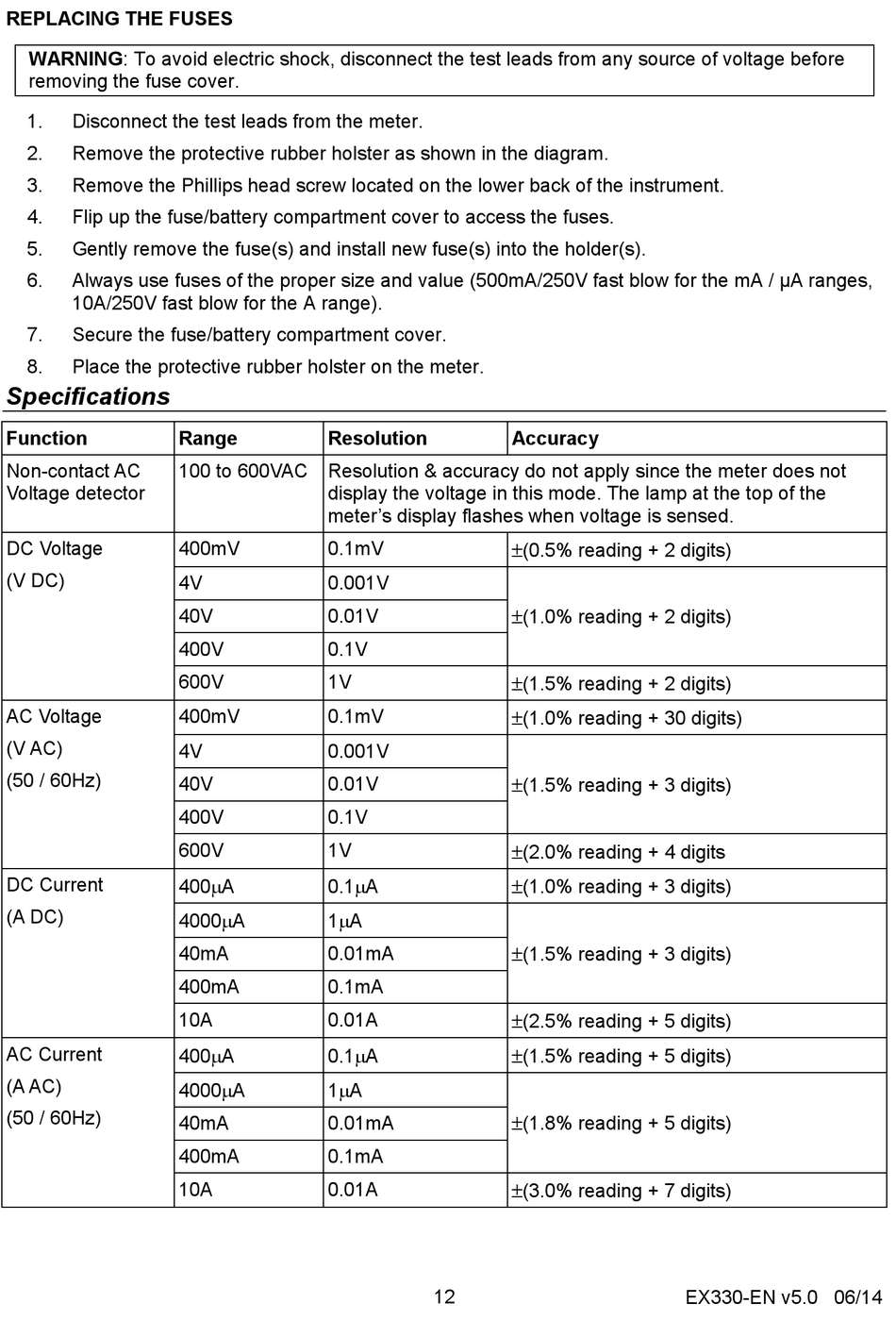

REPLACING THE FUSES

WARNING: To avoid electric shock, disconnect the test leads from any source of voltage before
removing the fuse cover.
1. Disconnect the test leads from the meter.
2. Remove the protective rubber holster as shown in the diagram.
3. Remove the Phillips head screw located on the lower back of the instrument.
4. Flip up the fuse/battery compartment cover to access the fuses.
5. Gently remove the fuse(s) and install new fuse(s) into the holder(s).
6. Always use fuses of the proper size and value (500mA/250V fast blow for the mA / µA ranges,
10A/250V fast blow for the A range).
7. Secure the fuse/battery compartment cover.
8. Place the protective rubber holster on the meter.

Specifications

Function
Non-contact AC
Voltage detector
DC Voltage
(V DC)
AC Voltage
(V AC)
(50 / 60Hz)
DC Current
(A DC)
AC Current
(A AC)
(50 / 60Hz)
Range Resolution
100 to 600VAC Resolution & accuracy do not apply since the meter does not
display the voltage in this mode. The lamp at the top of the
meter's display flashes when voltage is sensed.
400mV 0.1mV
4V 0.001V
40V 0.01V
400V 0.1V
600V 1V
400mV 0.1mV
4V 0.001V
40V 0.01V
400V 0.1V
600V 1V
400A 0.1A
4000A 1A
40mA 0.01mA
400mA 0.1mA
10A 0.01A
400A 0.1A
4000A 1A
40mA 0.01mA
400mA 0.1mA
10A 0.01A
Accuracy
(0.5% reading + 2 digits)
(1.0% reading + 2 digits)
(1.5% reading + 2 digits)
(1.0% reading + 30 digits)
(1.5% reading + 3 digits)
(2.0% reading + 4 digits
(1.0% reading + 3 digits)
(1.5% reading + 3 digits)
(2.5% reading + 5 digits)
(1.5% reading + 5 digits)
(1.8% reading + 5 digits)
(3.0% reading + 7 digits)
12 EX330-EN v5.0 06/14
