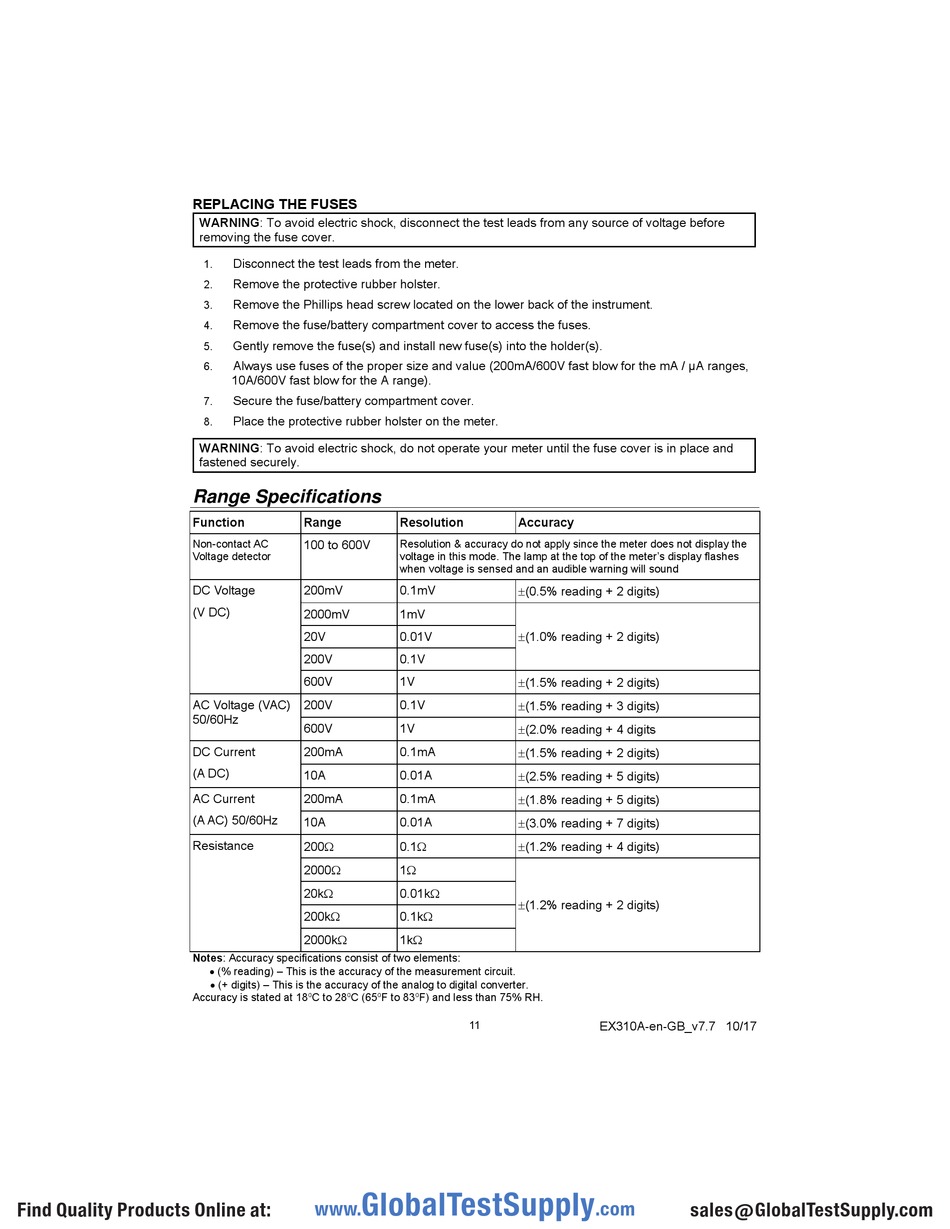

REPLACING THE FUSES

Range Specifications

Function
Non-contact AC
Voltage detector
DC Voltage
(V DC)
AC Voltage (VAC)
50/60Hz
DC Current
(A DC)
AC Current
(A AC) 50/60Hz
Resistance
Notes: Accuracy specifications consist of two elements:
Accuracy is stated at 18
Find Quality Products Online at:
WARNING: To avoid electric shock, disconnect the test leads from any source of voltage before
removing the fuse cover.
Disconnect the test leads from the meter.
1.
Remove the protective rubber holster.
2.
Remove the Phillips head screw located on the lower back of the instrument.
3.
Remove the fuse/battery compartment cover to access the fuses.
4.
Gently remove the fuse(s) and install new fuse(s) into the holder(s).
5.
Always use fuses of the proper size and value (200mA/600V fast blow for the mA / µA ranges,
6.
10A/600V fast blow for the A range).
Secure the fuse/battery compartment cover.
7.
Place the protective rubber holster on the meter.
8.
WARNING: To avoid electric shock, do not operate your meter until the fuse cover is in place and
fastened securely.
Range
100 to 600V
200mV
2000mV
20V
200V
600V
200V
600V
200mA
10A
200mA
10A
200
2000
20k
200k
2000k
 (% reading) – This is the accuracy of the measurement circuit.
 (+ digits) – This is the accuracy of the analog to digital converter.
o C to 28 o C (65 o
GlobalTestSupply
www.
Resolution Accuracy
Resolution & accuracy do not apply since the meter does not display the
voltage in this mode. The lamp at the top of the meter's display flashes
when voltage is sensed and an audible warning will sound
0.1mV
(0.5% reading + 2 digits)
1mV
0.01V
(1.0% reading + 2 digits)
0.1V
1V
(1.5% reading + 2 digits)
0.1V
(1.5% reading + 3 digits)
1V
(2.0% reading + 4 digits
0.1mA
(1.5% reading + 2 digits)
0.01A
(2.5% reading + 5 digits)
0.1mA
(1.8% reading + 5 digits)
0.01A
(3.0% reading + 7 digits)
0.1 (1.2% reading + 4 digits)
1
0.01k
(1.2% reading + 2 digits)
0.1k
1k
F to 83 o F) and less than 75% RH.
11 EX310A-en-GB_v7.7 10/17
