Parts Supplied; Tools Needed - KitchenAid Pro Line Series Installation And Use Instructions Manual
30" (76.2 cm) and 36" (91.4 cm) pro line series range hood
Hide thumbs
Advertisement
All openings in ceiling and wall where
range hood will be installed must be
sealed.
To reduce the risk of fire or electric
shock, do not use this fan with any
solid-state speed control device.
Tools needed:
• Saber saw or jig saw
• Drill
• 1-1/4" wood drill bit
• Scissors
• Pliers
• Phillips screwdriver
• Flat blade screwdriver
• Wire stripper or utility knife
• Metal snips
• Measuring tape or ruler
• Level
• Pencil
• Caulking gun
• Duct tape
• For chimney mounting brackets:
3/16" (4.8 mm) drill bit if using wall
anchors, 3/32" (2.4 mm) if installing
into wood
• For hood assembly mounting
brackets:
1/4" (6.4 mm) drill bit if using wall
anchors, 1/8" (3.2 mm) if installing
into wood
Parts needed:
• 2 - U.L.- or C.S.A.- listed, 1/2" (12.7 mm)
strain relief
• power supply cable
• 1 - wall or roof cap
• 6" round metal vent system
• 2 - #8 pan head wood screws to attach
wiring box to wall (wall anchors may be
needed)

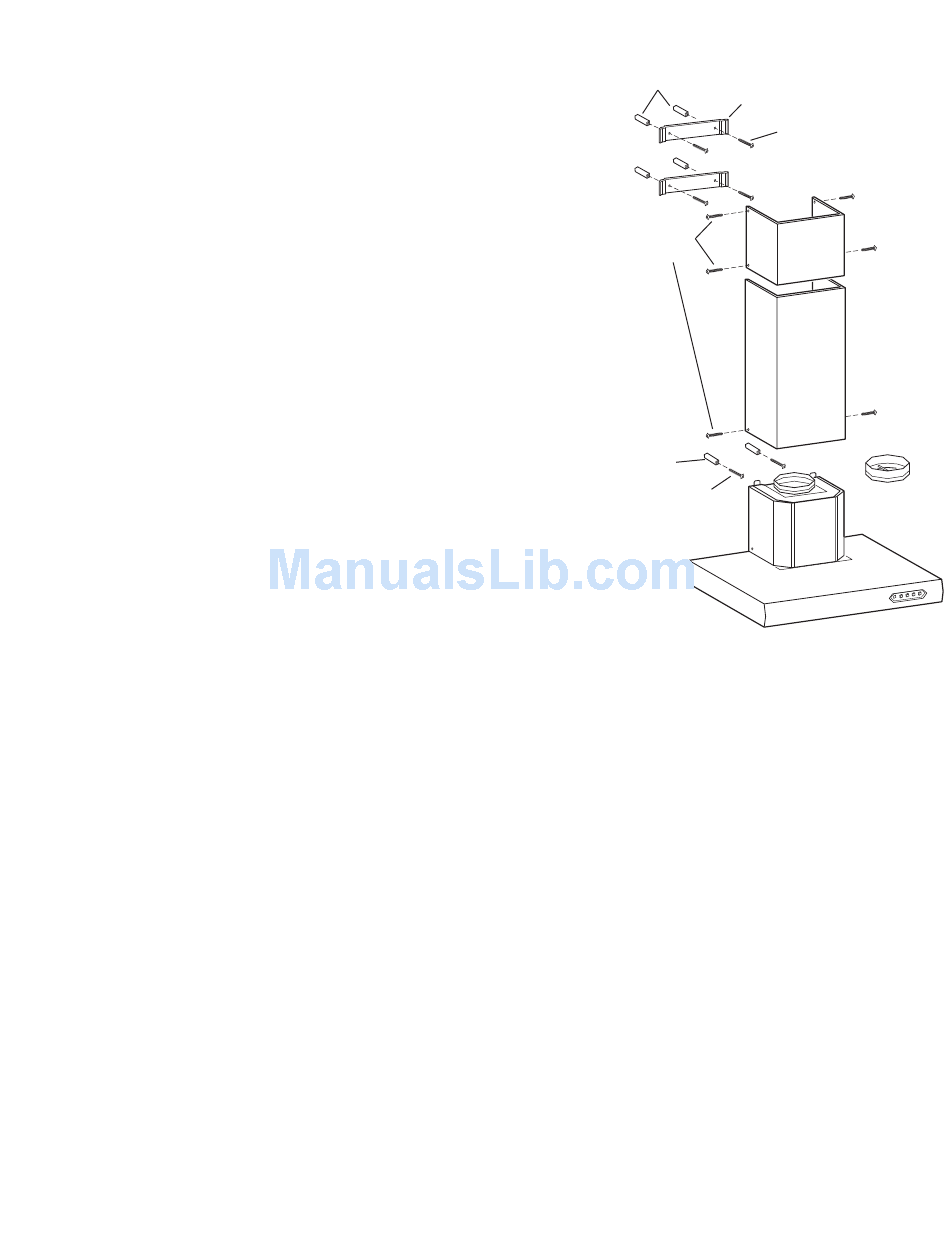

Parts supplied:
wall
anchors
chimney mounting
brackets
mounting
screws
chimney
screws
wall
anchors
mounting
screws
hood and vent
motor assembly
upper
chimney
lower
chimney
damper
3
